Launch X431 program Peugeot 408 2013 key

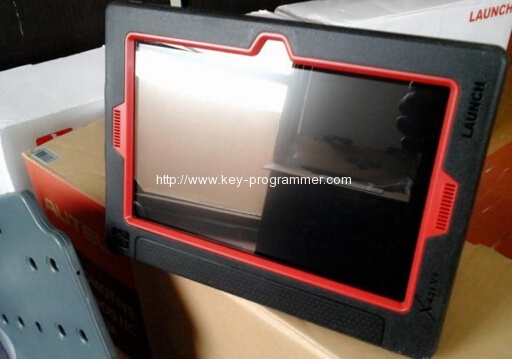

Share a key programming instruction with you all. Operation images from a Chinese customer who has managed to program Peugeot 408 new keys with original Launch X431 V (X431 pro). Program immobiliser key to Peugeot requesting for pin code.

lauch-x431-v-pro

Model:

Peugeot 408 2013, VIN= LDC943X48C13*****



Note:

– Prepare security code/pin code (usually under the spare key card, the last 4 letters after C9000000; if lost, ask the 4S store for help)

x431-pro-add-pug-408-key-1

– No need a diagnostic tool when the high-frequency remote control synchronizes (key emission frequency is not the same), just press the scan tool and follow the screen instruction.



Operation to add new keys with Launch X431:

1 select Peugeot v42.92 or newer versions

2 select car-> 408-> 408(2010.01-2014.09)

3 select Diagnosis

4 select a system

5 select Embedded Systems Interface (BSI), then  communicate with ECU for about 15s

x431-pro-add-pug-408-key-2

6 the system prompt the menu will be different on different models

x431-pro-add-pug-408-key-3

7 select Special Function

x431-pro-add-pug-408-key-4

8 select Repair Kit

x431-pro-add-pug-408-key-5

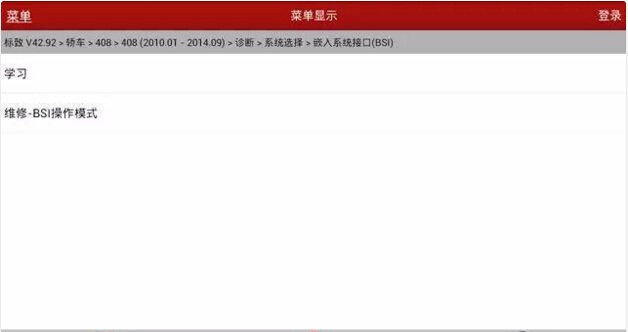

9 select Learning

x431-pro-add-pug-408-key-6

10 Select Key Programming

x431-pro-add-pug-408-key-7

11 enter the security codes to continue

(wrong security codes will stop the process)

Note: all keys should be programmed together

x431-pro-add-pug-408-key-8

12 click OK and enter the pin code twice

x431-pro-add-pug-408-key-9

13 Confirm pin code. Ready to program keys.

x431-pro-add-pug-408-key-10

14 enter keys number (maxi:5)

Here, keys number: 2

x431-pro-add-pug-408-key-11

15 turn ignition off

16 turn ignition on within 15 seconds

x431-pro-add-pug-408-key-13

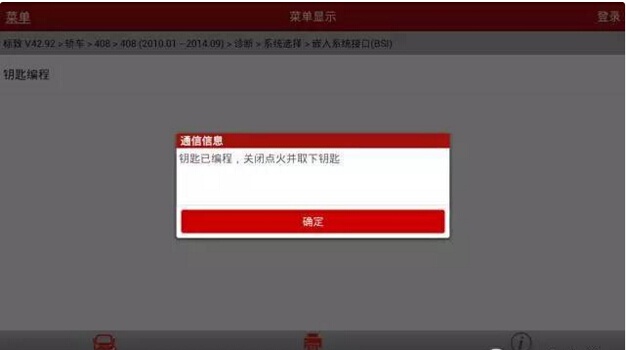

17 key programming success, and prompt that key programming complete, turn ignition off and take out the key

x431-pro-add-pug-408-key-14

18 quickly insert the second key to program

x431-pro-add-pug-408-key-15

19 turn ignition on within 15 seconds

x431-pro-add-pug-408-key-16

20 key programming success, and prompt that key programming complete, turn ignition off and take out the key

x431-pro-add-pug-408-key-17

21 click OK, and now programmed keys number: 2

x431-pro-add-pug-408-key-18

22 Check handbarke Is applied and gear shift in position “P” (automotive transmission)/gear shift in neutral position (manual transmission) before start the engine

x431-pro-add-pug-408-key-19

23 remote control programming, follow menu instruction step by step strictly

x431-pro-add-pug-408-key-20

24 remote control matching complete

x431-pro-add-pug-408-key-21

25 test the remote control and use the key to start the engine

remote control and new keys are verified working…Done!

Disconnect Launch X431 diagnostic system.
