Program Suzuki Swift 2015 Key via Xtool X100 Pad

Here is the instruction on programming key for Maruti Suzuki Swift 2015 Indian version without pin code by using Xtool X100 Pad tablet key programmer.



Instruction:
suzuki-swift-key-program-via-x100-1

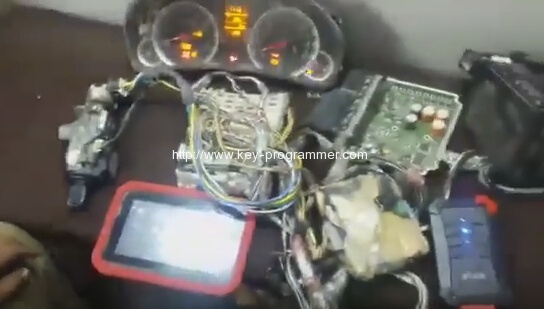

Well connect X100 Pad and PS_VCI Box

Select Immobilizer function

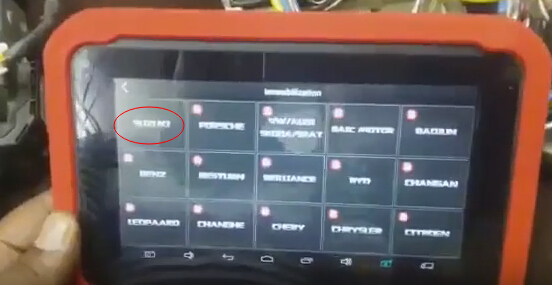

Select Suzuki

suzuki-swift-key-program-via-x100-2

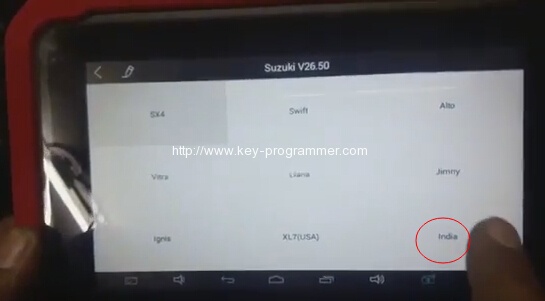

Select Suzuki India

suzuki-swift-key-program-via-x100-3

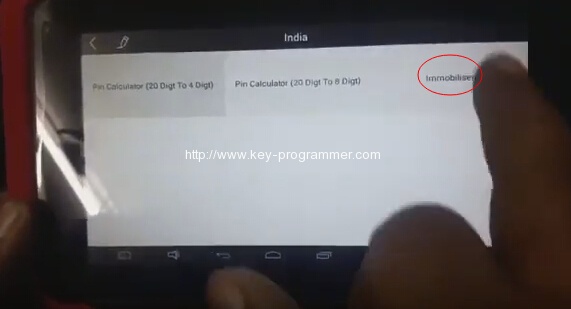

Select Immobiliser

suzuki-swift-key-program-via-x100-4

Select IMMO type: Type 5

suzuki-swift-key-program-via-x100-5

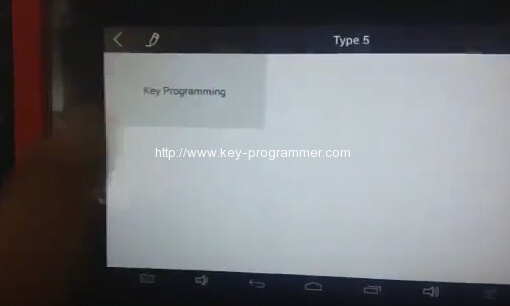

Select Key Porgramming

suzuki-swift-key-program-via-x100-6

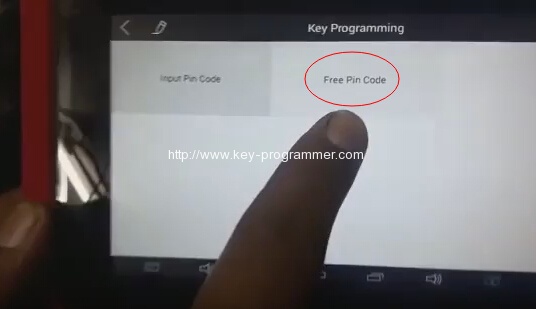

Select Free Pin Code

suzuki-swift-key-program-via-x100-7

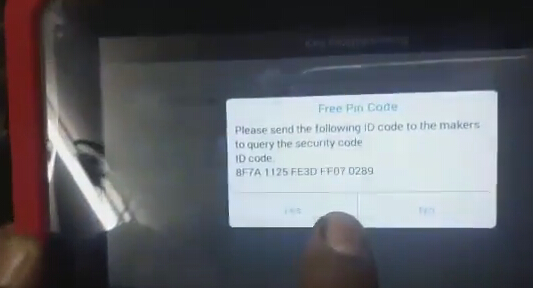

If the Xtool X-100 Pad prompt “Please send the following ID code to the makers to query the security code”

Press Yes to continue

suzuki-swift-key-program-via-x100-8

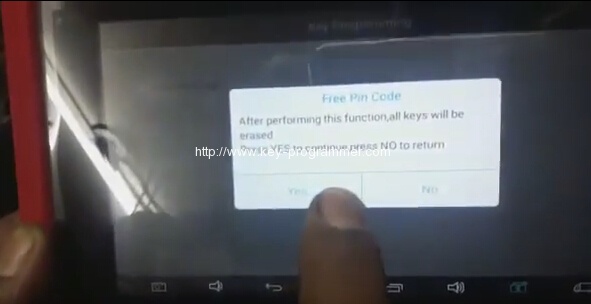

After performing this function, all keys will be erased.

Press Yes
Communicating…

suzuki-swift-key-program-via-x100-9

Program success, whether to program next one?
Totol keys: 1
Press Yes to continue, press No to quit programming.

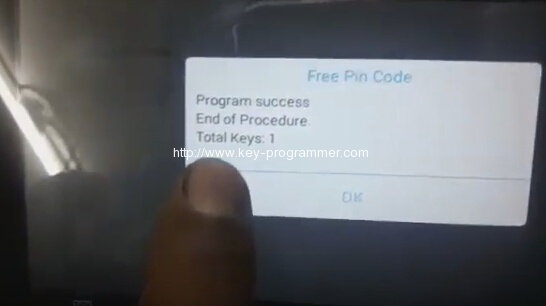

Program success. End of procedure.

suzuki-swift-key-program-via-x100-10

Test the new programmed key
