Autek iKey820 added a New Key to 2017 RAM 2500: 5 min done!

Autek iKey820 auto key programmer is a good investment for RAM 2500 key programming.

Have added a new key for 5 min only!



Car: RAM 2500 2017

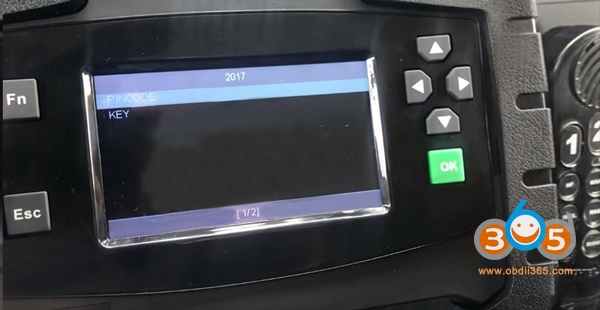

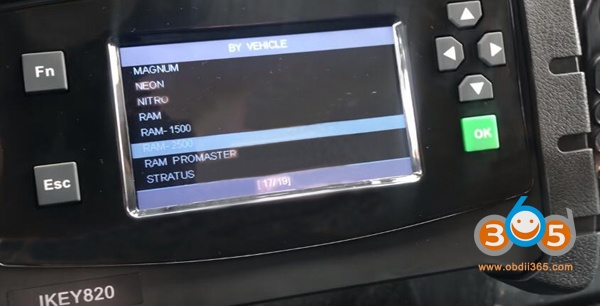

RAM 2500 2017 in Autek ikey820

autek-ikey820-ram-2500-add-key-1

autek-ikey820-ram-2500-add-key-2



Step 1: read pin code

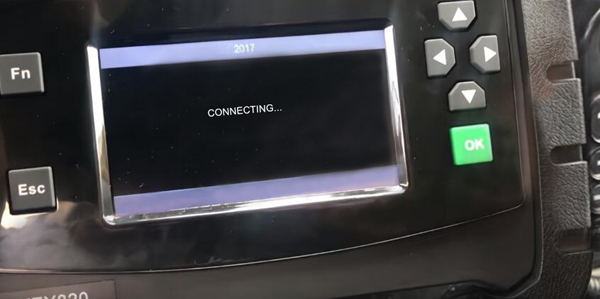

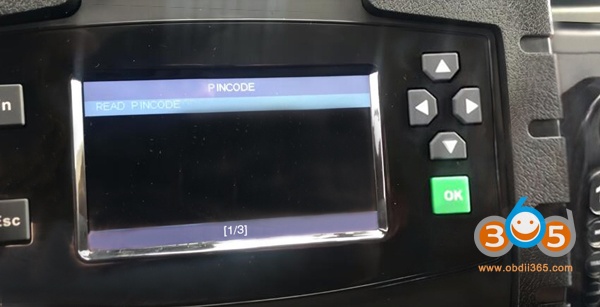

Autek ikey820 will read PINCODE

autek-ikey820-ram-2500-add-key-5

autek-ikey820-ram-2500-add-key-6

autek-ikey820-ram-2500-add-key-7

autek-ikey820-ram-2500-add-key-8

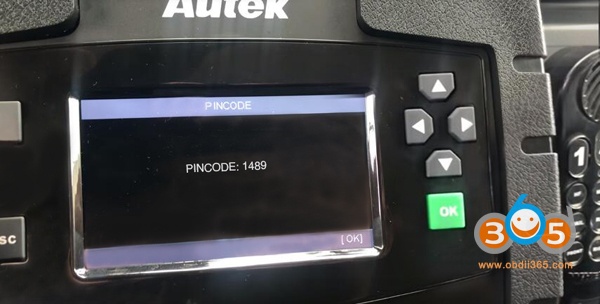

Pin code is read out!



Step 2: add a new key

Autek ikey820 starts to program a new key to 17’ RAM

autek-ikey820-ram-2500-add-key-9

loading database…

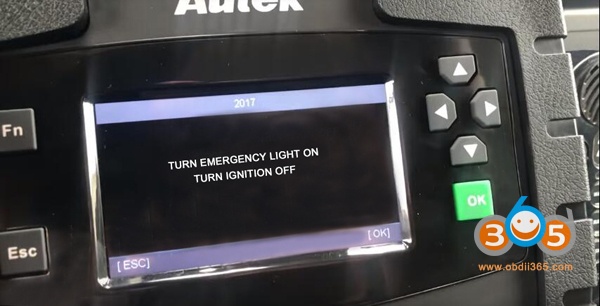

turn emergency light on

turn ignition off

autek-ikey820-ram-2500-add-key-12

Autek machine is communicating with RAM

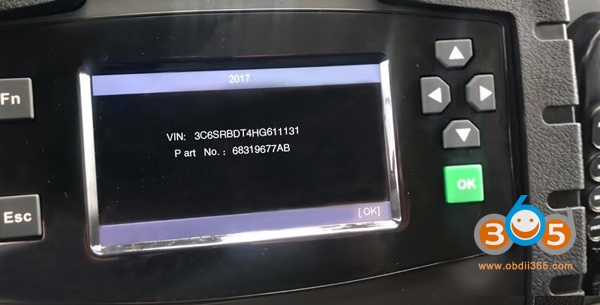

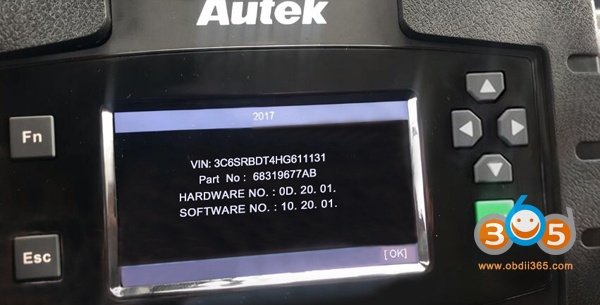

Autek read out VIN, part no., hardware no., software no.

autek-ikey820-ram-2500-add-key-14

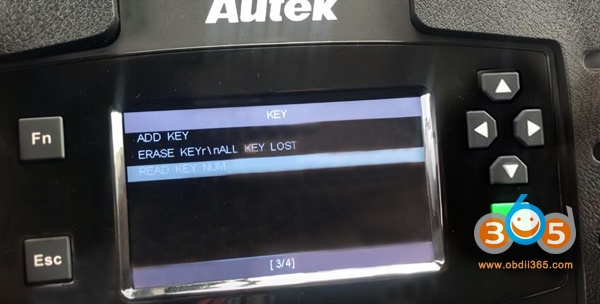

ikey 820 will read key quantity

autek-ikey820-ram-2500-add-key-15

insert a new key

turn emergency light on

turn ignition off

autek-ikey820-ram-2500-add-key-16

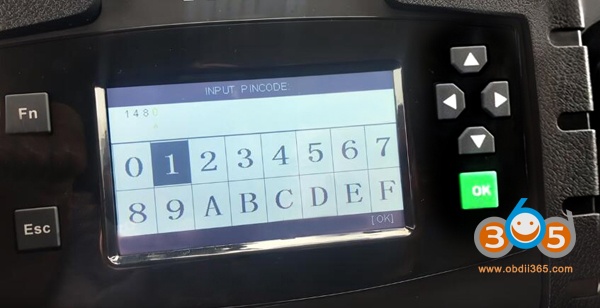

input pin code

autek-ikey820-ram-2500-add-key-17

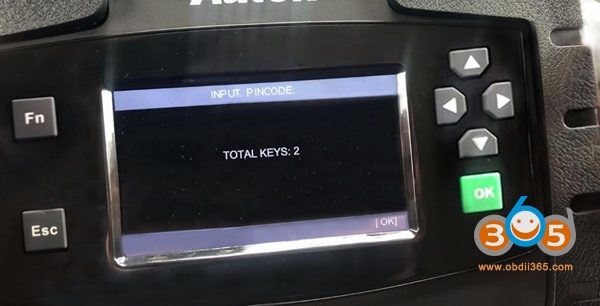

total keys: 2

autek-ikey820-ram-2500-add-key-19

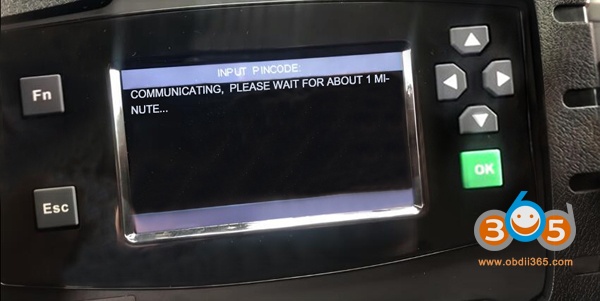

communicating… please wait for about 1 min

autek-ikey820-ram-2500-add-key-20

total keys: 3

autek-ikey820-ram-2500-add-key-21

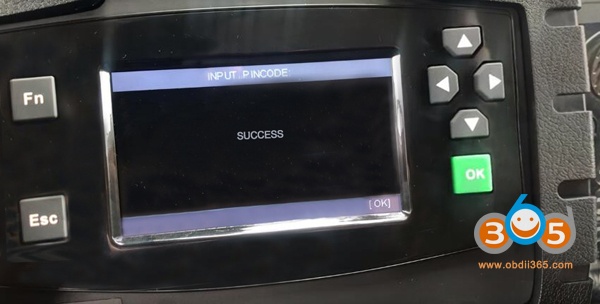

success! added one new key

autek-ikey820-ram-2500-add-key-22



Step 3: test the new key

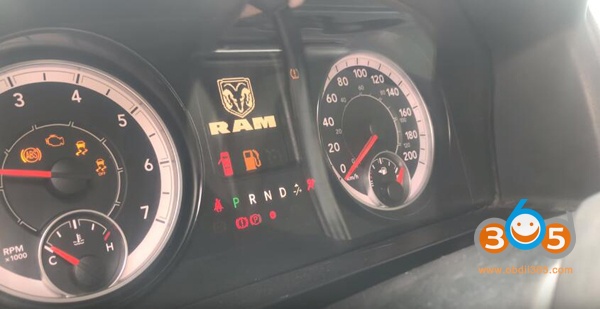

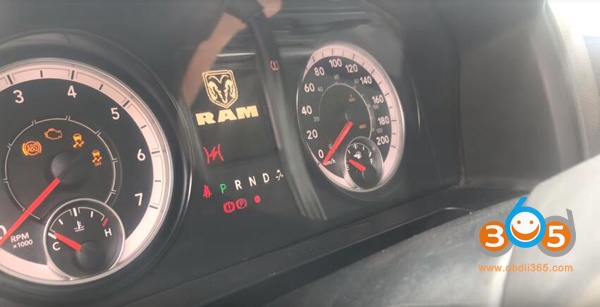

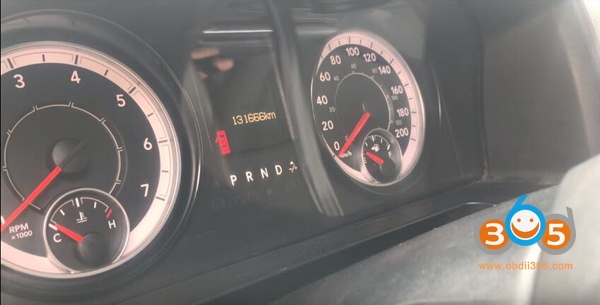

test the new key on the car

autek-ikey820-ram-2500-add-key-23

autek-ikey820-ram-2500-add-key-24

autek-ikey820-ram-2500-add-key-25

works like a charm!
