Program Toyota Sienta 2016+ All Smart Key Lost with Autel IM608 via OBD

How-to: program Toyota SIENTA 2016 all smart key lost and generate simulator key with Autel IM608 and APB112 emulator by OBD.



Model: Toyota Sienta 2016+

Toyota Sienta Akl Autel Im608 1

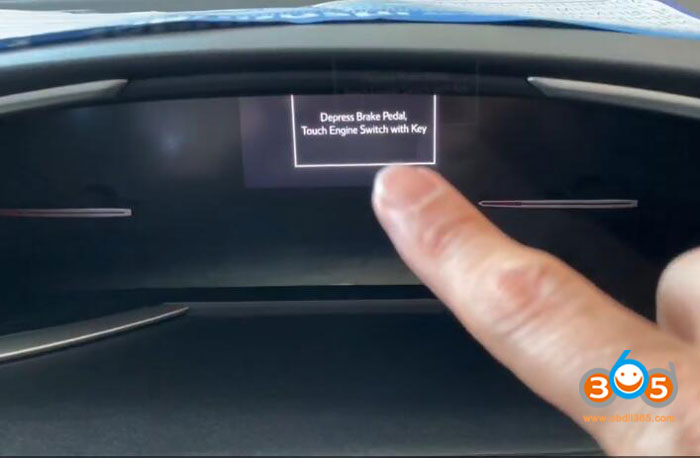

Lost all keys, cannot turn on

Toyota Sienta Akl Autel Im608 2

Device required:
Autel MaxiIM IM608 & XP400
APB112 emulator

new smart key





Procedure:

Step 1: Backup IMMO data

Connect IM608 VCI and APB112 emulator

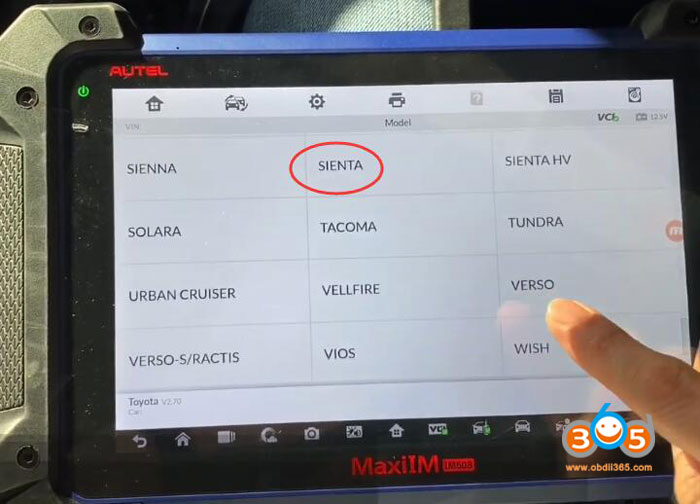

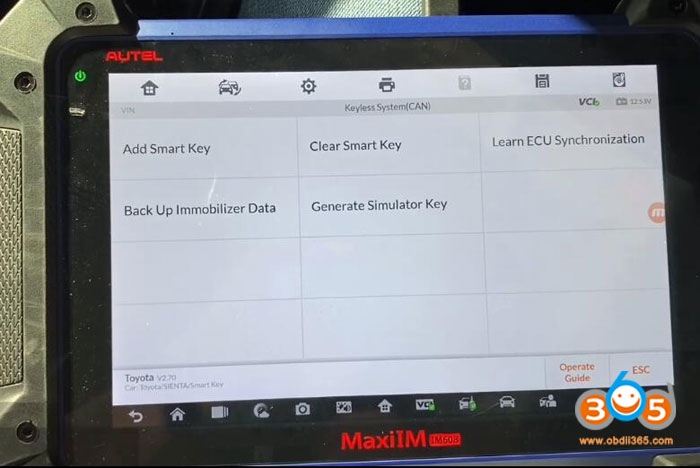

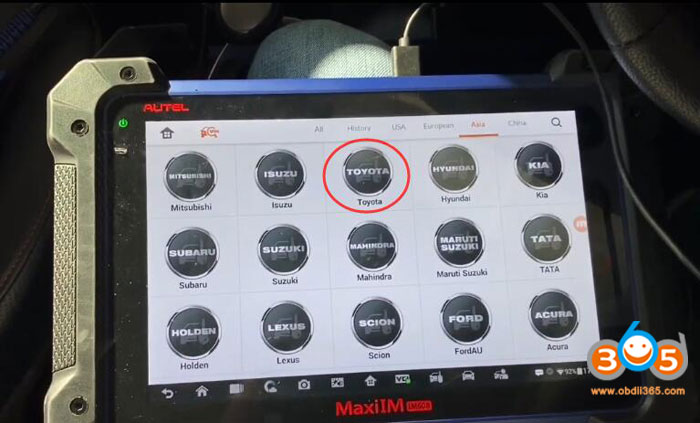

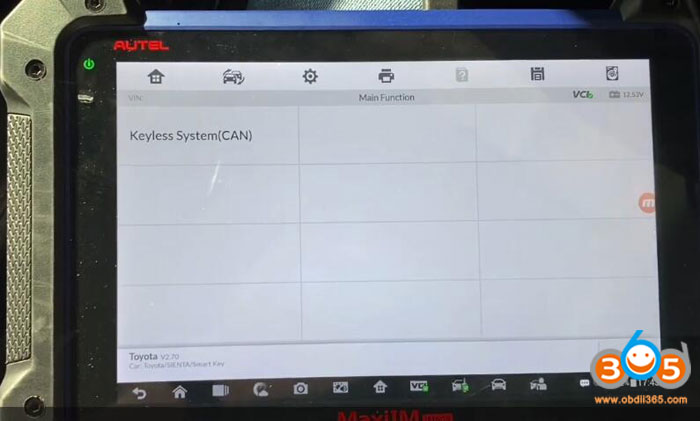

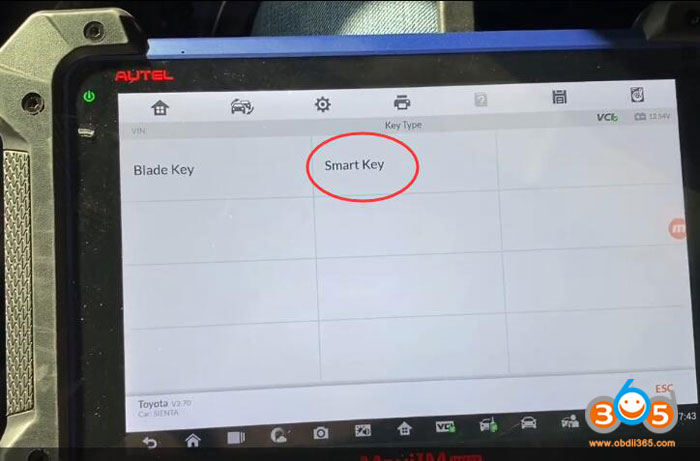

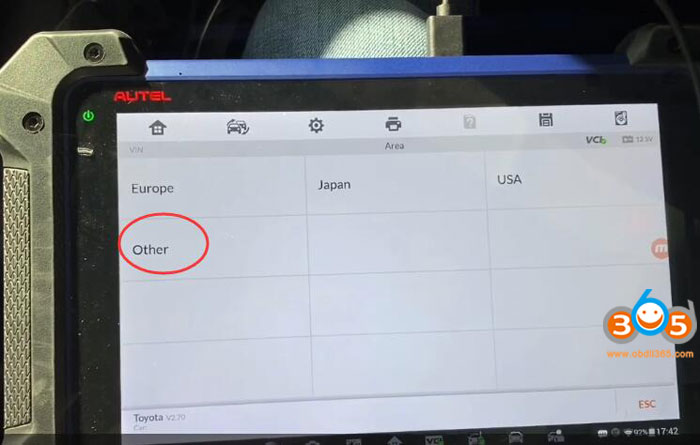

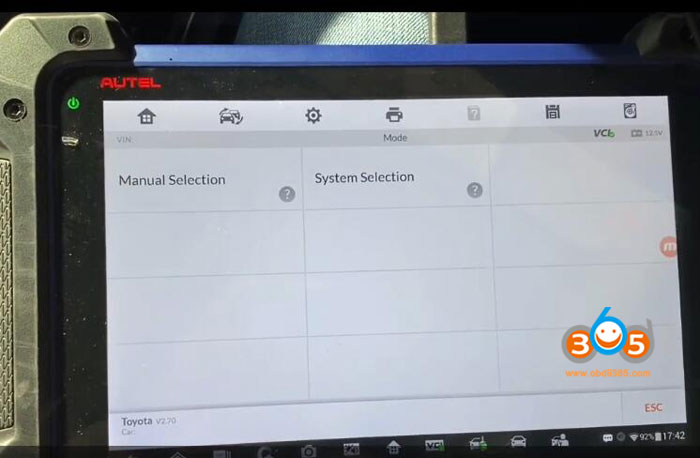

Select IMMO->Toyota->Manual Selection->Other->SIENTA->Smart Key->Keyless System (CAN) ->Backup Immobilizer Data

Toyota Sienta Akl Autel Im608 3

Toyota Sienta Akl Autel Im608 4

Toyota Sienta Akl Autel Im608 5

Toyota Sienta Akl Autel Im608 6

Toyota Sienta Akl Autel Im608 7

Toyota Sienta Akl Autel Im608 8

Toyota Sienta Akl Autel Im608 9

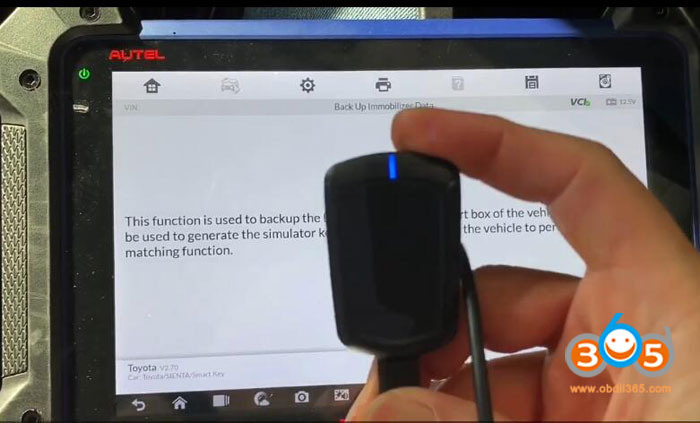

The function is used to backup the EEPROM data of the smart box of the vehicle.

Toyota Sienta Akl Autel Im608 10
The data can be used to generate the simulator key for emergency start of the vehicle to perform the key matching function.
Must enable network connection

Toyota Sienta Akl Autel Im608 11

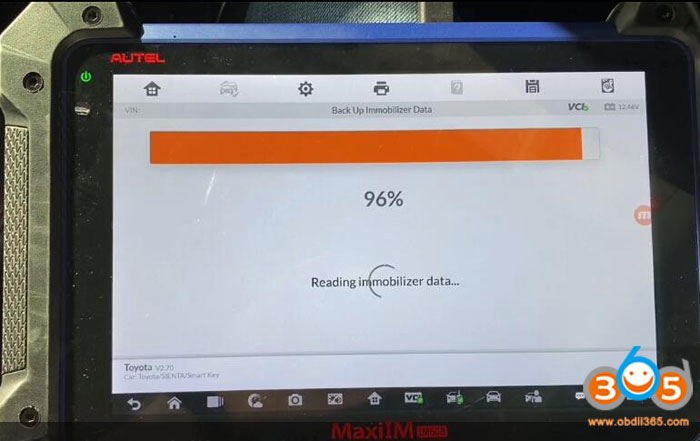

Read immo data in progress

Toyota Sienta Akl Autel Im608 12

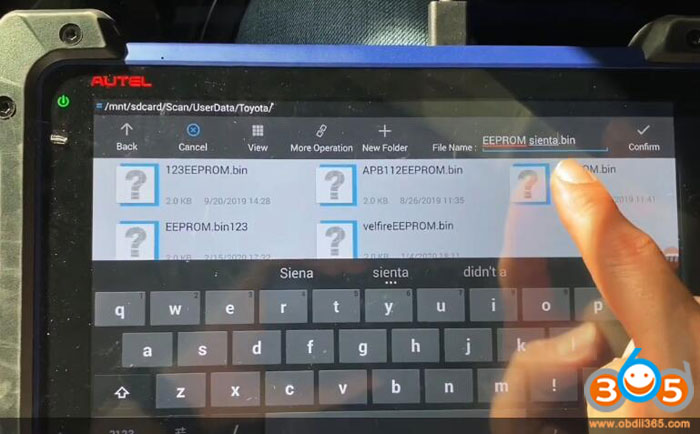

Save backup file.
Backup succeed.





Step 2: Generate simulator key

Toyota Sienta Akl Autel Im608 13
Select Generate Simulator Key

Toyota Sienta Akl Autel Im608 14

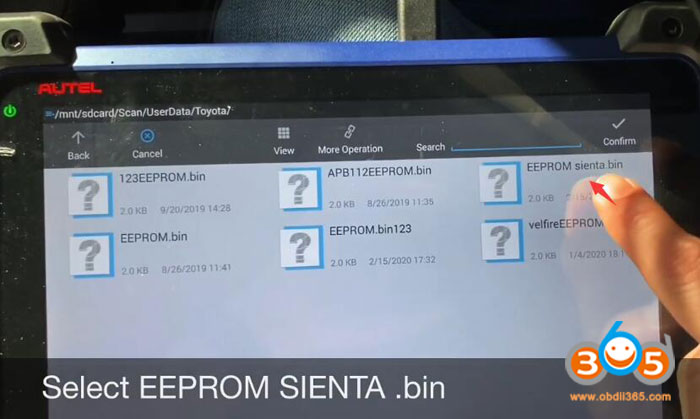

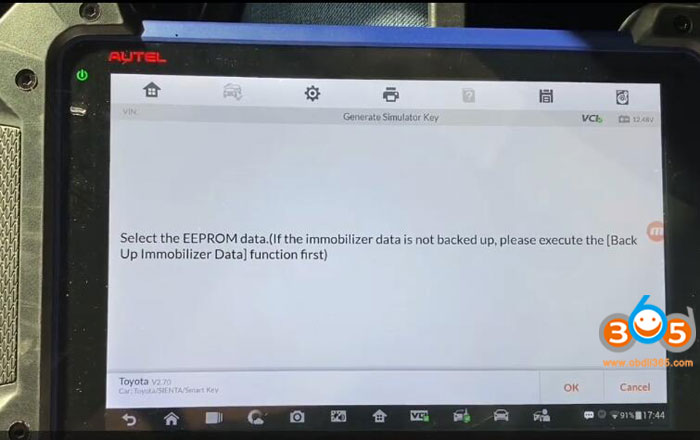

Select the EEPROM data saved in Step 1.
Retrieving critical data to generate simulator key

Toyota Sienta Akl Autel Im608 15

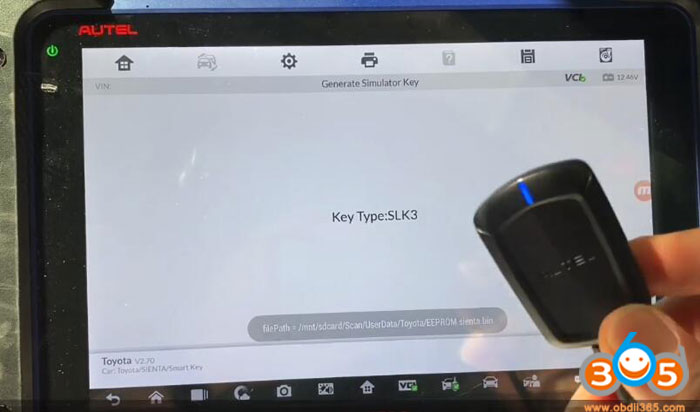

Key type: SLK-03

Toyota Sienta Akl Autel Im608 16

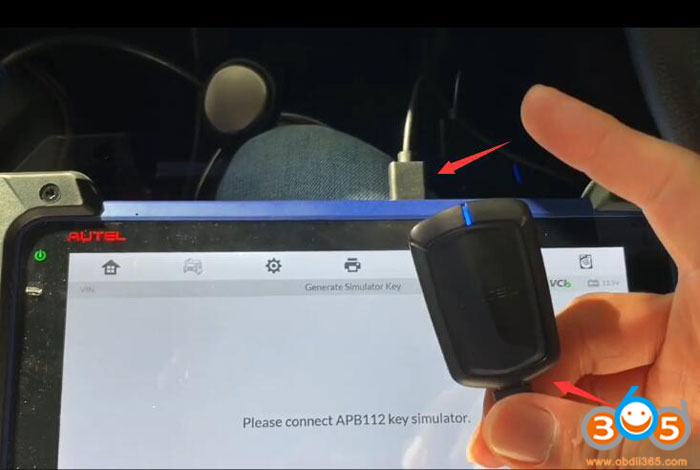

Connect APB112 key simulator via USB cable

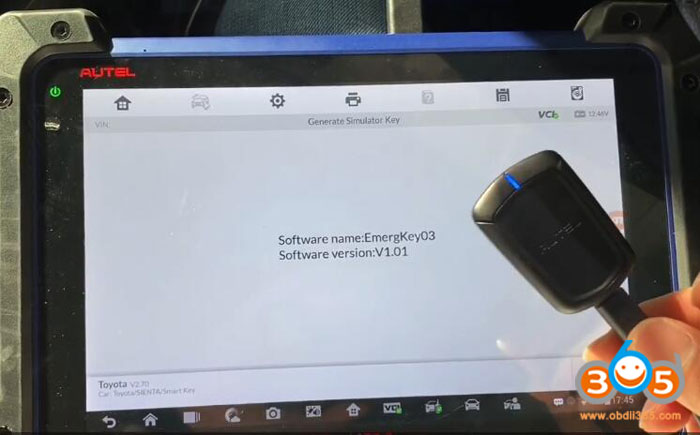

Toyota Sienta Akl Autel Im608 17
Identify APB112 software

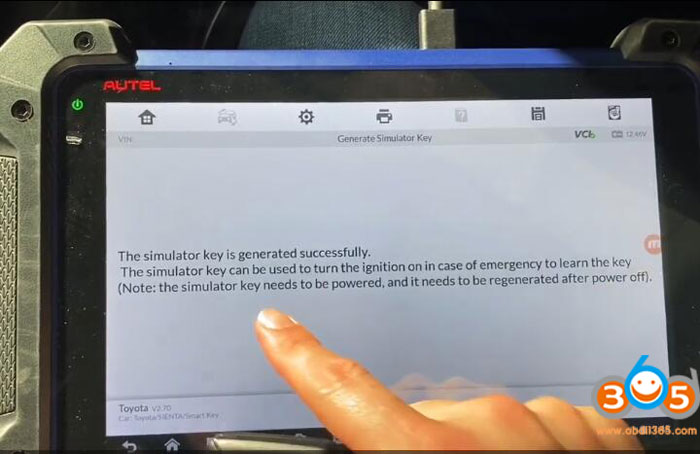

The simulator key is generated successfully.

Toyota Sienta Akl Autel Im608 18
The simulator key can be used to turn the ignition on in case of emergency to learn the key.

Toyota Sienta Akl Autel Im608 19

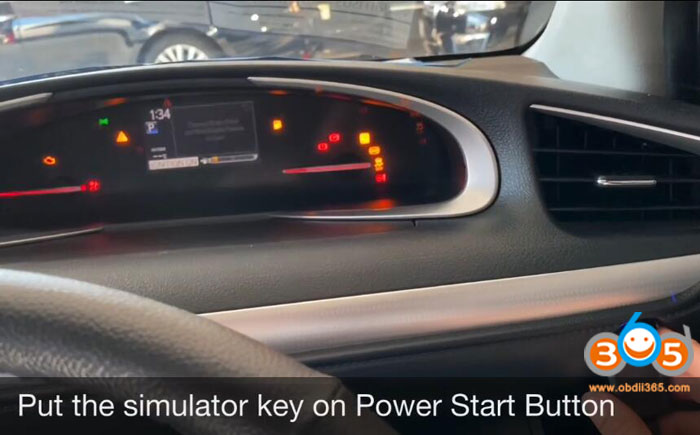

The key can turn on and start vehicle now.



Step 3: Learn new smart key
Use the simulator key to learn new original smart key

Toyota Sienta Akl Autel Im608 20

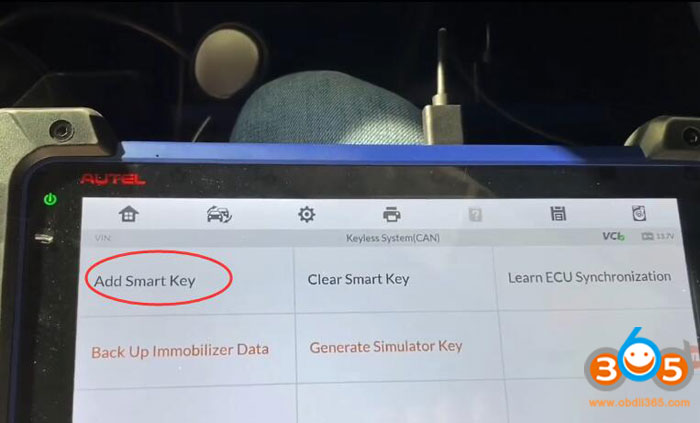

Choose Add Smart Key menu and follow Autel IM608 prompts to add new original smart remote until succeed.
