Read Citroen Relay 2005 Immo Box Data 93C56 with Xtool X100 PAD2

Citroen relay 2005 immo box data read successfully using the xtool x100 pad2.

Citroen Relay Eeprom

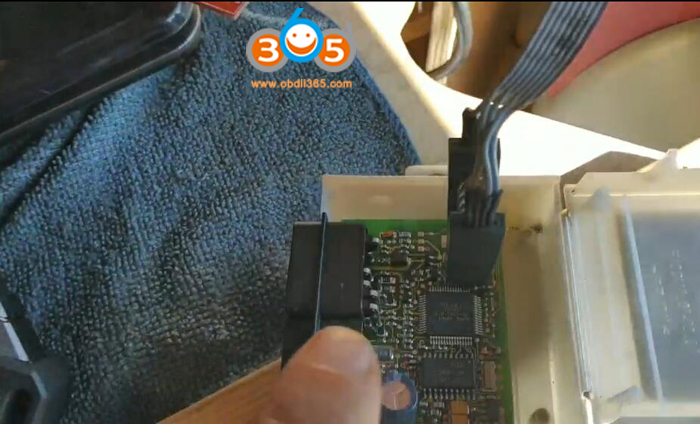

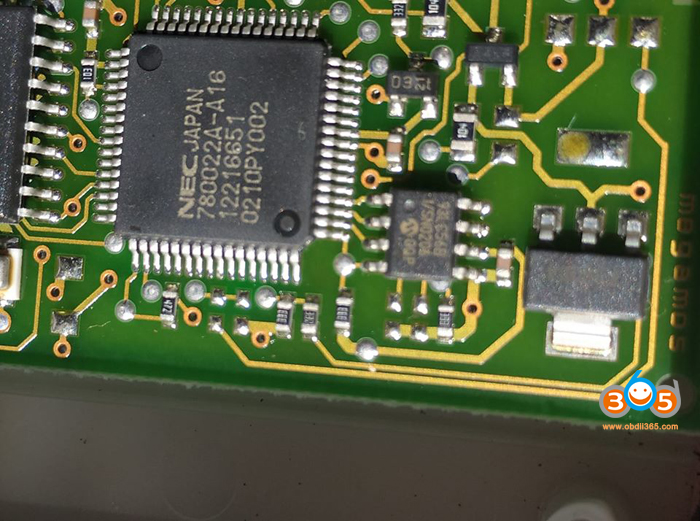

Connect x100 pad2 with eeprom adapter, solder 93c56 eeprom chip with clip adapter

Citroen Relay Eeprom 4

Citroen Relay Eeprom 5

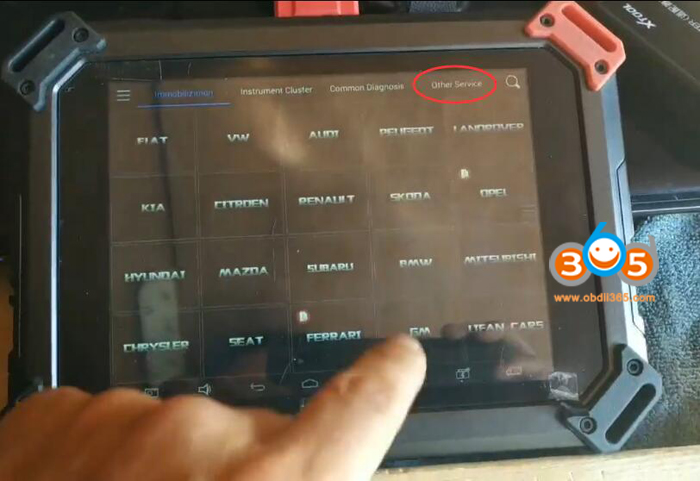

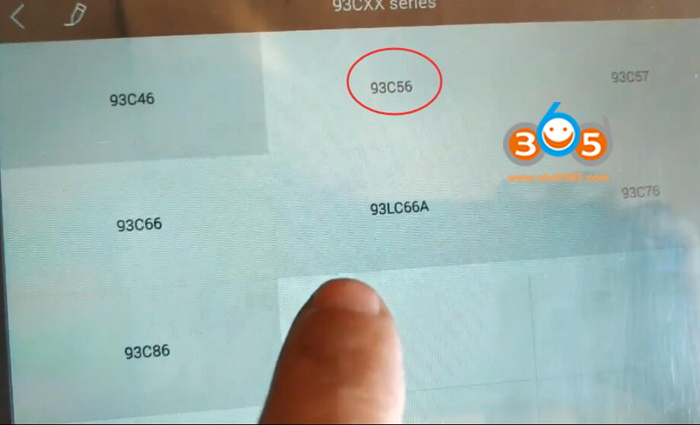

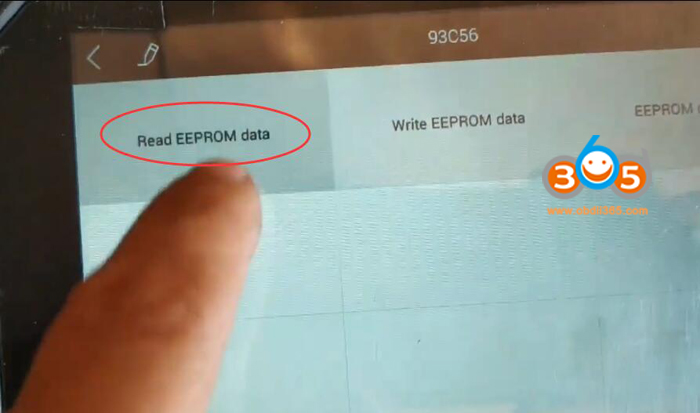

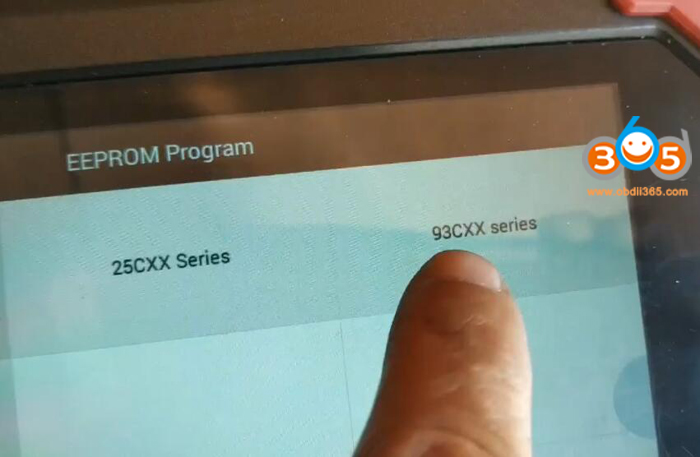

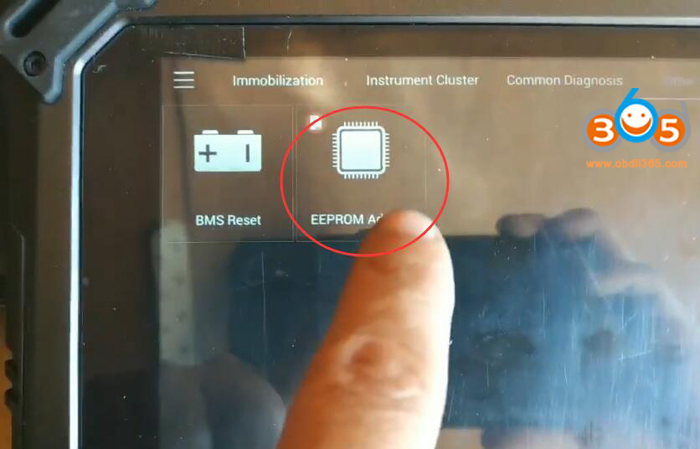

In x100 pad 2, select Other Service->EEPROM adapter->EEPROM Program->93CXX series->93C56->Read EEPROM data

Citroen Relay Eeprom 1

Citroen Relay Eeprom 2

Citroen Relay Eeprom 3

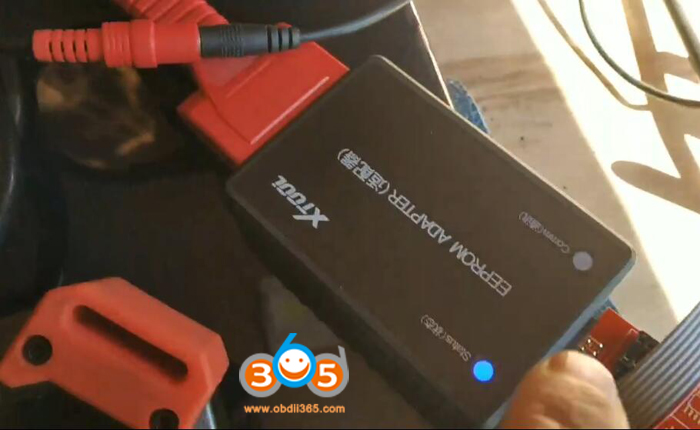

Make sure the adapter is connected and powered on, the status light is turned on

Citroen Relay Eeprom 6

Citroen Relay Eeprom 7

Citroen Relay Eeprom 8

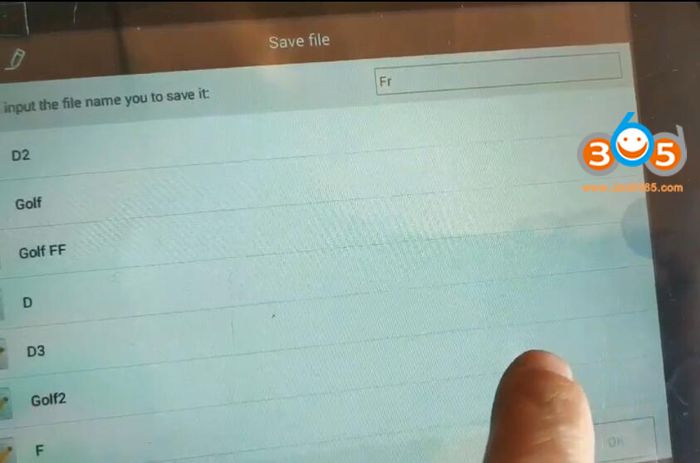

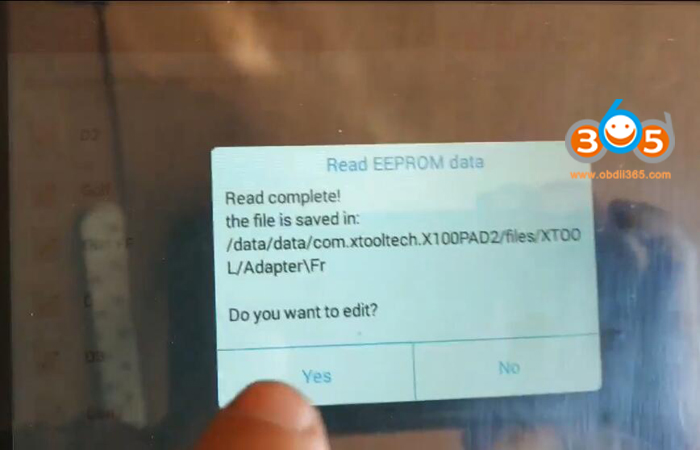

Read immo box data success. Save data, i.e Fr

Citroen Relay Eeprom 9

Citroen Relay Eeprom 10

You are allowed to edit data by pressing Yes.

Citroen Relay Eeprom 11

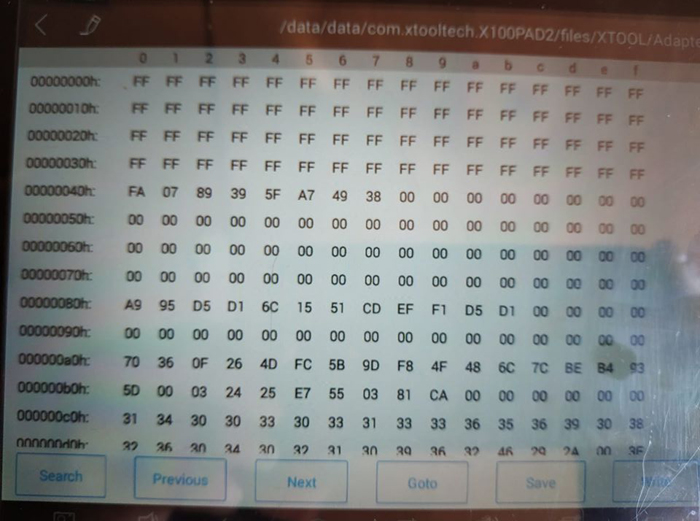

Write file back with some ff in first couple of lines. Wrote back and the read again to confirm written and was ok.
