Autel IM608 New Update Audi BCM2 Encrypted in Dec. 2021

Autel IM508IM608 and IM608 Pro released a new update – reading immo data Audi bcm2 encrypted on December 14th, 2021.

IMMO_Audi Update
1. Adds Read IMMO Data (Encrypted) via Programmer function in Expert mode for IMMO 5 Audi A4/A5/Q5
2. Adds Read IMMO Data (Encrypted) via Programmer function in Expert mode for IMMO 5 Audi A6/A7/A8
3. Adds file template in Customize Commands function in Expert mode

Support versions:
0510, 0521, 0551, 0550, 0572, 0582, 0633, 0641, 0650, 0711

Autel Im608 Update Bcm2 2

XP400/XP400 Pro and G box are required.

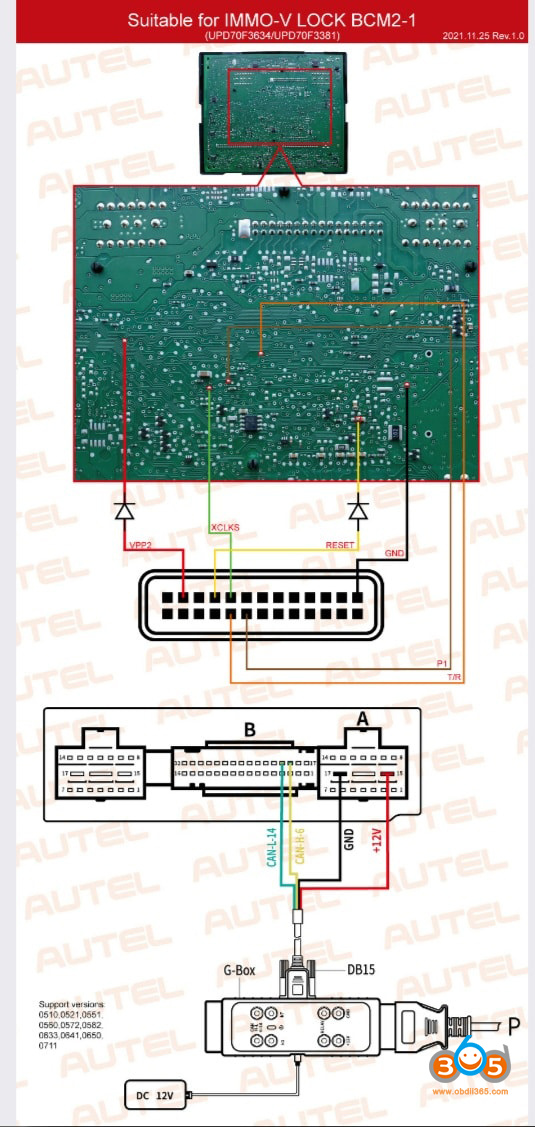

Audi BCM2 encrypted (D70F3634/D70F3381) wiring diagram to IM508/IM608

Autel Im608 Update Bcm2 3



Q: Does this require extra adapters?

A: No, wires only.

Q: What diodes are needed for vpp2 and reset?

A: 120 ohm.
