How to Program Volvo XC70 2013 Key with Yanhua Mini ACDP?

How to proceed if you need to add a semi keyless key for volvo xc70 year 2013. Here’s tips: first you have to read CEM at the bench and then do key in OBD.

The procedure can be applied to XC70 2010-2016.



What is required:

Yanhua ACDP + Volvo Module 12



Step 1: Read CEM data

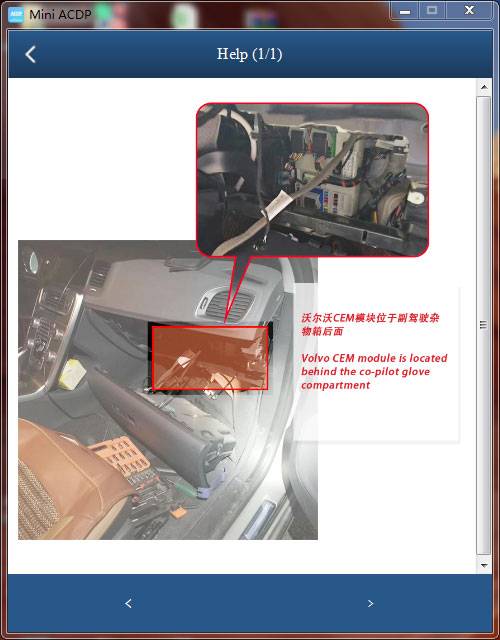

Yanhua Acdp Volvo Xc70 2013 Key 2

Remove CEM module, connect Volvo interface board with ACDP and module following connection diagrams below:

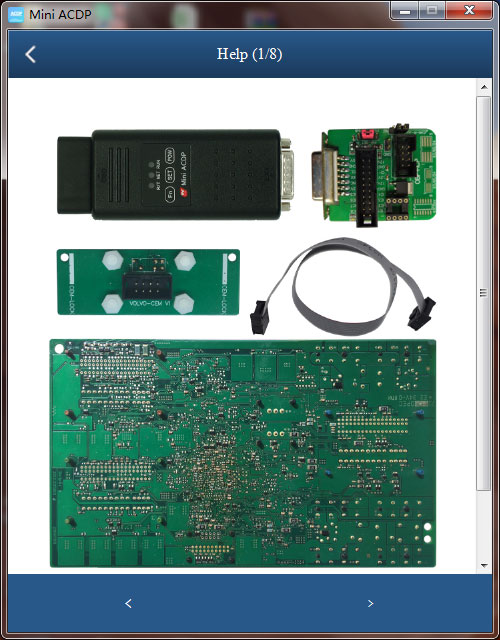

Yanhua Acdp Volvo Xc70 2013 Key 3

Yanhua Acdp Volvo Xc70 2013 Key 4

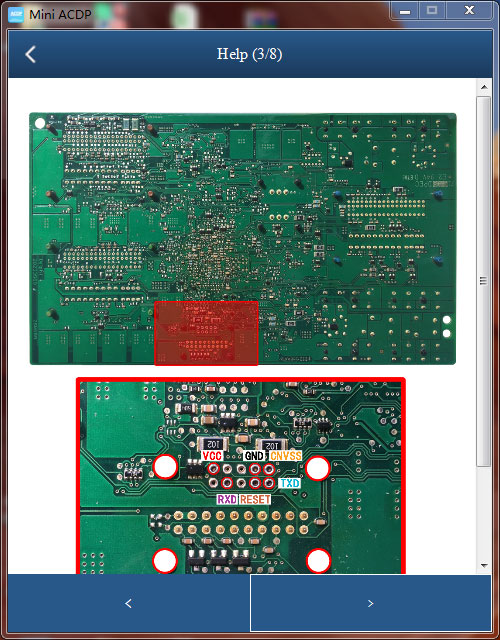

Yanhua Acdp Volvo Xc70 2013 Key 5

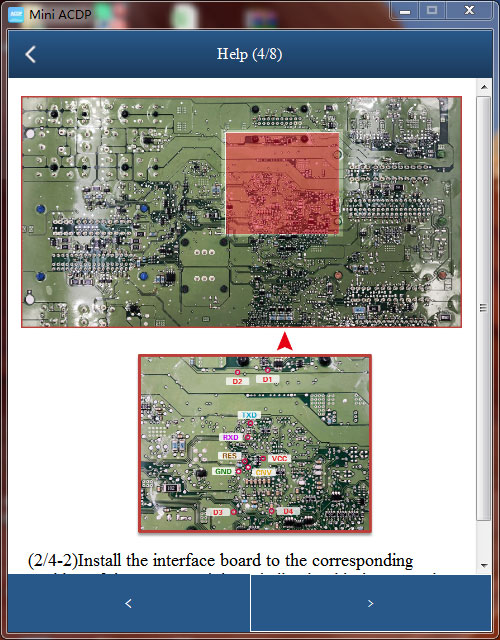

Yanhua Acdp Volvo Xc70 2013 Key 6

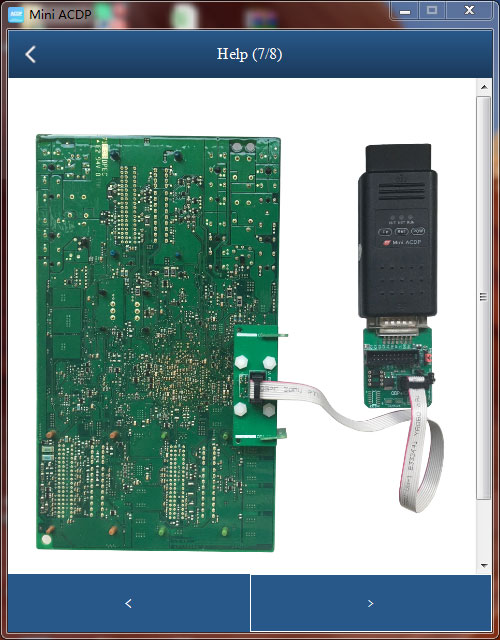

Yanhua Acdp Volvo Xc70 2013 Key 7

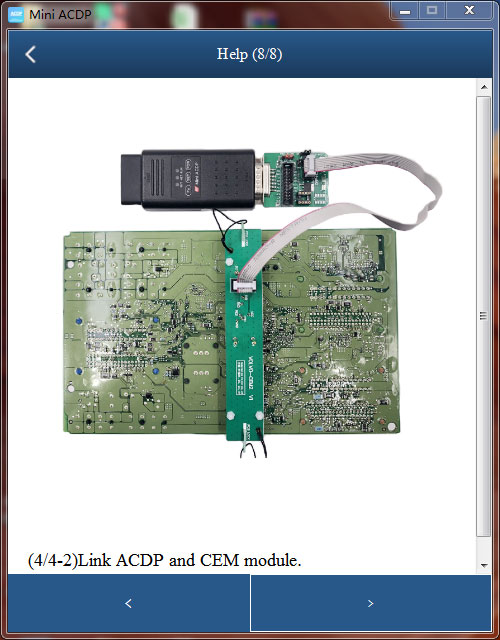

Yanhua Acdp Volvo Xc70 2013 Key 8

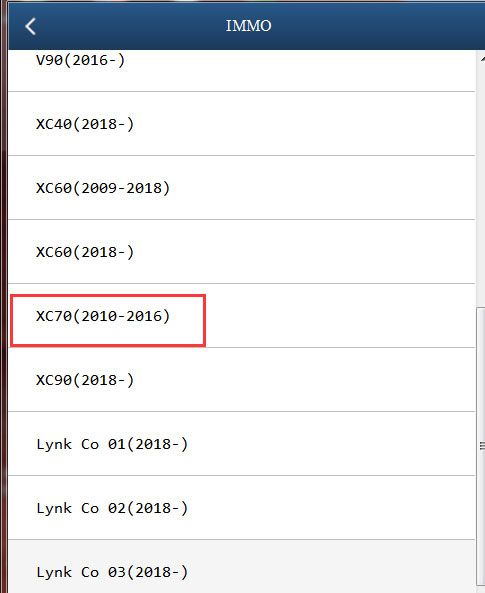

Then to go to App, Select Volvo module- XC70(2010-2016)-Semi-Keyless
Then read CEM

Yanhua Acdp Volvo Xc70 2013 Key 1

Check operation demo on XC60

Step 2: Add key via OBD

Reinstall CEM module back to vehicle

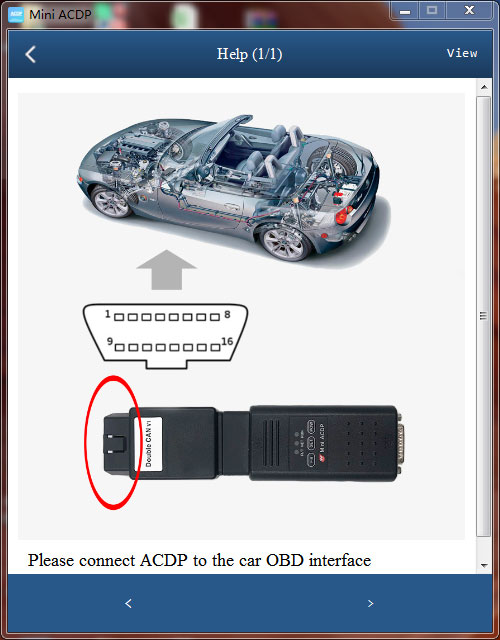

To add key via OBD, you all need a double-CAN adapter which comes with module 12 in default

Yanhua Acdp Volvo Xc70 2013 Key 9

Then follow App to add key until completed.

Yanhua Mini ACDP Program Volvo XC70 2010-2016 Semi Smart Key (Bench + OBD)
