OBDSTAR Program Toyota Prius 2017 All Keys Lost

Toyota Prius 4 USA 2017 All keys lost successfully programmed by OBDSTAR X300 DP Plus.
Key Xhorse XM38 generated from Lexus A9 (XM28 not support with model)
Read immo data on bench with OBDSTAR 8A AKL adapter + ksim simulator
Not via obd2, on newer Toyota models you have two options if you lose all your keys. 1. Read according to the obdstar instructions on the table! 2. With the use of the adapter you do not need to disassemble the smart box module, just connect the adapter plug and power supply from OBD2.
 I just connected according to the diagram that is in the obdstar by pins

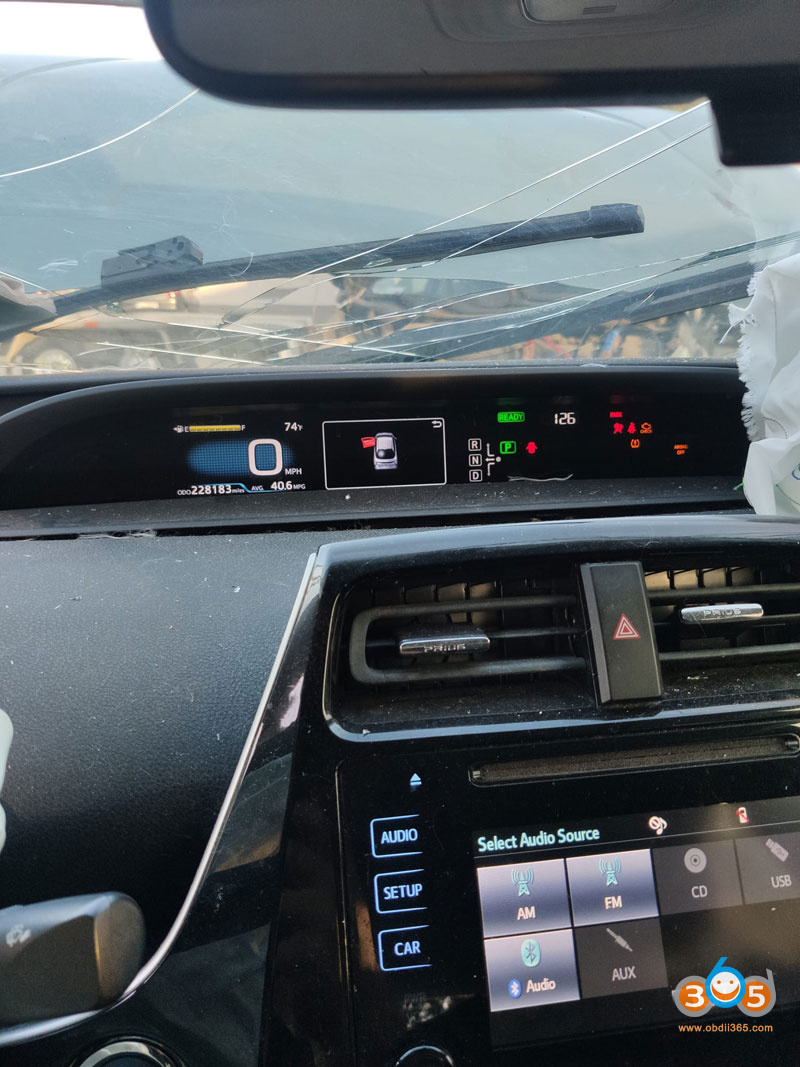

Obdstar Toyota Prius 4 USA 2017 Akl With Xm38 1

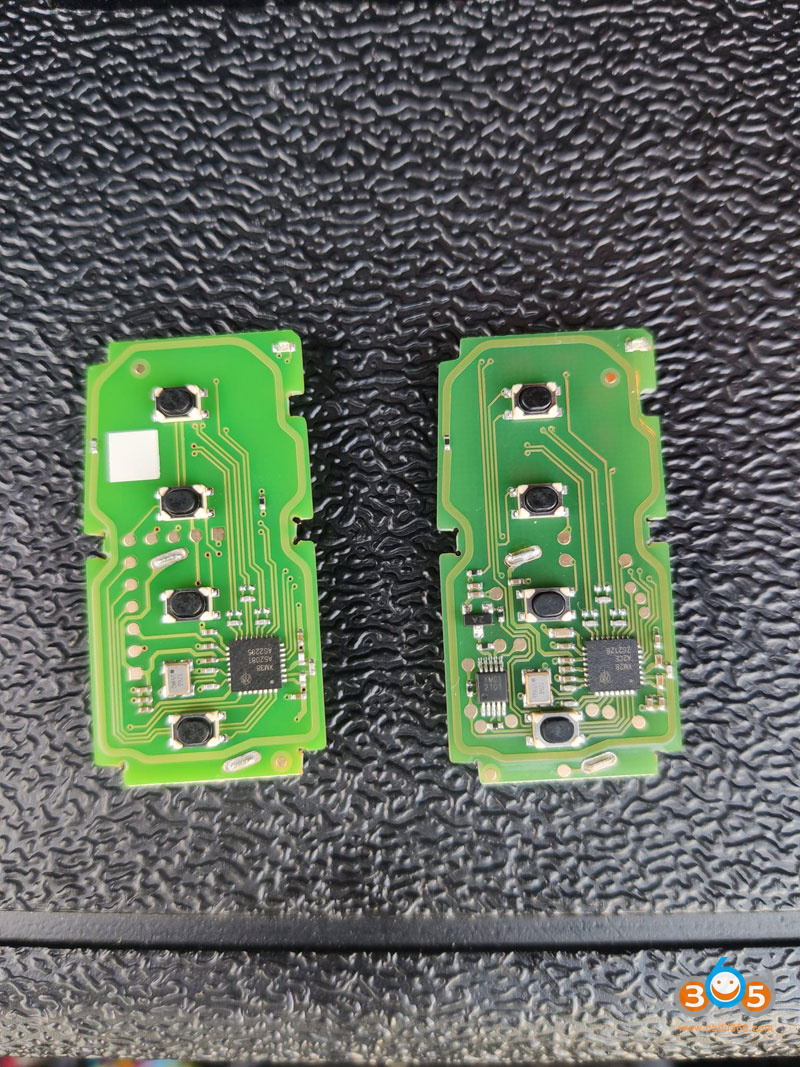

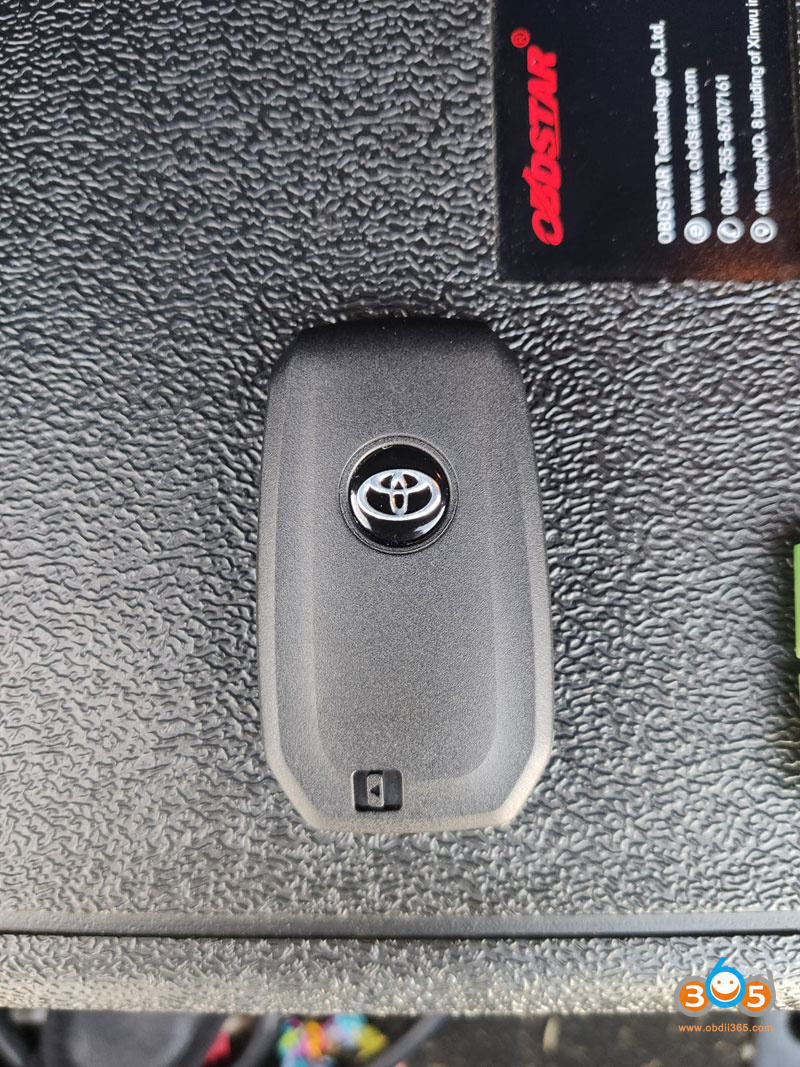

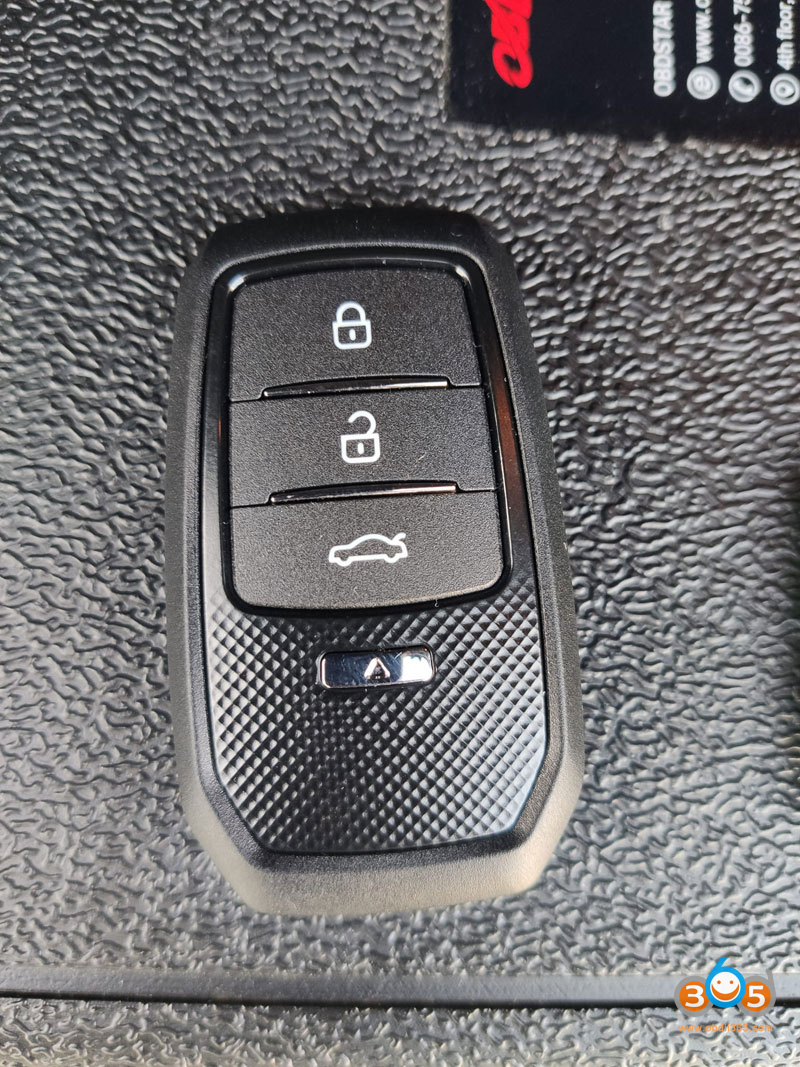

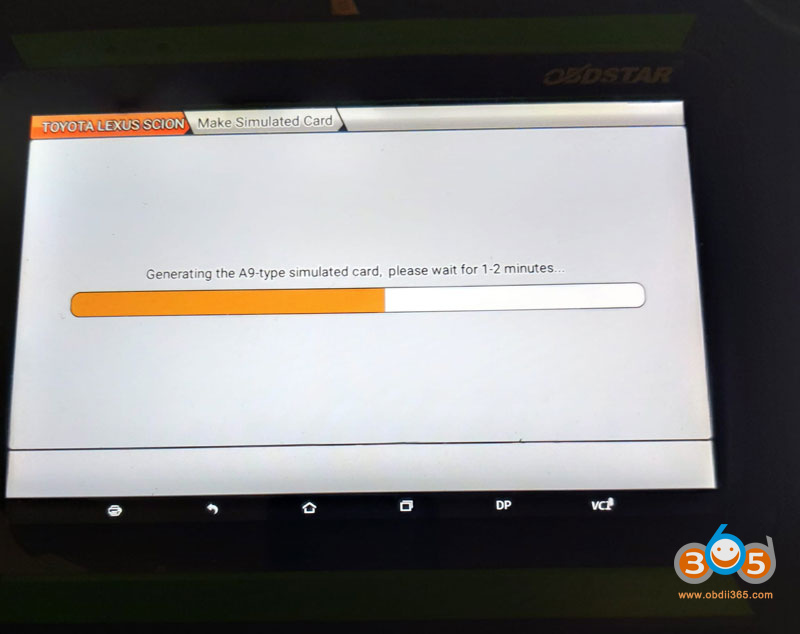

Obdstar Toyota Prius 4 USA 2017 Akl With Xm38 2 Obdstar Toyota Prius 4 USA 2017 Akl With Xm38 3 Obdstar Toyota Prius 4 USA 2017 Akl With Xm38 4 Obdstar Toyota Prius 4 USA 2017 Akl With Xm38 5
Demo video
