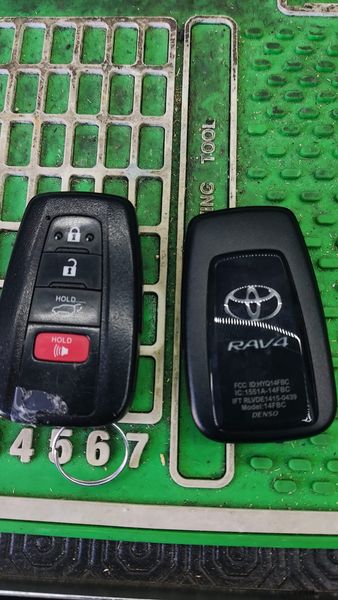

Add an OEM key to a 2020 Toyota RAV4 with Autel IM608 successfully. Same procedure as RAV4 2022 (check previous post). Go control unit – keyless, then I can select backup immo data-back up through OBD, then add a key WITHOUT 3 lines data and pay for the code. If choose add a key directly, then the programmer will spit out those 3 lines data and ask for a code.
When backing up data, the dashboard will display engine has issues, steering wheel have issues,blah, blah,blah as the backup process going, quite nerve racking but once is finished, everything is fine.
You can if it is lost all keys, there is a choice of using apb112. But my case is to add a key.
After backup immo data, then select add key, then it will ask you if you backed up data or not, then select the file, then same old Toyota beep beep beep process.
Great job Autel.
