In this article, we’ll walk through the process of adding a spare key to a 2022 Volkswagen Tiguan equipped with the MQB49 5C system. The vehicle arrived with a factory-standard key, and the owner had ordered an original key from the dealer using the VIN code. However, instead of performing the key programming online (which would have been the official dealership method), the owner opted for a manual, offline approach to save costs. This guide covers the entire procedure, from reading the key data to programming it into the vehicle.
Key Details
- Vehicle: 2022 Volkswagen Tiguan
- System: MQB49 5C
- Key Type: Original dealer-supplied key (ordered via VIN)
- Method: Manual programming (offline) using Autel IM508/IM608+XP400 Pro
The key is fully functional and can be programmed online at any later time if the owner chooses, reverting it to an “official” dealer-level key.
Step 1: Initial Key Inspection and Preparation

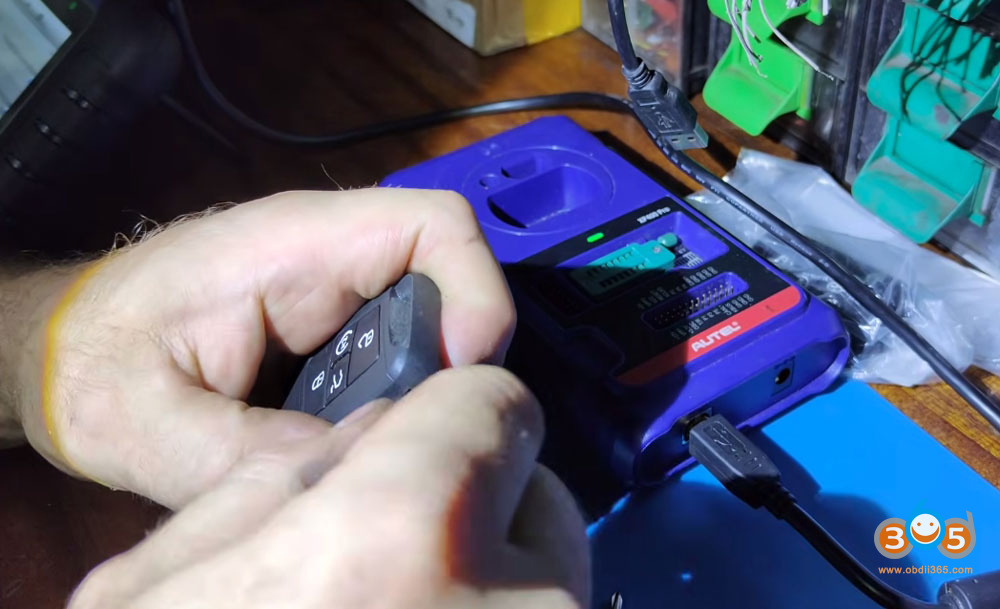

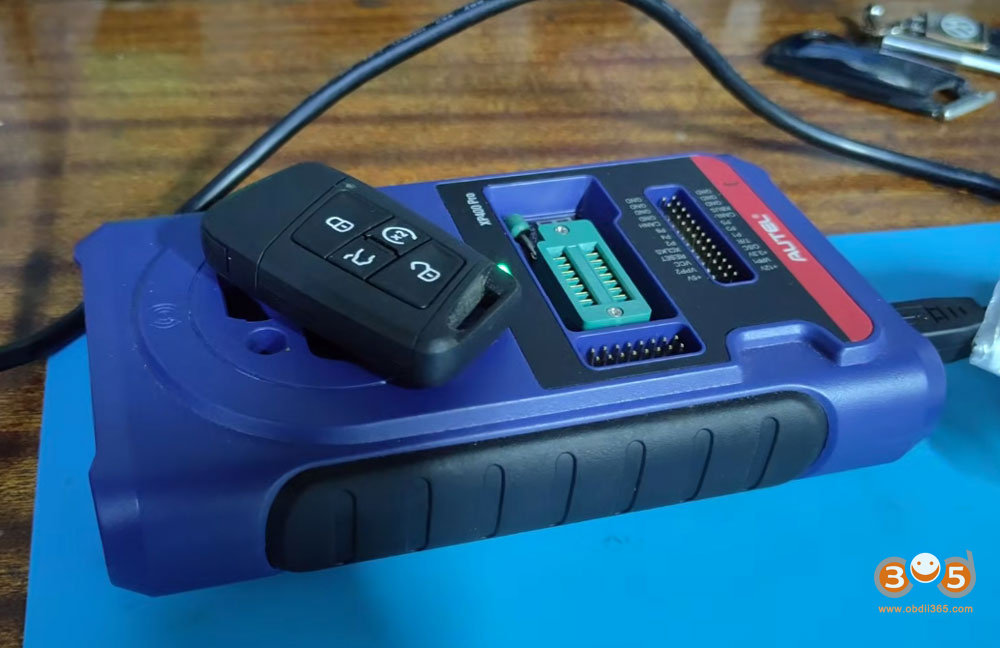

Before beginning the programming process, the key was placed into a programmer device (likely XP400 Pro or similar tool) to perform an automatic transponder detection.

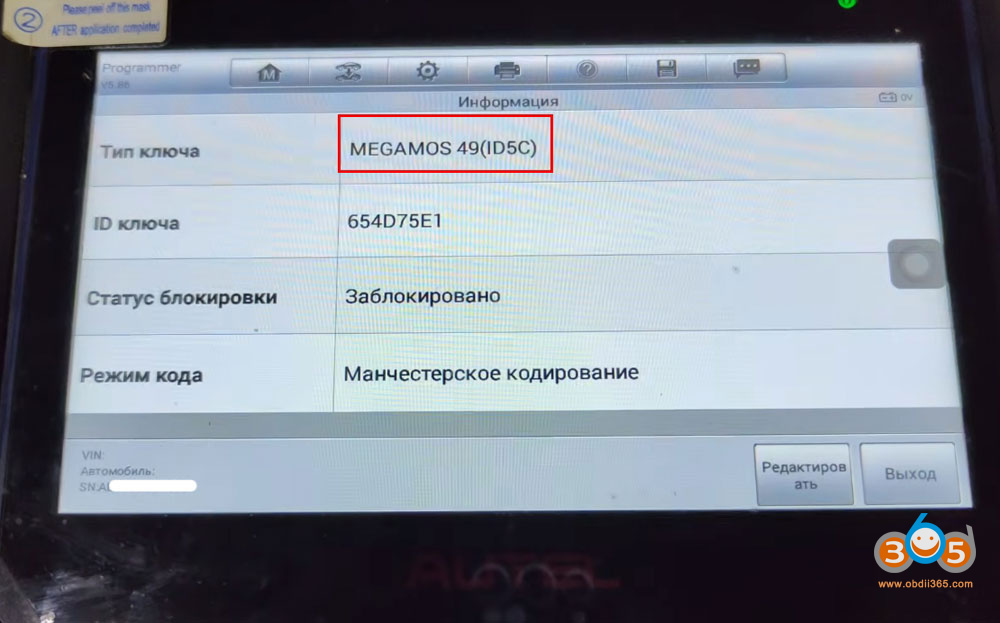

The tool identified the chip as ID 5C and confirmed it was locked, which is the expected factory state for a new, unused key.
The key was then disassembled carefully to access the internal circuit board and transponder.

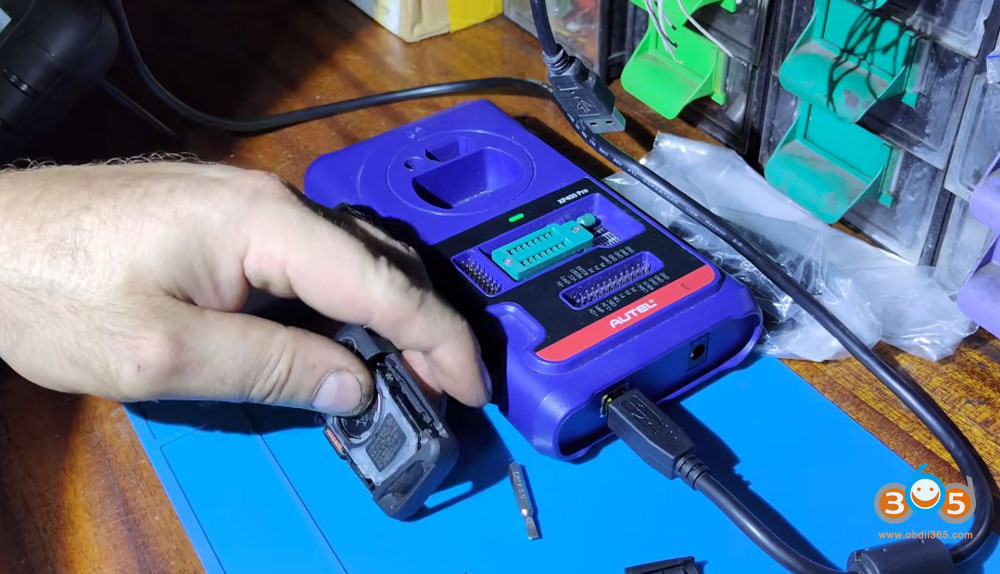

Step 2: Disassembling the Key
How to open the key shell:
Remove the blade (physical key).
Gently pry off the rear cover using careful movements to avoid damaging the plastic clips.
Remove a small Torx screw (after finding the correct bit).
Lift the internal module – the circuit board is glued in place with sealant, so it must be carefully pried loose.
Extract the core/PCB from the housing. The board is held by clips and can be released with gentle pressure.
Step 3: Reading Immobilizer Data (Immo Data)
To program the new key, the immobilizer data must first be read from the existing key. This was done using a DAMP (Data Acquisition Module Protocol) adapter connected via an AP131 interface cable.

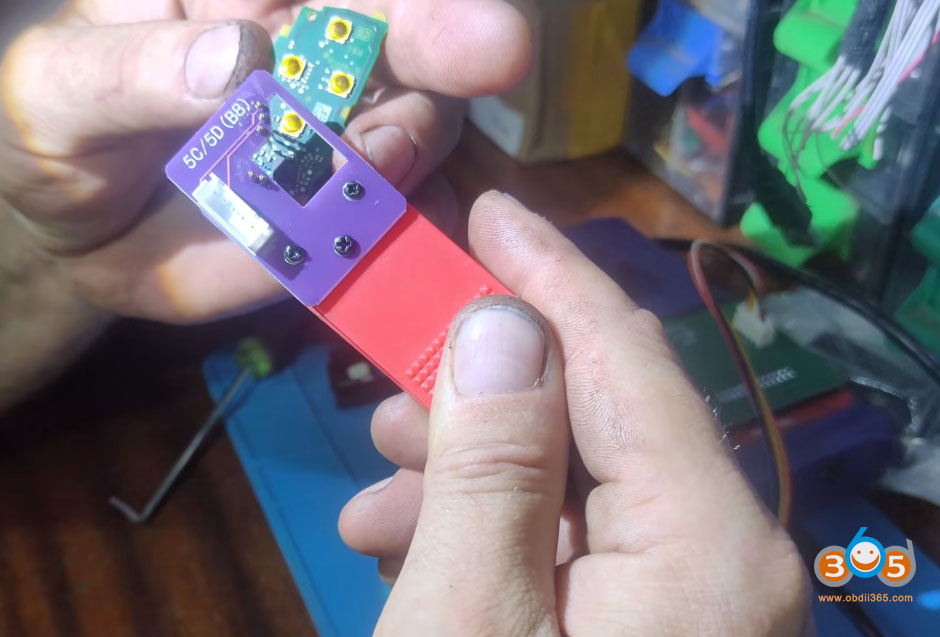

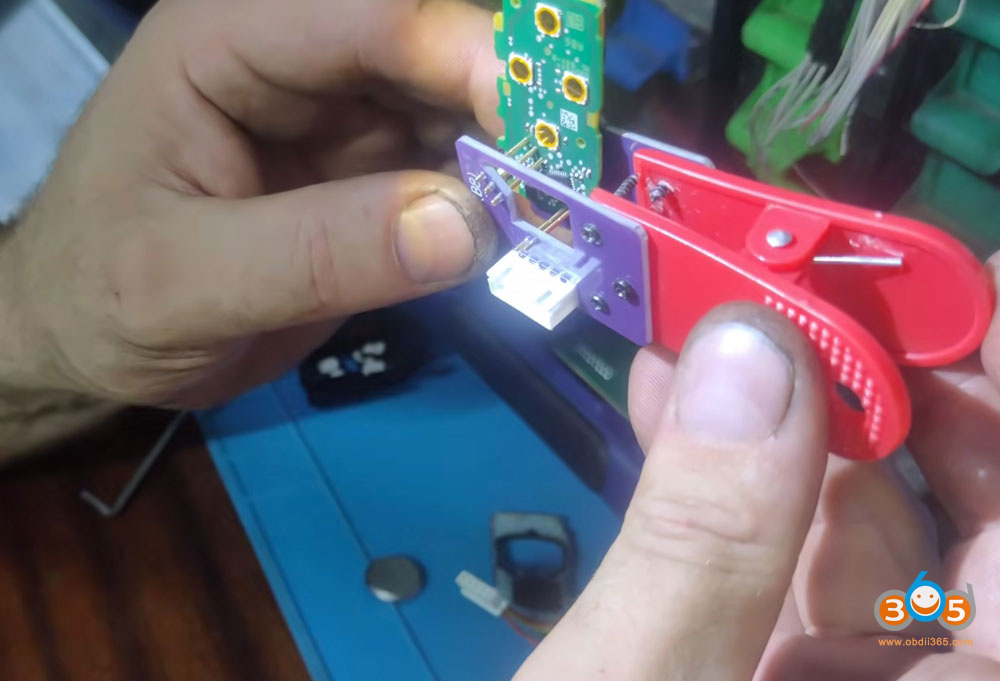

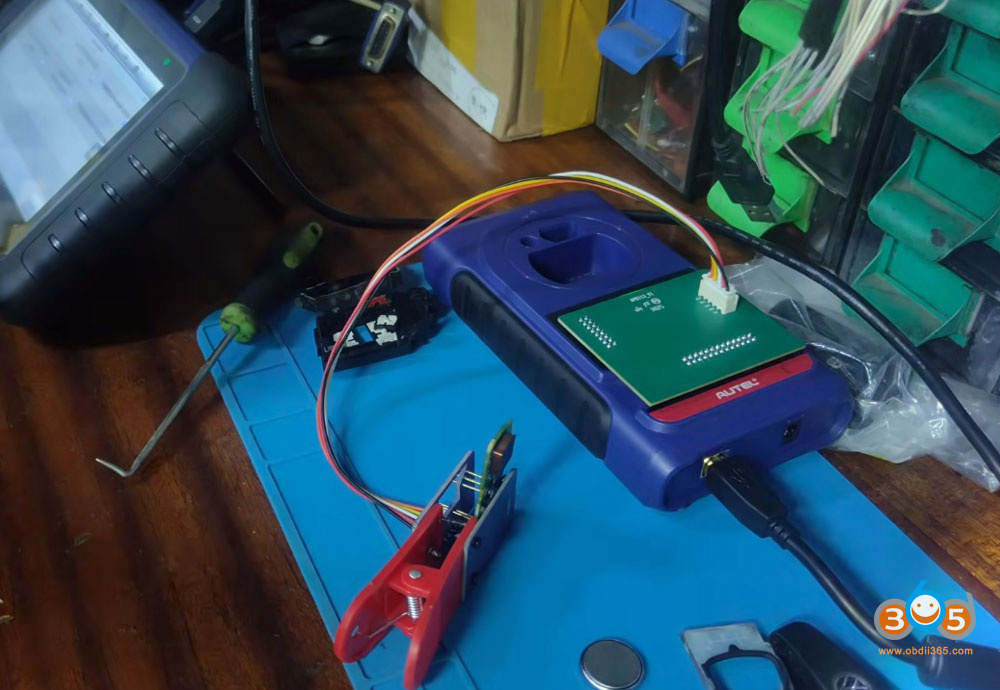

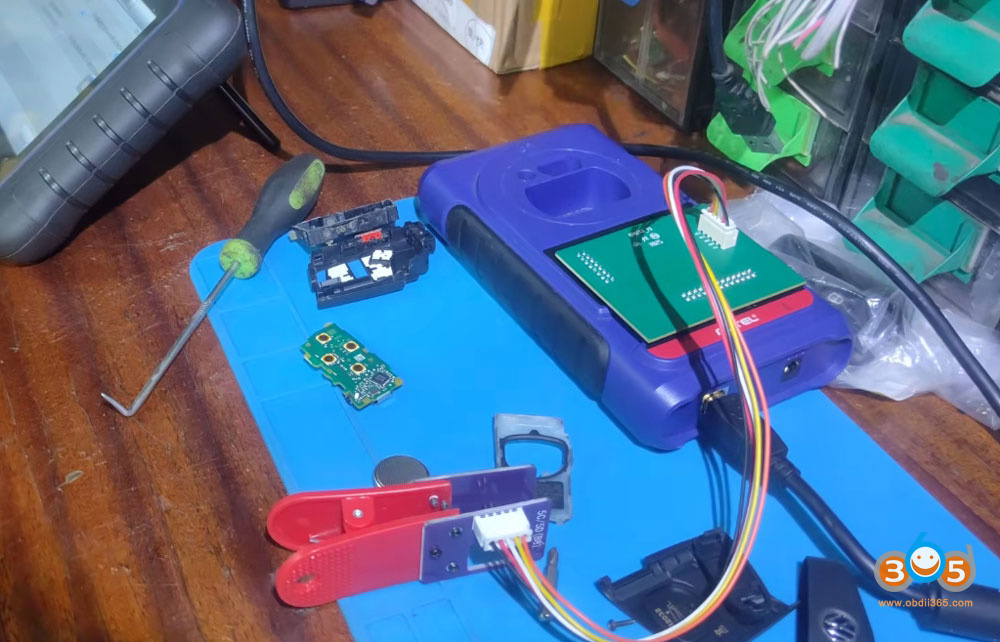

The Autel IM508/IM608 provided wiring diagrams for connecting the key, but we opted for a non-invasive method (using godiag 5C adapter no soldering required).
The reading process began, though it was noted that the data transfer was relatively quick – suggesting a successful and efficient read.

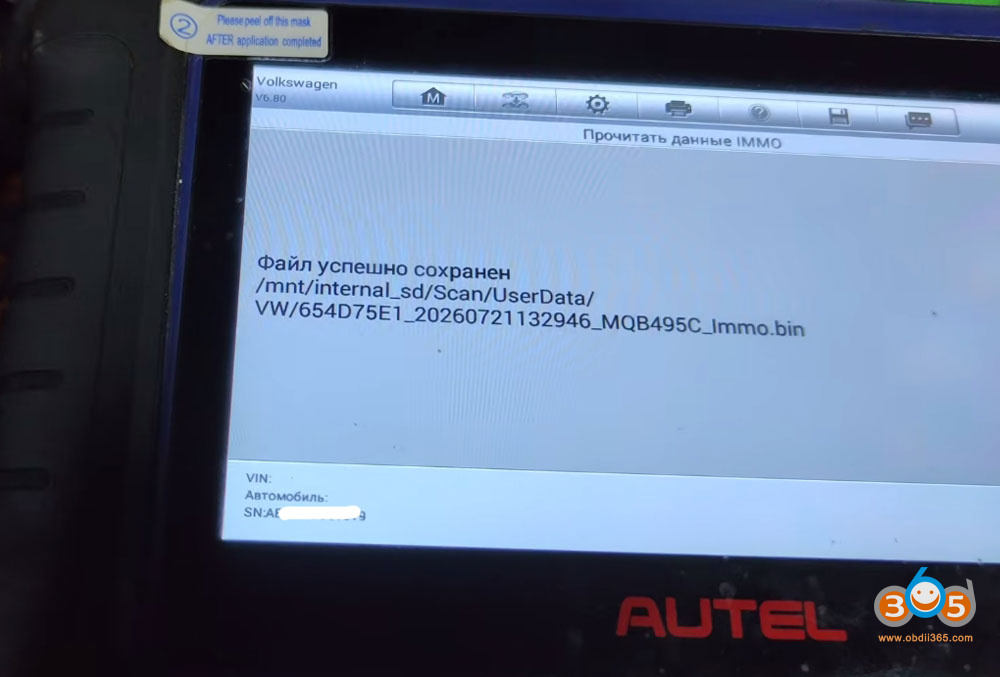

The software saved the extracted data as a backup file for later use.
Important: The Autel subscription for the online database had expired, but this did not affect the offline reading capability.
Step 4: Programming the Key to the Vehicle
With the immobilizer data extracted, we moved to the vehicle. Before starting, the following safety steps were taken:
Engine hood opened (required for certain diagnostic procedures).
Handbrake applied for safety.
Steps performed inside the vehicle:
- Connect the diagnostic interface to the vehicle’s OBD port.
- Verify no SFD (Security gateway) was present – this made the procedure simpler.
- Select the Expert mode in the diagnostic software.
- Load the previously saved immobilizer file.
- Perform key learning:
- Place the existing working key in the ignition (or near the reader coil).
- Follow the on-screen prompts to add the new key.

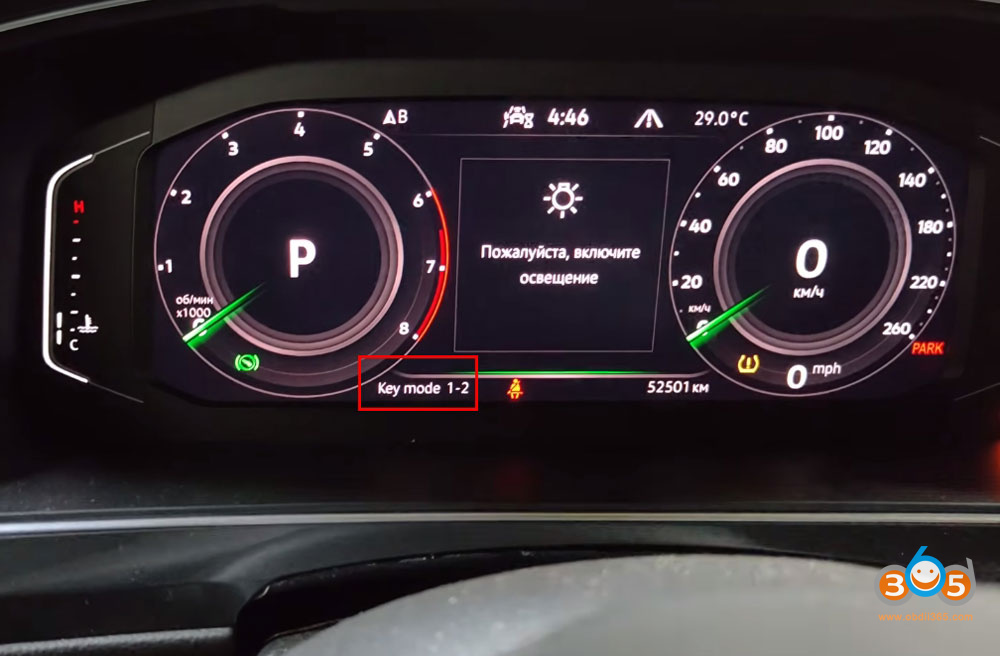

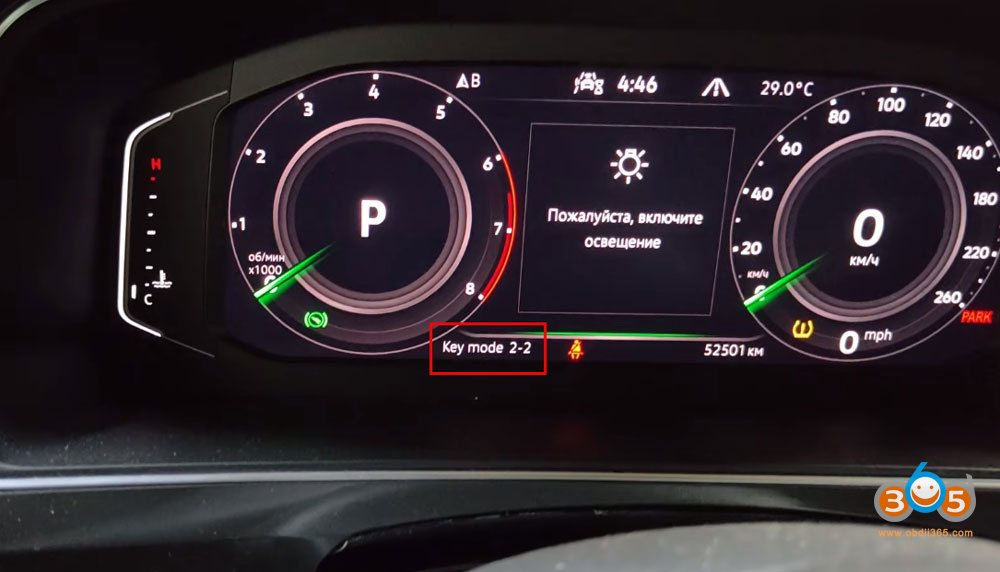

- The system confirmed that 1 key was already present, and after placing the second key, 2 out of 2 keys were successfully recognized.
- Complete the key learning – the software confirmed successful key learning.
Step 5: Final Verification and Testing
After programming, we performed a thorough check:
- Ignition-on test: Both keys were tested with the ignition switched on – both functioned correctly.
- Engine start test: Each key was used to start the vehicle – both worked without issues.
Additional feature: The new key retains the ability to be reprogrammed online in the future, making it equivalent to a fully official dealer key if needed.
