OBDSTAR X300 Classic G3 successfully added a spare 8A proximity smart key to a 2024 Toyota Tacoma.

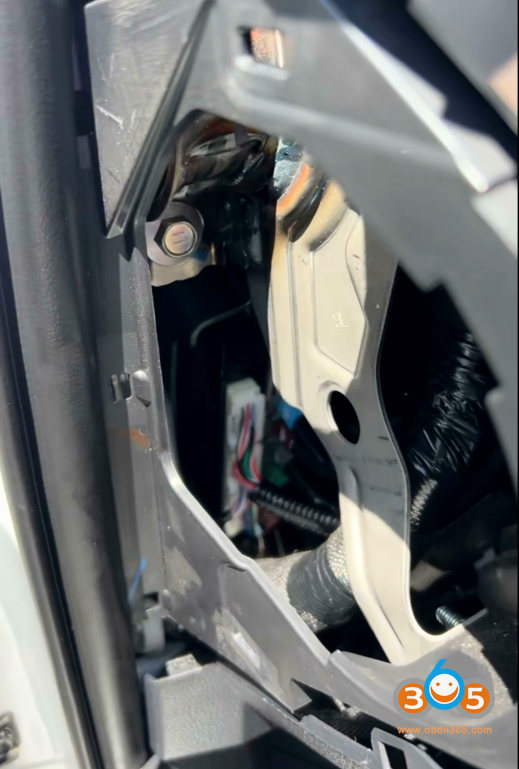

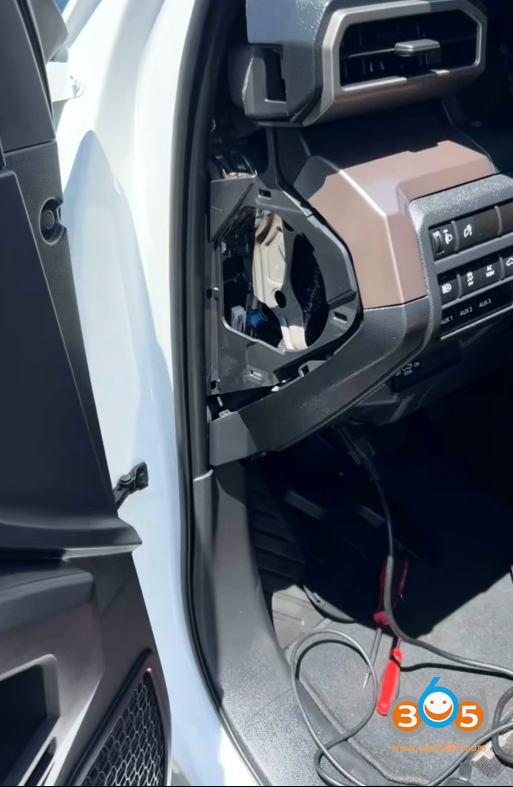

Connect a 30-pin Toyota cable to bypass the gateway.

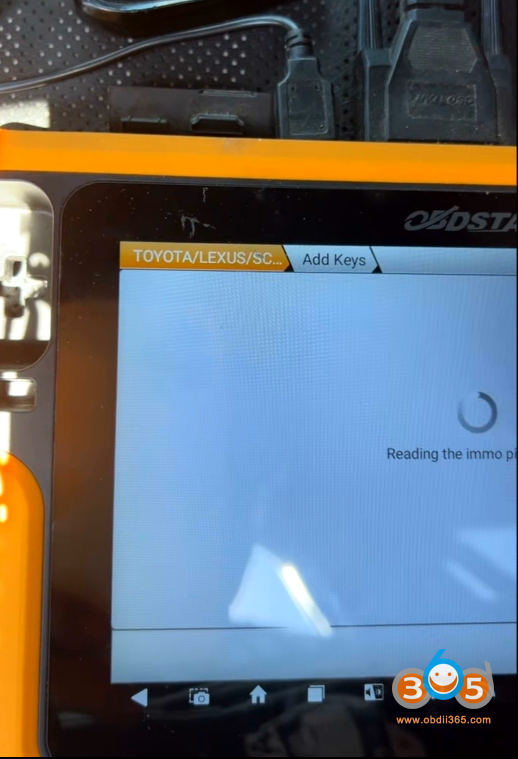

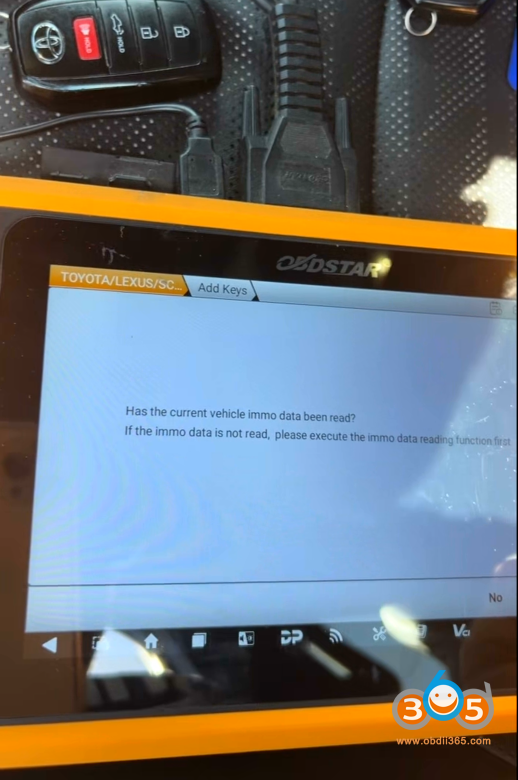

Read immo data. This function requires a network connection.

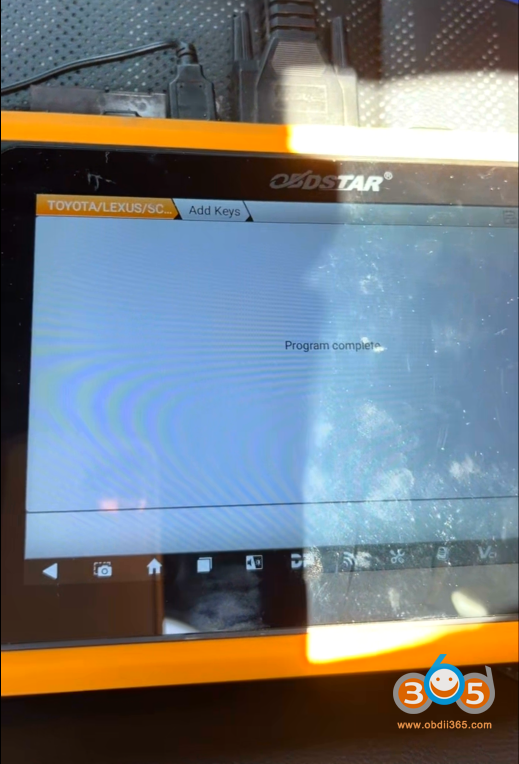

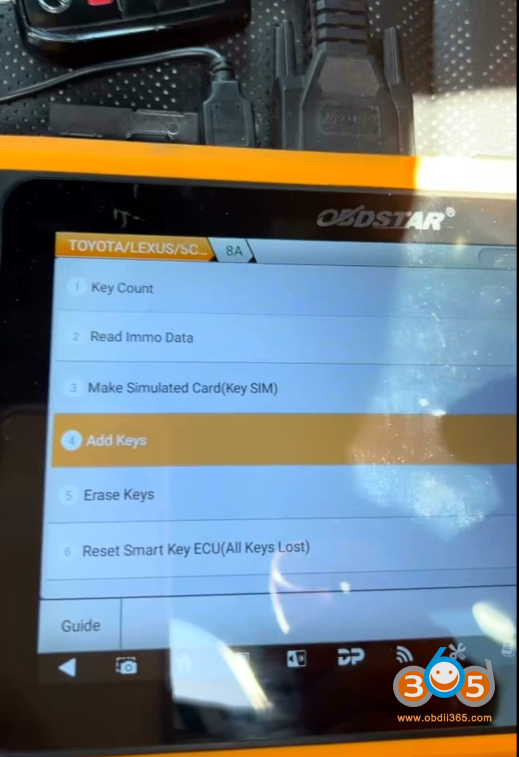

Then add key.

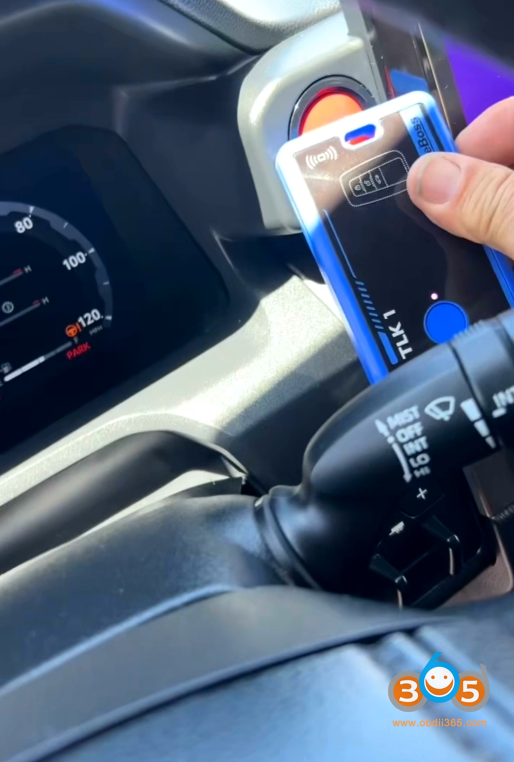

Eoneboss TLK-1 collects the data after it is programmed to the car, then transfers the data it collected and write it the unlock smart.

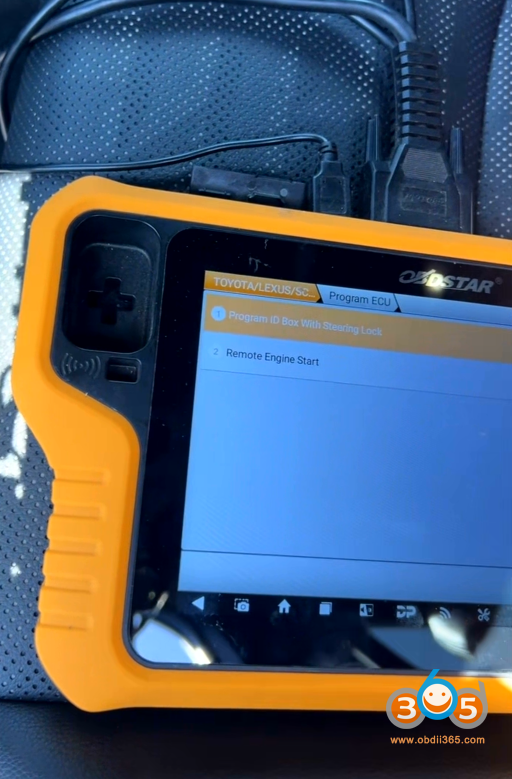

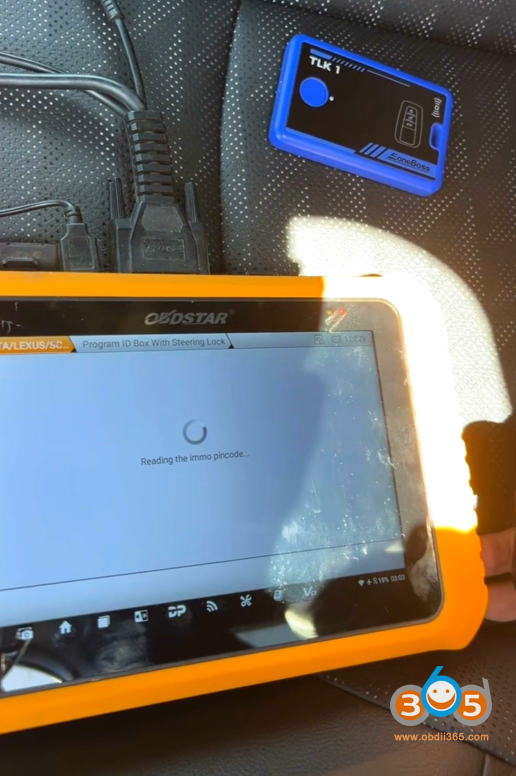

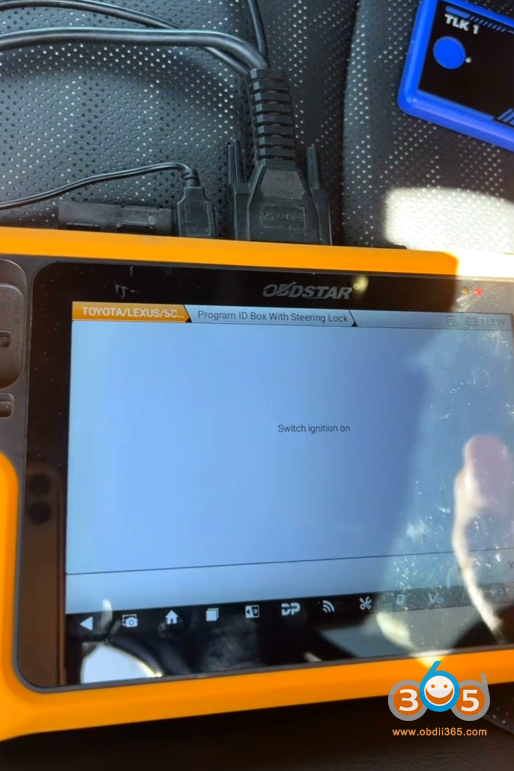

After program key, program ID box with steering lock.

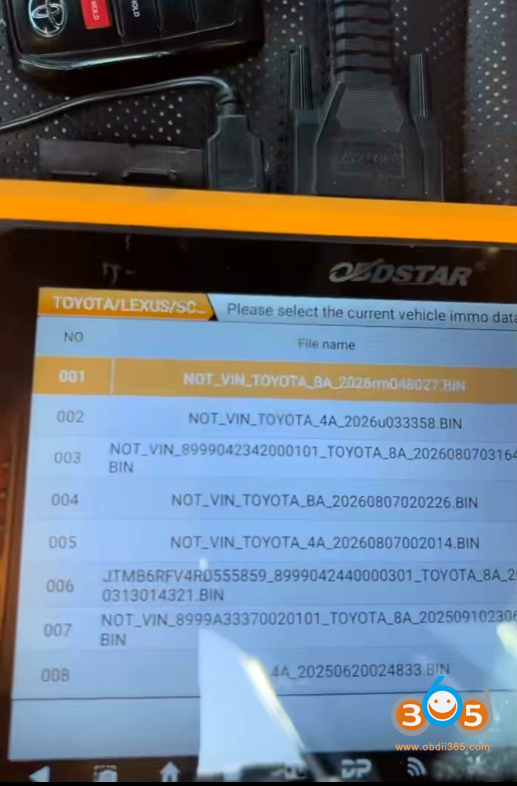

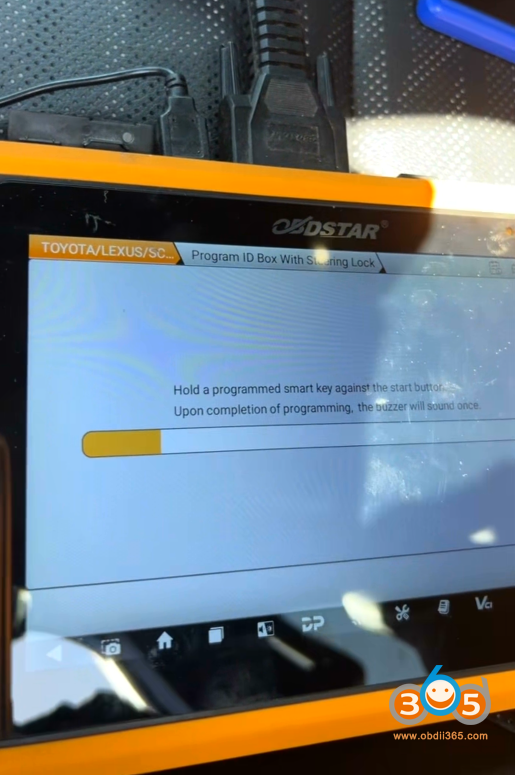

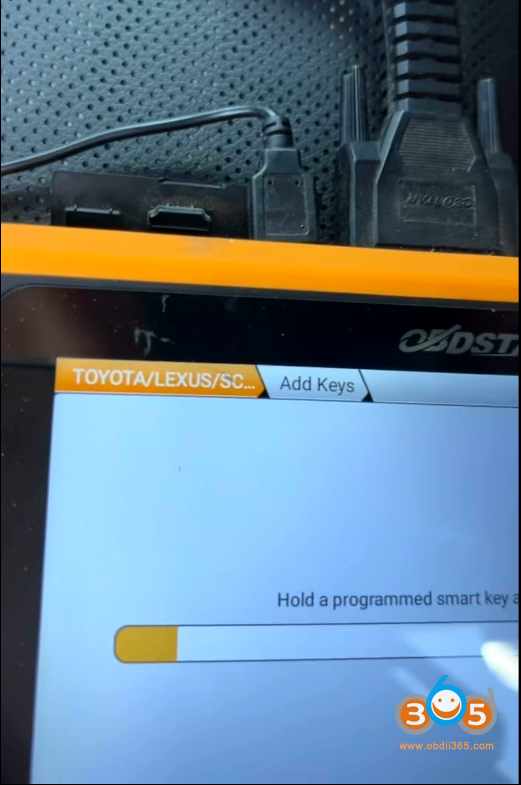

Select immo data backed up, hold a programmed smart key agaigneset the start button to sync ID.
