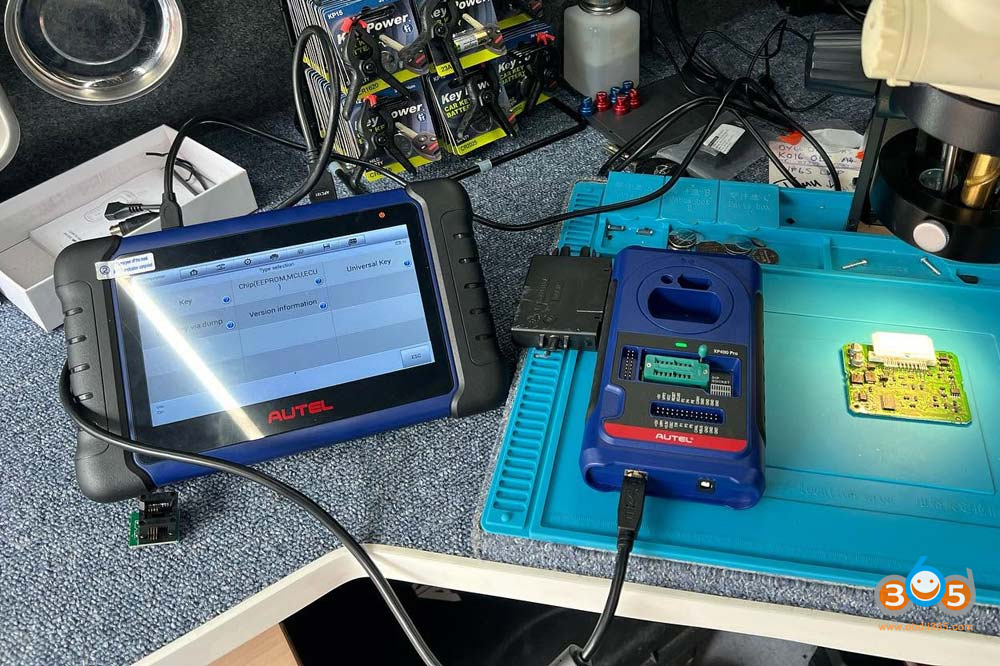

Toyota Yaris 2008 4d70 all keys lost, read immo box and make key with Autel IM508 programmer.
This one no way by obd. Read eeprom and add the key by dump mode. Remote learning manually.

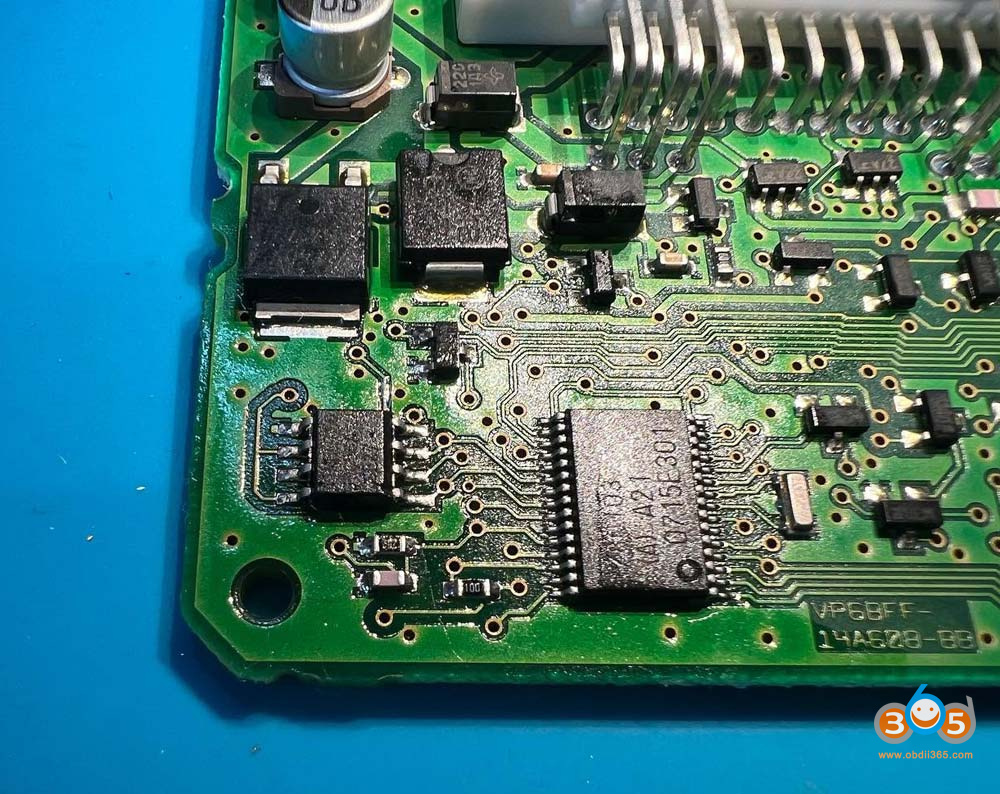

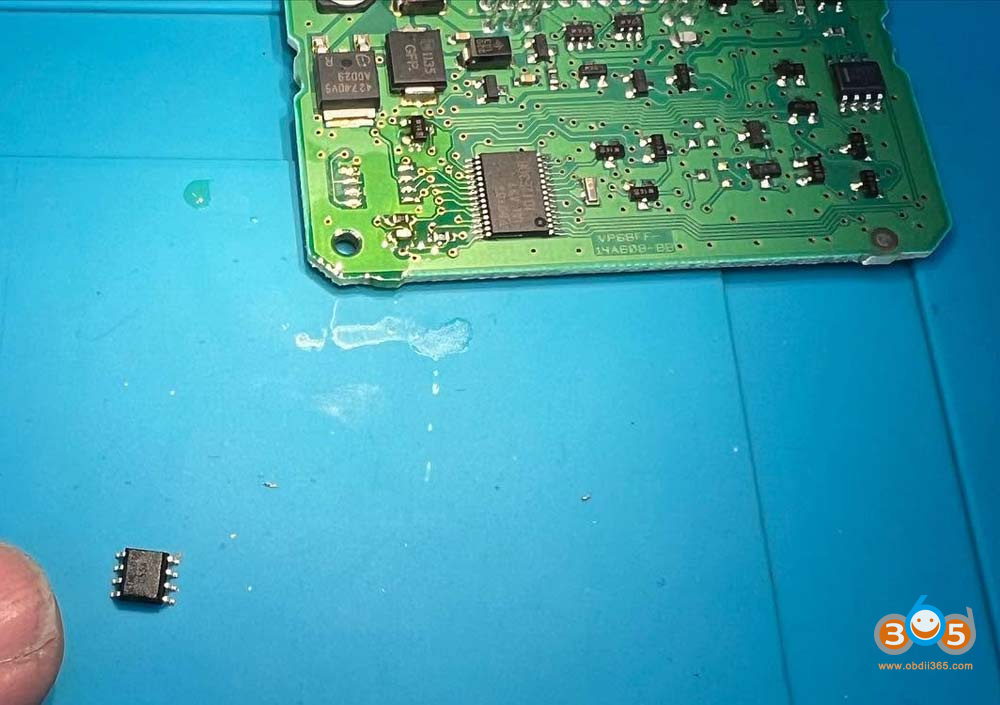

Eeprom only, you’ve done the hard part getting the box out, read 8 leg, write back and plug in to start.

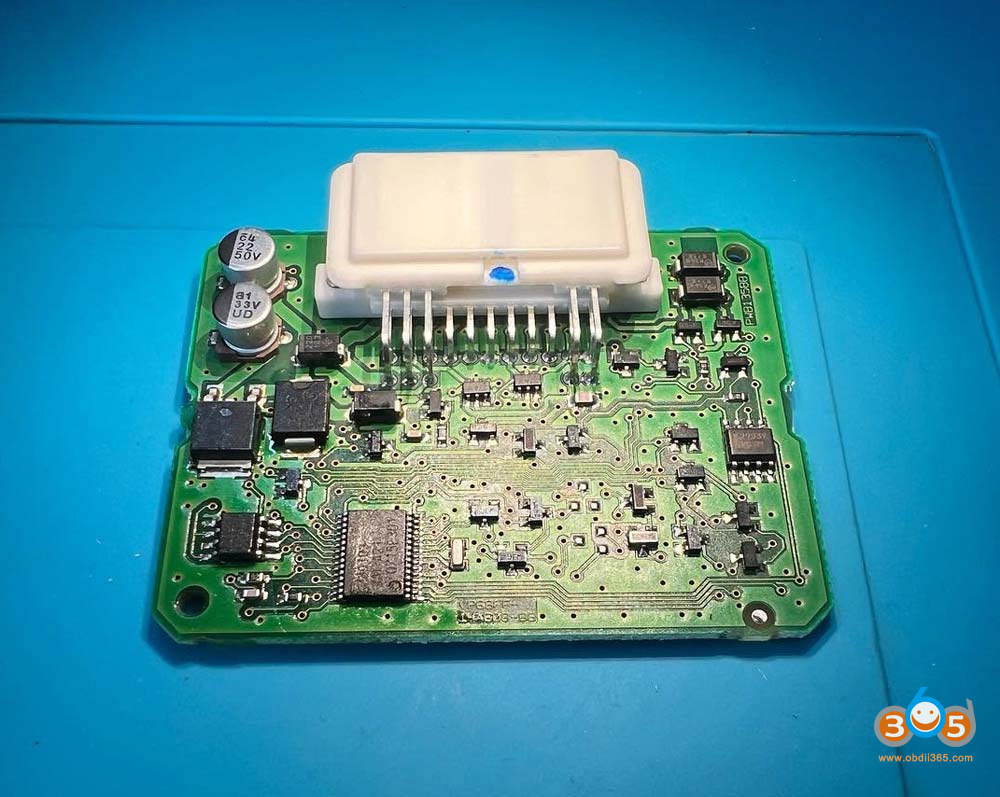

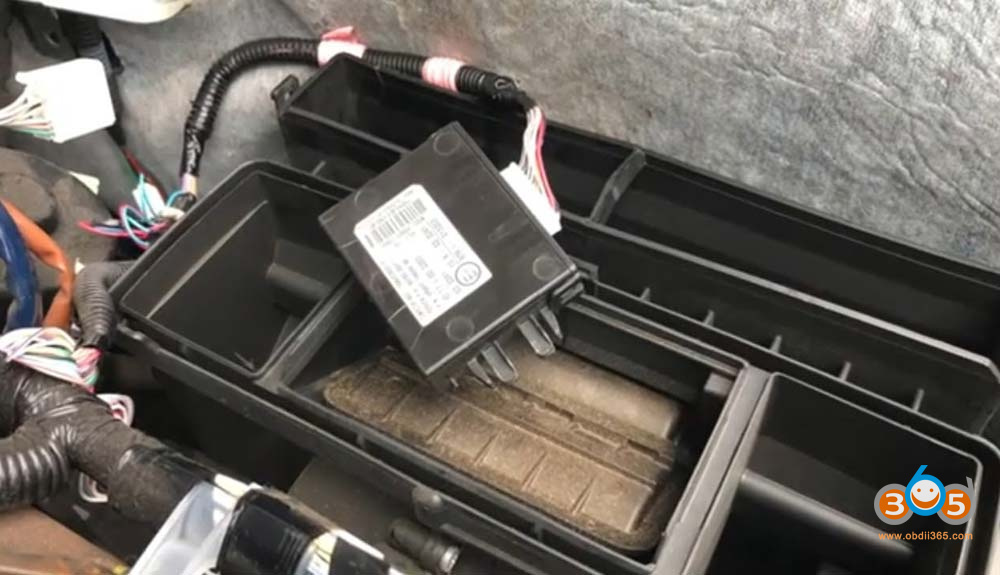

There are two similar boxes. The immo box is very good hidden.

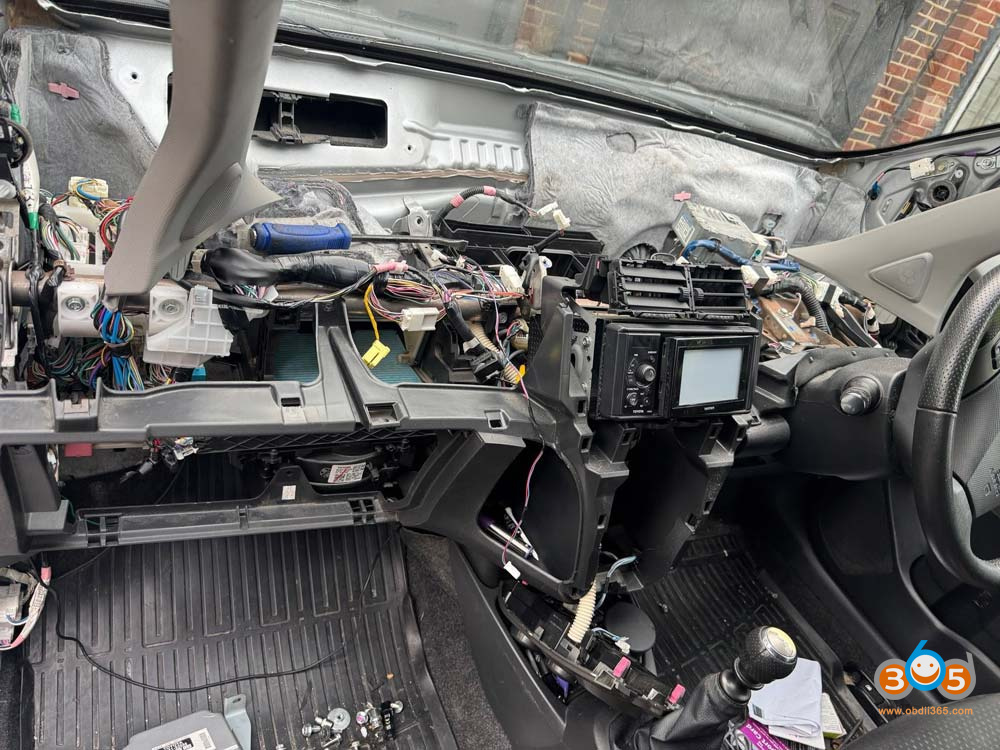

To make a new key need to remove the whole dashboard to get access to correct Immobilizer box.

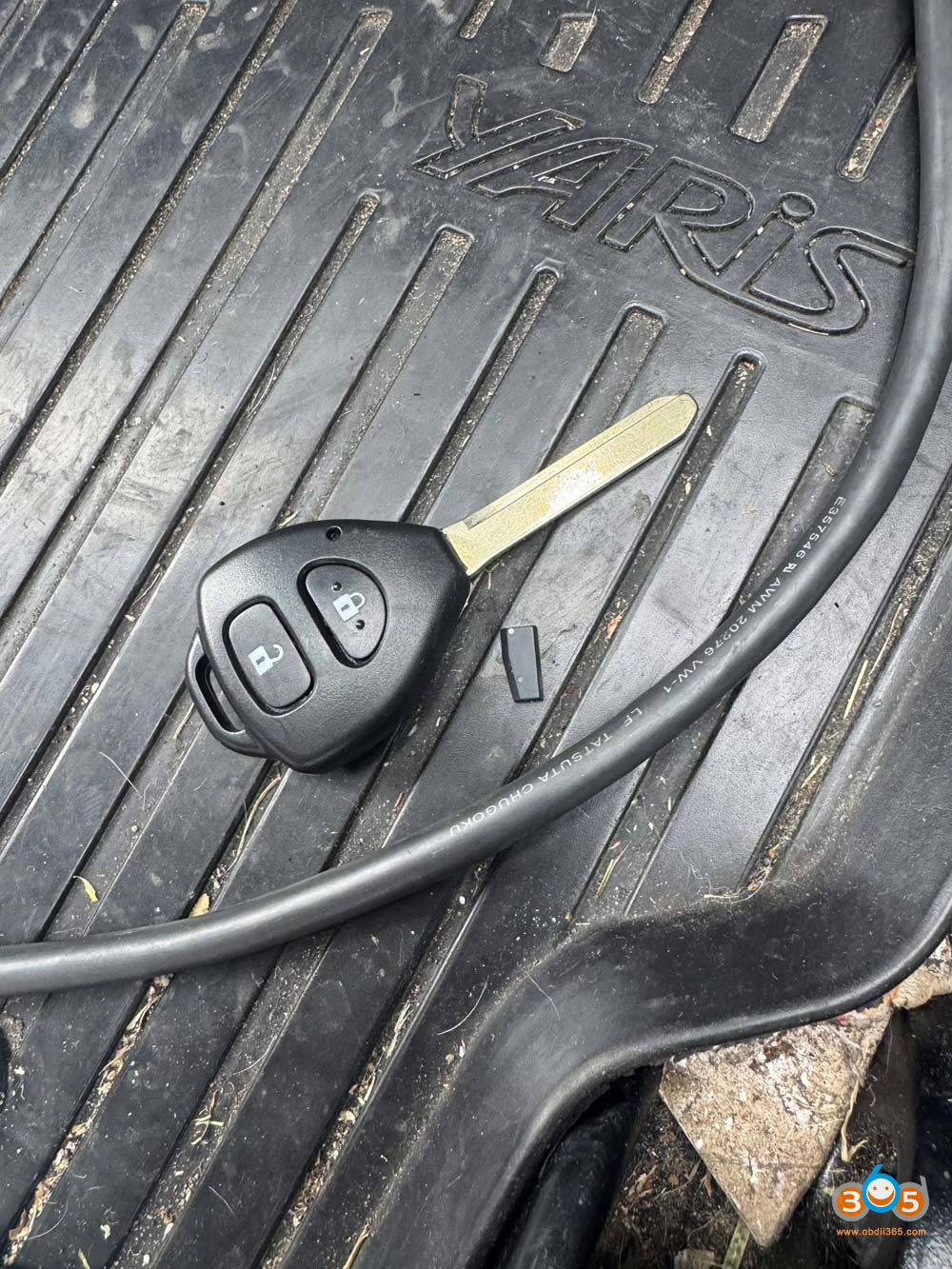

Successfully picked and decoded the lock, cut a new blade, then removed the dashboard to access the immobiliser and obtain the necessary data to program the new key.
