Zed Bull and TPX Cloner Copy 4D transponder

Here is the step-by-step instruction on cloning 4D chip with Zed Bull transponder key programmer and TPX Cloner module.

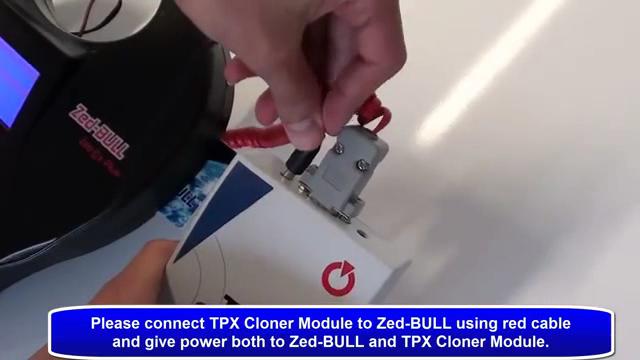

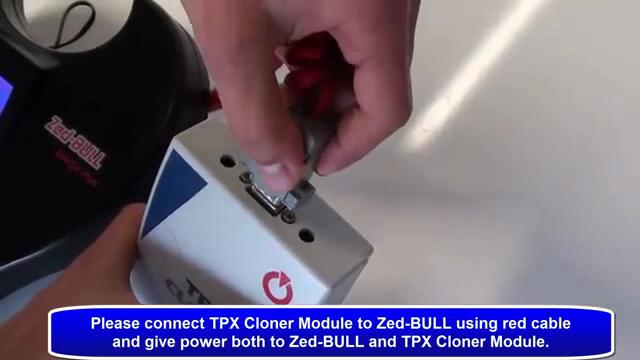

1.Please connect JMA TPX cloner Module (copy 4D) to Zed-bull using cable and give power both to Zed-bull and TPX Cloner Module.

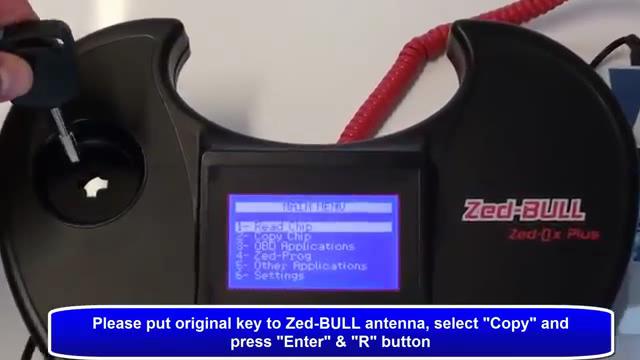

Cloning-4D-transponder-using-Zed-BULL-TPX-Cloner-Module-01connect-zedbull-and-tpx-02give-power-to-zedbull-and-tpx-cloner-03  2.Please put original key to zedbull antenna, select “Copy” and press “Enter” and “R” Button.
put-original-key-to-zedbull-04select-copy-chip-05
3. Caution! Put the original key and press R! Don’t remove the key during the process!
reading-06
4. Press “W” button and select TPX Cloner module.
press-w-button-07

select-tpx-cloner-module-08
5.Writing, connection and calculating, calculating may take up to 2 minutes.
calculating-09
6, Calculation Ok, please put TPX2 or EH2 to Zed-BULL antenna and press “W” button.
calculation-complete-10
7, Verifying, and successful.
verifying-and-success-11
