Program Audi A4 05 all key lost with VVDI

Programmed/Added two key for Audi A4 2005 all key lost with VVDI (or VVDI 2) Commander interface, not difficult a job.

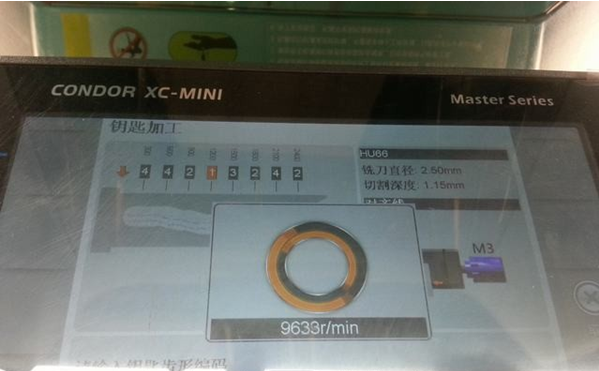

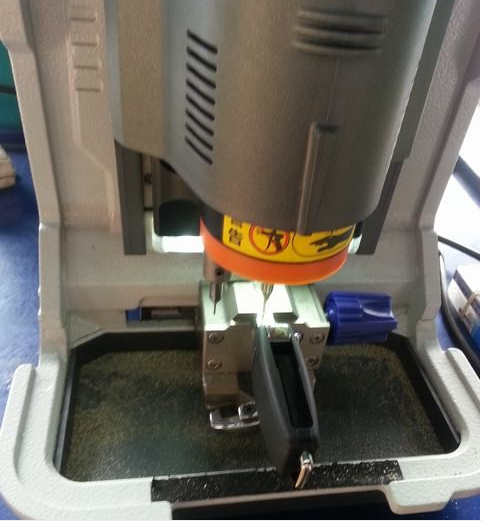

First of all, get a key cut with Condor XC MINI master series key cutting machine through 2IN1.

vvdi-audi-a4-all-key-lost-1 vvdi-audi-a4-all-key-lost-2
Connect to VVDI interface

The following procedure displays in Chinese, but never mind, same function buttons displayed in English Menu.

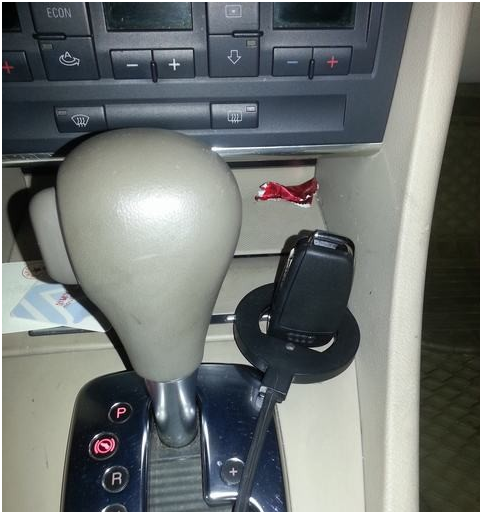

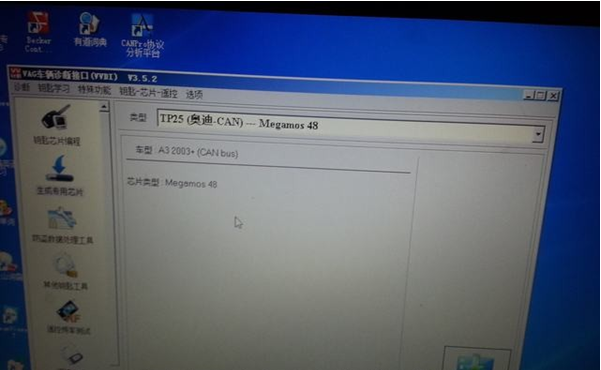

Come to Transponder Programming  interface, select TP25 (Audi CAN)-Megamos 48 CHIP. directly generate new key chip

vvdi-audi-a4-all-key-lost-3

vvdi-audi-a4-all-key-lost-4

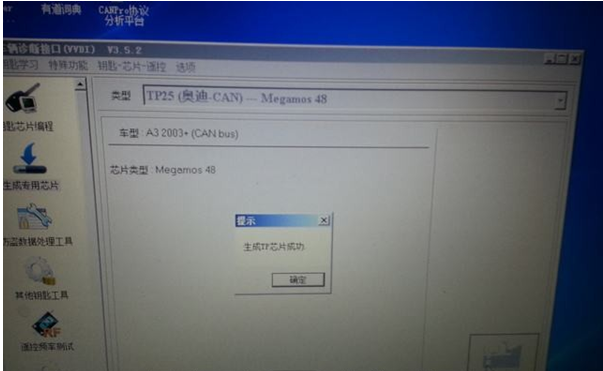

Generate chip successfully

vvdi-audi-a4-all-key-lost-5

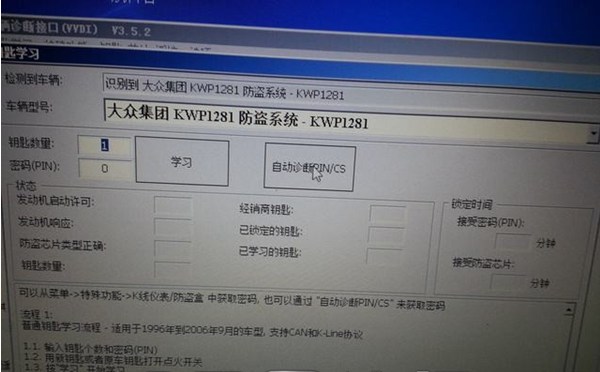

Key learning, click auto diagnostic IN/CS vvdi-audi-a4-all-key-lost-6

vvdi-audi-a4-all-key-lost-7

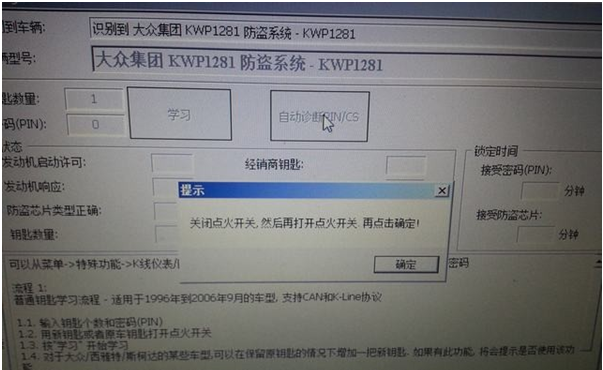

Turn ignition OFF, turn ignition ON, then press OK
vvdi-audi-a4-all-key-lost-8

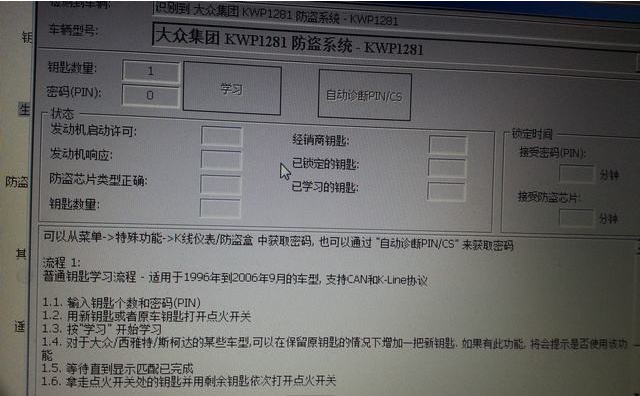

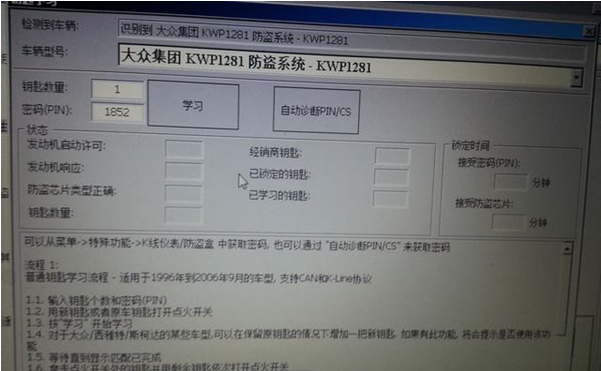

Successfully read PIN code

vvdi-audi-a4-all-key-lost-9

vvdi-audi-a4-all-key-lost-10

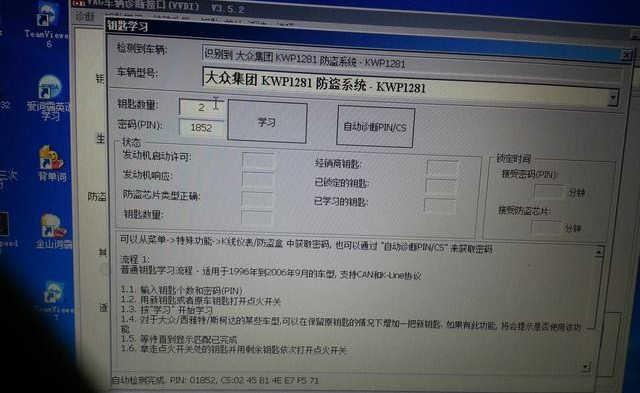

Select Key Learning

vvdi-audi-a4-all-key-lost-11

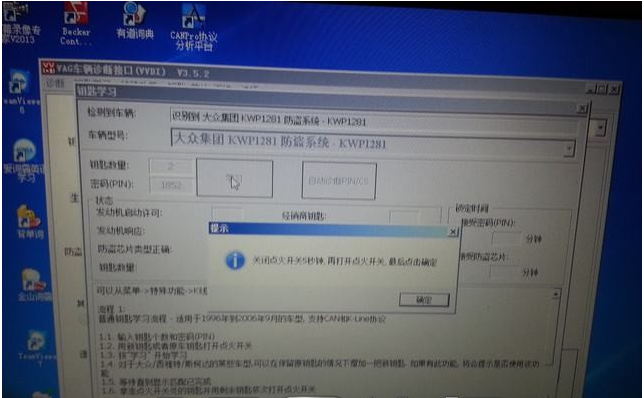

Turn ignition OFF for 5 seconds, turn ignition ON, press YES

vvdi-audi-a4-all-key-lost-12

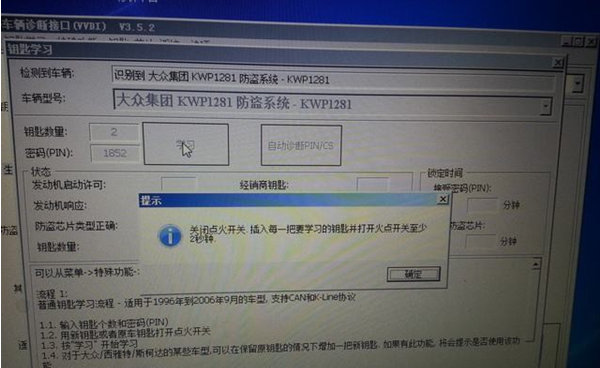

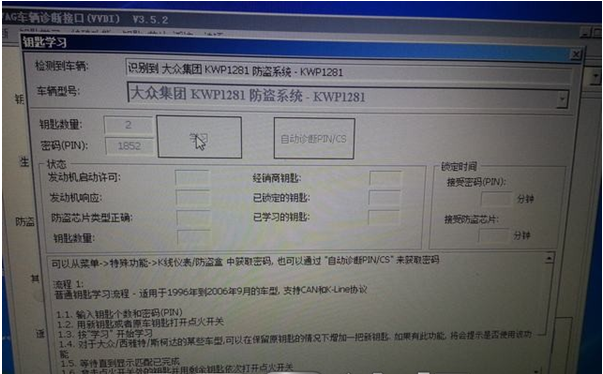

Turn ignition OFF, insert key to be learnt, turn ignition ON at least 2 seconds.

vvdi-audi-a4-all-key-lost-13

vvdi-audi-a4-all-key-lost-14
Test the second key follow the same operation. Two key has been successfully programmed.
