Program Mitsubishi Pajero Sport 2013 All key lost

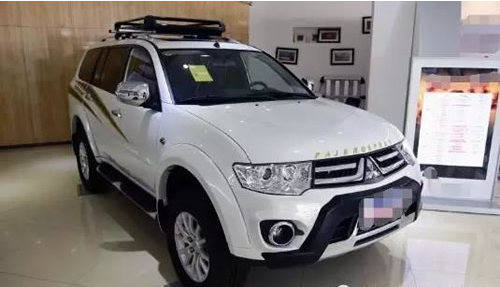

Mitsubishi Pajero Sport 2013  all  key lost programming guide is provided below.

pajero-2013-all-key-lost-1

Remote:

program remote by KD900 remote maker, then directly generate remote with Xtool X300 auto key programmer.

Chip:

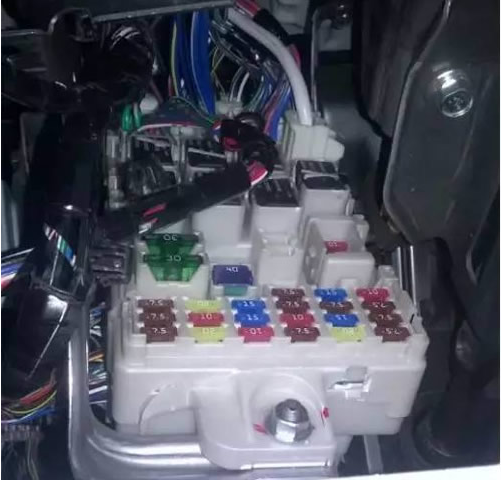

Try to read key chip data with Xtool X300+, if failed to read it. Then disassemble the immo box.

pajero-sport-2013-all-key-lost-2 pajero-sport-2013-all-key-lost-3

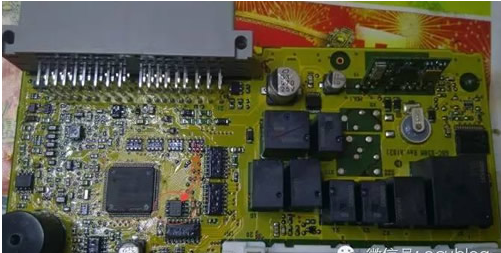

Open the immo box,find out eight-foot chip  S25A32 , see picture below

pajero-sport-2013-all-key-lost-4

Read chip S25A32 data with Xhorse VVDI Prog programmer or D3, select 25320 to read and then save data.

pajero-sport-2013-all-key-lost-5

Open Tango software, upload the data just read by VVDI-Prog

pajero-sport-2013-all-key-lost-6

Use common ID46 chip to write key. Tango key programmer will automatically re-write key data to S25A32 8 foot chip.

pajero-sport-2013-all-key-lost-7

Tested the newly programmed remote.

Done.
