SKP900 Program New Key for Ford Mustang 2014

Here is the tutorial on Ford Mustang 2014 year key programming by using original SuperOBD SKP900 hand-held OBD2 key programmer.



Step-by-step procedure:

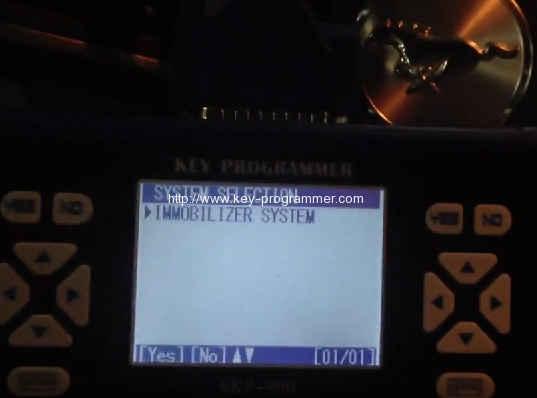

Step 1: Connect SKP900 Key Programmer to the car via OBD diagnostic socket, and turn it on, enter” SYSTEM SELECTION” and choose” IMMOBILIZER SYSTEM”

 step1

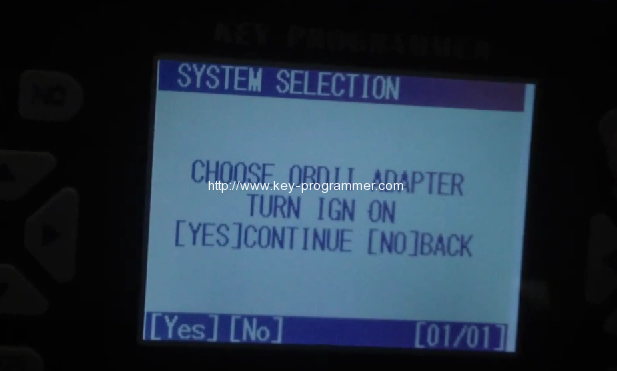

Step 2: Insert the car key into keyhole, and turn ignition to the position “ON”, skp-900 will prompt to choose OBDII adpater, just click “Yes” to continue.  communicating pls wait…

 step2

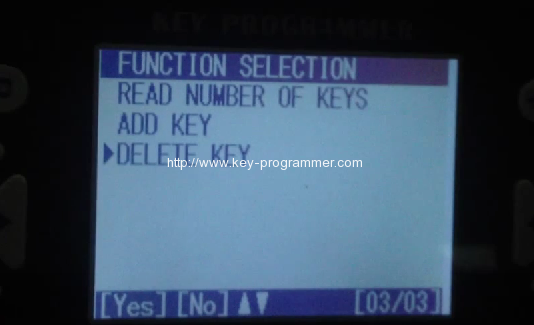

Step 3: Select “DELETE KEY” when enters into “FUNCTION SELECTION”

interface. Choose “Yes” to continue.

 step3-1

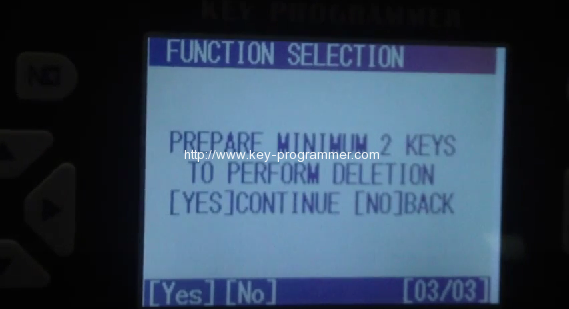

Prepare minimum 2 keys to perform deletion.

step3-2

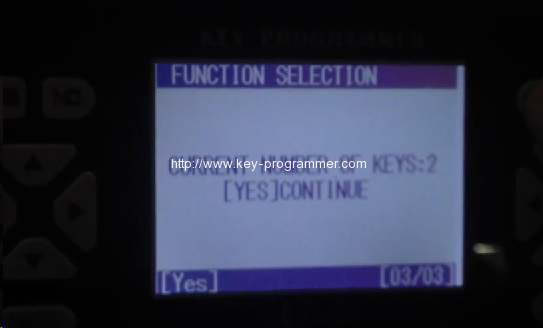

Step 4: Current number of keys:2. And click ”Yes” again to continue.

Note: The procedure takes approx 10 mins.

step4

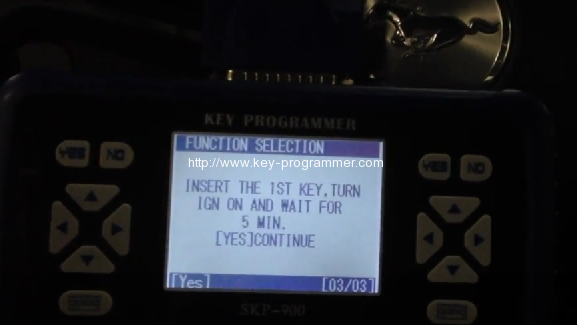

Step 5: Then skp900 pops out the message “INSRT THE 1ST KEY,TURN IGN ON AND WAIT FOR 5 MIN”. Current number of keys: 2.. Press “YES” to finish this step.

step5

step5-2

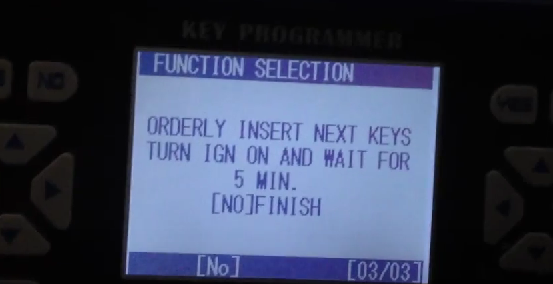

Step 6Orderly insert next keys. Turn IGN on and wait for 5 minutes.

 step6

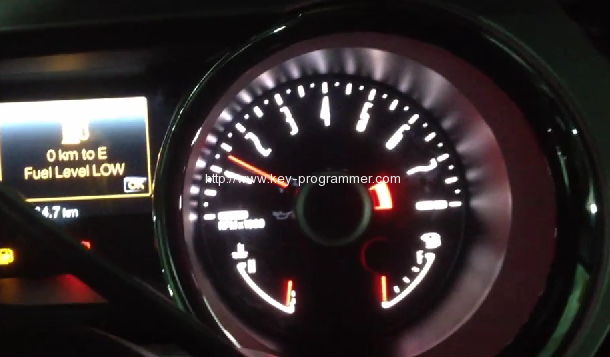

Step 7: Click ”No” to finish all procedure and go back to the main interface. Finally, try to test new programmed keys.

step7

Unplug skp-900 key programmer from vehicle.
