Program Ford Transit 2009 Key by OBDSTAR Key Master

Here is the step by step instruction on programming new key on Ford Transit 2009 via OBD2 by using OBDSTAR X300 Pro3 Key Master auto key programmer. Progress done within 2 minutes, super easy.



Connect OBDSTAR Key Master with vehicle via OBD socket. Power on the key programmer.

Note: The OBDSTAR Key Master in green case is exactly the same as X300 Pro3 in orange case.

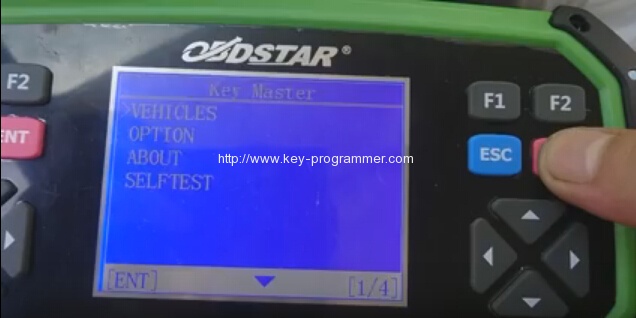

Select VEHICLES

obdtsar-x300-pro3-select-vehicles

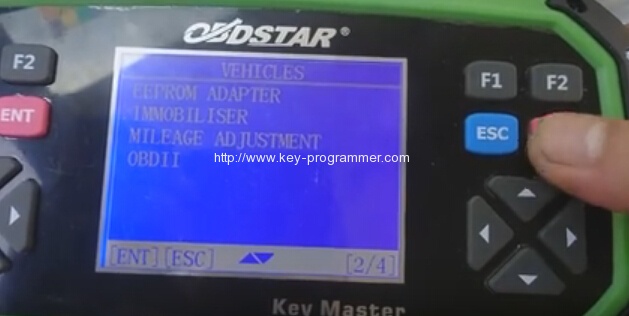

Select IMMOBILISER

obdtsar-x300-pro3-select-immobilizer

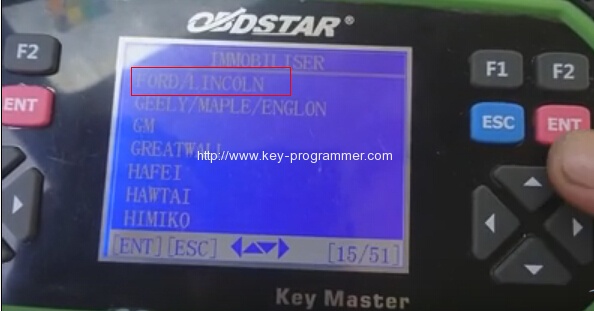

Select vehicle brand: FORD/LINCOLN

obdtsar-x300-pro3-select-ford

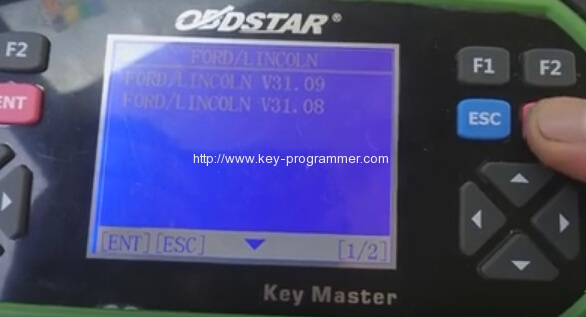

Check vehicle software version

obdtsar-x300-pro3-ford-version

Initializing
Authorizing

Communicating

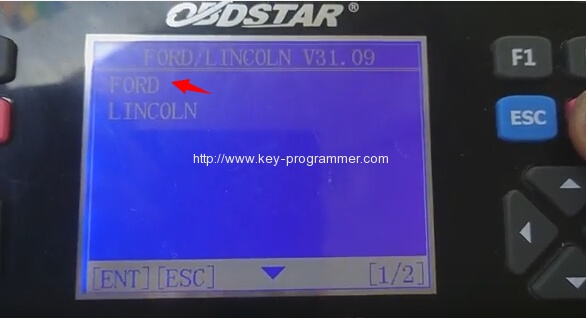

Select Car make:FORD

obdtsar-x300-pro3-select-ford

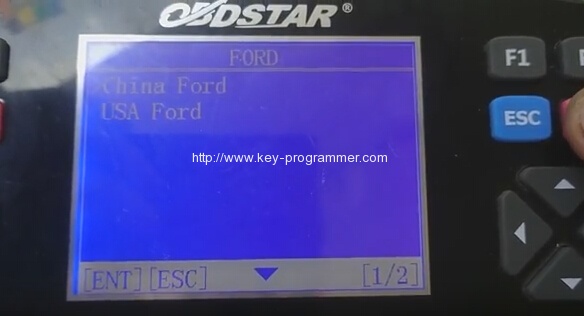

Select Car region, here we tested a China Ford

obdtsar-x300-pro3-select-china-ford

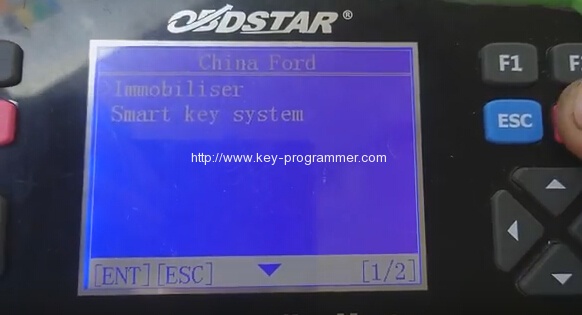

Select program key from Immobiliser

obdtsar-x300-pro3-select-immo

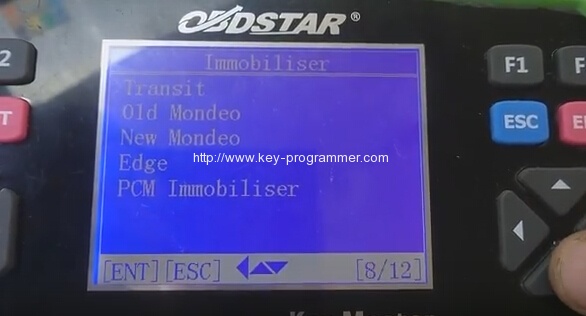

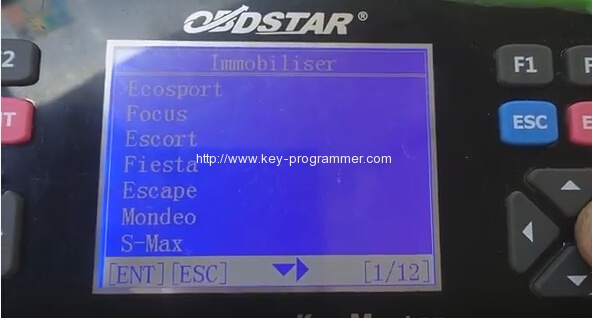

Drop down the vehicle list and select Transit

obdtsar-x300-pro3-ford-list

obdtsar-x300-pro3-select-transit

Communicating

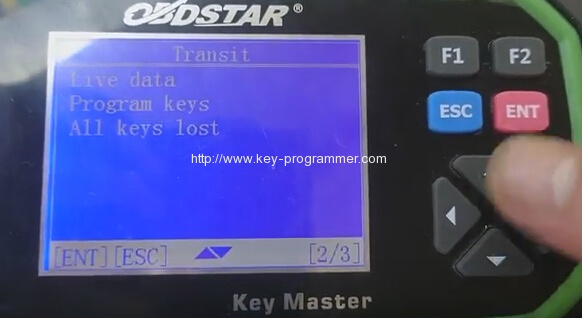

Select Program keys function

obdtsar-x300-pro3-program-keys

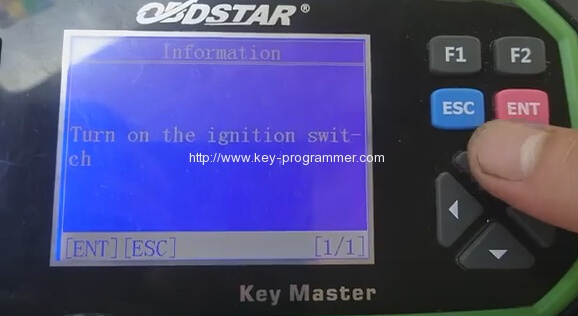

Turn on the ignition switch

turn-ignition-switch

Insert key and switch ignition on

Program key in progress.

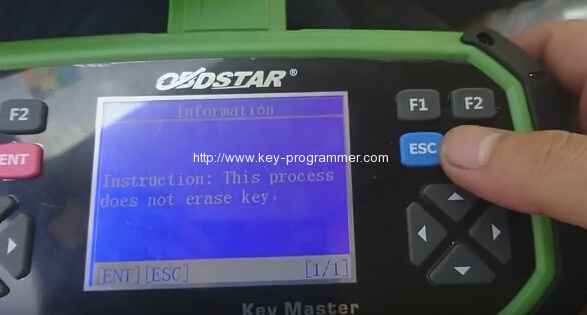

This process does not erase key.

obdtsar-x300-pro3-instruction

obdtsar-x300-pro3-program-success

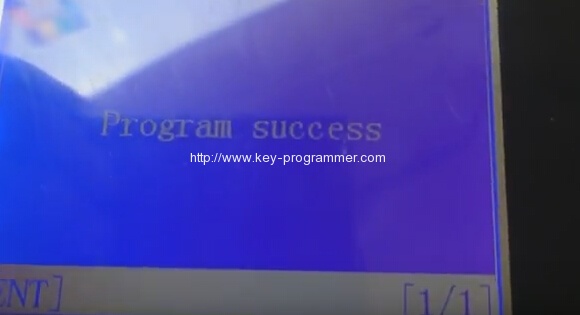

Program success.

Test the new programmed key.
