Program OPEL Insignia All Keys Lost by OBDSTAR X300 Pro3

Here is the step-by-step instruction on programming key for OPEL Insignia when all keys have lost by using OBDSTAR X300 Pro3 Key Master key programmer.



Note: Pin code is required during key programming procedure.



Procedure:

Connect X300 Pro3 with vehicle via OBD and power it on
Select vehicle make: Opel

opel-insignia-by-key-master-1

opel-insignia-by-key-master-2

Select Immobilizer

opel-insignia-by-key-master-3

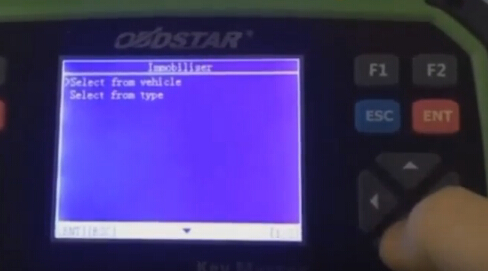

Select from vehicle

opel-insignia-by-key-master-4

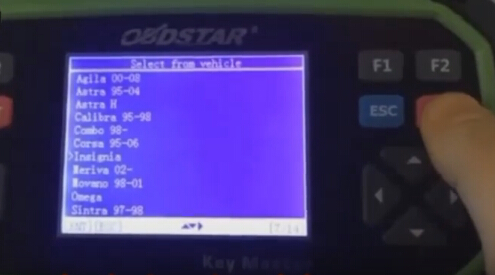

Select vehicle model: Insignia

opel-insignia-by-key-master-5

OBDSTAR Key Master has some other Opel models listed:

Aglla 00-08
Astra 95-04
Astra H
Calibra 95-98
Combo 98-
Corsa 95-06
Insignia
Meriva 02-
Movano 98-01
Omega
Sintra 97-98

and more…

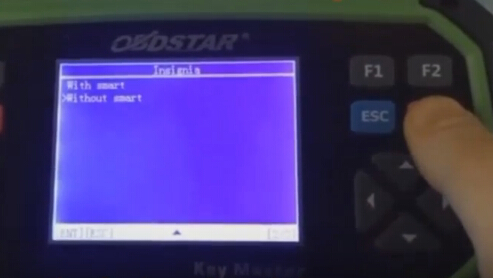

Select with or without smart key, here we choose Without Smart

opel-insignia-by-key-master-6

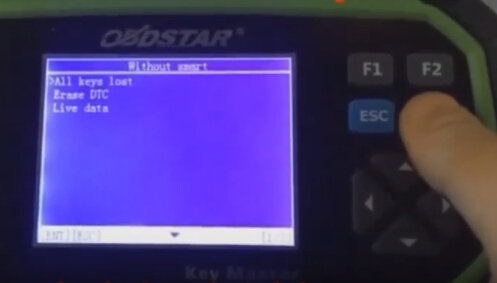

Select All key lost

opel-insignia-by-key-master-7

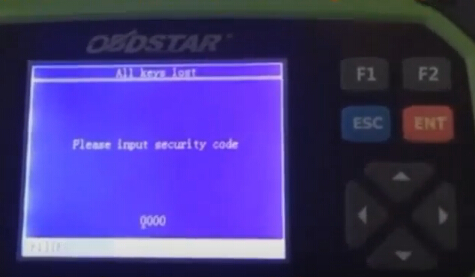

Enter security code and confirm

opel-insignia-by-key-master-8

Switch ignition off for 5 sec, and then switch ignition on

Configuring the system, please wait for about 10 mins..

Switch ignition off, remove the key

Open and close the driver door, confirm all electrical are closed
Whether to program next key
Switch ignition off, remove the key

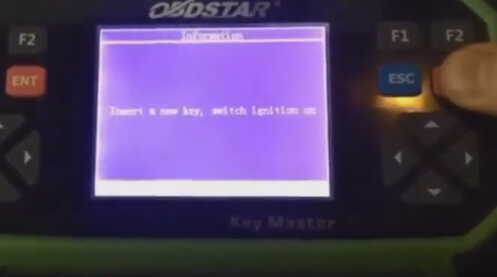

opel-insignia-by-key-master-9

Switch ignition off, remove the key
Open and close the driver door, confirm all electrical are closed

Turn on the ignition switch



Whether to program next key?
Switch ignition off, remove the key.



Configuring the system, please wait for 45 sec…
Turn on the ignition switch
Switch ignition off

Turn on the ignition switch

opel-insignia-by-key-master-10

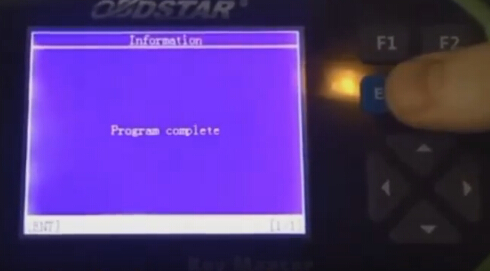

Program complete.
