OBDSTAR Key Master Program Cadillac CT6 2016 all keys lost

Here is the tutorial on programming smart key for Cadillac CT6 2016 under all keys lost situation by using OBDSTAR X300 Pro3 Key Master auto key programmer.



Preparation:

Two smart keys

OBDSTAR X300 Pro3 key programmer

Pin Code to car (get pin code by VPC-100 or other calculators)

x300-pro3-cadillac-ct6-key-1

Instruction:
Connect OBDSTAR X300 Pro3 key programmer with vehicle
Select Vehicles

x300-pro3-cadillac-ct6-key-2
Select Immobilizer
Select GM
Select GM V30.44

x300-pro3-cadillac-ct6-key-3
Select Immo/Remote function

x300-pro3-cadillac-ct6-key-4
Select vehicle make: Cadillac

x300-pro3-cadillac-ct6-key-5
Select CT6
Select Immobiliser

x300-pro3-cadillac-ct6-key-6
Select vehicle year: 2016

x300-pro3-cadillac-ct6-key-7

Select All keys lost
Press start button once

Put the smart key into the card slot,take other smart key out of the car,press ENTER to continue.
The position of card slot is as follows:
1. In the armrests
2.Below the cup holder
3.Near the ashtray
4.Glove compartment

x300-pro3-cadillac-ct6-key-8

Switch igntion off
Configuring the system,please wait

x300-pro3-cadillac-ct6-key-9

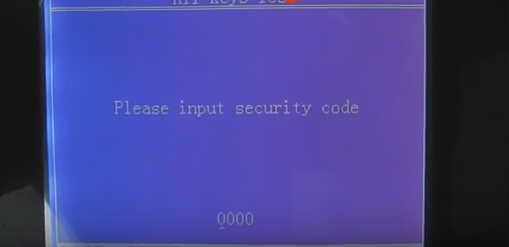

OBDSTAR Key Master require to enter 4-digit pin code
Enter pin code and confirm

Verifiy the security code
Configuring the system,please wait for about 12 minutes

x300-pro3-cadillac-ct6-key-10
Erease success

Press start button once

X300 Pro3 prompt whether to program next key? Press ENTER to continue
Remove key from card slot and out of car, and change another smart key, put the seconds key into the card slot
Press start button once
whether to program next key?

Press ENTER, turn ignition OFF

x300-pro3-cadillac-ct6-key-11
Press start button for 12 sec

Release start button and then press ENTER

Press start button to swtich ignition on

Switch ignition off

x300-pro3-cadillac-ct6-key-12
Press the brake and press the start button to start the engine

Switch ignition off

Remove smart key, press LOCK, and then press UNLOCK, press ENTER to continue

Test new smart key is working

x300-pro3-cadillac-ct6-key-13

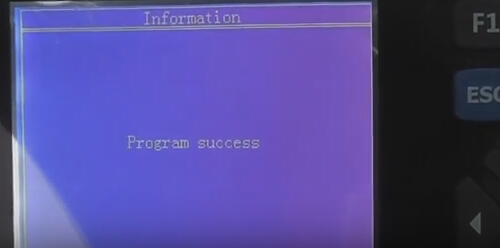

Program success!
