How to Generate 2 Remote Keys for Mitsubishi Triton 2007

Here is the instruction on programming 2 remote control key on Mitsubishi Triton 2007 by using KD900 remote generator and OBDSTAR X300 Pro3 Key Master key programmer.



Vehicle model:

Mitsubishi Triton double cab 2007

mitsubishi-triton-by-key-master-1

Devices required:
KD900 remote maker

OBDSTAR X300 pro

2 remote keys



Background info:

The Mitsubishi Triton is a compact pickup truck produced by Mitsubishi. It was originally known as the Mitsubishi Forte in Japan from 1978 to 1986, when the name was discontinued as the pickup was not sold in its home market for a while. It returned to Japan in 1991 as the Strada. For most export markets the name L200 is used, though it also been known as the Rodeo, Colt,Storm, Magnum, L200 Strakar (badge used in Portugal since 1999, Strakar is a portmanteau of Strada and Dakar), and others. Currently the pickup truck is sold in every available Mitsubishi market except the United States, Canada, Japan, P.R.C., and South Korea.



Procedure:
Step 1: Generate Remote with KD900

Well connect KD900

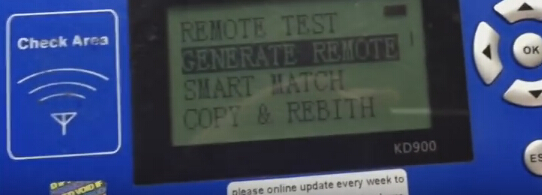

Select Generate Remote

mitsubishi-triton-by-key-master-2

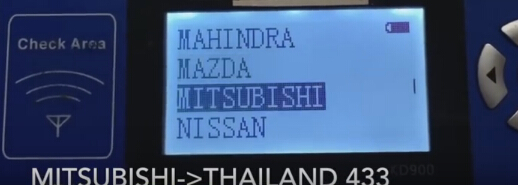

Select Mitsubishi->Thailand 433

mitsubishi-triton-by-key-master-3

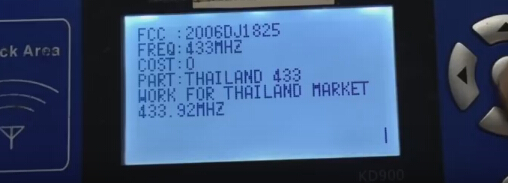

Detect key information

mitsubishi-triton-by-key-master-4-1

mitsubishi-triton-by-key-master-4

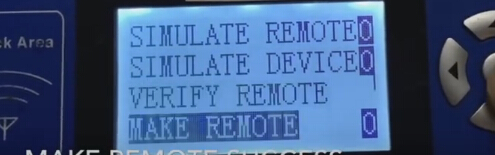

Select Make Remote

mitsubishi-triton-by-key-master-5

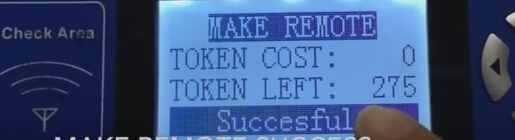

Make remote success

mitsubishi-triton-by-key-master-6

Inserted to keyshell

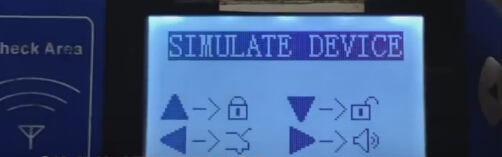

Go back and select Simulate Device in KD900

mitsubishi-triton-by-key-master-7

Step 2: Program remote with Key Master

Connect OBDSTAR Key Master with vehicle via OBD socket

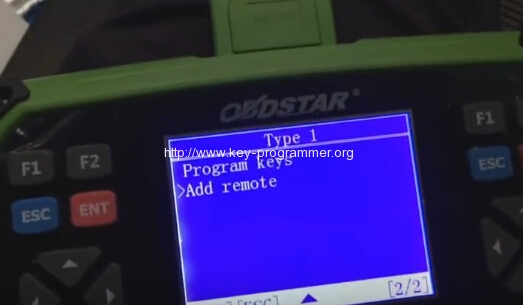

select Add remote

mitsubishi-triton-by-key-master-8

Turn ignition on with remote key
Select Type 1

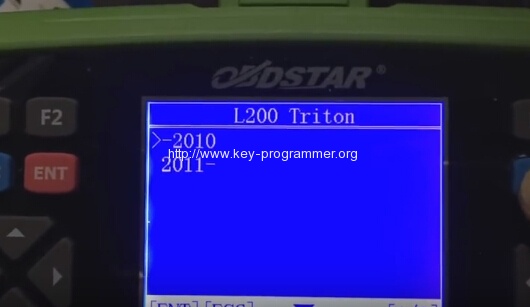

select L200 Triton ->2010
select L200 Triton

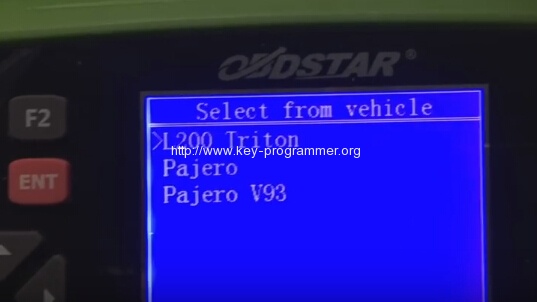

Select from vehicle
Select Mitsubishi region: China-> Select from vehicle
select L200 Triton ->2010

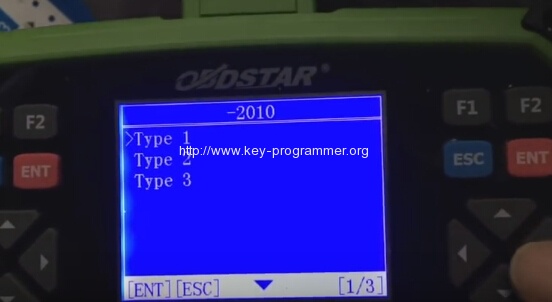

Select Type 1

mitsubishi-triton-by-key-master-9

mitsubishi-triton-by-key-master-10

mitsubishi-triton-by-key-master-11

mitsubishi-triton-by-key-master-12
This Triton key has no chip
Select add remote (add only one remote)

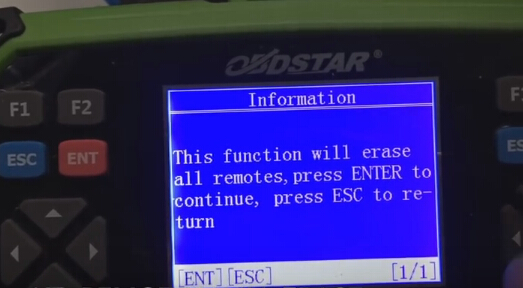

All remotes will be erased

mitsubishi-triton-by-key-master-14

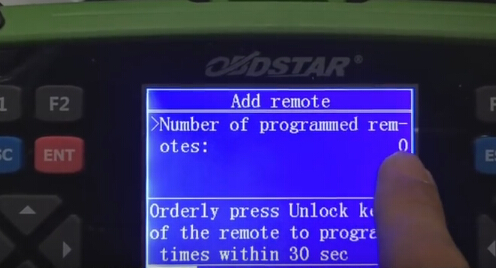

Number of programmed remotes: 0

mitsubishi-triton-by-key-master-15

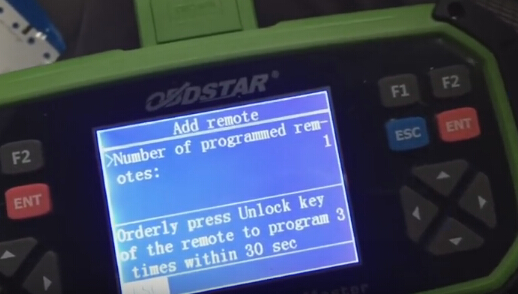

Orderly press Unlock key of the remote to program 3 times within 30 sec
Then remote number turn to 1

mitsubishi-triton-by-key-master-16

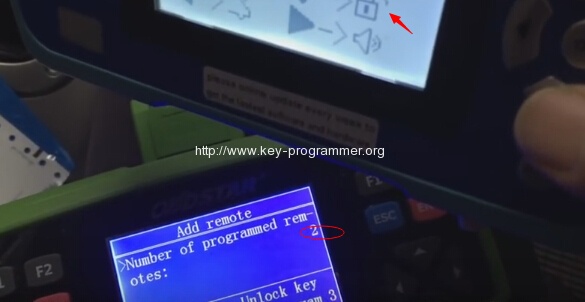

Press down button for twice on KD900

mitsubishi-triton-by-key-master-17

Number of programmed remotes: 2
Program Complete
Test remote.
