How to Generate Suzuki ID47 Remote by VVDI Key Tool

This is how to generate a Suzuki remote ID47 and test frequency using  VVDI Key Tool remote maker English version.



Xhorse key tool for sale:

http://www.obdii365.com/wholesale/xhorse-vvdi-key-tool.html



Vvdi key tool price: $249.99



Vvdi key tool remote generator functions confirmed:

Edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card….ALL WORKED!





How to use vvdi key tool to edit transponder and test frequency:

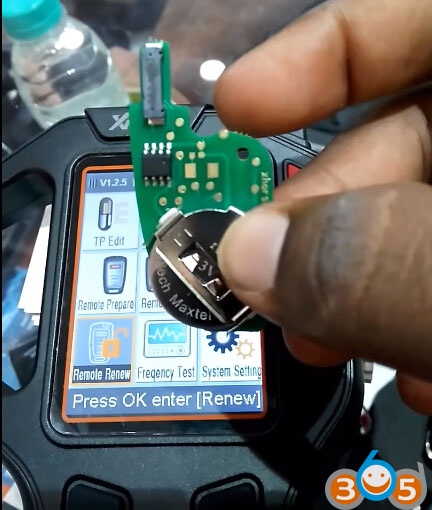

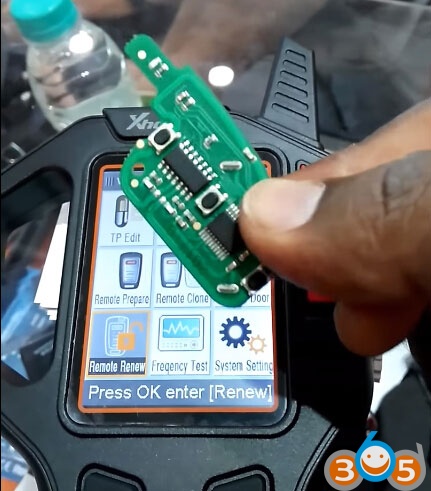

This is the key to be generated

VVDI-Key-Tool-generate-Suzuki-remote-(1)

VVDI-Key-Tool-generate-Suzuki-remote-(2)

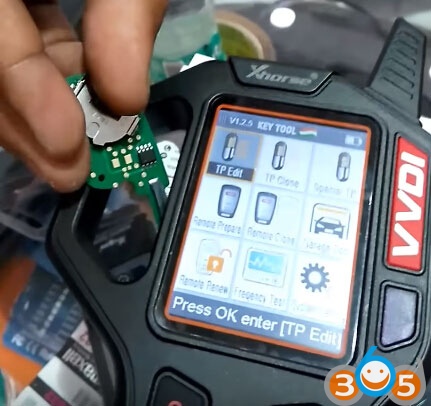

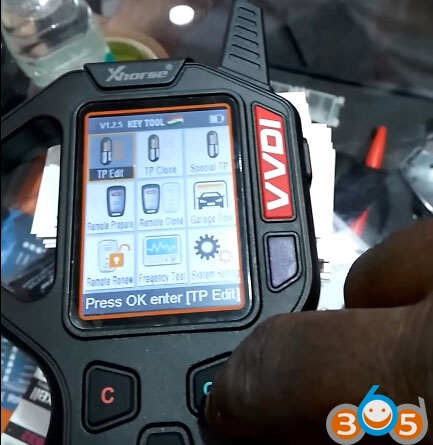

Go to TP Edit

VVDI-Key-Tool-generate-Suzuki-remote-(3)

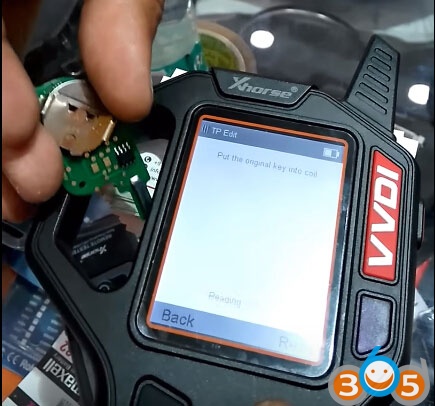

Put the original key into the coil

VVDI-Key-Tool-generate-Suzuki-remote-(4)

VVDI-Key-Tool-generate-Suzuki-remote-(5)

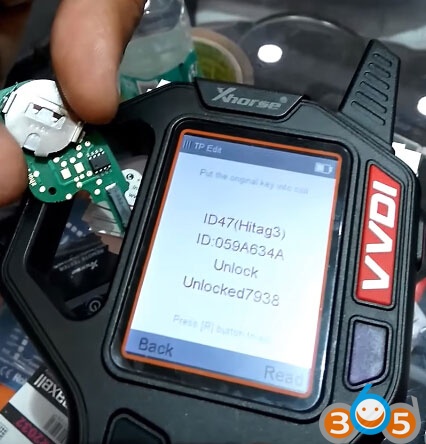

It’s ID47 (Hitag 3) Unlocked 7983

VVDI-Key-Tool-generate-Suzuki-remote-(6)6

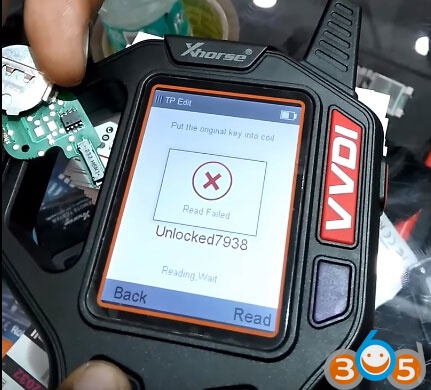

Read failed

VVDI-Key-Tool-generate-Suzuki-remote-(7)

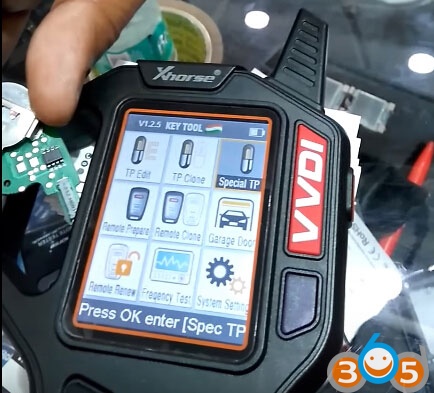

Back and go to Special TP

VVDI-Key-Tool-generate-Suzuki-remote-(8)

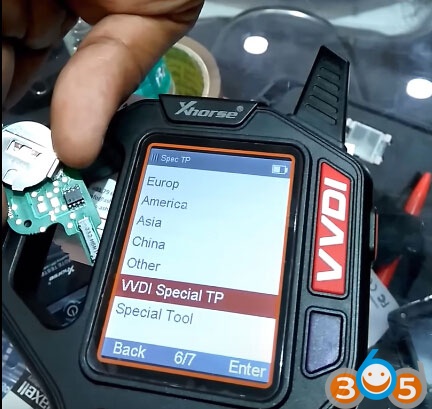

VVDI Special TP

VVDI-Key-Tool-generate-Suzuki-remote-(9)

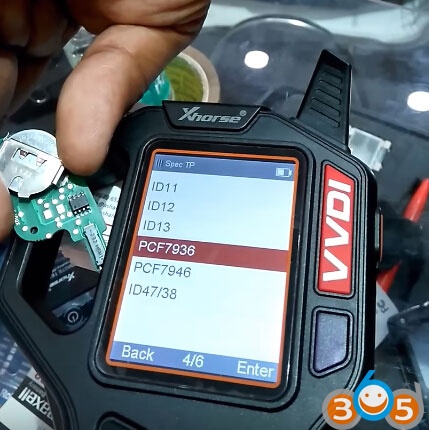

PCF7936

VVDI-Key-Tool-generate-Suzuki-remote-(10)

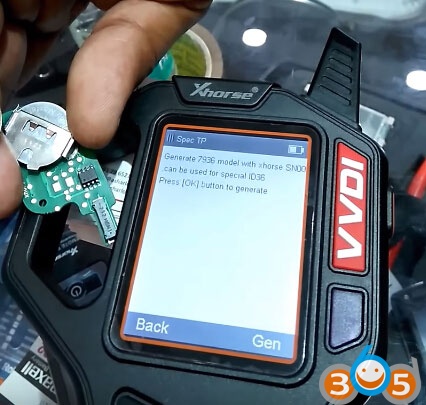

Generate 7936 model with xhorse SN00 can be used for special ID36

Press OK button to generate

VVDI-Key-Tool-generate-Suzuki-remote-(11)

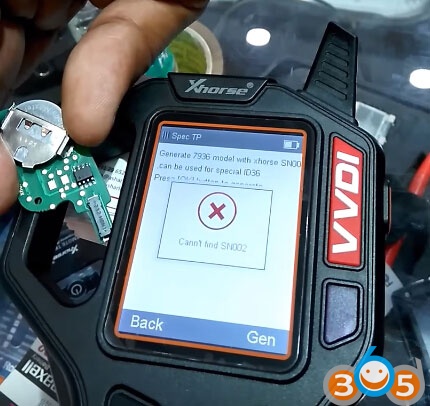

Can’t find SN002

VVDI-Key-Tool-generate-Suzuki-remote-(12)

Take the remote away the coil and put it into the coil again

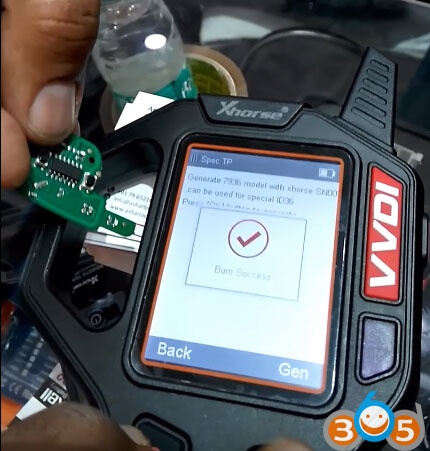

Burn success

VVDI-Key-Tool-generate-Suzuki-remote-(13)

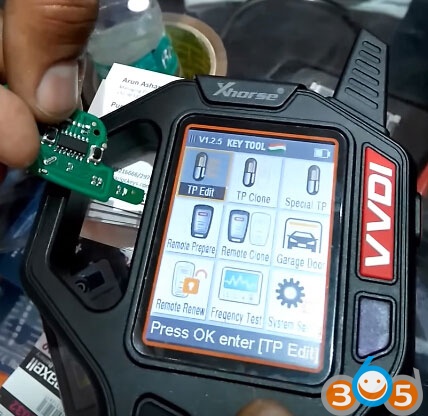

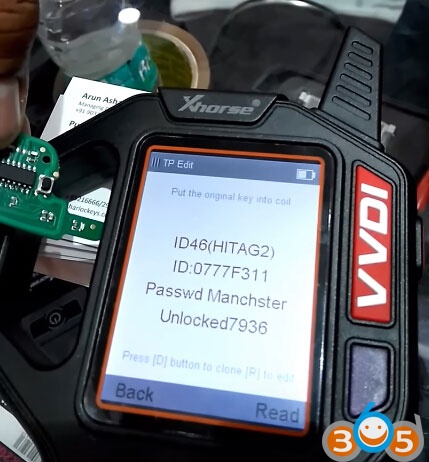

TP Edit

VVDI-Key-Tool-generate-Suzuki-remote-(14)

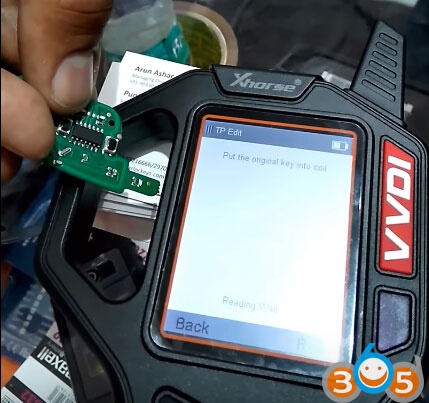

VVDI-Key-Tool-generate-Suzuki-remote-(15)

VVDI-Key-Tool-generate-Suzuki-remote-(16)

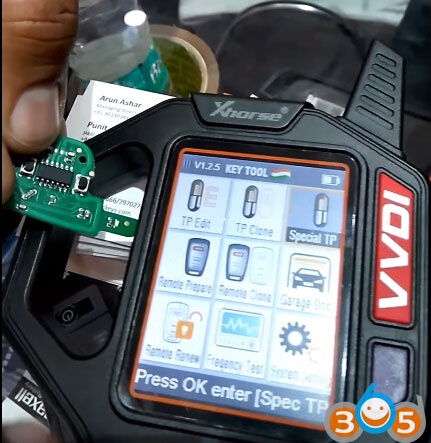

Special TP

VVDI-Key-Tool-generate-Suzuki-remote-(17)

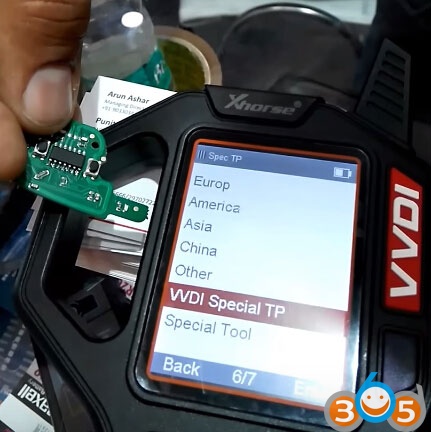

VVDI Special TP

VVDI-Key-Tool-generate-Suzuki-remote-(18)

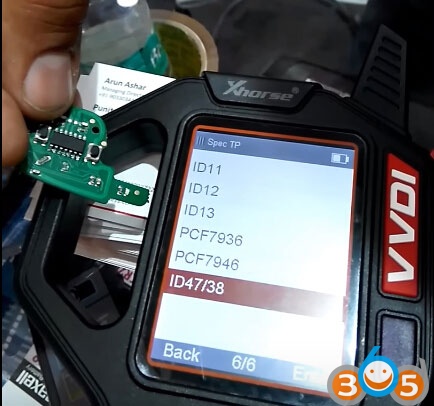

ID47/38

VVDI-Key-Tool-generate-Suzuki-remote-(19)

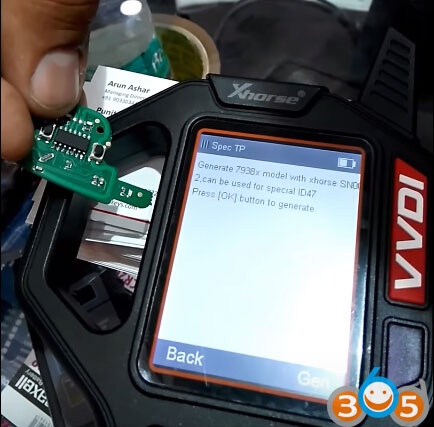

Generate 7938x model with xhorse SN02 can be used for special ID47

Press OK button to generate

VVDI-Key-Tool-generate-Suzuki-remote-(20)

Burn success

VVDI-Key-Tool-generate-Suzuki-remote-(21)

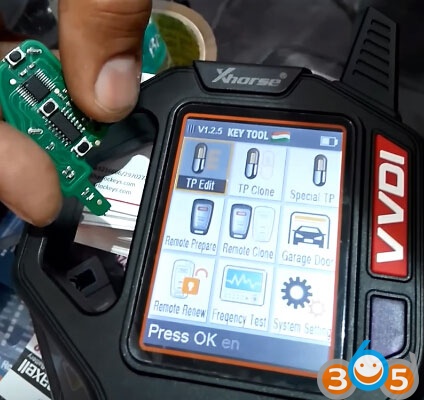

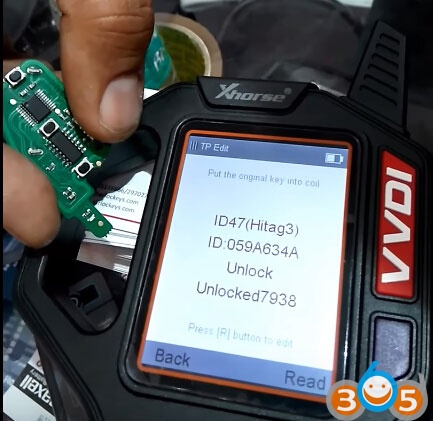

TP Edit: It’s ID47 (Hitag 3) Unlocked 7983

VVDI-Key-Tool-generate-Suzuki-remote-(22)

VVDI-Key-Tool-generate-Suzuki-remote-(23)

VVDI-Key-Tool-generate-Suzuki-remote-(24)

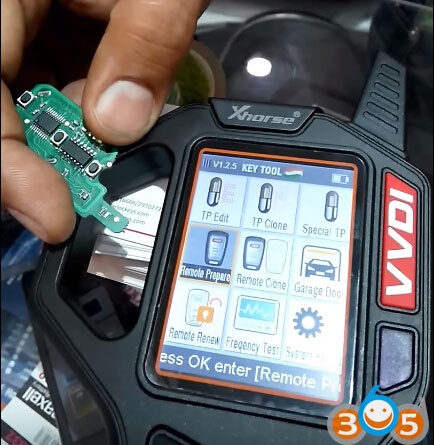

Remote prepare

VVDI-Key-Tool-generate-Suzuki-remote-(25)

Asia

VVDI-Key-Tool-generate-Suzuki-remote-(26)

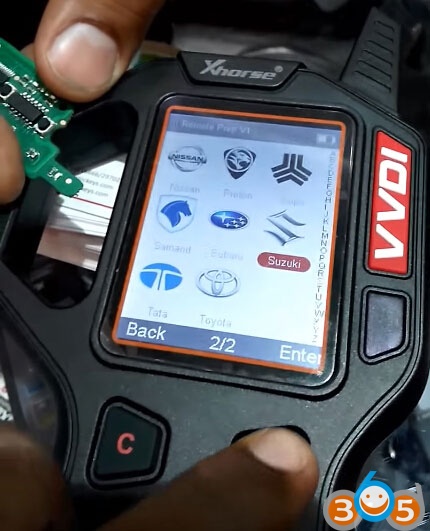

Suzuki

VVDI-Key-Tool-generate-Suzuki-remote-(27)

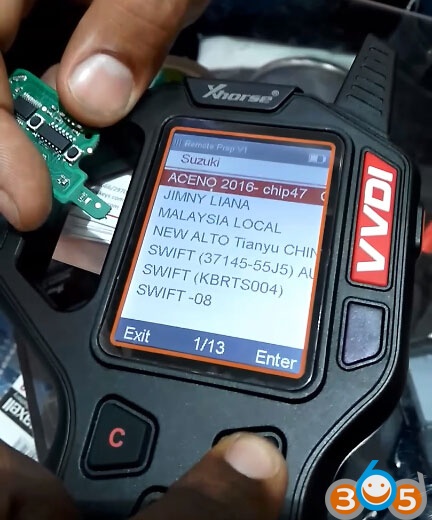

ACENO 2016- chip47

VVDI-Key-Tool-generate-Suzuki-remote-(28)

Type: ASK, Frequency: 433.0MHz

VVDI-Key-Tool-generate-Suzuki-remote-(29)

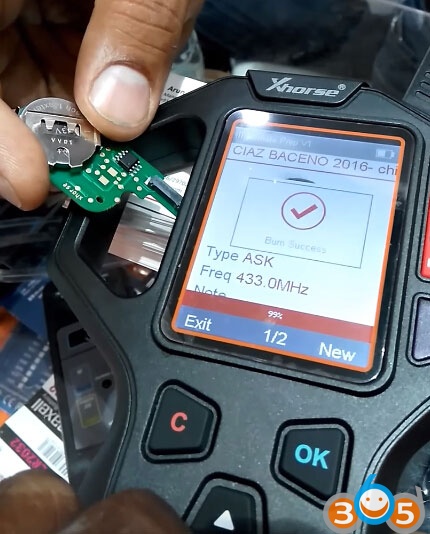

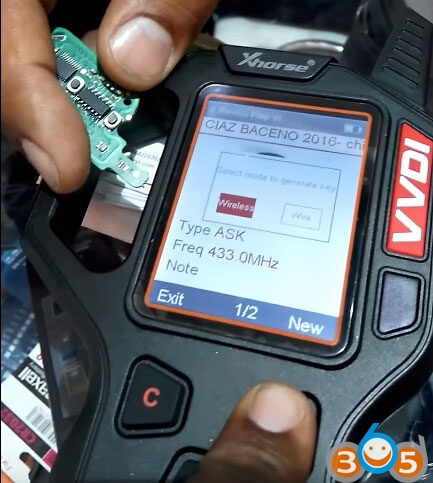

Wireless to generate remote

VVDI-Key-Tool-generate-Suzuki-remote-(30)

VVDI-Key-Tool-generate-Suzuki-remote-(32)

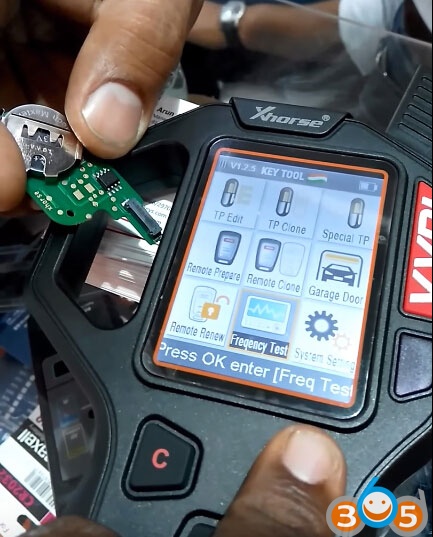

Frequency test

VVDI-Key-Tool-generate-Suzuki-remote-(33)

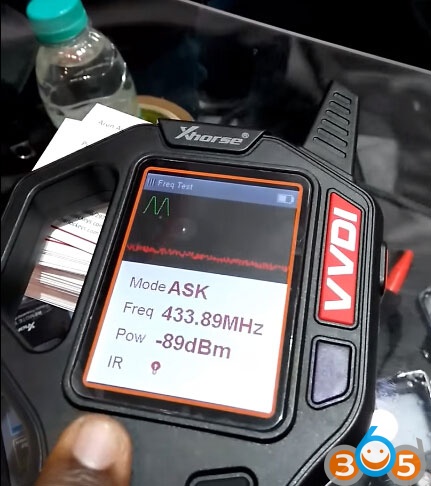

Mode: ASK, Frequency: 433.89MHz, Power: -89dBm

VVDI-Key-Tool-generate-Suzuki-remote-(34)

VVDI-Key-Tool-generate-Suzuki-remote-(35)

Xhorse vvdi key tool successfully edit transponder and test frequency
