Program ISUZU MU7 All Key Lost with OBDSTAR X300 Pro3 Key Master

Here’s the step-by-step guide on programming Isuzu MU7 smart key when all keys lost by using OBDSTAR X300 Pro3 (key master) key programmer.



Tools required:

OBDSTAR X300 Pro3 or X300 DP

OBDSTAR EEPROM adapter (PIC & EEPROM 2-in-1)

12V power supply

2 smart key to be programmed





Main steps:

Step 1: Read PIN Code

Step 2: Erase All Keys

Step 3: Program New Key





Step 1: Read PIN Code

Disassemble immo box

obdstar-x100-pro3-isuzu-mu7-1

Read pin code by eeprom adapter

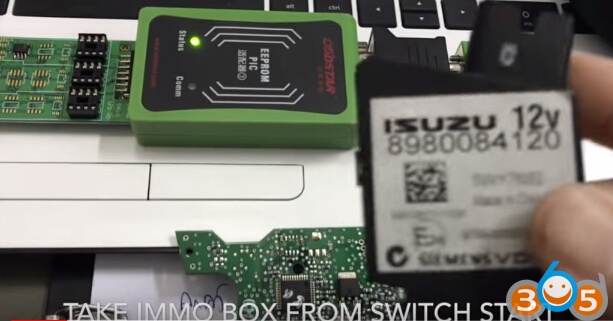

Take out Immo box from switch start

obdstar-x100-pro3-isuzu-mu7-2

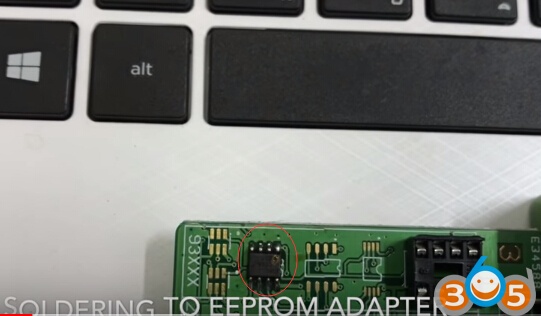

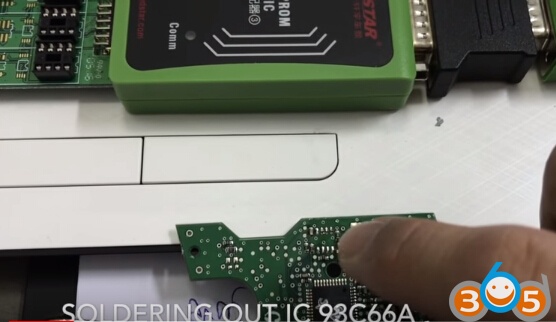

Soldering out IC 93C66A chip and solder it to EEPROM adapter

obdstar-x100-pro3-isuzu-mu7-3

obdstar-x100-pro3-isuzu-mu7-4

Connect eeprom adapter , OBDSTAR Key Master and cables

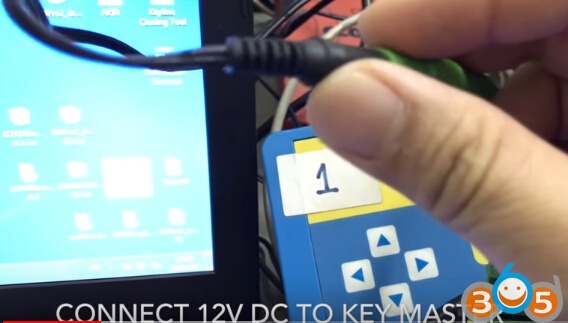

Connect 12V DC to key master

obdstar-x100-pro3-isuzu-mu7-5

Check the Status indicator on eeprom adapter tuns on means the connection is built

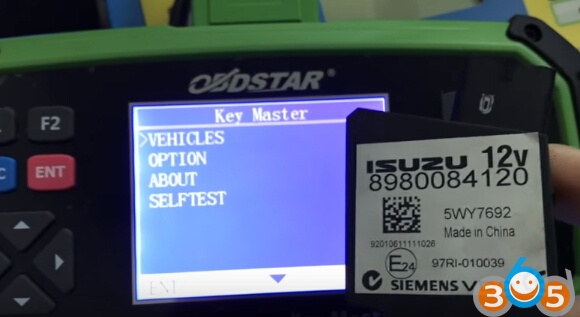

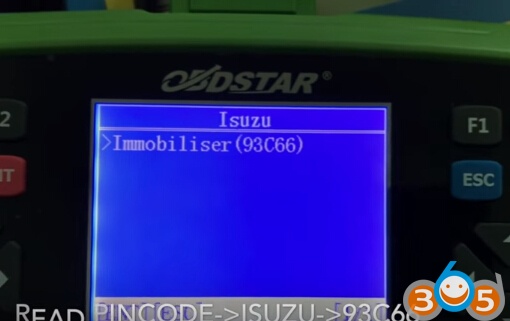

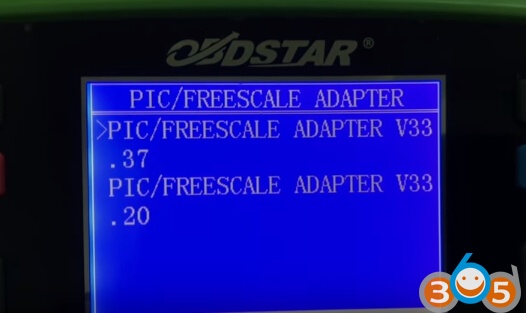

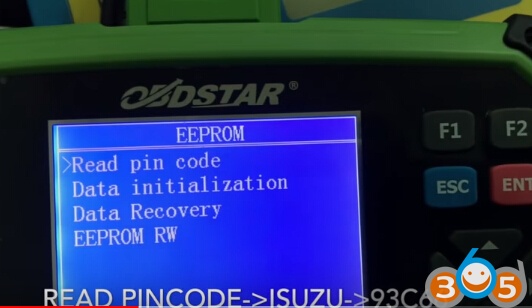

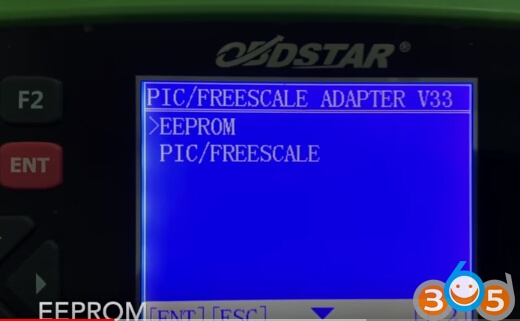

Select EEPROM adapter->V33.37->EEPROM->ISUZU->Immobilizer 93C66

obdstar-x100-pro3-isuzu-mu7-6

obdstar-x100-pro3-isuzu-mu7-7

obdstar-x100-pro3-isuzu-mu7-8

obdstar-x100-pro3-isuzu-mu7-9

obdstar-x100-pro3-isuzu-mu7-10

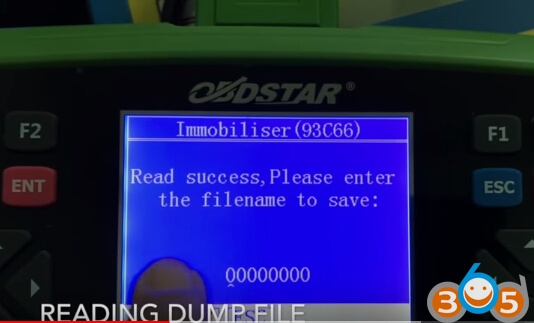

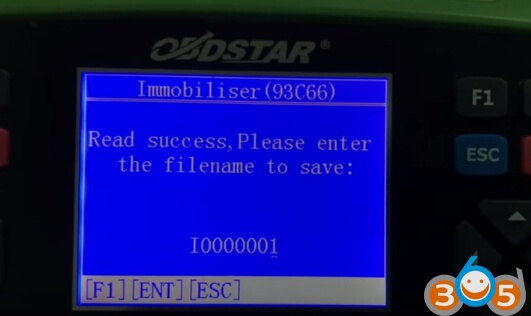

Reading dump file and save the file

obdstar-x100-pro3-isuzu-mu7-11

obdstar-x100-pro3-isuzu-mu7-12

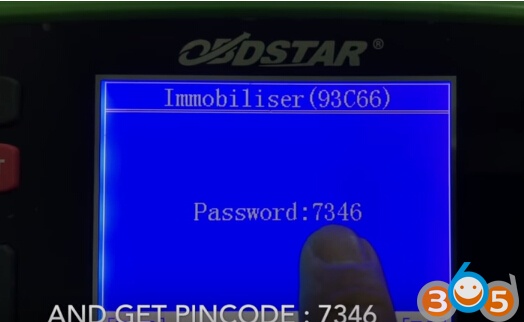

Read pin code success.

obdstar-x100-pro3-isuzu-mu7-13

Take a photo screenshot of the pin code or write it down.



Step 2: Erase All Keys

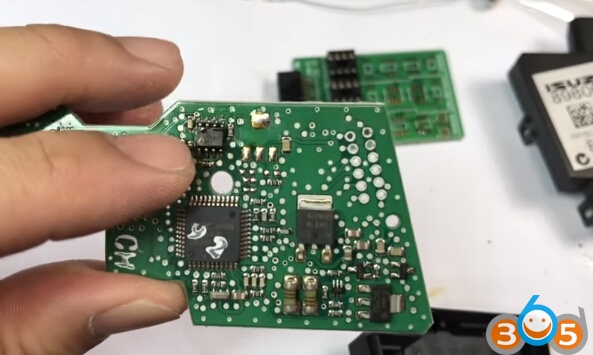

Soldering IC 93C66A back to the immo box.

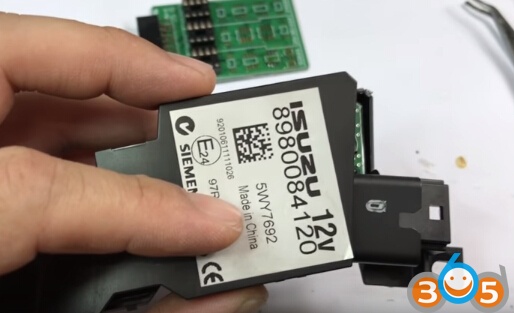

Reassembly immo box

obdstar-x100-pro3-isuzu-mu7-14

obdstar-x100-pro3-isuzu-mu7-15

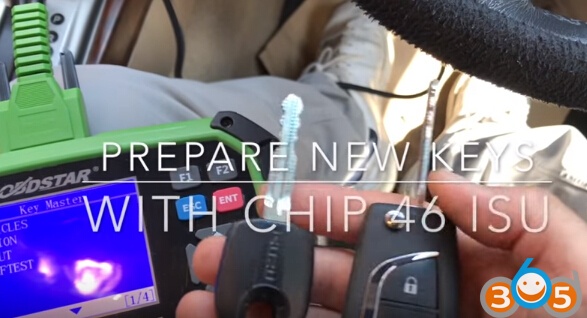

Prepare new keys with chip 46 ISU

Both keys cannot start

obdstar-x100-pro3-isuzu-mu7-16

Turn ignition ON

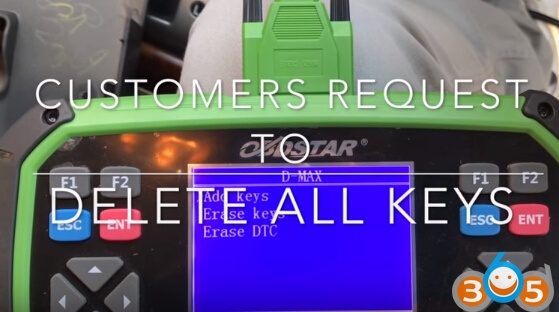

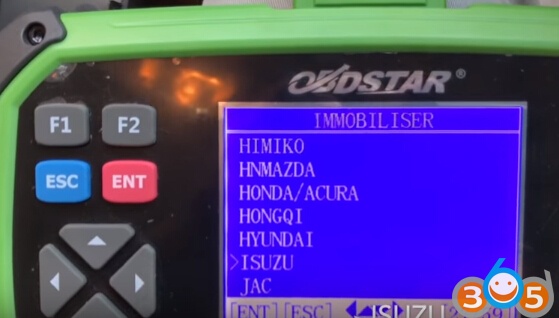

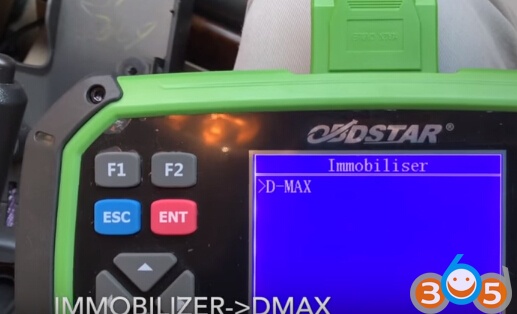

Select Vehicles->Immobilizer->Isuzu->Immobilizer->D-Max->Erase keys

obdstar-x100-pro3-isuzu-mu7-17

obdstar-x100-pro3-isuzu-mu7-19

obdstar-x100-pro3-isuzu-mu7-20

Turn ignition ON

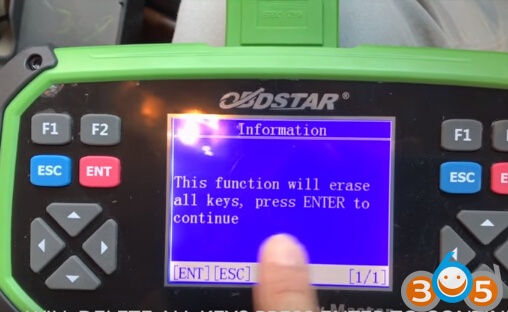

This function will erase all keys.

obdstar-x100-pro3-isuzu-mu7-21

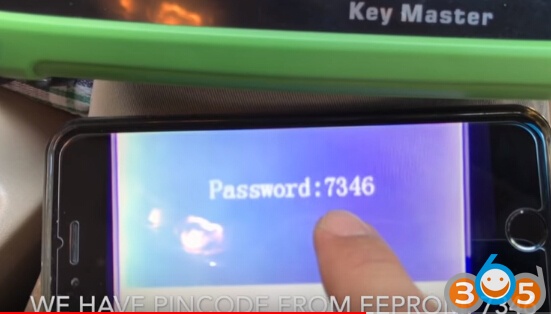

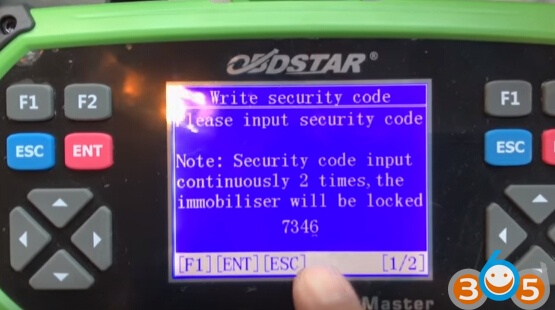

OBDSTAR X300 Pro3 require to enter security pin code to erase keys.

obdstar-x100-pro3-isuzu-mu7-18

obdstar-x100-pro3-isuzu-mu7-22

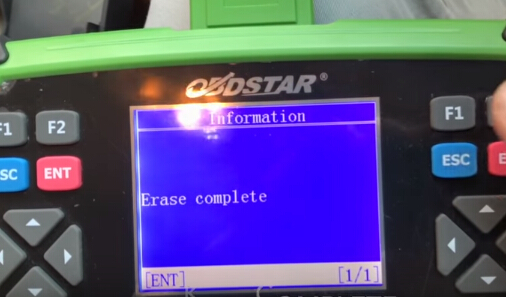

Erase keys success.

obdstar-x100-pro3-isuzu-mu7-23



Step 3: Program New Key

Select Add keys on Isuzu menu

obdstar-x100-pro3-isuzu-mu7-24

Turn ignition ON

Maximum 5 keys to be programmed

Again enter 4-digit pin code to program key

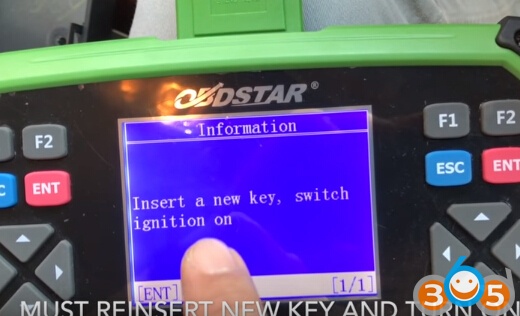

Insert a new key, turn ignition on

obdstar-x100-pro3-isuzu-mu7-25

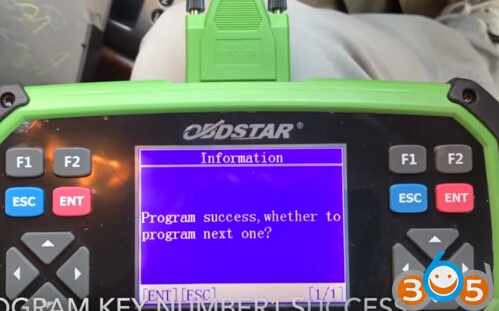

Program success. Press YES to program next key

obdstar-x100-pro3-isuzu-mu7-26

Insert a new key, turn ignition on

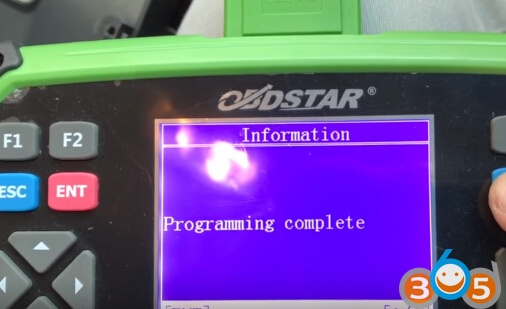

Program 2nd key success.

obdstar-x100-pro3-isuzu-mu7-27

Try to start car with new keys

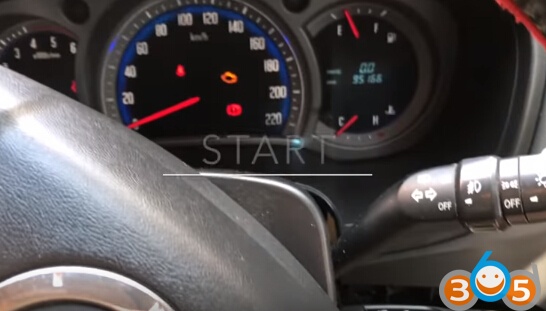

Start success

obdstar-x100-pro3-isuzu-mu7-28
