How to Calculate W204 EIS All Keys lost Key Password with VVDI MB Tool

Here’s the step-by-step guide to calculate MB W204 EIS all keys lost key password using VVDI MB BGA Tool and power adapter in 20 minutes.
vvdi-mb-w204-password-1

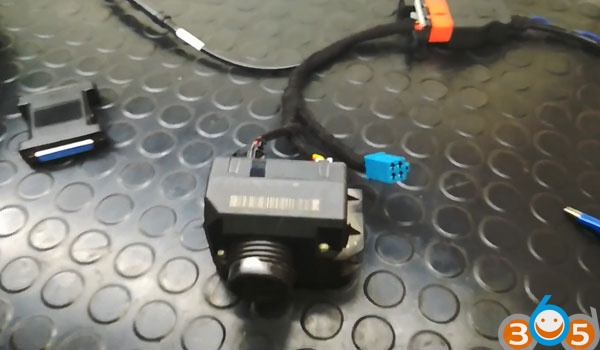

Connect W204 EIS using VVDI MB EIS cables
vvdi-mb-w204-password-2
now follow the steps
Open VVDI MB software

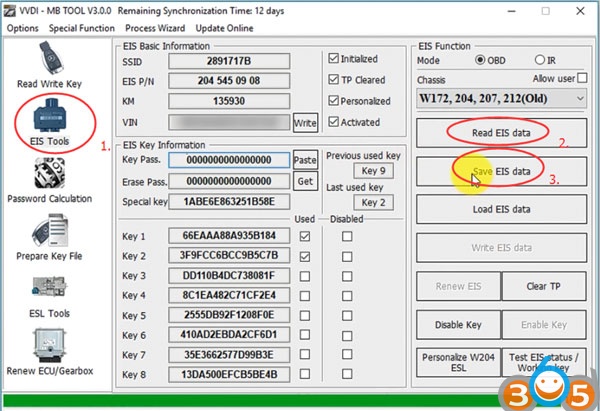

Select EIS Tools->Read EIS data->Save EIS data
vvdi-mb-w204-password-3

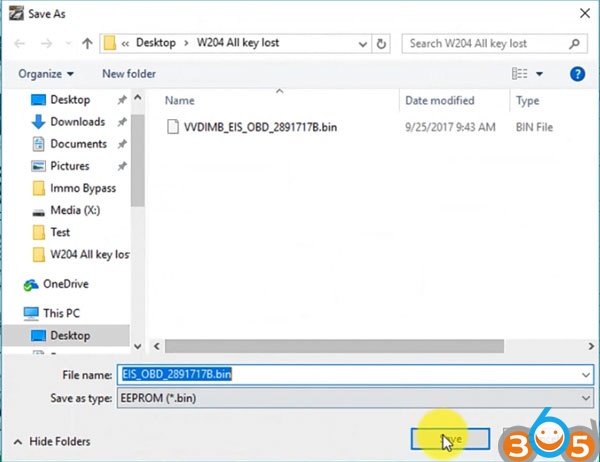

Save eeprom bin file and HC05 format file
vvdi-mb-w204-password-4
vvdi-mb-w204-password-5
vvdi-mb-w204-password-6

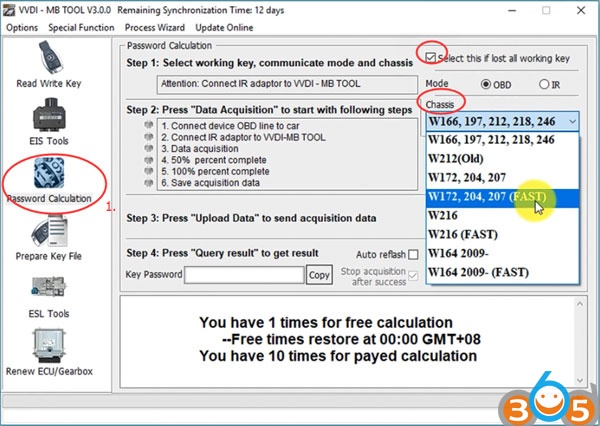

Select Password Calculation
Tick lost all working key
Select chassis W204
vvdi-mb-w204-password-7

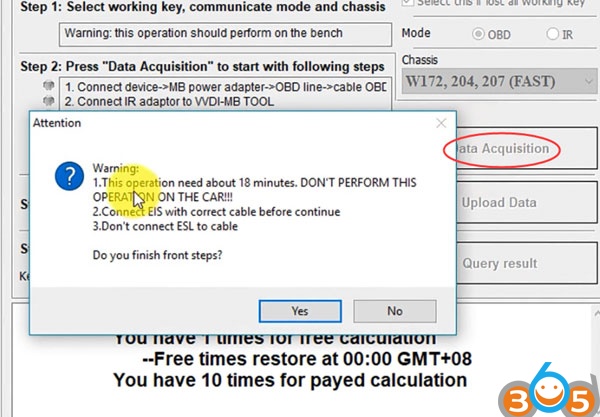

Click on Data Acquisition
1. This opeation need about 18 minutes. DON’T perform this opeartion on the car!!!
2. Connect EIS with correct able before continue
3. Don’t connect ESL to cable.
vvdi-mb-w204-password-8
Now we connect the adapter

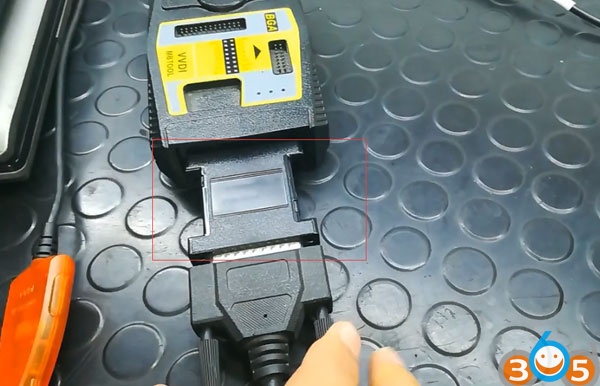

Connect MB power adapter (VVDI MB speed adapter) with VVDI MB
vvdi-mb-w204-password-9
vvdi-mb-w204-password-10
Click YES to continue

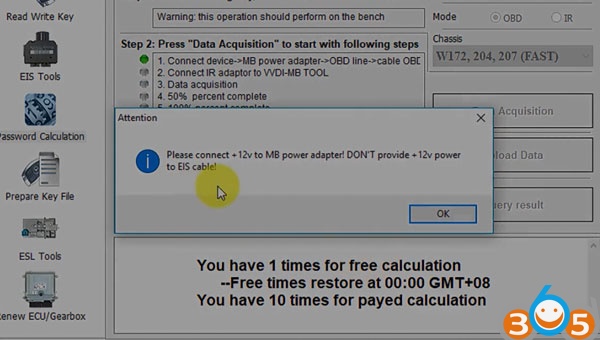

Please connect 12V to MB power adapter! DON’T provide 12V power to EIS
vvdi-mb-w204-password-11

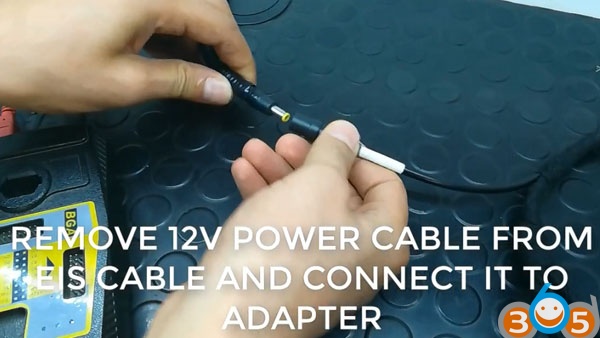

Remove 12V power adapter from EIS cable and connect it to MB power adapter
vvdi-mb-w204-password-12
vvdi-mb-w204-password-13
Click YES

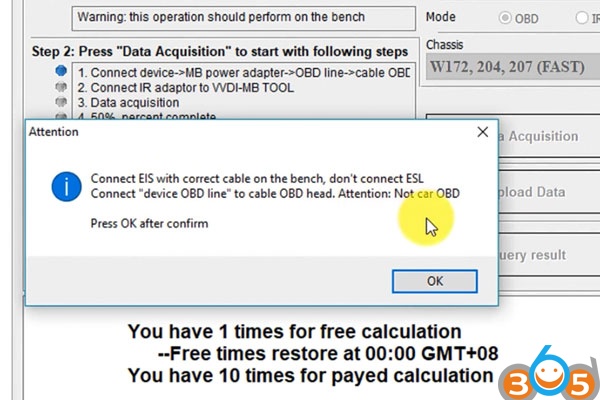

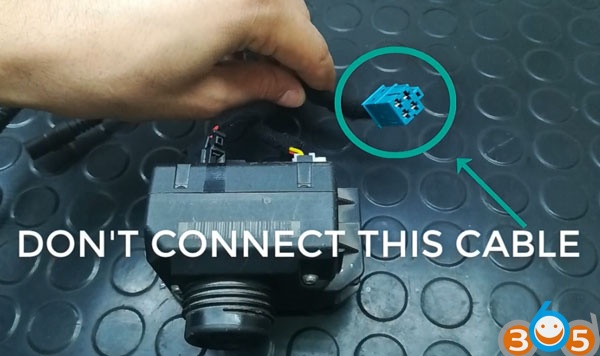

Connect EIS with correct cable on the bench, don’t connect ESL.
Connect “device OBD line” to cable OBD head. Attention: No car OBD
vvdi-mb-w204-password-14
vvdi-mb-w204-password-15
Press OK after confirm

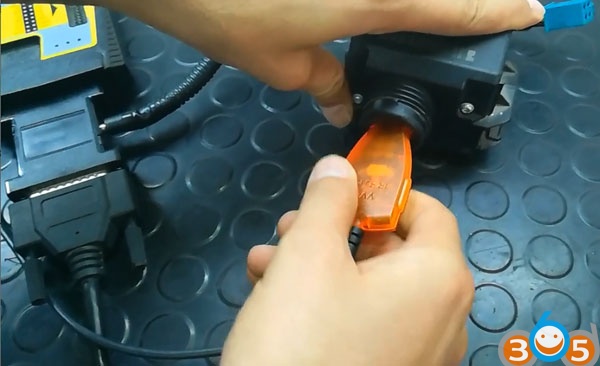

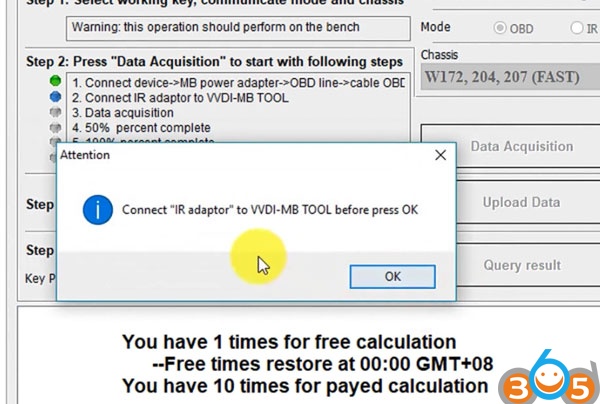

Connect “IR adapter” to VVDI MB tool before press OK
vvdi-mb-w204-password-16
vvdi-mb-w204-password-17
Press OK
Now you have to wait 18-25 minutes

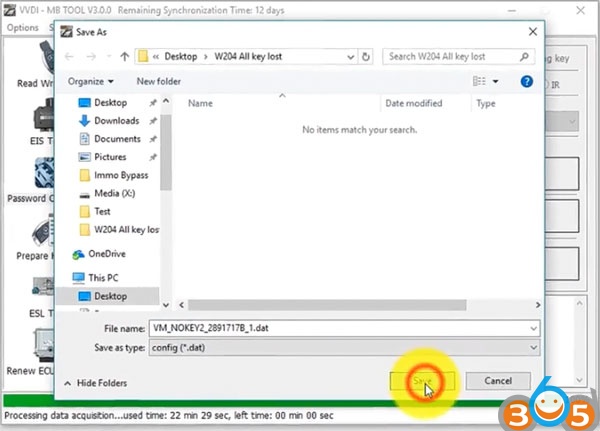

Save pass dat. file
vvdi-mb-w204-password-18

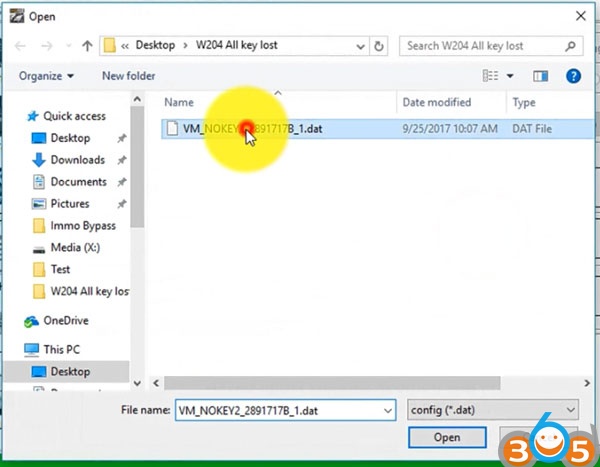

Acquisition finished, update the saved data with “Upload data” for password
vvdi-mb-w204-password-19
vvdi-mb-w204-password-20

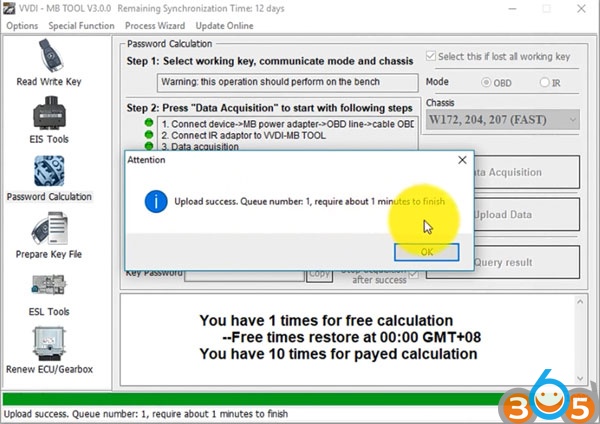

Upload success. Quene number 1. require about 1 minute to finish
vvdi-mb-w204-password-21

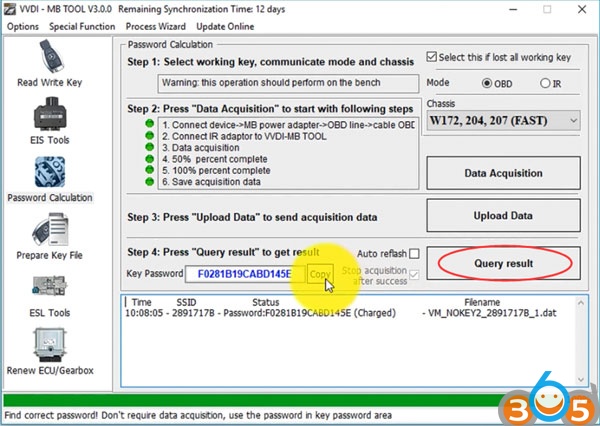

Wait about 2 minutes and then press Query Result
vvdi-mb-w204-password-22
Calculate password success. Paste the pass
vvdi-mb-w204-password-23

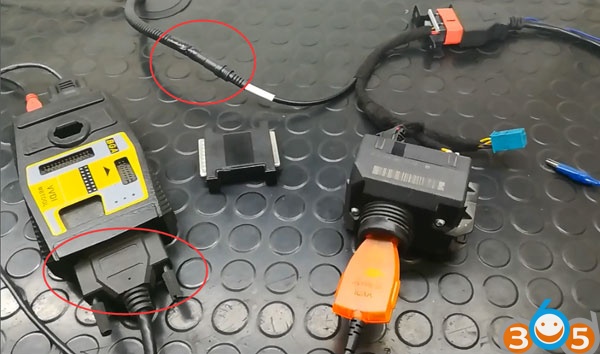

Remove the adapter and then connect 12V cable to EIS cable
vvdi-mb-w204-password-24
Select EIS Tools->Read EIS data

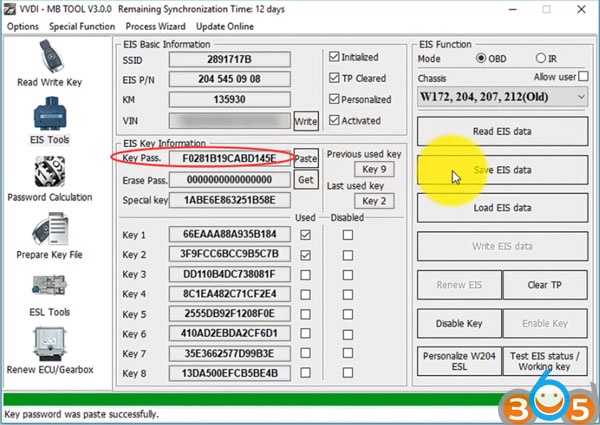

Paste key pass
vvdi-mb-w204-password-25

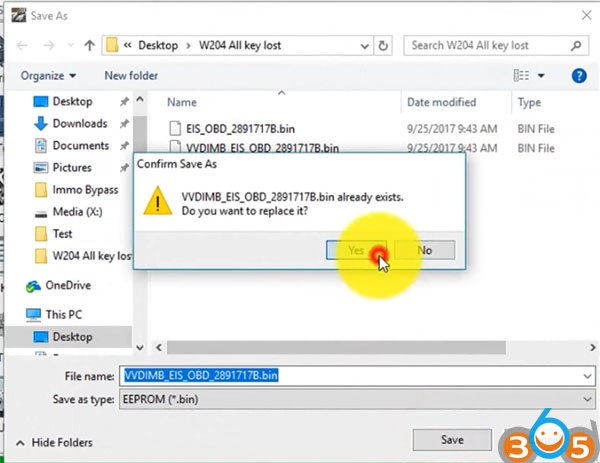

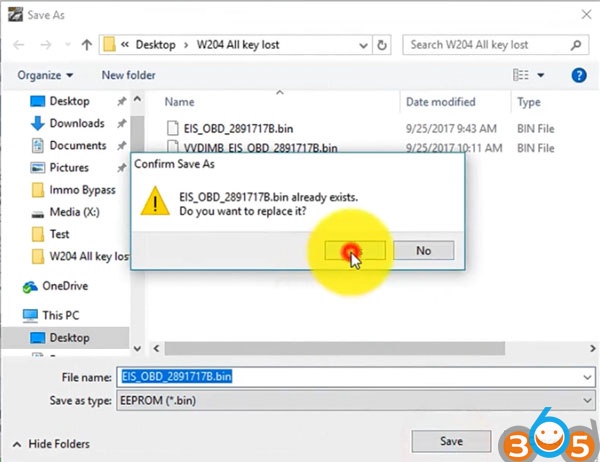

Save and replaced EIS data
vvdi-mb-w204-password-26
vvdi-mb-w204-password-27
Success.
