Program 2018 Nissan Altima Smart Key by Auro OtoSys IM100

Here’s the guide of Auro OtoSys IM100 programming a 2018 Nissan Altima 5-button Smart Key bypassing the security. This functionality is available on the both IM100 and the OtoSys IM600.

Connect IM100/IM600 tablet with vehicle

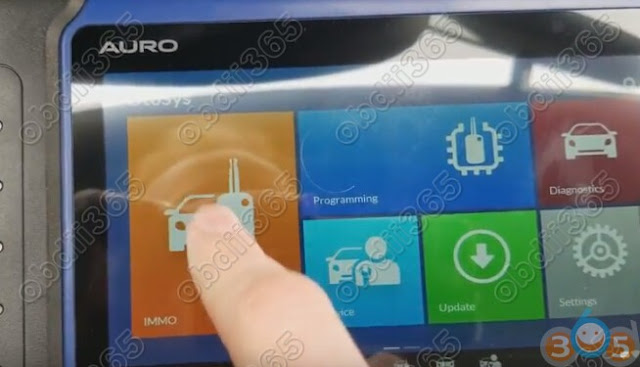

Select IMMO function->Nissan->Immobilizer smart key programming->TEANA->2016/06 up

auro-im100-2018-nissan-altima-1
auro-im100-2018-nissan-altima-2
auro-im100-2018-nissan-altima-3
auro-im100-2018-nissan-altima-4

Establish communication
Scanning vehicle system
Select Immobilizer information registration->Register key

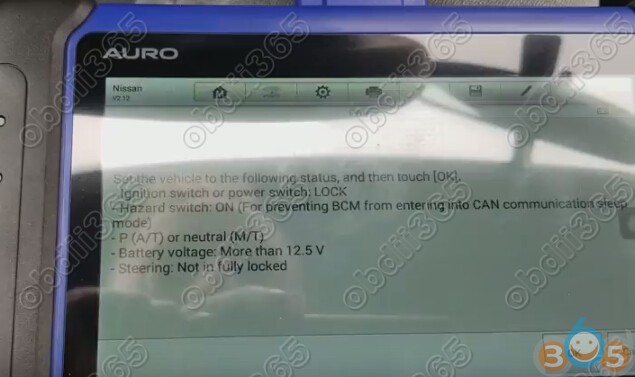

Set the vehicle to the following status, and then press OK
-Ignition switch or power switch: LOCK
-Hazard switch: ON (For preventing BCM from entering into CAN cummunication sleep)
-P(A/T) or neutral (M/T)
-Battery voltage: More than 12.5V
-Steering: Not in fully locked

auro-im100-2018-nissan-altima-5

Operate according to the following procedure:

auro-im100-2018-nissan-altima-6

1.Key switch blinks for 5 seconds. Touch the i-Key to key switch while key switch is blinking. A buzzer in the combination meter sounds twice when I-Key is recognized by the vehicle.

Caution: Antenna is installed in upper part (logo side) of I-Key. Touch logo of the l-Key the center of the key switch.  Touch [Next] when preparation is complete.

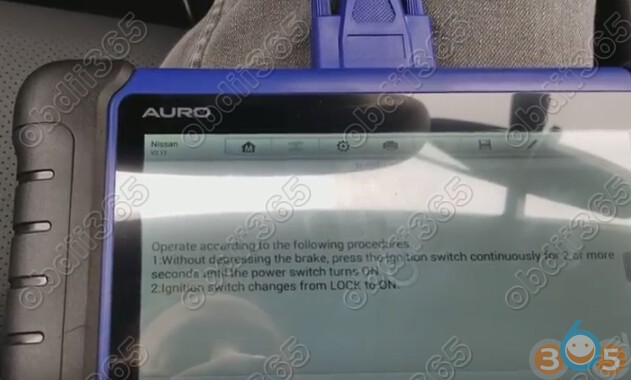

Operate according to the following procedure:

auro-im100-2018-nissan-altima-7

1:Without depressing the brake, press the ignition switch continuously for 2 or more seconds until the power switch turns ON.
2:Ignition switch changes from LOCK to ON.

auro-im100-2018-nissan-altima-8
auro-im100-2018-nissan-altima-9
