BMW CAS3+ Add Key and All Keys Lost with CGDI BMW

Here’s the factory guide on BMW CAS3+ key programming (add key & all keys lost) by using CGDI Prog BMW key programmer.



1.Add key with working key

cgdi-add-bmw-cas3-key-1

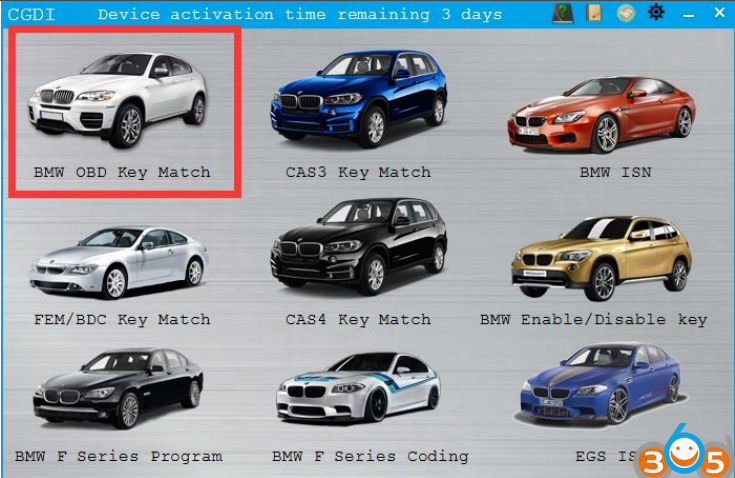

Connect CGDI BMW with vehicle via OBD diagnostic socket

Open cgdi software, select “BMW OBD KEY MATCH”

cgdi-add-bmw-cas3-key-2

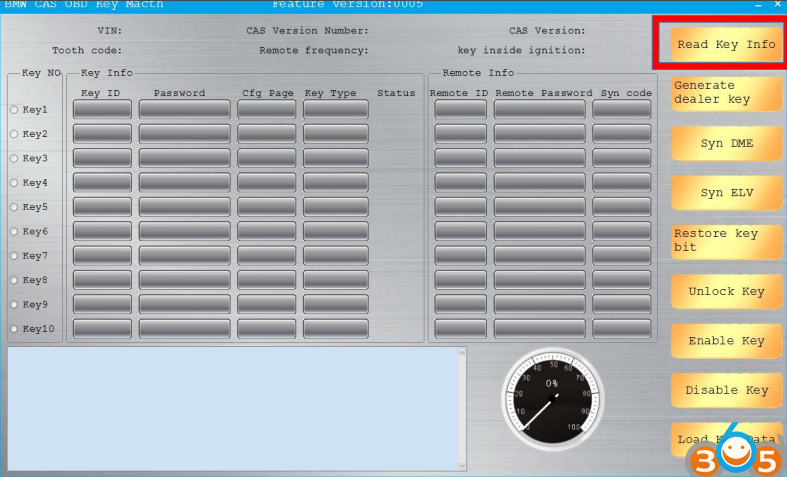

Click ‘ Read key info ‘

cgdi-add-bmw-cas3-key-3

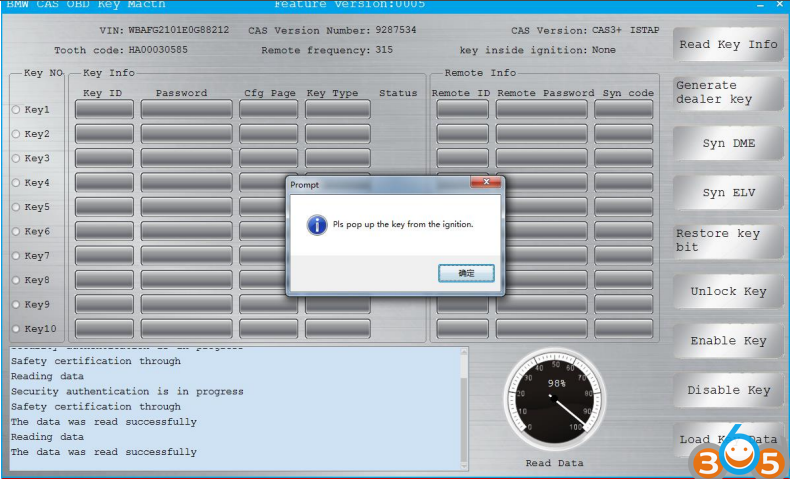

Pls pop up the key from the ignition,the data was read successfully

cgdi-add-bmw-cas3-key-4

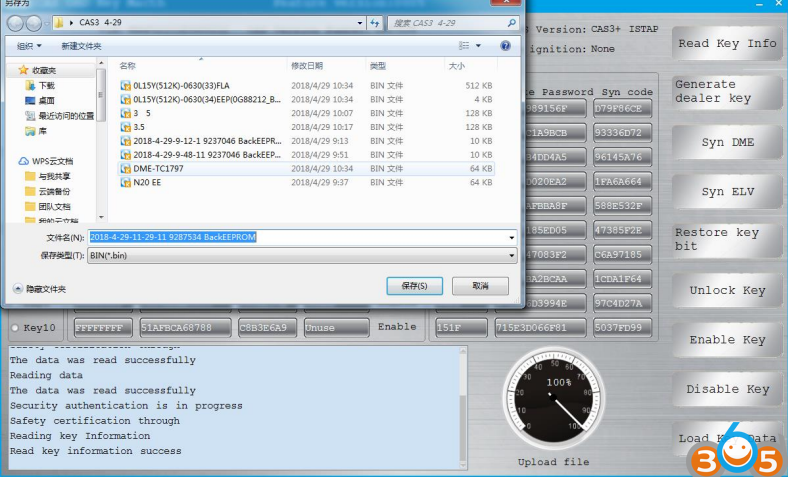

Save the data

cgdi-add-bmw-cas3-key-5

Select the key to program and click to generate the dealer key

cgdi-add-bmw-cas3-key-6

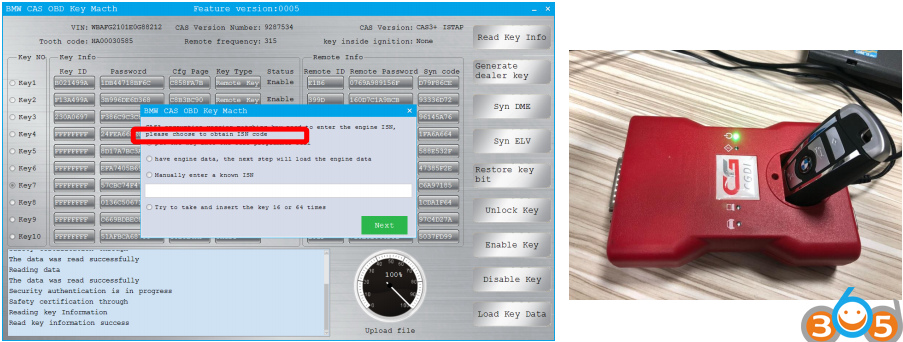

Put the working key into the CGDI BMW programmer coil

cgdi-add-bmw-cas3-key-7

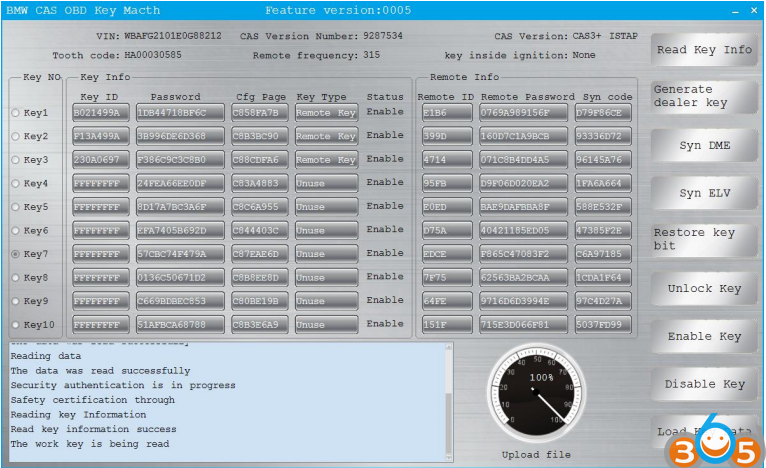

The working key is being read

cgdi-add-bmw-cas3-key-8

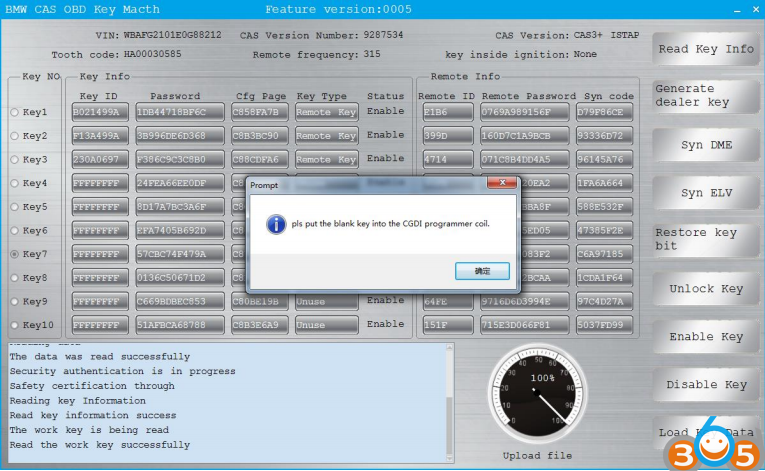

put the blank key into the CG-DI programmer coil

cgdi-add-bmw-cas3-key-9

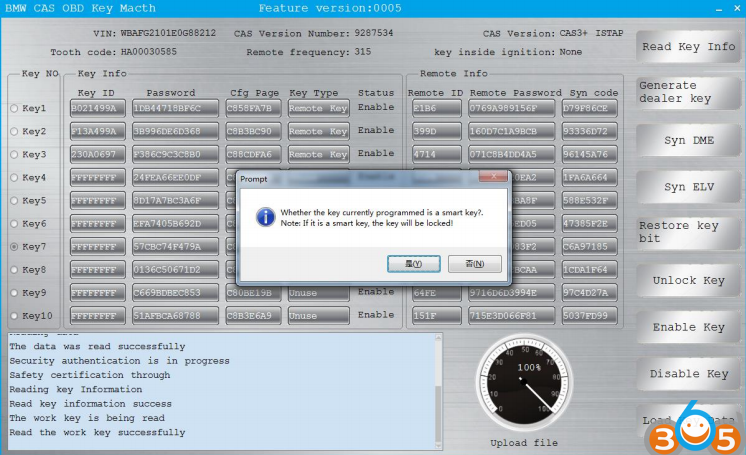

We choose to program the ordinary key , click ‘ no ‘
Note: If the key is a smart key ,it will be locked.

cgdi-add-bmw-cas3-key-10

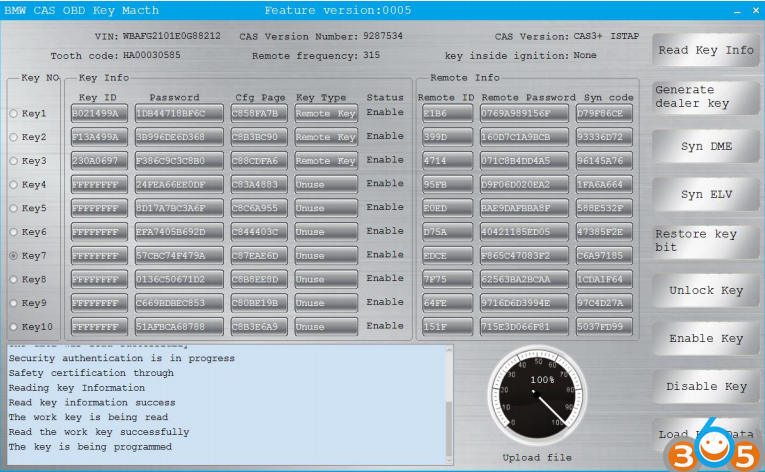

Please wait until the key is programmed

cgdi-add-bmw-cas3-key-12

Key programming success

After learning, it can be used normally.





2. Program CAS3+ all keys lost

Using CG100 Prog III to confirm engine model
Read engine computer data (EEPROM)
Note: only with CG-100 full-featured version

cgdi-bmw-cas3-all-key-lost-1

Click to enter “ECU”

cgdi-bmw-cas3-all-key-lost-2

Click on the engine model option to enter the current vehicle

cgdi-bmw-cas3-all-key-lost-3

According to the software physical wiring diagram wiring

cgdi-bmw-cas3-all-key-lost-4

Engine module wiring

cgdi-bmw-cas3-all-key-lost-5

Click read EEPROM

cgdi-bmw-cas3-all-key-lost-6

Read successfully and save the data

cgdi-bmw-cas3-all-key-lost-7

Show ISN and VIN

cgdi-bmw-cas3-all-key-lost-8

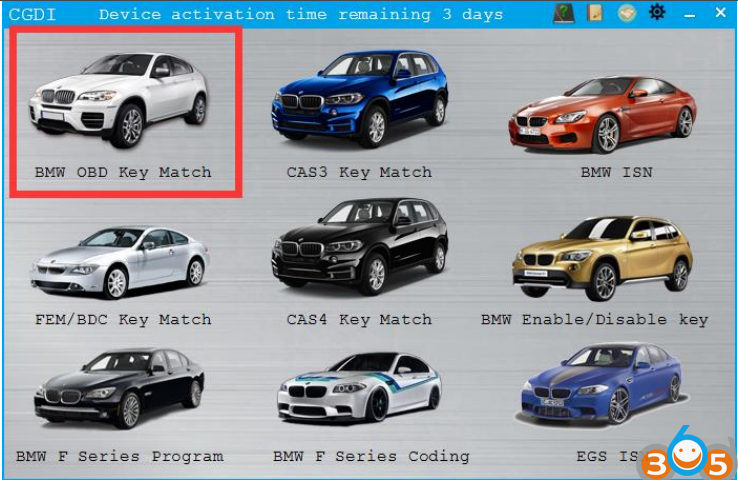

Connect CGDI BMW with vehicle via OBD socket

Click on the “BMW OBD KEY MATCH”

cgdi-bmw-cas3-all-key-lost-9

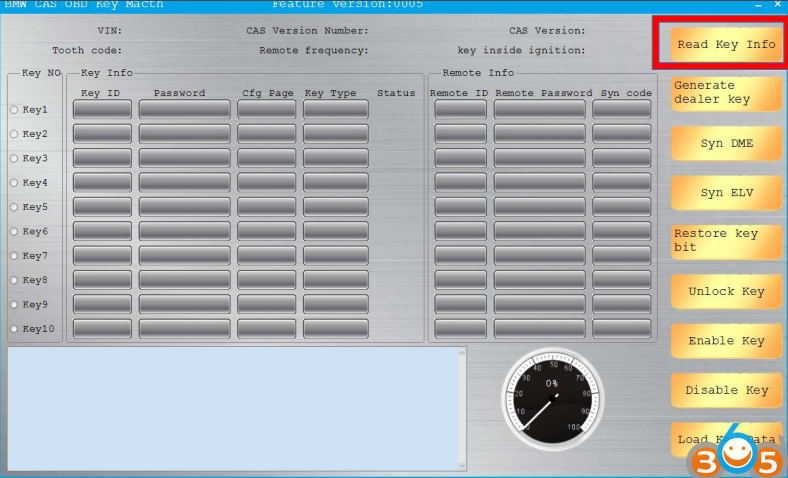

Click read key info

cgdi-bmw-cas3-all-key-lost-10

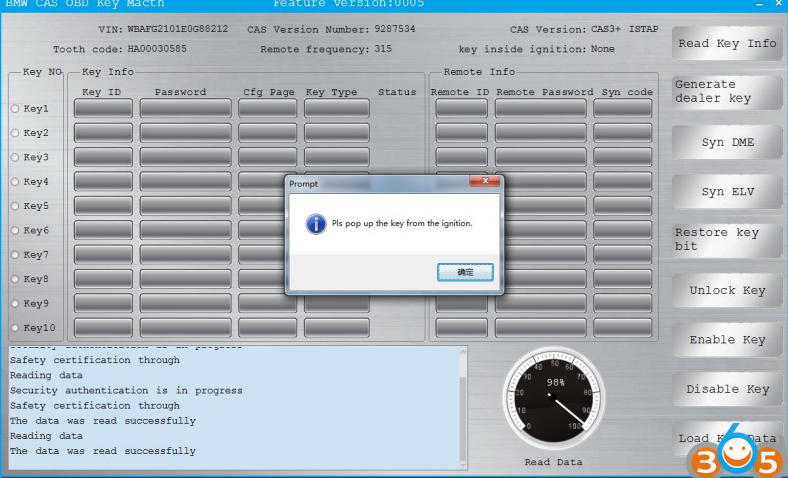

Pls pop up the key from the ignition,the data was read successfully

cgdi-bmw-cas3-all-key-lost-11

Save the data

cgdi-bmw-cas3-all-key-lost-12

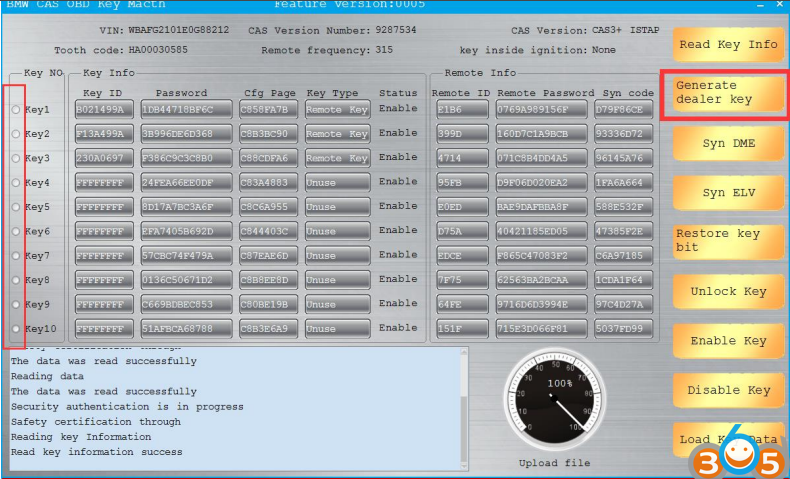

Select the key to program and click to generate the dealer key

cgdi-bmw-cas3-all-key-lost-13

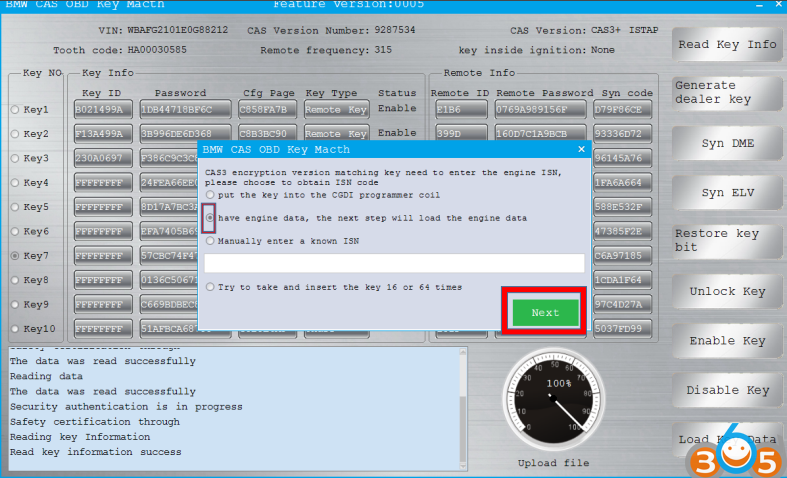

Select the engine data, next load the engine data

cgdi-bmw-cas3-all-key-lost-14

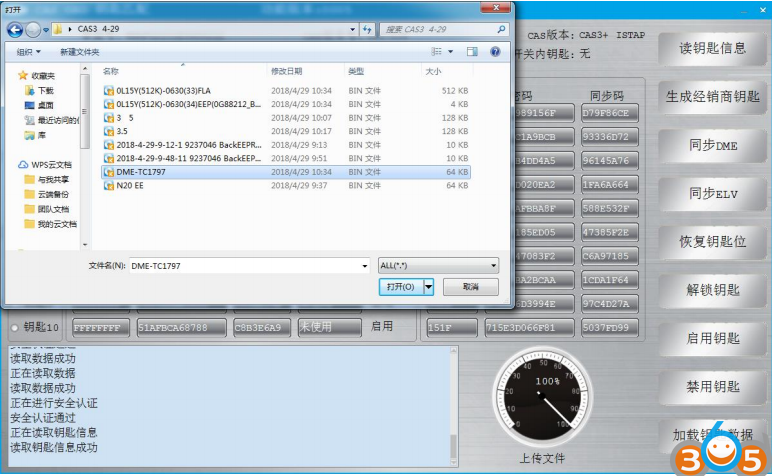

Open the engine computer data that was read before

cgdi-bmw-cas3-all-key-lost-15

Pls put the blank key into the CG-DI Programmer coil

cgdi-bmw-cas3-all-key-lost-16

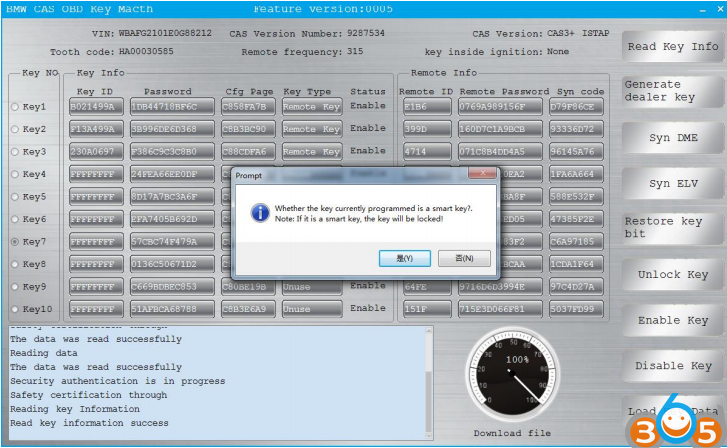

We choose the ordinary key to program
Note: the smart key will lock the key to unlock the key.

cgdi-bmw-cas3-all-key-lost-17

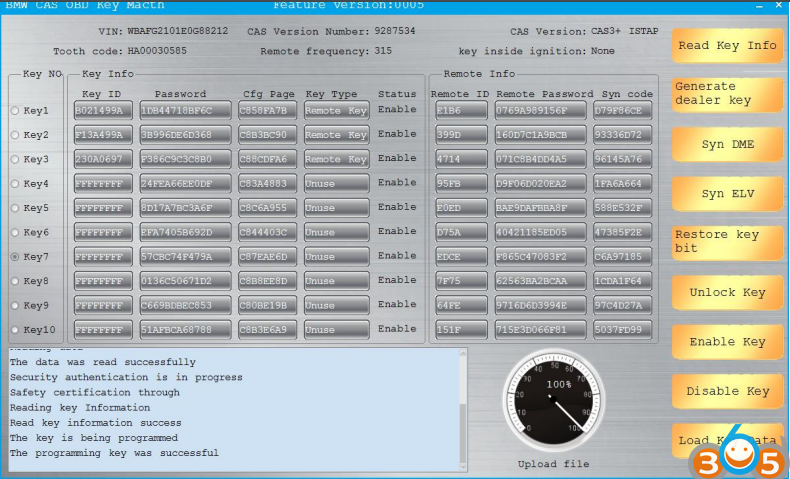

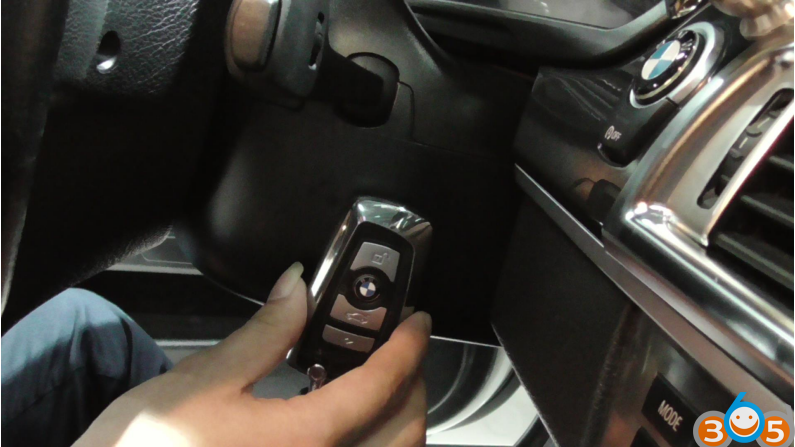

Key programming success.

After learning, it can be used normally.
