Program Mercedes W216 All Keys Lost with CGDI MB

CGDI Prog MB key programmer guide: copy Mercedes W216 key without key.



cgdi-mb-w216-add-key-1

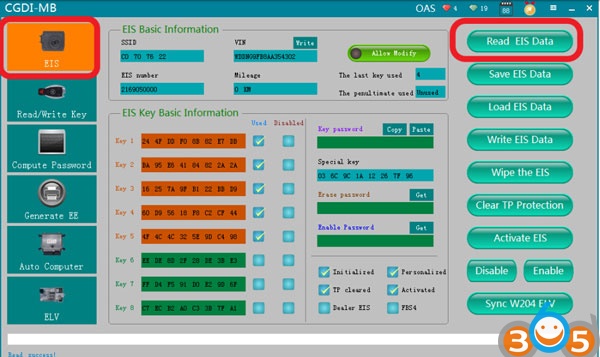

The vehicle should be feed with enough power, connect OBD ,read the EIS data.

cgdi-mb-w216-add-key-2

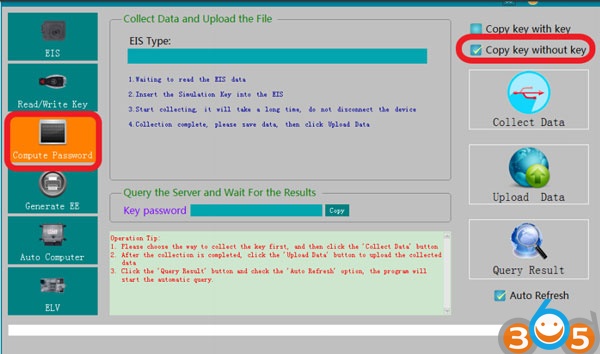

Go to“compute password”,choose“copy key without key”

cgdi-mb-w216-add-key-3

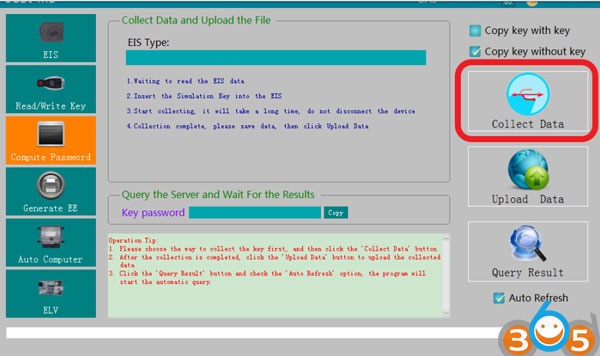

Click“collect data”

cgdi-mb-w216-add-key-4

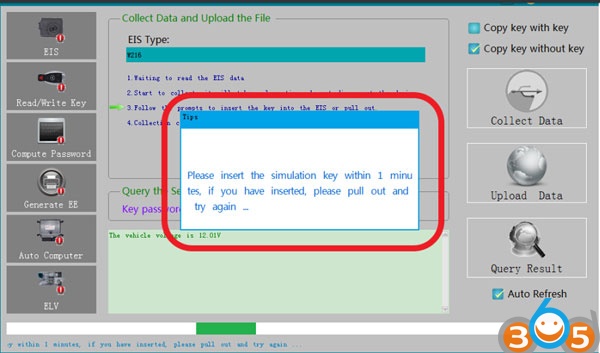

Connect simulation key, insert into EIS

cgdi-mb-w216-add-key-5

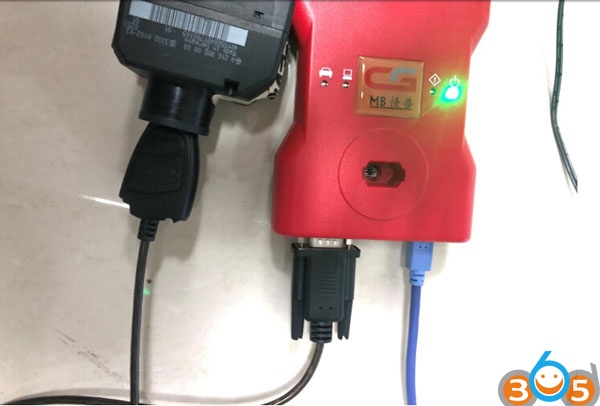

Physical operation diagram

cgdi-mb-w216-add-key-6

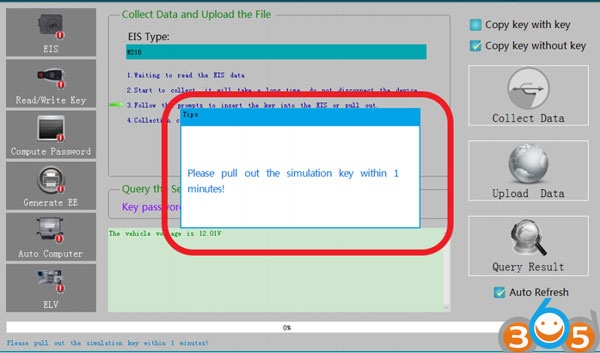

Please pull out the simulation key within 1 minute

cgdi-mb-w216-add-key-7

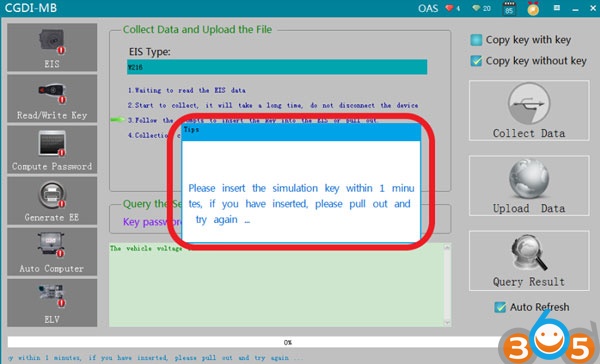

Please insert the simulation key within 1 minute



Repeat the insert and remove key operation for 400 times, the procedure takes 60 minutes around. Please wait patiently.

cgdi-mb-w216-add-key-8

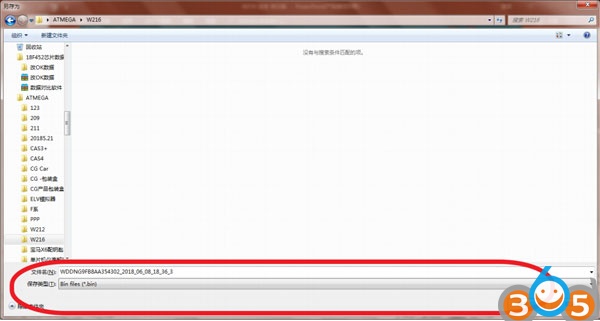

Collection success, save data, default file name

cgdi-mb-w216-add-key-9

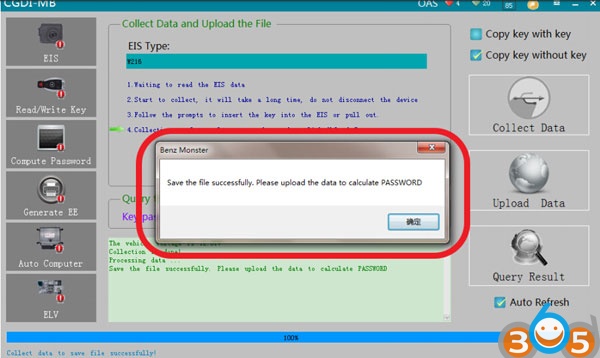

Save the file successfully, click OK

cgdi-mb-w216-add-key-10

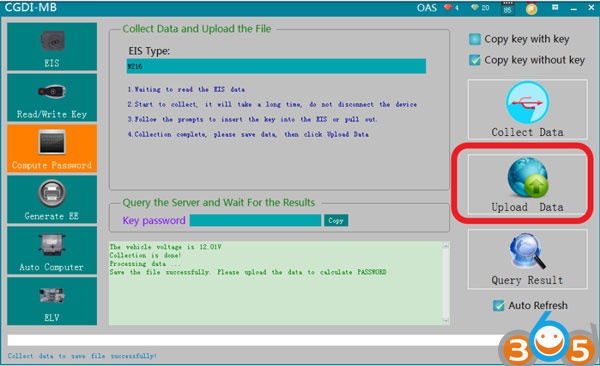

Click“Upload Data”

cgdi-mb-w216-add-key-11

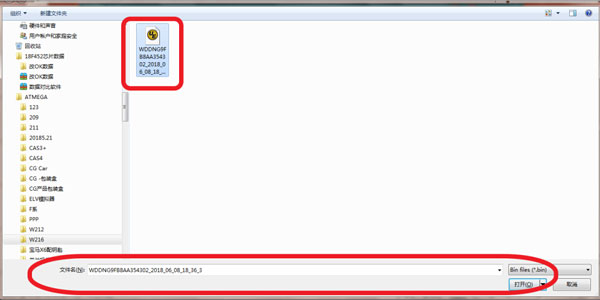

Open the data just saved

cgdi-mb-w216-add-key-12

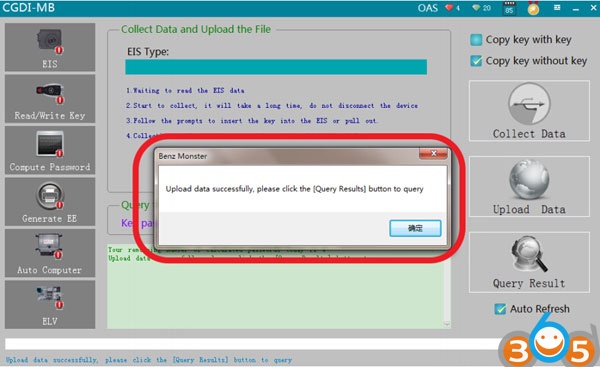

Upload data successfully

cgdi-mb-w216-add-key-13

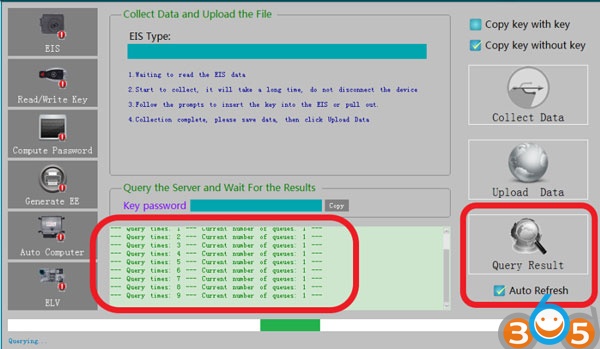

Click“Query Result”

cgdi-mb-w216-add-key-14

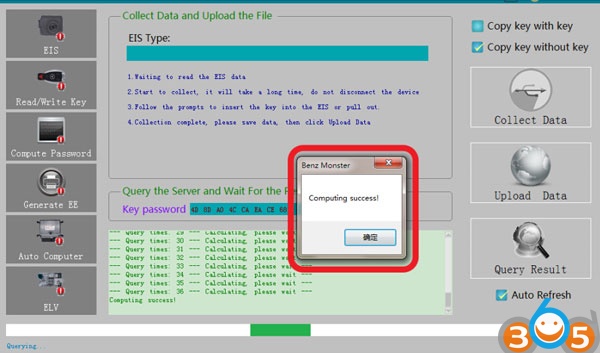

Query key password successfully

cgdi-mb-w216-add-key-15

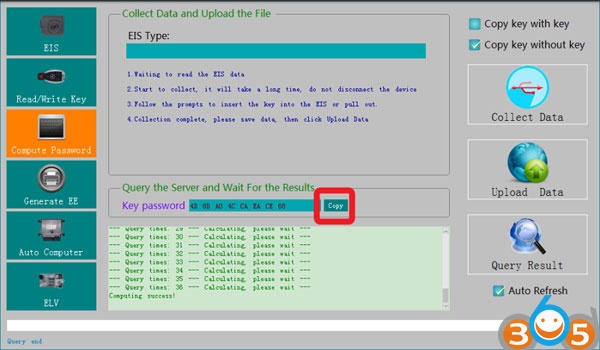

Copy key password

cgdi-mb-w216-add-key-16

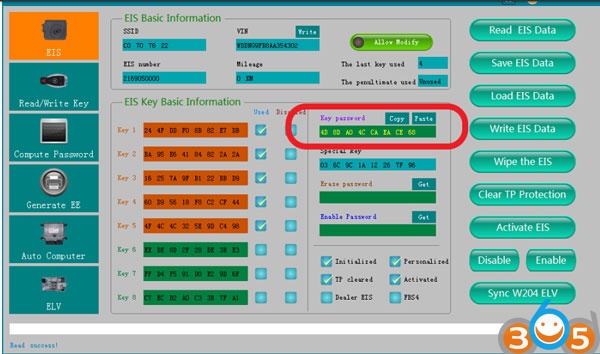

Go to EIS, copy password

cgdi-mb-w216-add-key-17

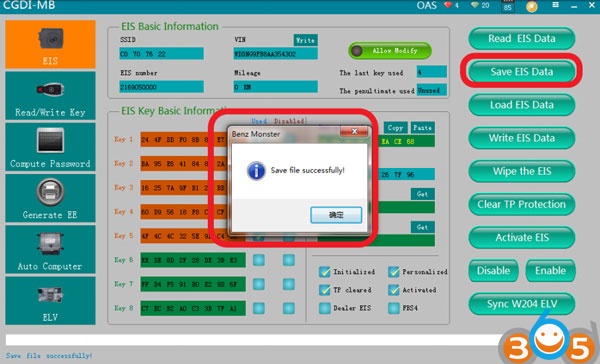

Save EIS data,default file name

cgdi-mb-w216-add-key-18

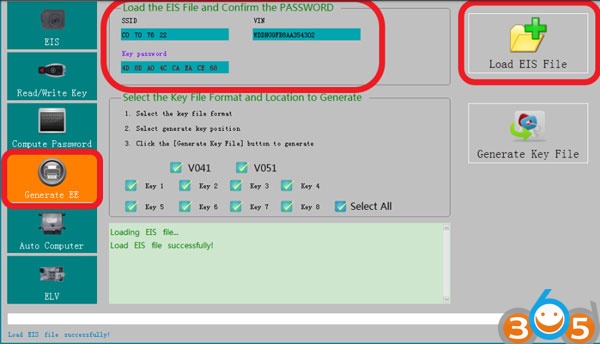

Go to “Generate EE”, Load EIS file, check the information

cgdi-mb-w216-add-key-19

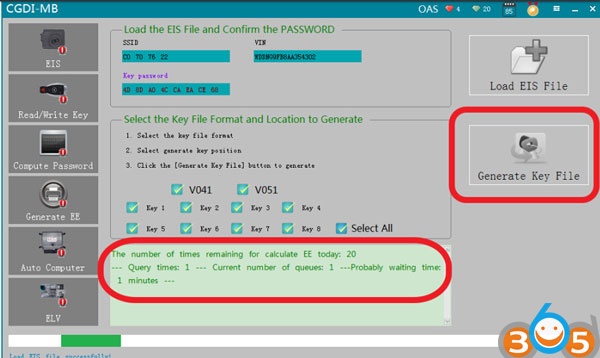

Click“Generate key file”, please wait patiently

cgdi-mb-w216-add-key-20

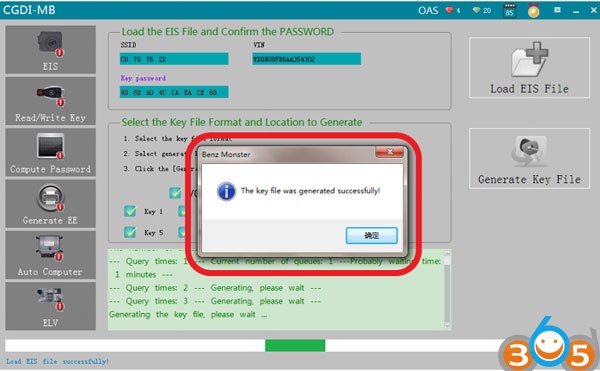

The key file was generated successfully, save the file with a new folder

cgdi-mb-w216-add-key-21

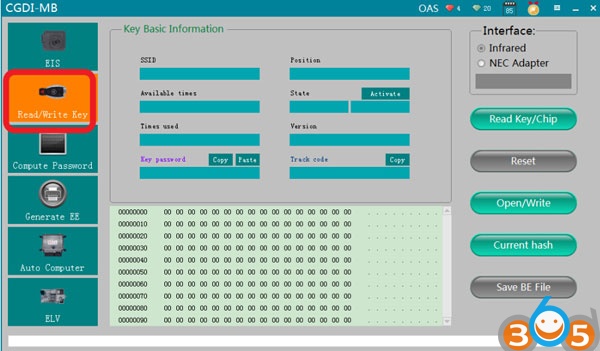

Go to “Read/ write key”

cgdi-mb-w216-add-key-22

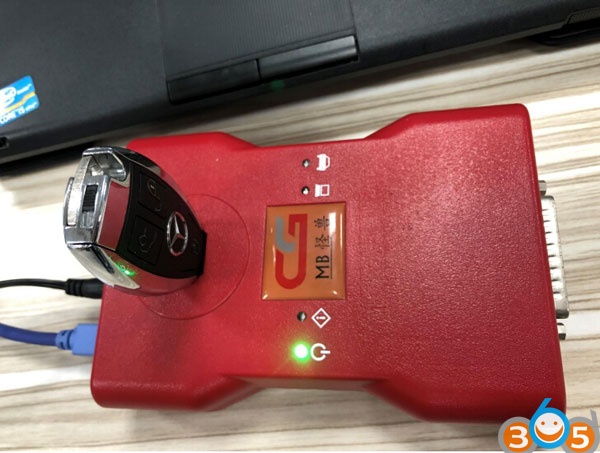

Insert the new key into the CGDI MB

cgdi-mb-w216-add-key-23

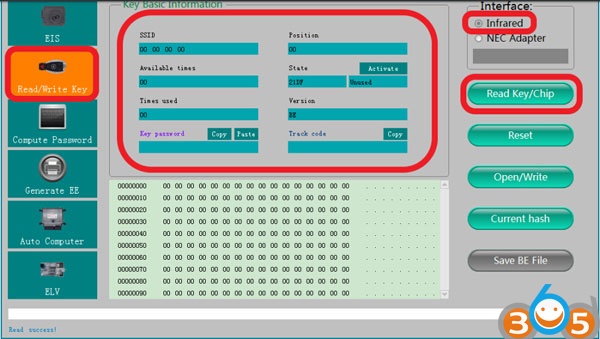

Click’ Read key’, to show the key information

cgdi-mb-w216-add-key-24

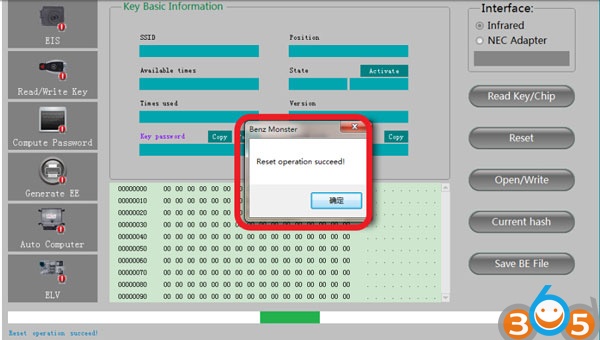

Wipe out the key

cgdi-mb-w216-add-key-25

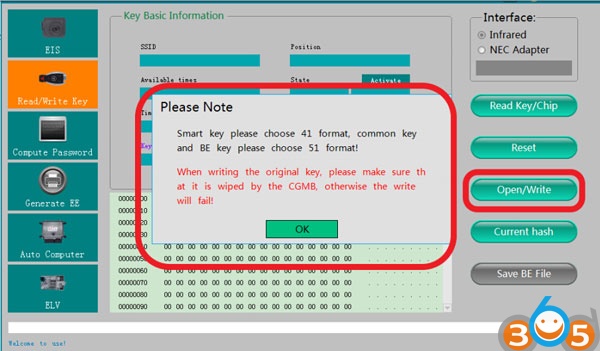

Click“open/write”, please note the prompt

cgdi-mb-w216-add-key-26

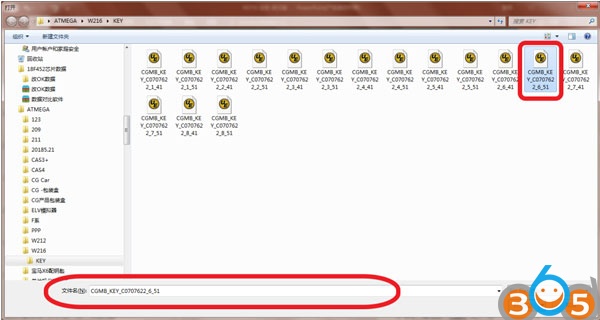

Choose unused key data

cgdi-mb-w216-add-key-27

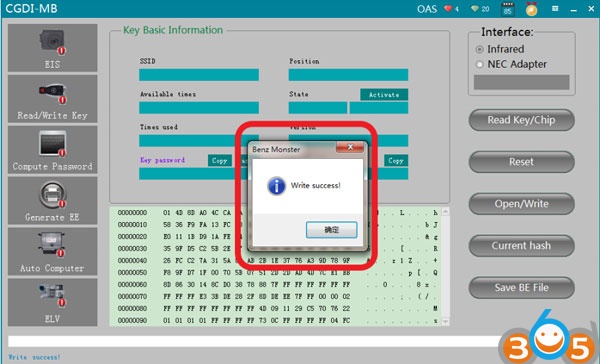

Write key success

cgdi-mb-w216-add-key-28

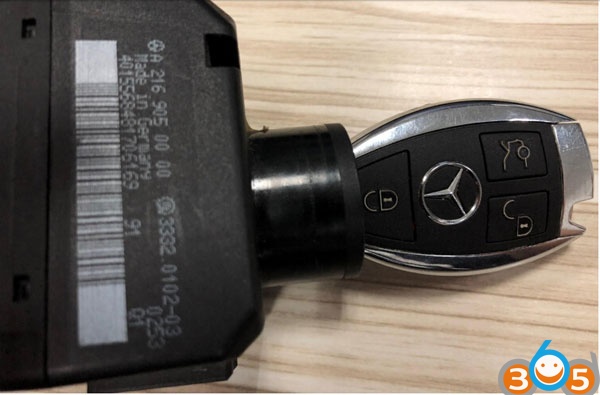

Learning on car

cgdi-mb-w216-add-key-29

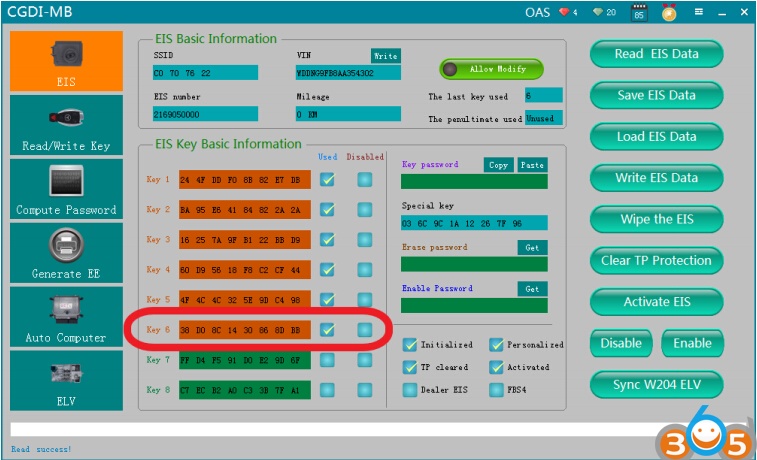

Read the EIS data again, show the key data was used, combine the new key can get on
car ,match successfully!
