How to Add Mercedes W211 Key with CGDI Prog MB

How to add new key to Mercedes W211 (copy key with key) using CGDI Prog MB key programmer.



Connect the CGDI MB, the OBD connects the vehicle, opens the door, and keeps the vehicle voltage stable (12V).

cgdi-mb-w211-add-key-1

open software,click“Read EIS Data”

cgdi-mb-w211-add-key-2

Read data success,show related information

cgdi-mb-w211-add-key-3

Turn to “Compute password”,choose“ copy key with key”,then click“Collect Data”

cgdi-mb-w211-add-key-4

choose“other keys”, Click ”ok’

cgdi-mb-w211-add-key-5

please insert the key into EIS and click ok

cgdi-mb-w211-add-key-6

please insert the key into the CGMB device and click ok

cgdi-mb-w211-add-key-7

It is collecting the key data

cgdi-mb-w211-add-key-8

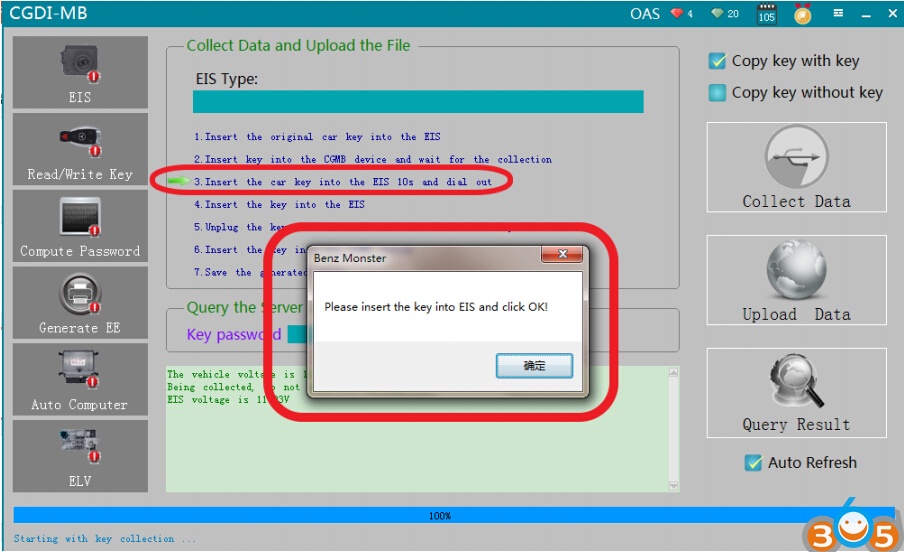

Key collection finished,please insert the key into EIS and click ok

cgdi-mb-w211-add-key-9

please wait 9 seconds

cgdi-mb-w211-add-key-10

please pull out the key from the EIS, and then click ok

cgdi-mb-w211-add-key-11

please insert the key into the EIS again and click ok

cgdi-mb-w211-add-key-12

Pull out the key for 5 seconds,then insert the EIS, then click ok

cgdi-mb-w211-add-key-13

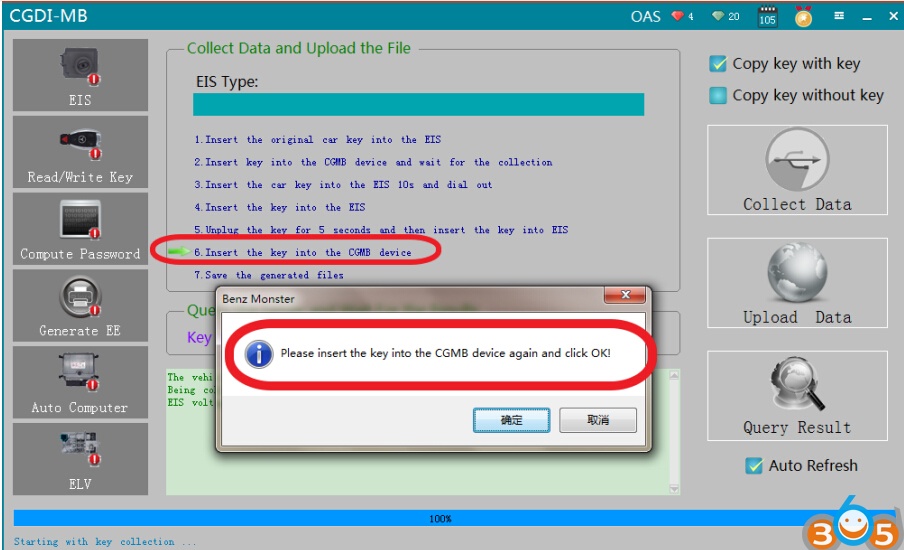

please insert the key into the CGDI MB device again and click ok

cgdi-mb-w211-add-key-14

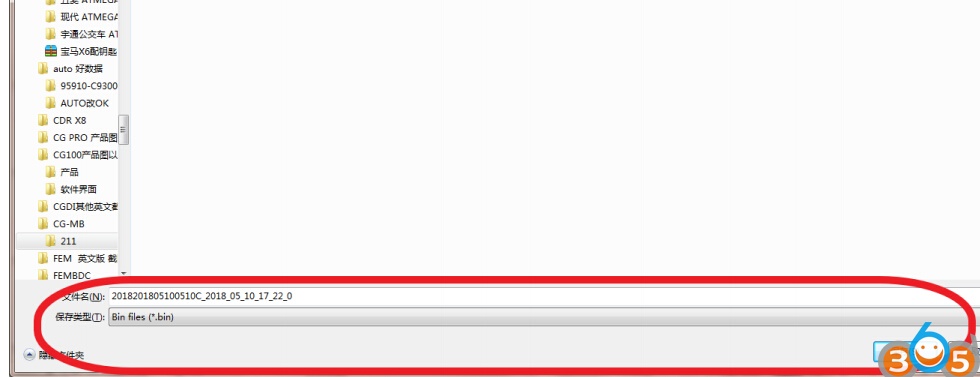

Collect success, save data, default file name

cgdi-mb-w211-add-key-15

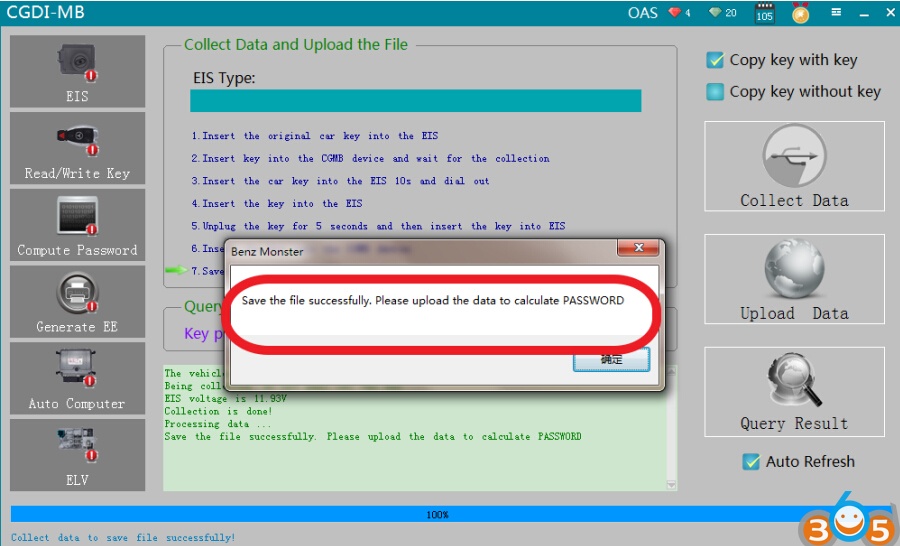

Save the file successfully,click ok

cgdi-mb-w211-add-key-16

Click ” Upload Data ”

cgdi-mb-w211-add-key-17

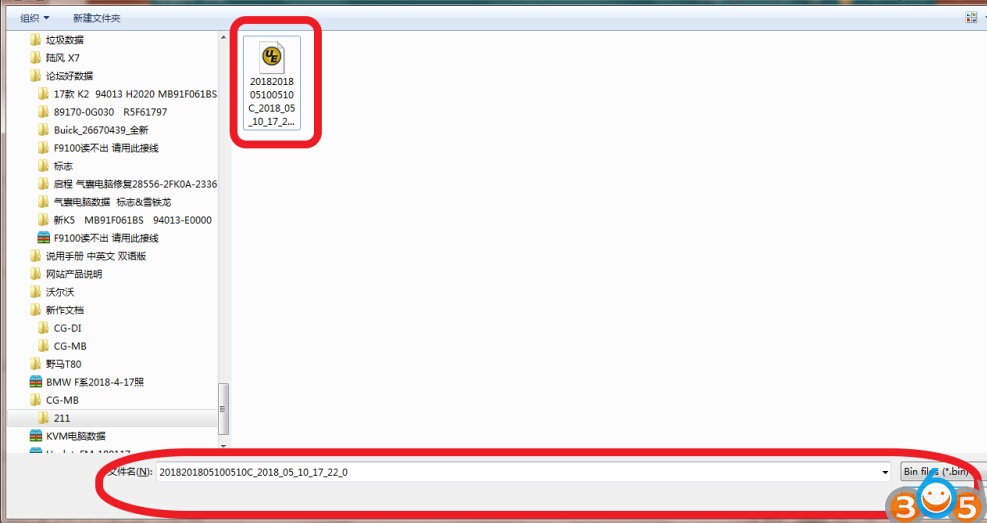

Open the file just saved in last step

cgdi-mb-w211-add-key-18

Upload data successfully

cgdi-mb-w211-add-key-19

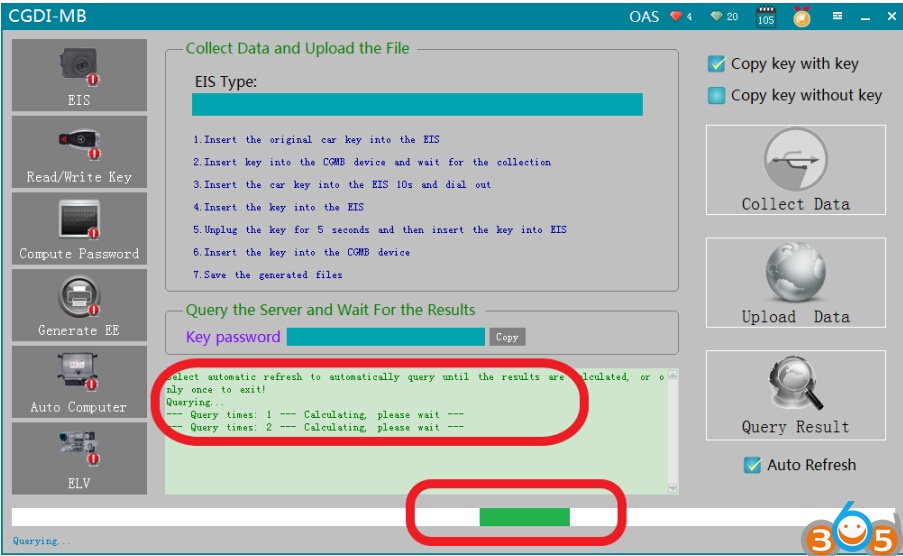

Click“Query Result”, please wait patiently

cgdi-mb-w211-add-key-20

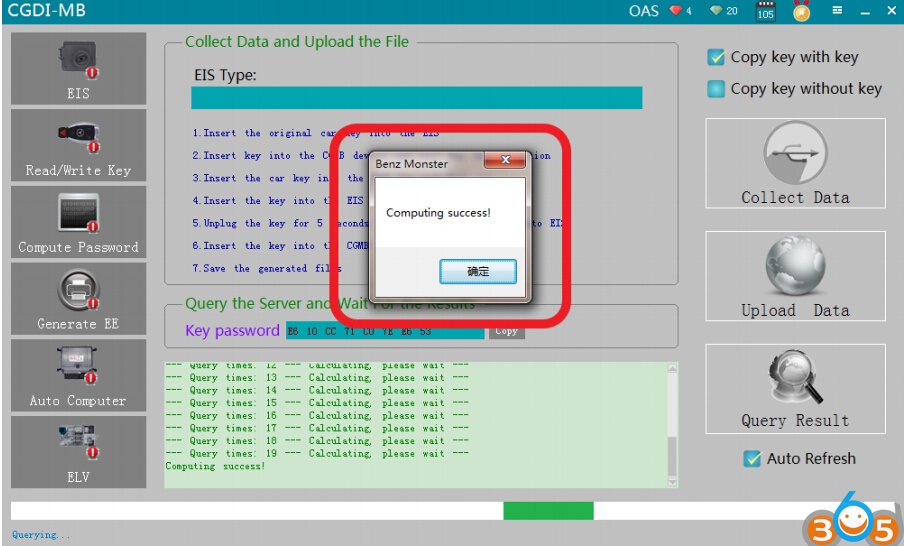

Computing success,click ok

cgdi-mb-w211-add-key-21

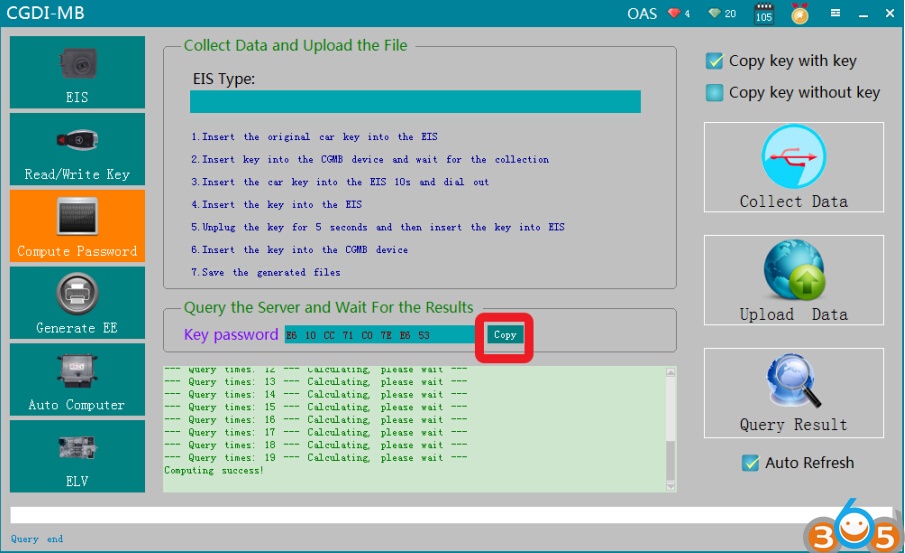

Copy password

cgdi-mb-w211-add-key-22

Go to the EIS interface and paste

cgdi-mb-w211-add-key-23

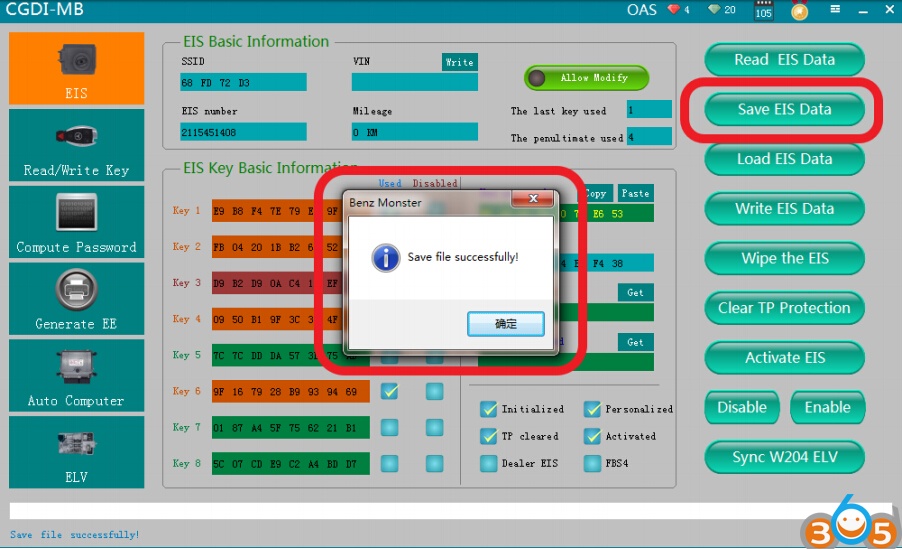

Save EIS data

cgdi-mb-w211-add-key-24

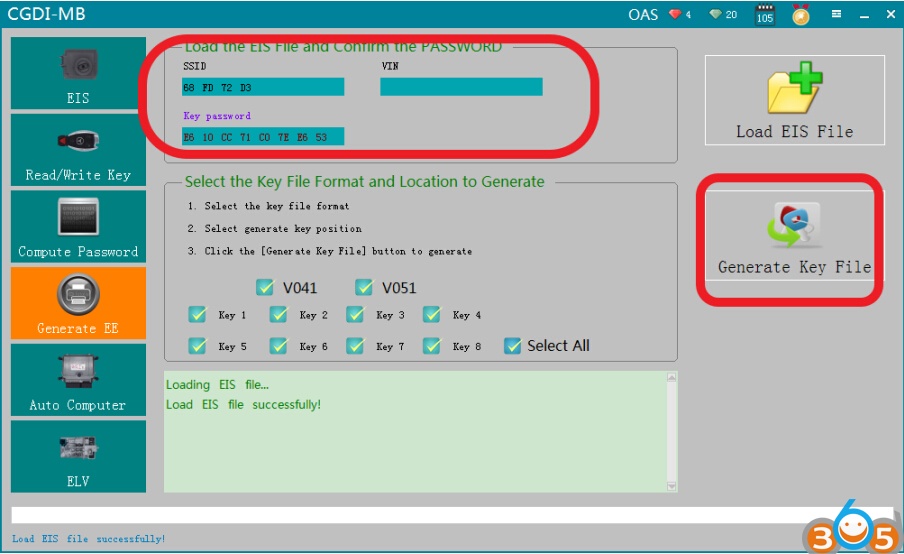

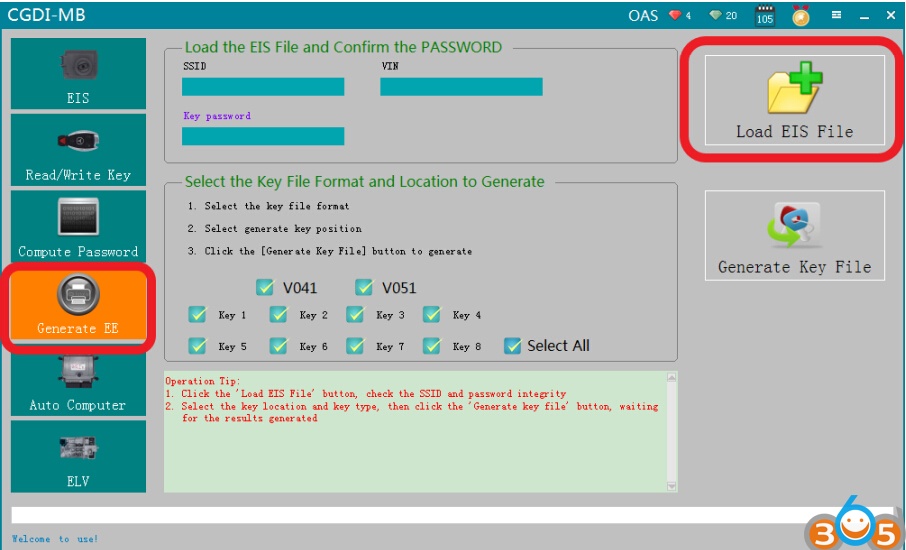

Turn to“Generate EE”,Load EIS file just saved

cgdi-mb-w211-add-key-25

Check the information and click“Generate key file”

cgdi-mb-w211-add-key-26

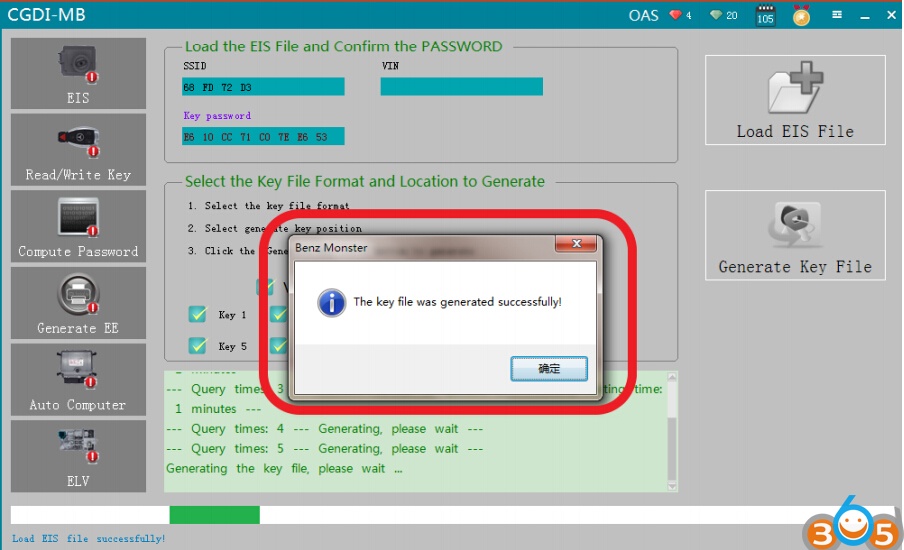

Generated file successfully and save the file

cgdi-mb-w211-add-key-27

Go to “Read/ write Key

cgdi-mb-w211-add-key-28

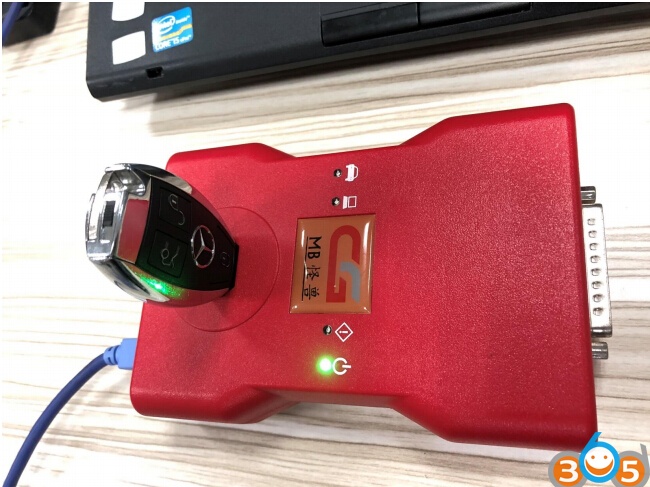

Put new key into CGDI Prog

cgdi-mb-w211-add-key-29

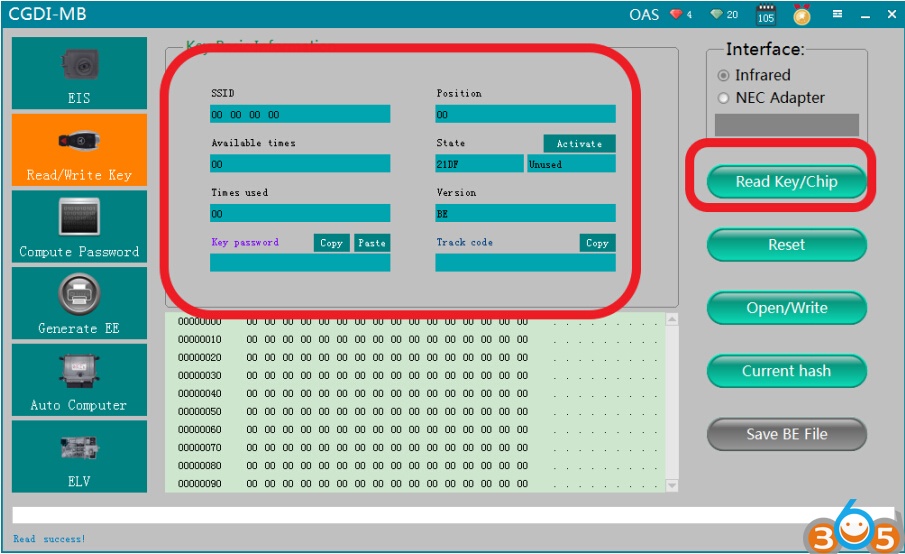

Show key information after reading

cgdi-mb-w211-add-key-30

Click“Rest/wipe”, prompt ”Reset operation succeed, click ok

cgdi-mb-w211-add-key-31

Click“open/write”,please note the prompt

cgdi-mb-w211-add-key-32

Choose an unused key position

cgdi-mb-w211-add-key-33

write success

cgdi-mb-w211-add-key-34

Insert the new key into EIS and start

Read EIS again. show that key position was used.

Program success.
