2016 Renault Duster Key Programming Bypass with OBDSTAR X300 DP Plus

How to program Renault Duster 2016 key bypass using OBDSTAR X300 DP/X300 DP Plus tablet.

Connect X300/Key Master DP plus with vehicle via OBD

Turn on ignition switch

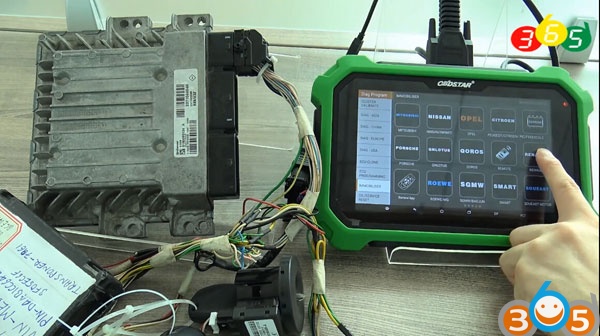

obdstar-x300-dp-renualt-duster-1

All procedure is done via OBD.  Here’s the test equipment.

Select Immobilizer function->Renault->Renault V30.33->Program keys->Duster->2014-2018

obdstar-x300-dp-renualt-duster-2

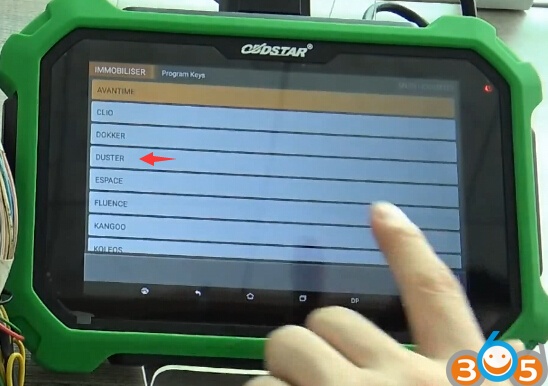

obdstar-x300-dp-renualt-duster-3

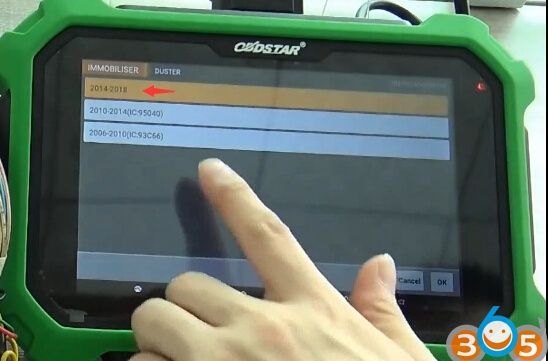

obdstar-x300-dp-renualt-duster-4

The function is available by connecting the server, enter the internet connection is normal.

obdstar-x300-dp-renualt-duster-5

Select Program keys

Turn ignition off and remove key

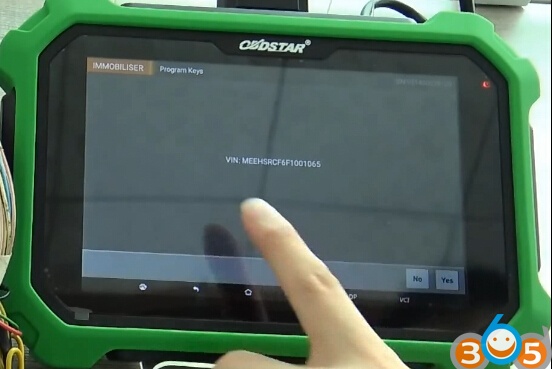

obdstar-x300-dp-renualt-duster-6

OBDSTAR X300 DP Plus read VIN success

Reading data

Insert key and turn on ignition

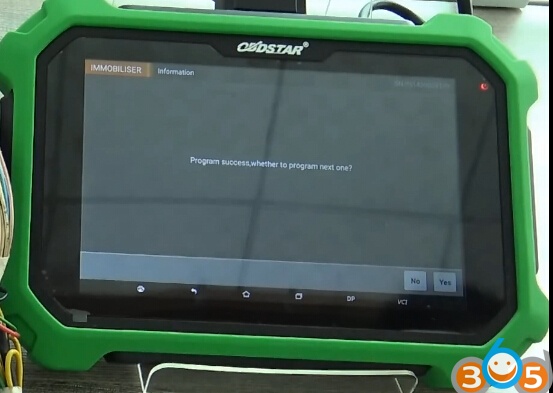

obdstar-x300-dp-renualt-duster-7

Program success. Press Yes to program next key

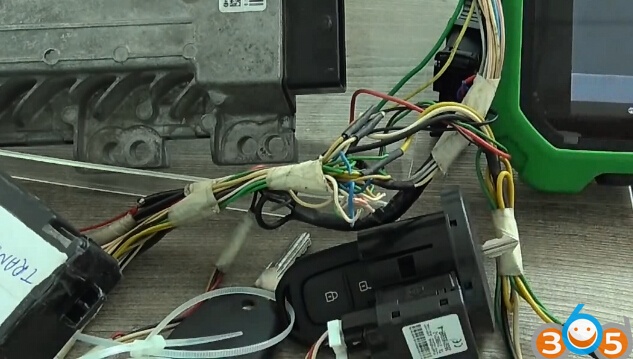

obdstar-x300-dp-renualt-duster-8

Insert new key and turn on ignition

2nd key programming success

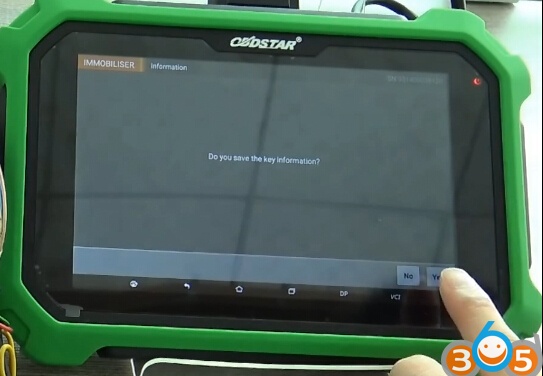

obdstar-x300-dp-renualt-duster-9

Save key information

Turn off ignition

Turn on ignition

Programming completed.

Test the new keys.
