Yanhua Mini ACDP CAS Poor Contact by clearing test point

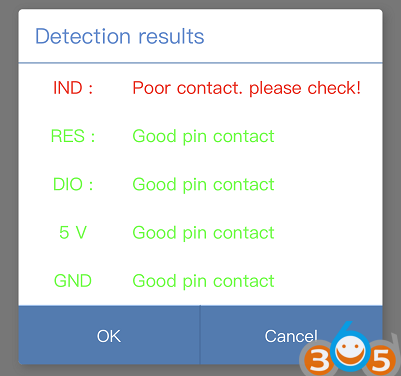

When reading CAS3/CAS4 data with Yanhua Mini ACDP by ICP, the pins detection shows unreliable contact. As shown in the following picture:

yanhua-acdp-clear-cas-test-point-1

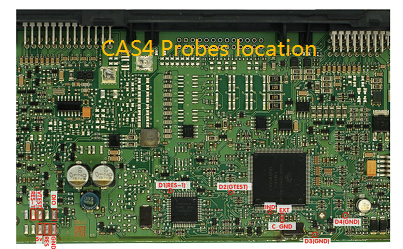

Find the location of the bad contacted test points according to the help document in APP.

yanhua-acdp-clear-cas-test-point-2

yanhua-acdp-clear-cas-test-point-3

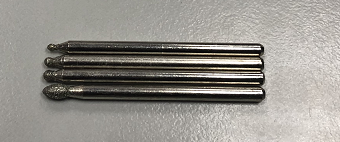

Remove the interface board and use the Conformal coating cleaning probes to clean up the test points.

yanhua-acdp-clear-cas-test-point-4

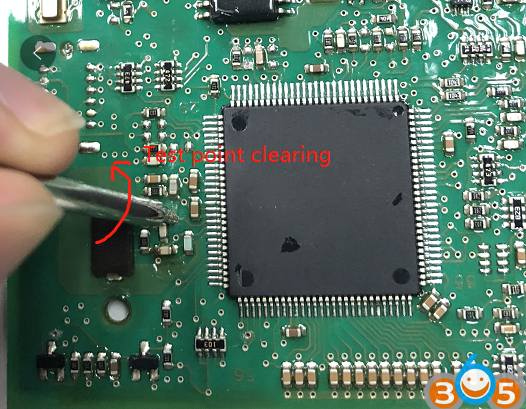

When cleaning the test point, use the Conformal coating cleaning probes to align the test point and rotate 1-2 turns. Do not put force when cleaning test points in order to avoid damaging the test points.

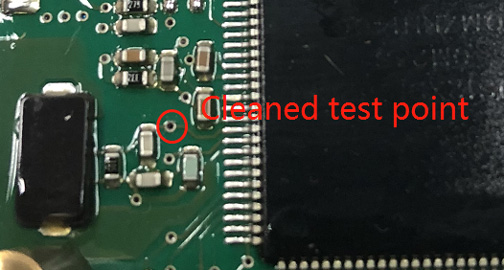

yanhua-acdp-clear-cas-test-point-5yanhua-acdp-clear-cas-test-point-6

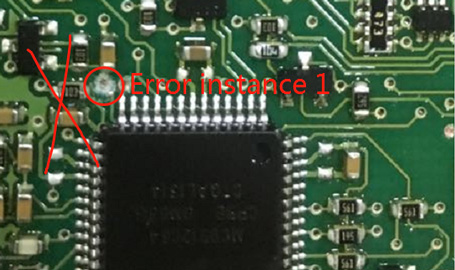

yanhua-acdp-clear-cas-test-point-7

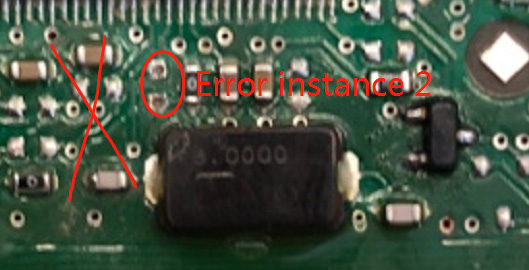

yanhua-acdp-clear-cas-test-point-8

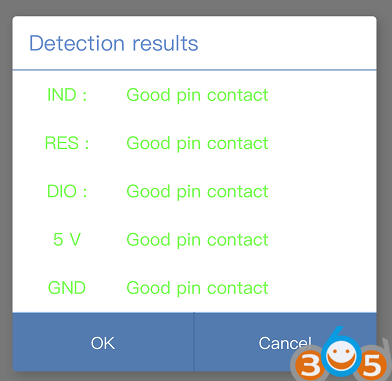

Reconnect the Yanhua ACDP interface board for pin detection and data reading

yanhua-acdp-clear-cas-test-point-9
