CGDI Prog MB Renew Benz W164 ISM on Bench

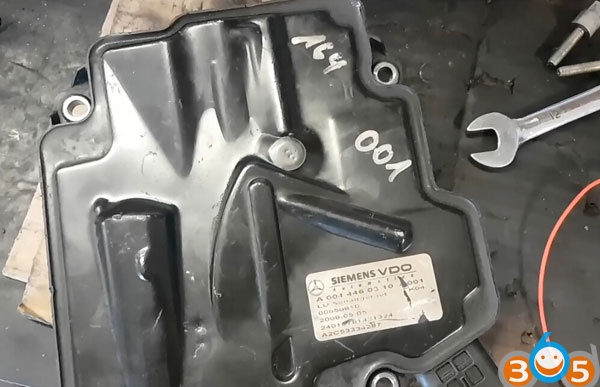

How to: reset/renew Mercedes Benz W164 Siemens VDO ISM using CGDI Prog MB key programmer on bench.

cgdi-mb-renew-benz-w164-ism-1

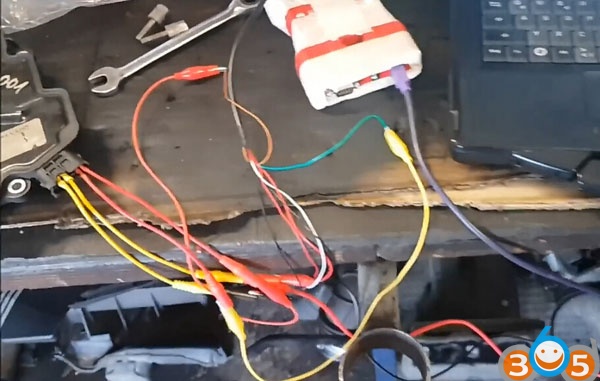

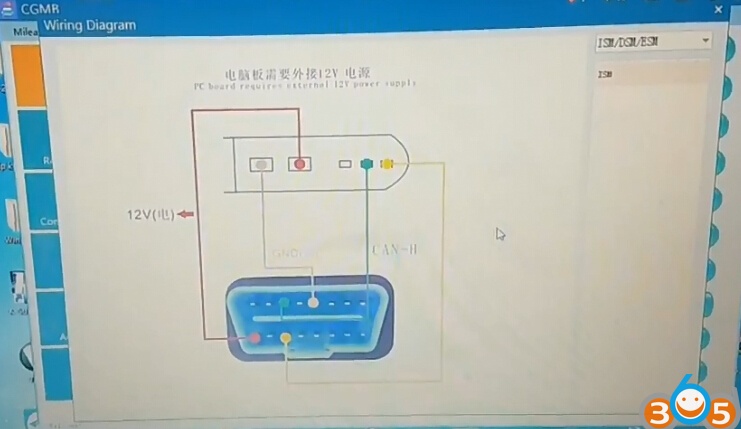

Follow cgdi prog wiring diagram to connect ISM unit with CGDI MB

cgdi-mb-renew-benz-w164-ism-3

cgdi-mb-renew-benz-w164-ism-2

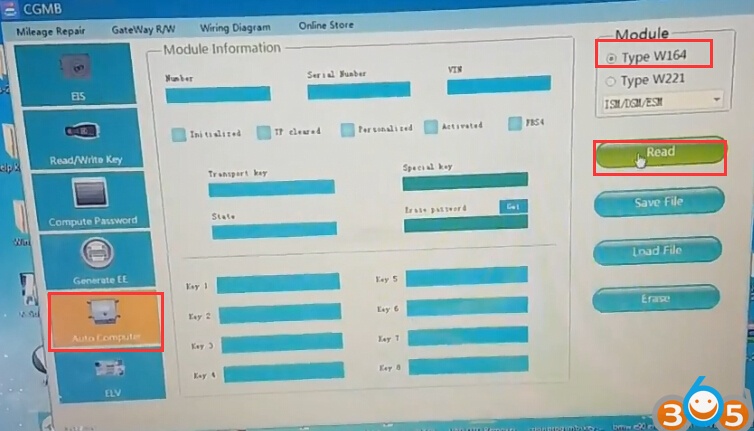

In CGDI MB software, select Auto Computer, Module type W164->ISM/DSM/ESM

Read ISM information

cgdi-mb-renew-benz-w164-ism-4

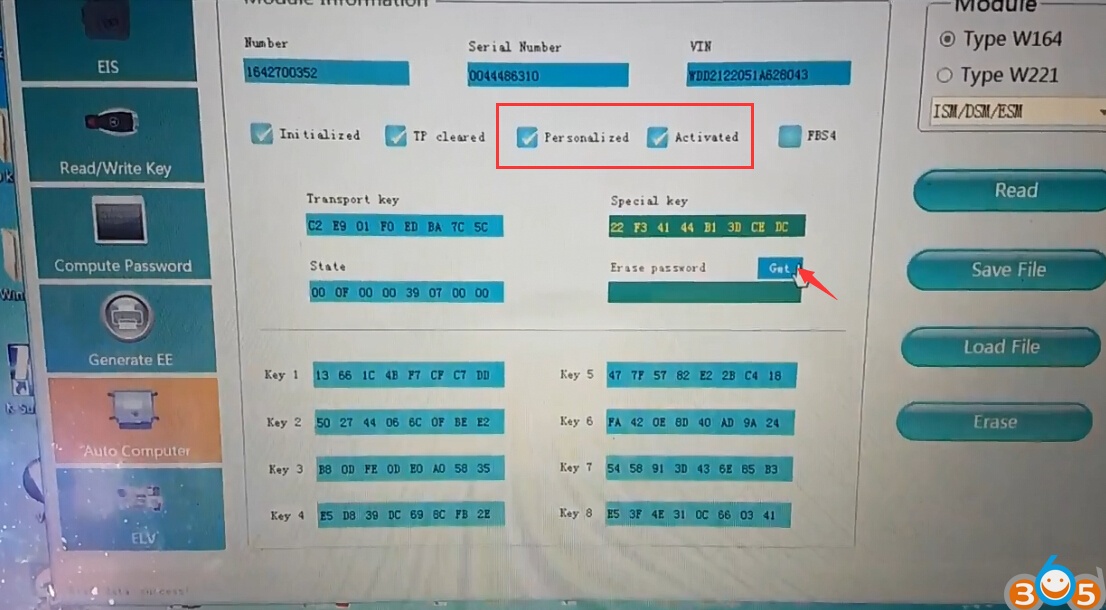

Press Get to calculate erase password

cgdi-mb-renew-benz-w164-ism-5

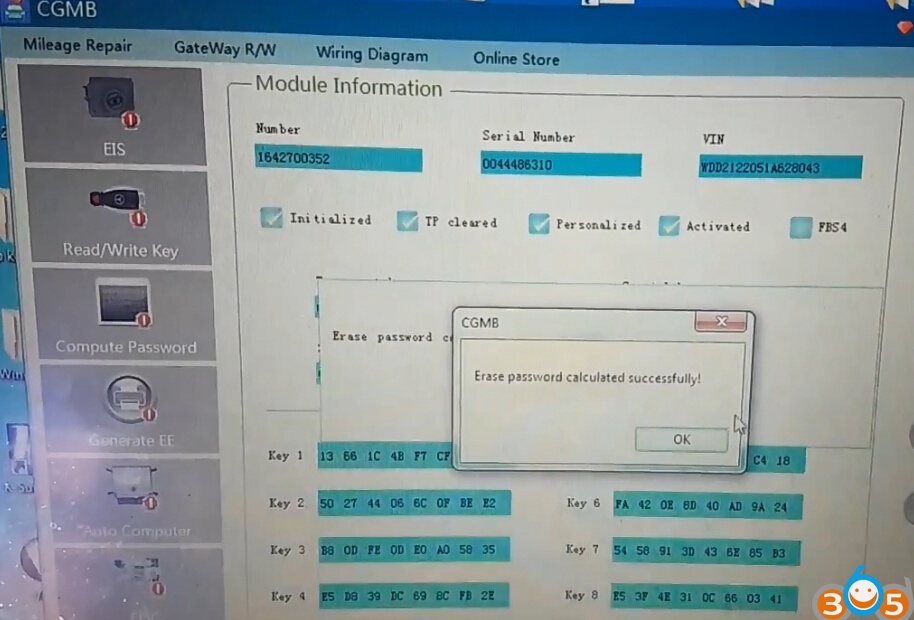

Erase password calculated successfully

cgdi-mb-renew-benz-w164-ism-6

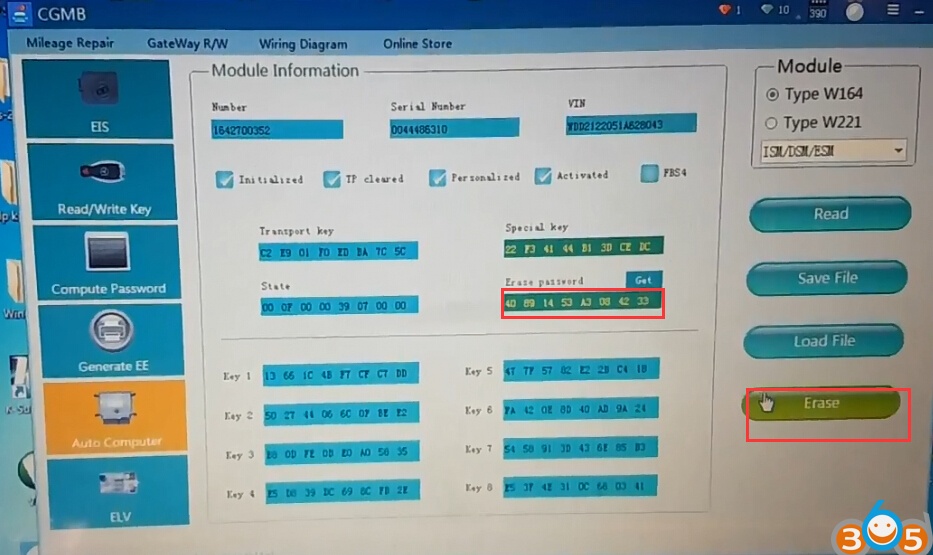

Press Erase

cgdi-mb-renew-benz-w164-ism-7

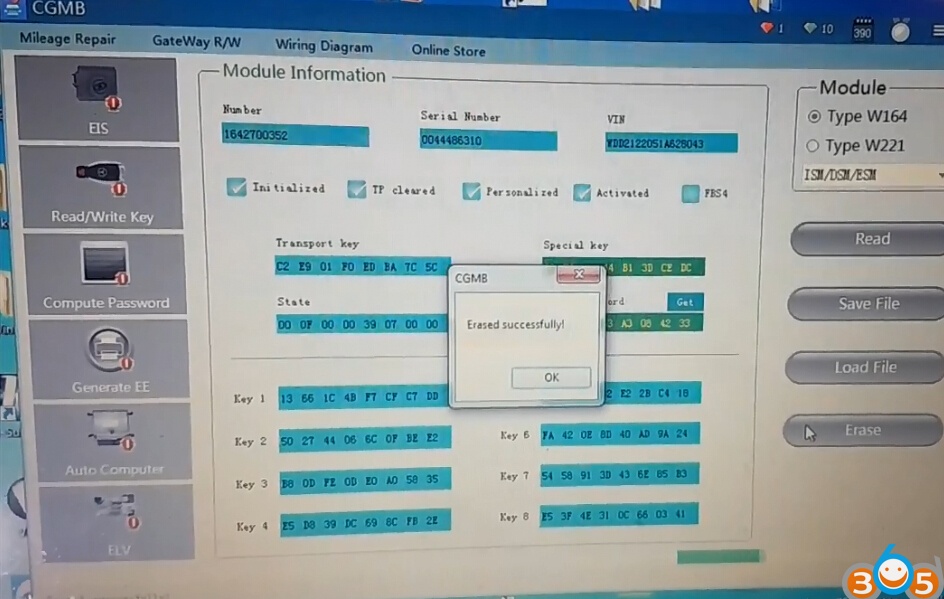

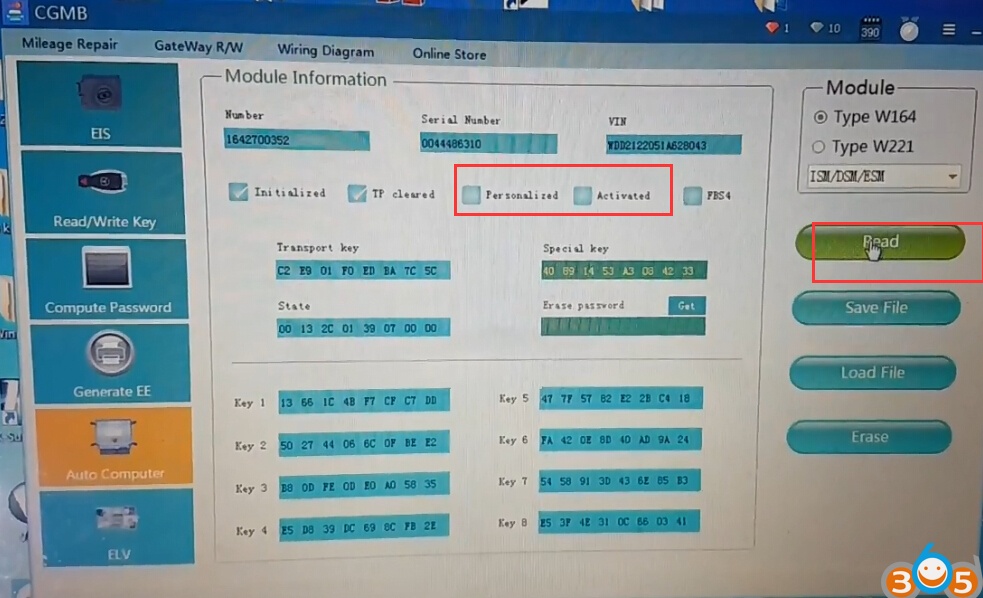

Reset ISM success

cgdi-mb-renew-benz-w164-ism-8

cgdi-mb-renew-benz-w164-ism-9

Done.
