JMD Handy Baby II Copy Fiat 500 ID46 Remote Key

We have sucessfuly cloned a ID46 remote key to a Fiat 500 using new JMD Handy baby II key copy machine. Very easy and fast.

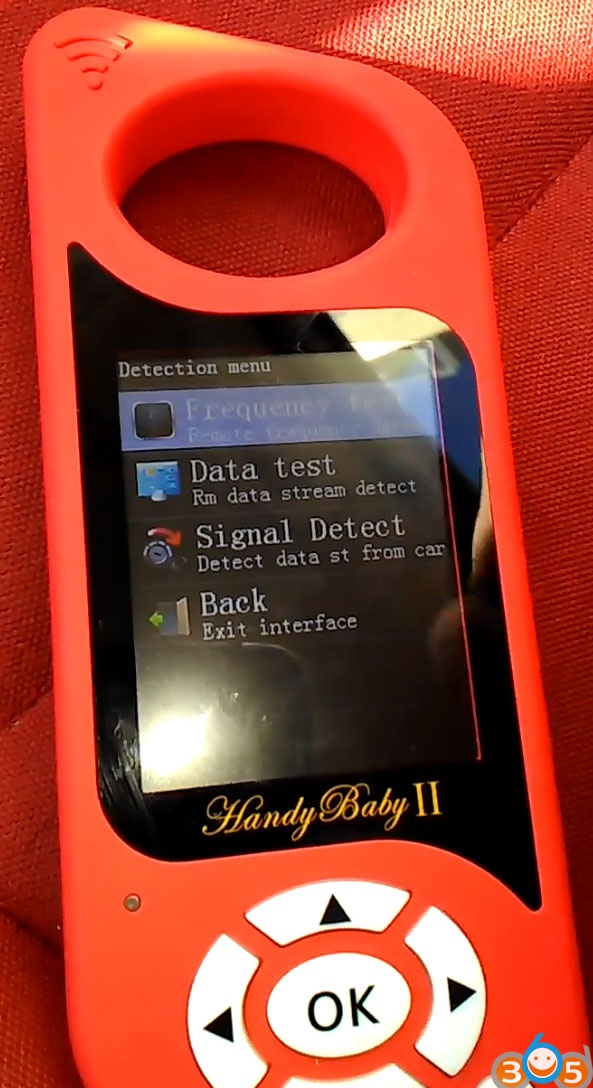

handy-baby-ii-fiat-500-key-copy-12

handy-baby-ii-fiat-500-key-copy-13

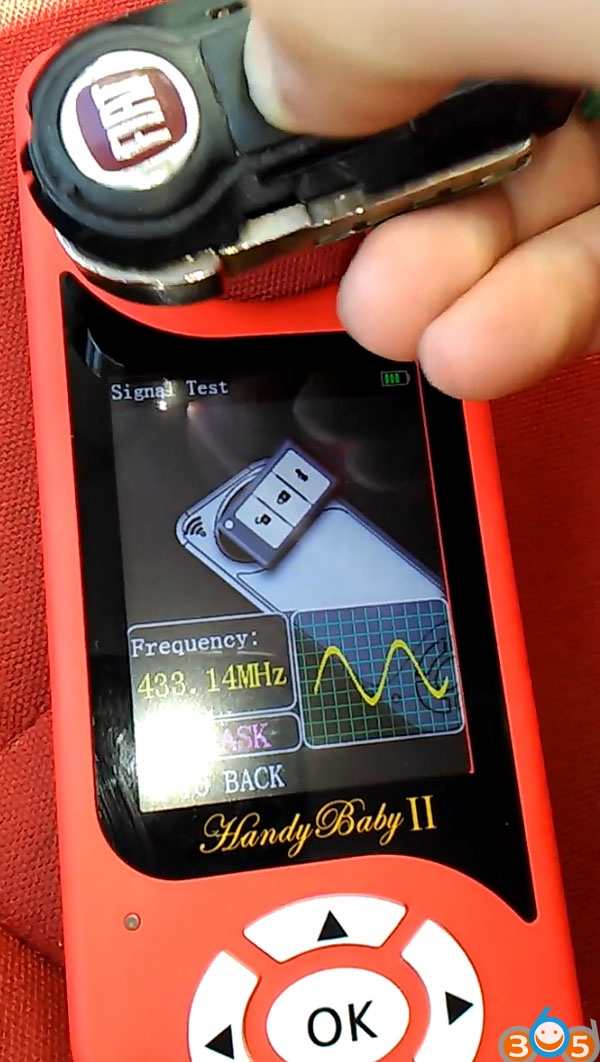

Original key: ID46 433MHz

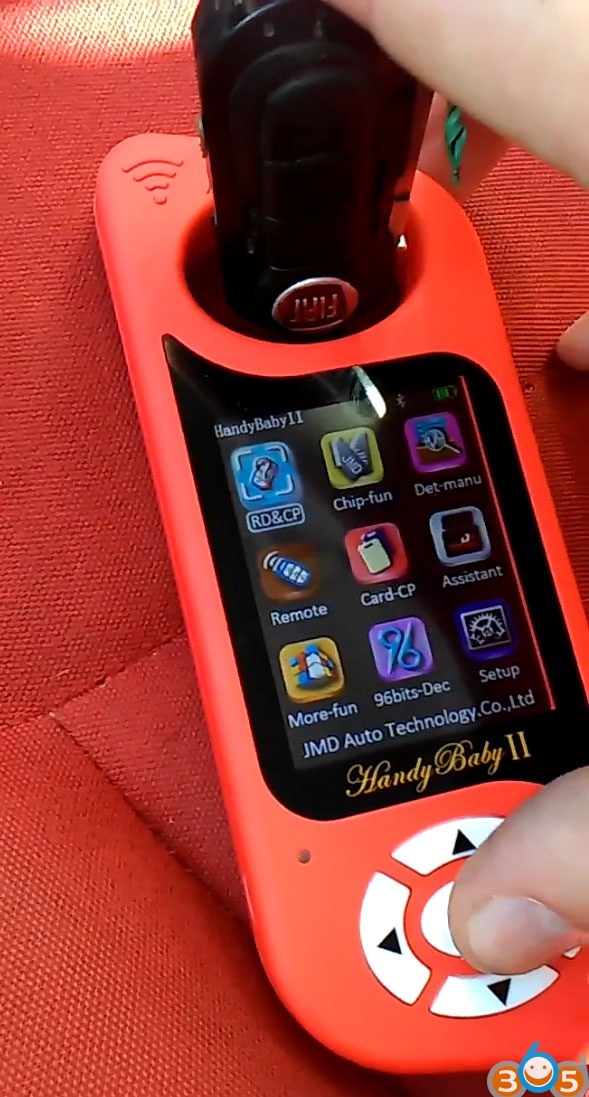

handy-baby-ii-fiat-500-key-copy-1

handy-baby-ii-fiat-500-key-copy-2

Put original key into coil, identify chip type and ID:PCF7946 (HITAG2) ID46

handy-baby-ii-fiat-500-key-copy-3

Press OK to Decode

handy-baby-ii-fiat-500-key-copy-4

handy-baby-ii-fiat-500-key-copy-5

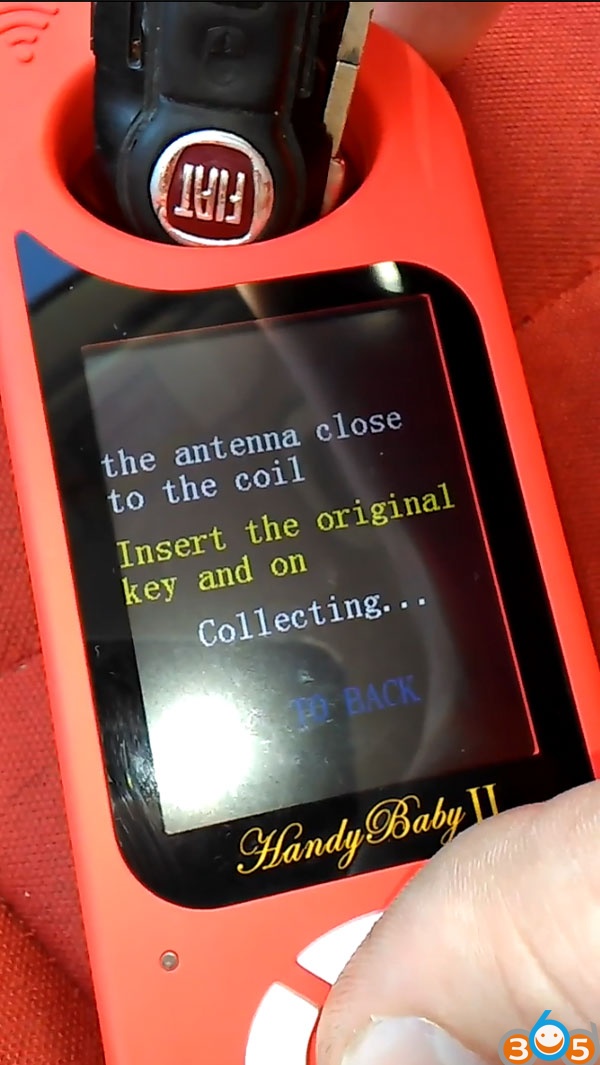

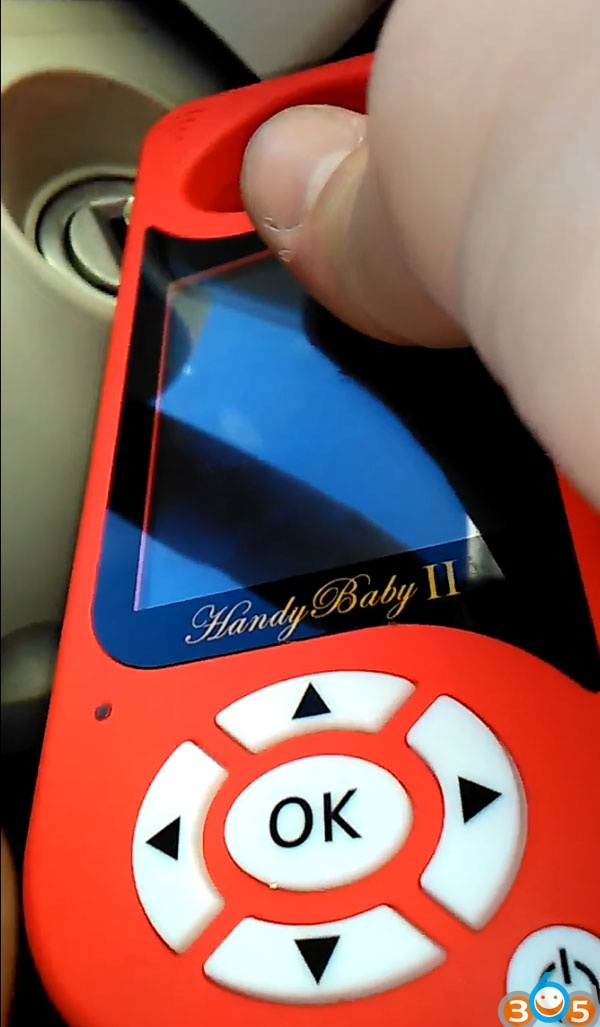

Put Handybaby II close to the ignition antenna
Insert original key and turn on ignition

handy-baby-ii-fiat-500-key-copy-6

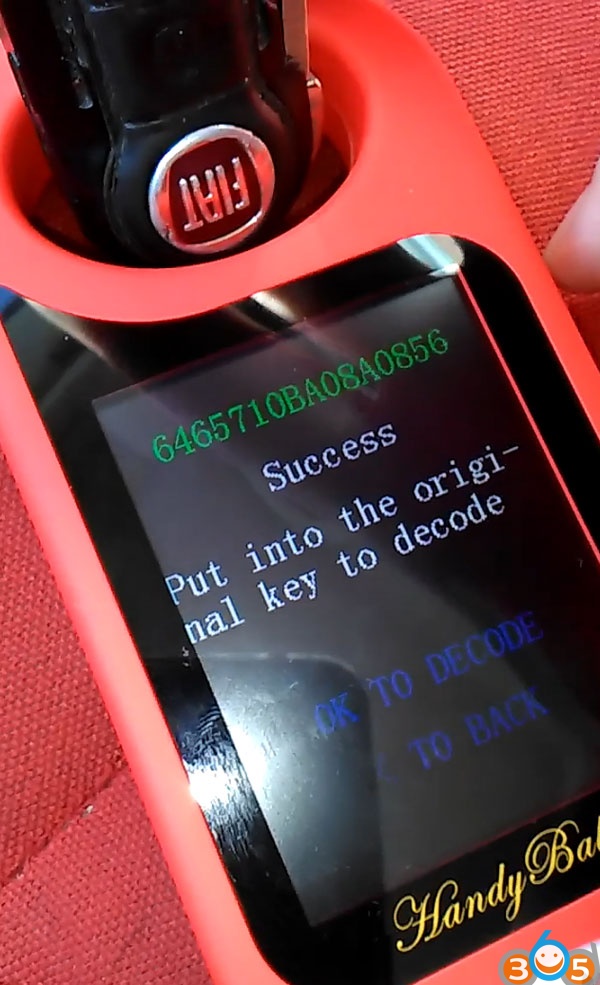

Collect data success. Put original key into coil to decode

handy-baby-ii-fiat-500-key-copy-14

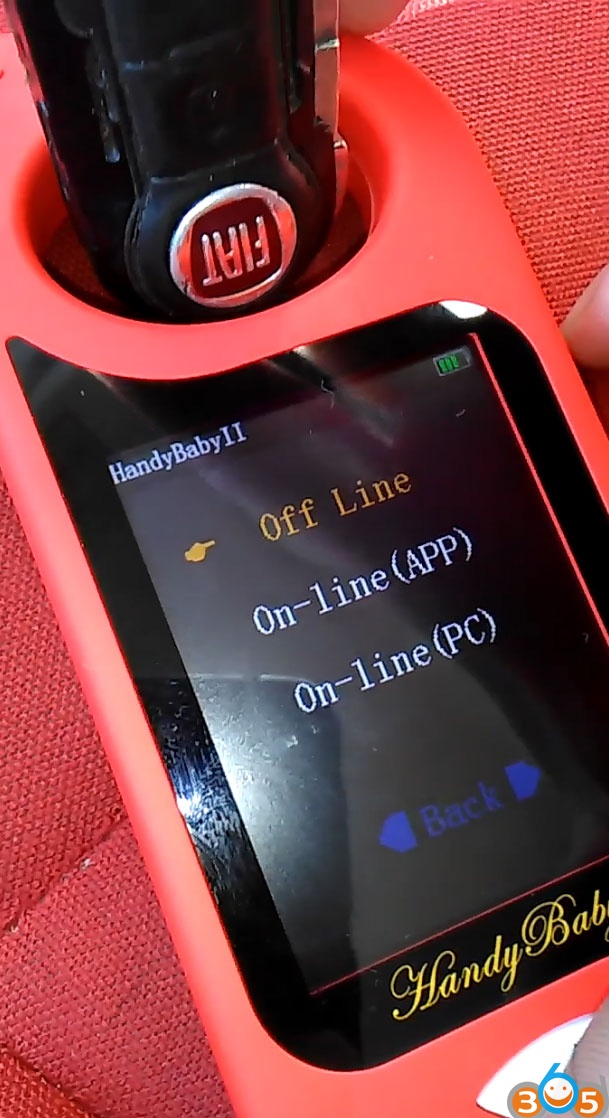

Select Offline mode to copy key

handy-baby-ii-fiat-500-key-copy-7

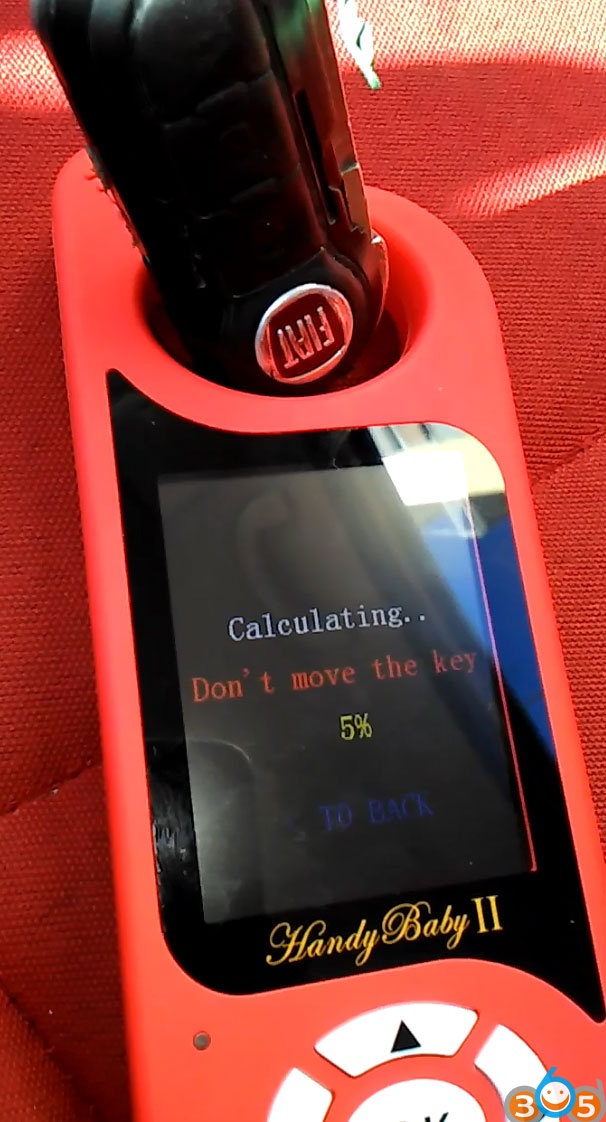

Calculating key data in progress, don’t remove key

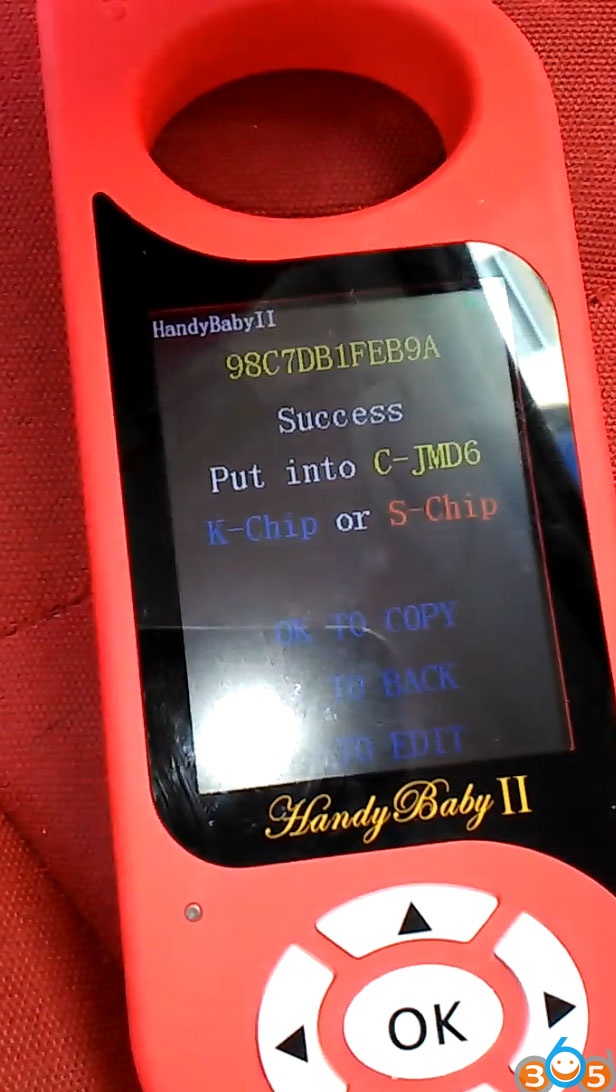

Read key data success

handy-baby-ii-fiat-500-key-copy-8

Input JMD ID46, JMD King chip or red super chip into coil

handy-baby-ii-fiat-500-key-copy-9

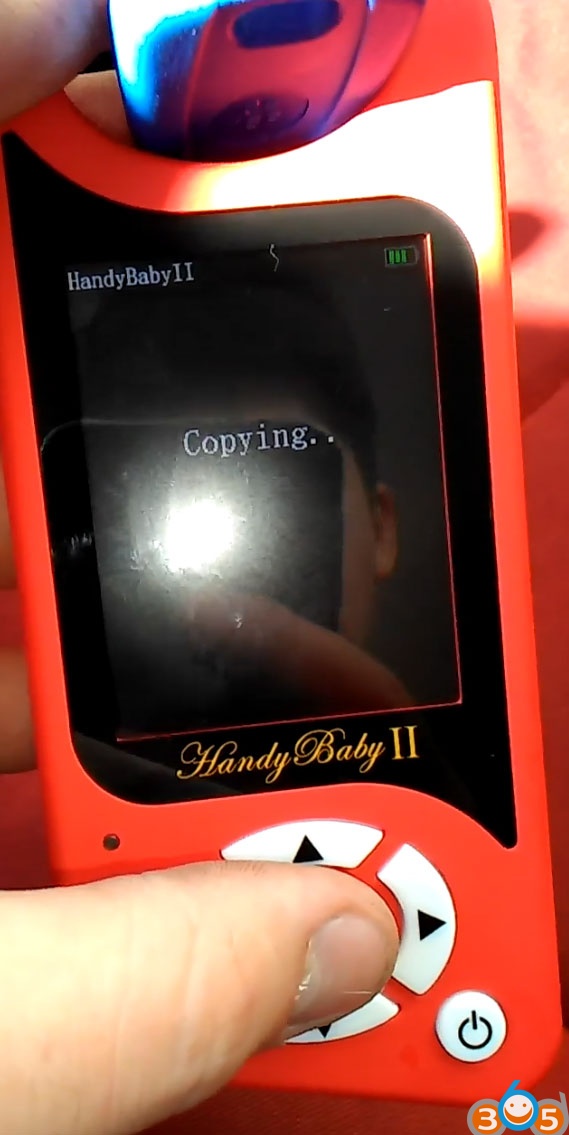

Copying a new key

handy-baby-ii-fiat-500-key-copy-10

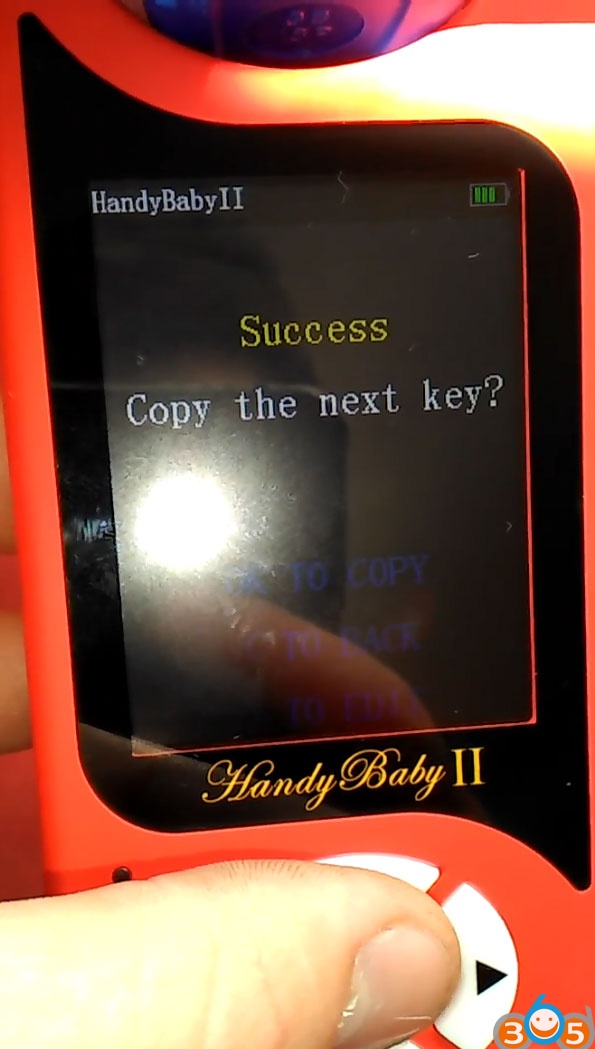

Handy baby 2 cloned a new Fiat 500 key success

handy-baby-ii-fiat-500-key-copy-11

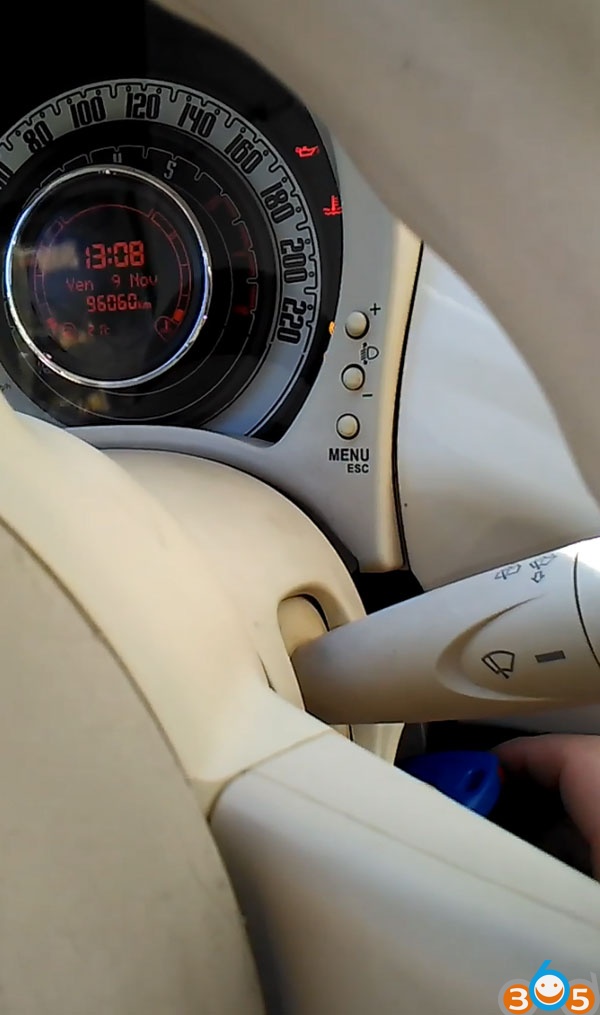

You can start vehicle with the new key.
