Program Geely Emgrand EC7 09 24C02 Key with Orange5 and Tango

How-to: program a new key to a Geely Emgrand EC7 year 2009 with eeprom 24C02 by using Orange5 and Tango transponder key programmer under all keys lost situation.





Step 1: Read EEPROM dump with Orange 5

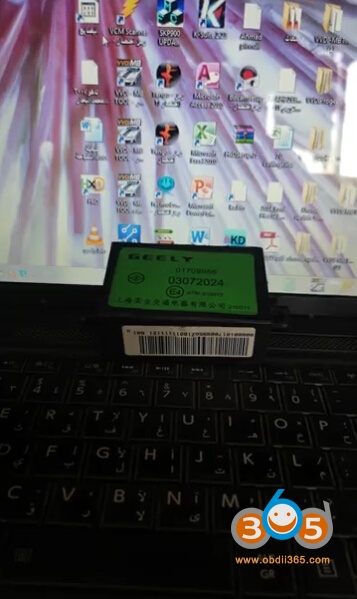

Remove and open the IMMO box

tango-geely-Emgrand-key-1

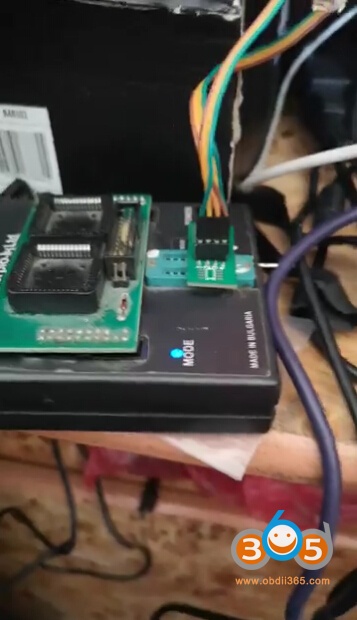

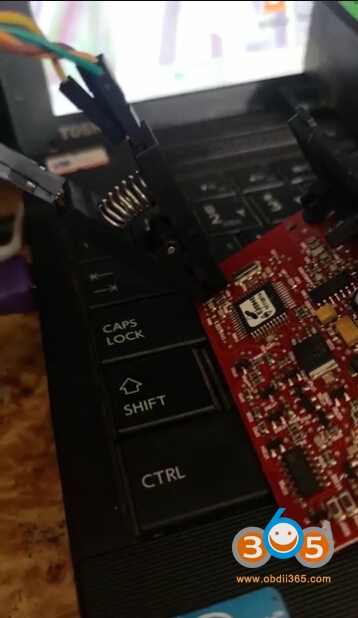

Connect EEPROM IC chip 24C02 with Orange 5 programmer via clip adapter

tango-geely-Emgrand-key-3

tango-geely-Emgrand-key-2

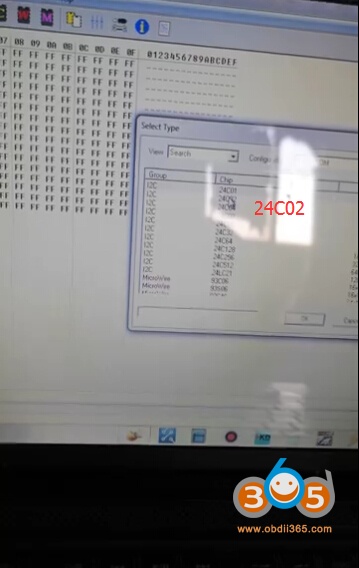

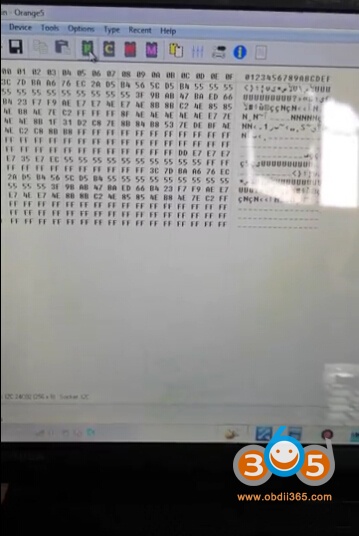

In Orange 5, search 24C02 and read data

tango-geely-Emgrand-key-4

tango-geely-Emgrand-key-5

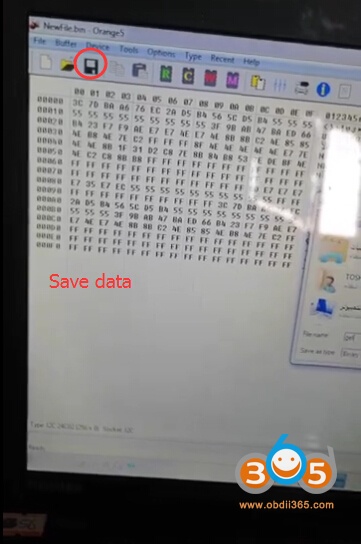

Then save data, i.e: geely5.bin

tango-geely-Emgrand-key-6

Step 2: Write Key with Tango

Connect Tango with computer via USB cable

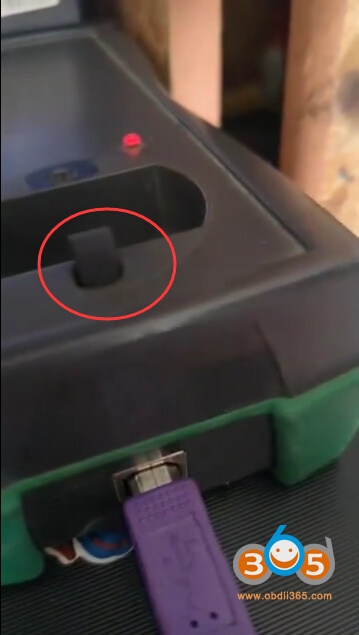

tango-geely-Emgrand-key-7

Insert a pcf7936 transponder into Tango key programmer

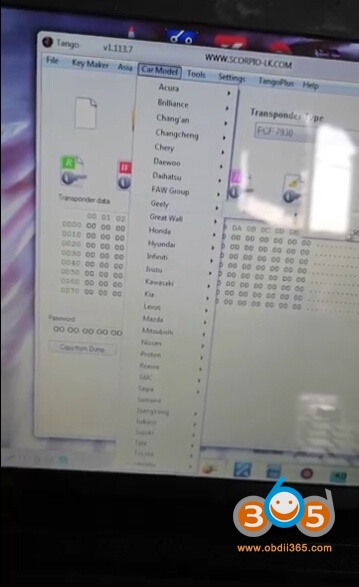

Open Tango software, select Car Model->Geely->Emgrand->EC7->2009-(24C02)

tango-geely-Emgrand-key-8

Open dump read by Orange5

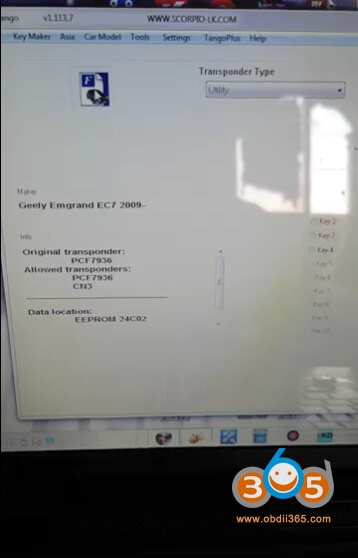

Identify key information

tango-geely-Emgrand-key-9

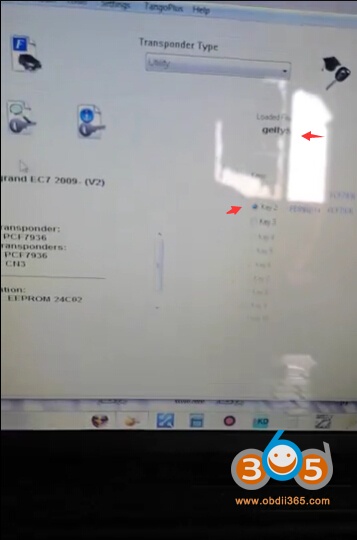

Select an unused key position and write key (PCF7936)

tango-geely-Emgrand-key-10

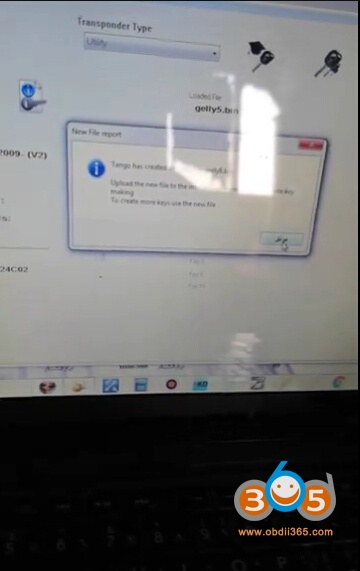

Write key success

tango-geely-Emgrand-key-11

Save new key data, i.e geely8.bin



Step 3: Write back data to Orange5

Back to Orange 5 software

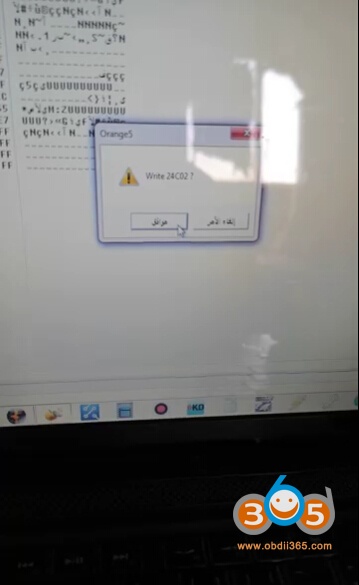

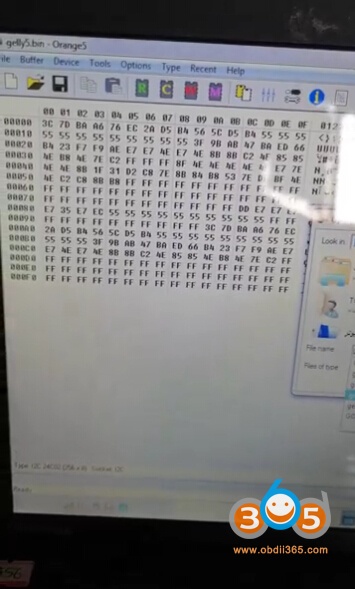

Open new key data geely8.bin and press Write

tango-geely-Emgrand-key-12

tango-geely-Emgrand-key-13

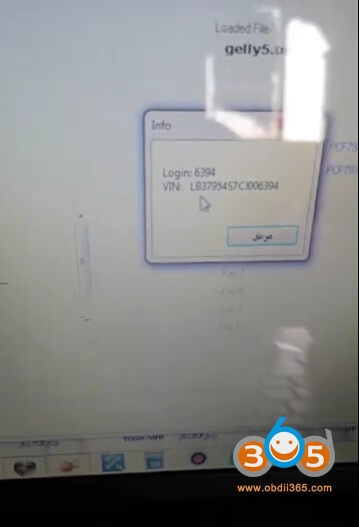

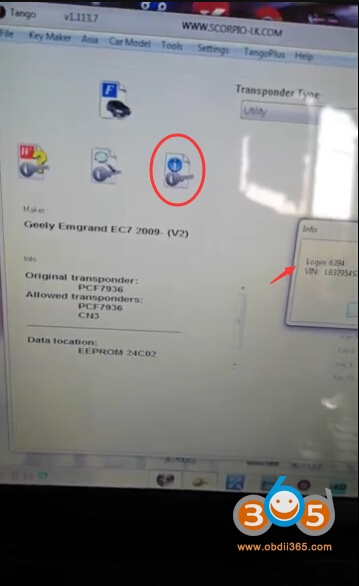

Write new key data back to eeprom 24C02 immobilizer success

tango-geely-Emgrand-key-14

tango-geely-Emgrand-key-15

Now you can start vehicle with the new key.
