How to Read, Reset and Write NEC Chip with CGDI MB?

Here’s the guide to read, reset and Write NEC with CGDI Prog MB Mercedes Benz key programmer.

cgdi-mb-write-nec-chip-1

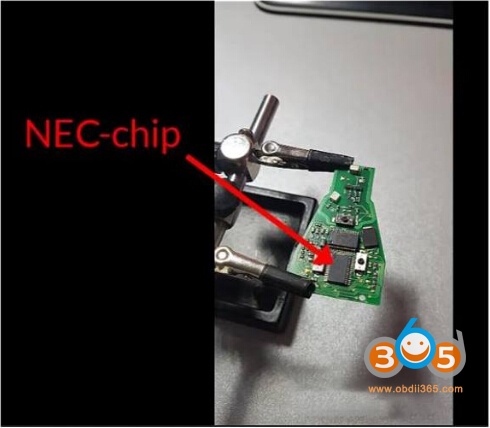

Dismantle key and desolder NEC chip

cgdi-mb-write-nec-chip-2

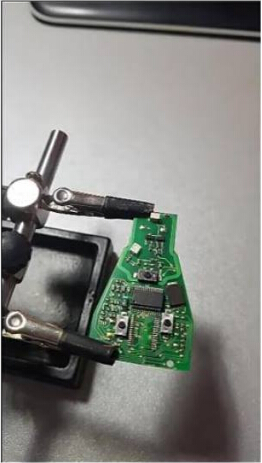

Clean PCB and NEC chip before soldering on CGDI NEC adapter

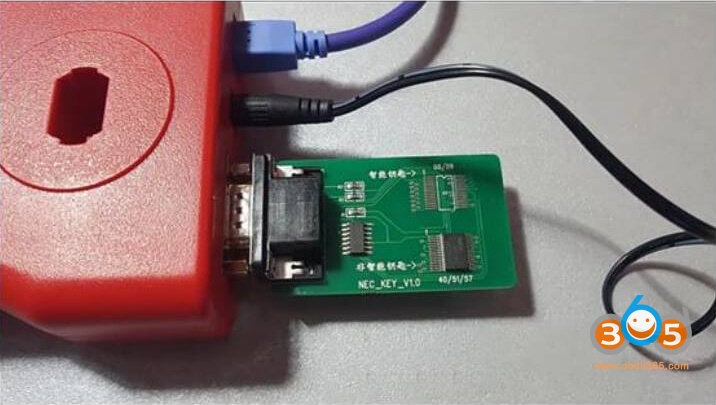

cgdi-mb-write-nec-chip-3
Identify NEC chip and solder onto NEC-board

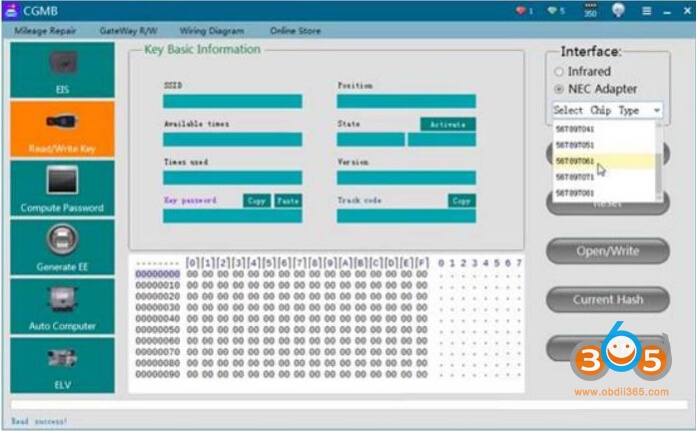

cgdi-mb-write-nec-chip-4
Select NEC adapter and corresponding chip type

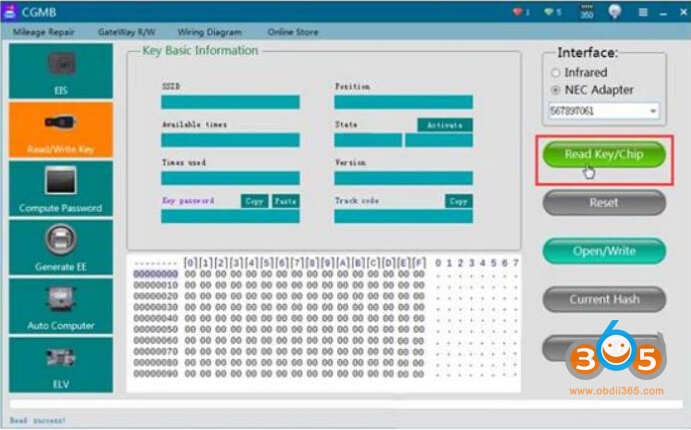

cgdi-mb-write-nec-chip-5
Read Key/Chip

cgdi-mb-write-nec-chip-6

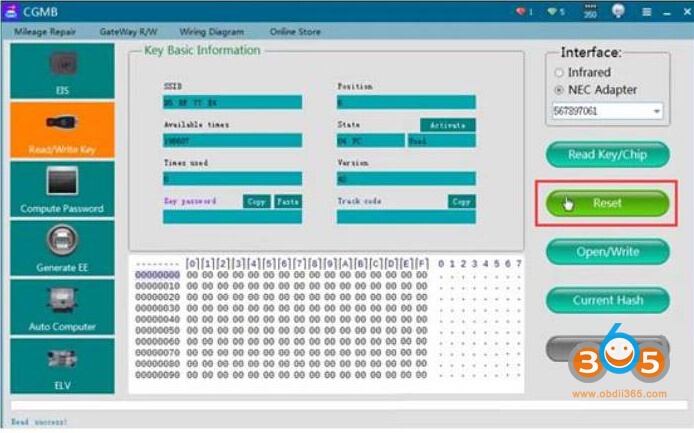

Reset NEC chip

cgdi-mb-write-nec-chip-7

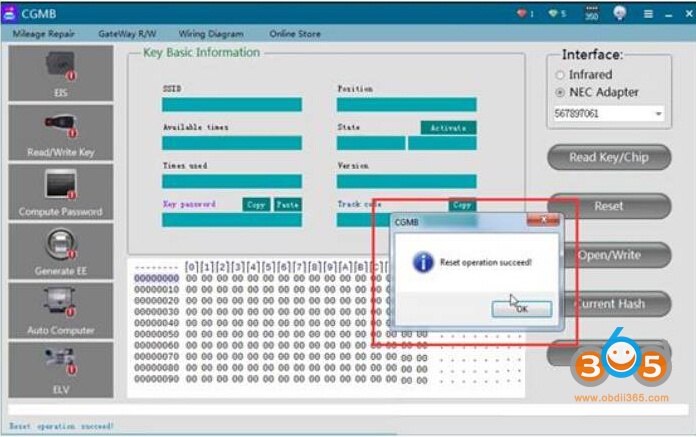

Reset success

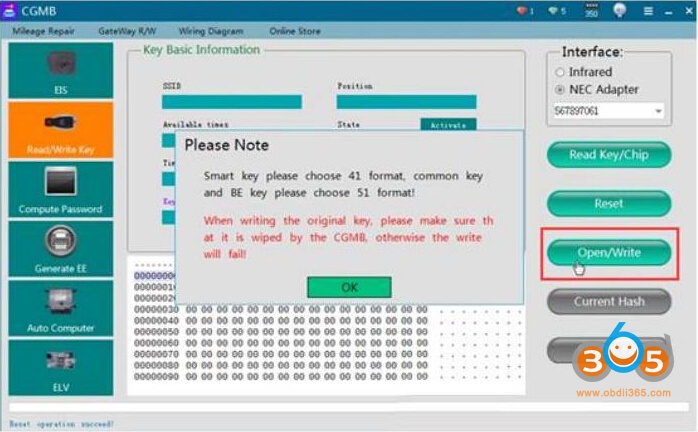

cgdi-mb-write-nec-chip-8

cgdi-mb-write-nec-chip-9

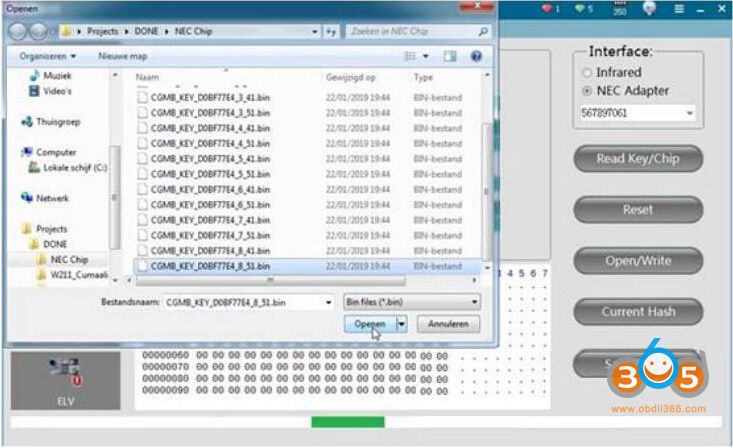

If you have saved key files, click Open/Write, select a key file

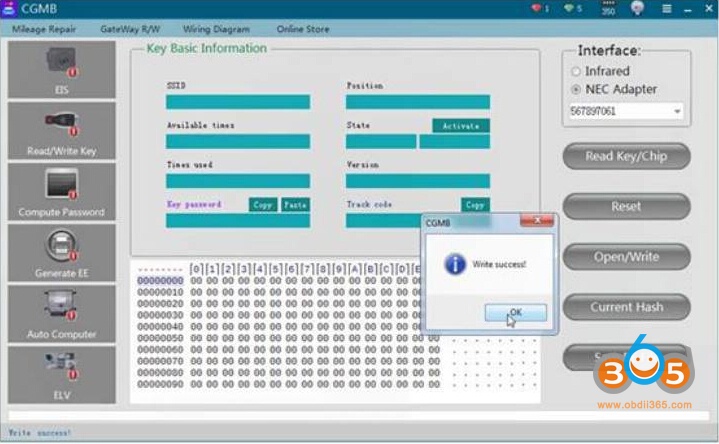

cgdi-mb-write-nec-chip-10

Write success

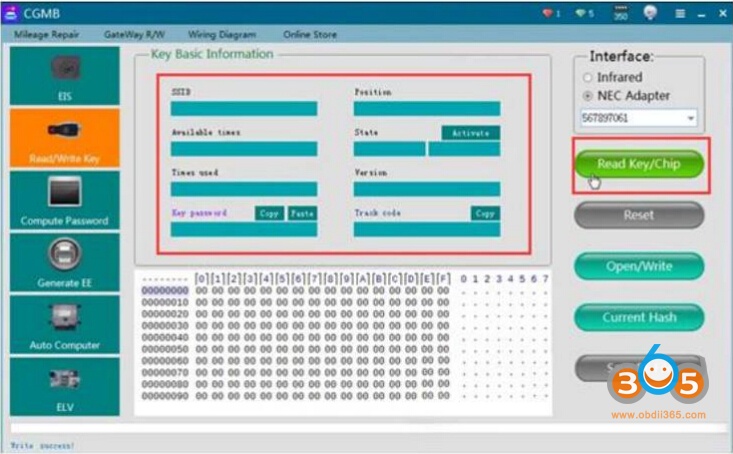

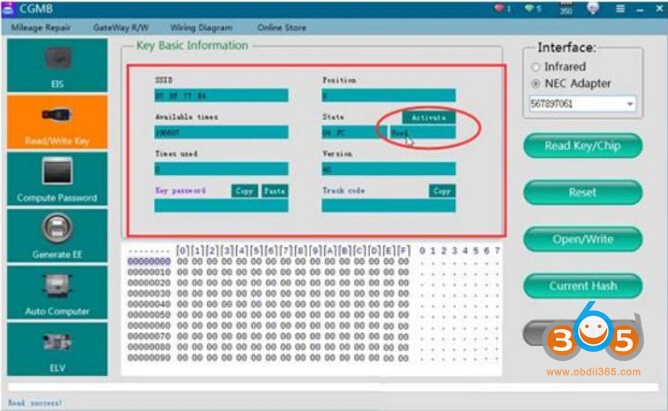

Back to click on Read Key/Chip to confirm NEC chip status

cgdi-mb-write-nec-chip-11

cgdi-mb-write-nec-chip-12

CGDI MB write NEC chip success.

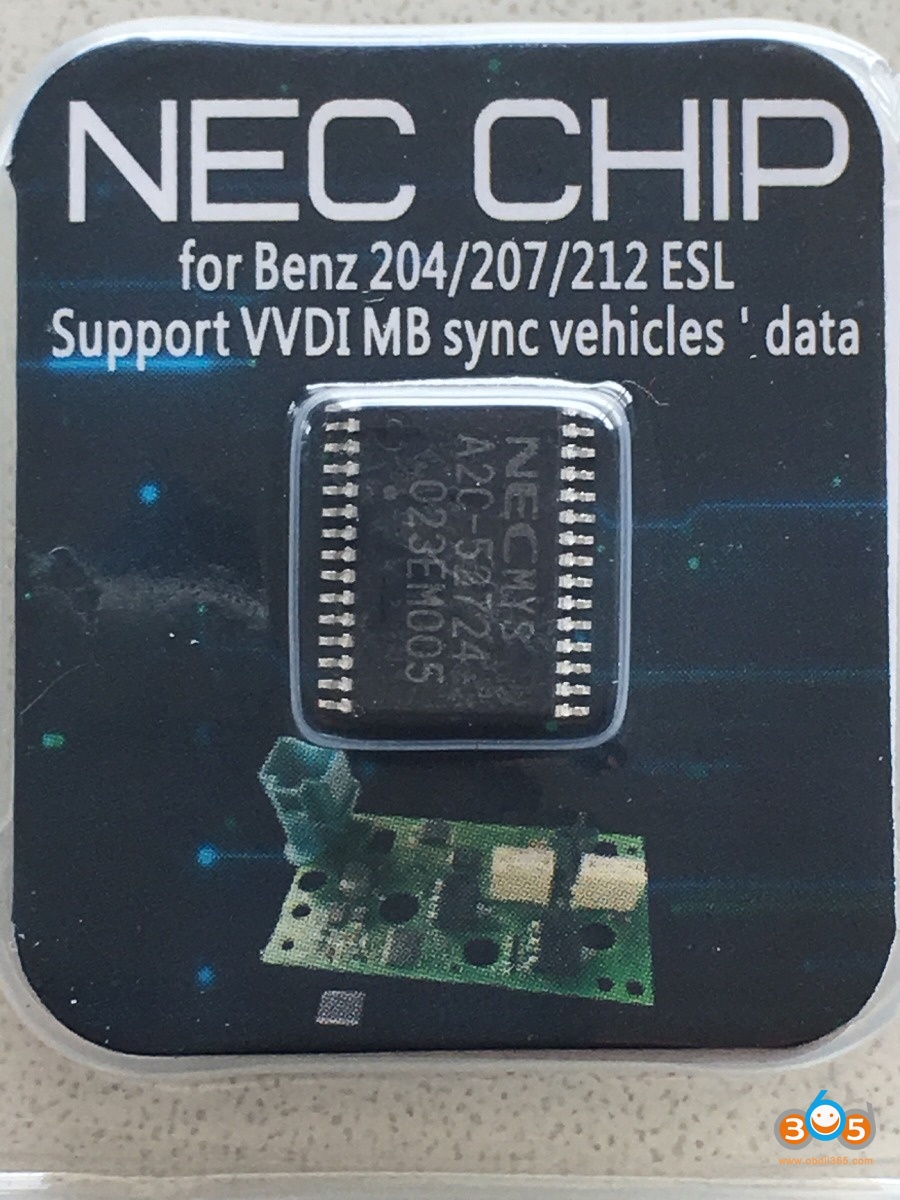

Note: If you need to repair Mercedes W204 207 212 ESL/ELV when NEC broken with CGDI MB, you need a Benz W204 ESL/ELV NEC chip for adaptation no need renew EIS.

benz-nec-repair-chip

Step 1 : replace with  our new nec chip
Step 2:  assemble back ESL
Step 3: read EIS data and save
Step 4: renew ESL and the erase password is all 1
Step 5: load eis data and password,tick auto clear tp and personalise and press write  And job is done !

No need for EIS renew!!!
No need to wait hours for disabled NEC chip to renew !!!
Adaptation done within a minute!!!
