How to Repair Mercedes W211 Rolling Code with CGDI MB?

How-to: repair Mercedes W211 original EIS rolling code with CGDI Prog MB Benz key programmer.
Rolling code :
rolling code (or sometimes called a hopping code) is used in keyless entry systems to prevent replay attacks, where an eavesdropper records the transmission and replays it at a later time to cause the receiver to ‘unlock’. Such systems are typical in garage door openers and keyless car entry systems.
Why need repair W211 rolling code?
Most of keys are too fast to be inserted and removed,  the track code does not roll, resulting in code rolling, so the key and the EIS cannot be matched properly. CGDI MB has the ability to repair Mercedes rolling code.
Tools required:
CGDI Prog MB
Analog key data collector
OBD connector
USB cable
Follow main steps below:
1. First you need a key password
2. Calculate the track code of the key
3. Read the EIS, fill in password and save data
4. Calculate the erase password and erase it
5. Load the EIS data with the password
6. Click “Allow modification of data”
7. Change the track code of the key position to the track
code of the key.
8. Write data
9. Learn key
Step-by-step procedure:

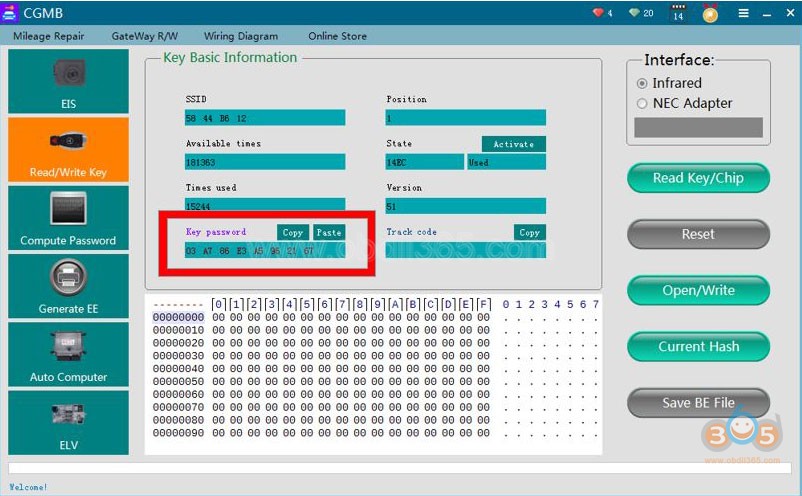

1. Read key password. If there is no key,you can calculate the password by doing all keys lost
cgdi-mb-repair-w211-rolling-code-3

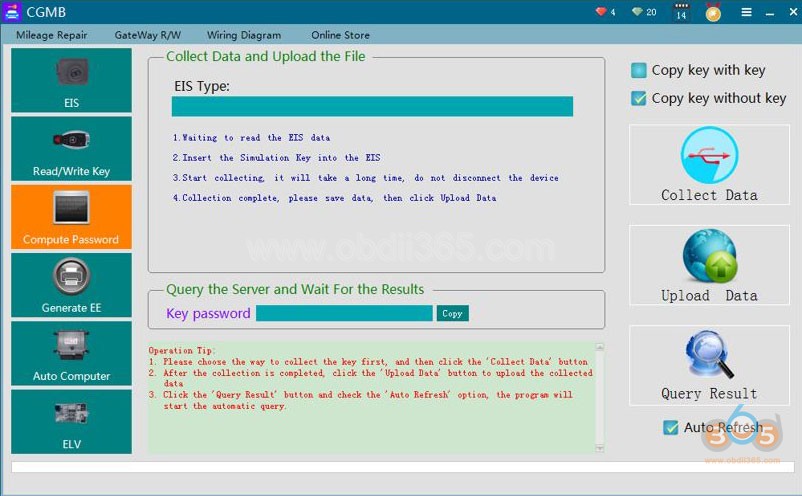

Calculate password
cgdi-mb-repair-w211-rolling-code-4

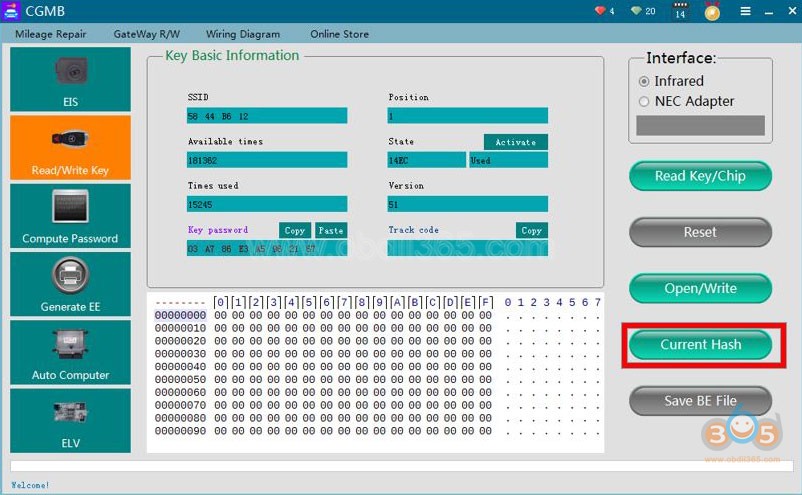

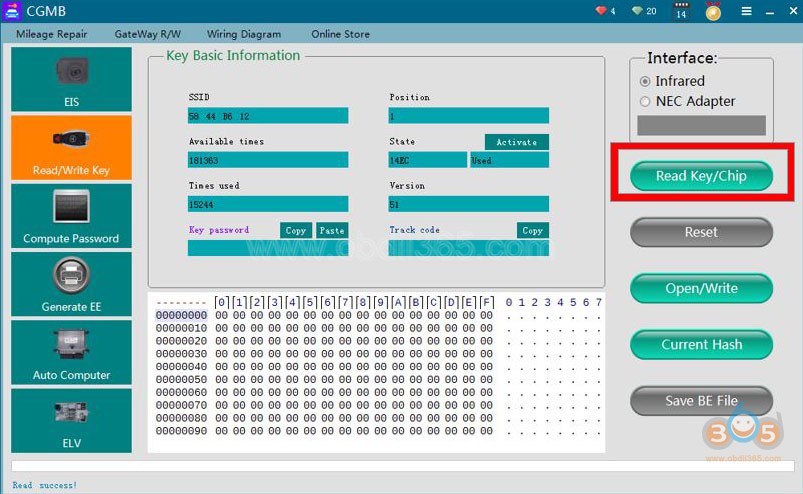

2.Calculate the track code of the key. Press Read Key/Chip and read current key information
cgdi-mb-repair-w211-rolling-code-5
Fill in the password
cgdi-mb-repair-w211-rolling-code-6
Click to get the track code
cgdi-mb-repair-w211-rolling-code-7
Confirm that the key has been inserted into the CGDI MB and check that the key password is correct.
The track code calculated by the wrong password is invalid.
cgdi-mb-repair-w211-rolling-code-8

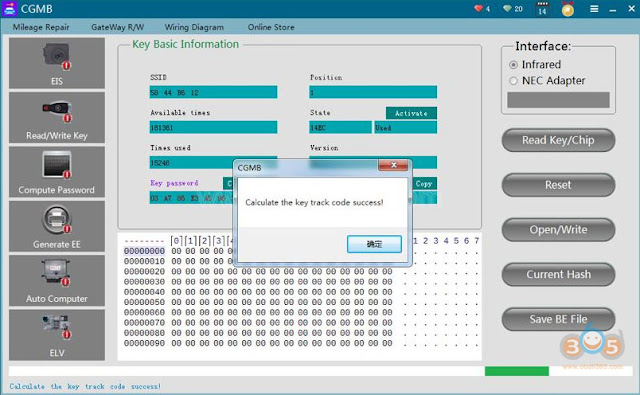

Calculate key track code success
cgdi-mb-repair-w211-rolling-code-9

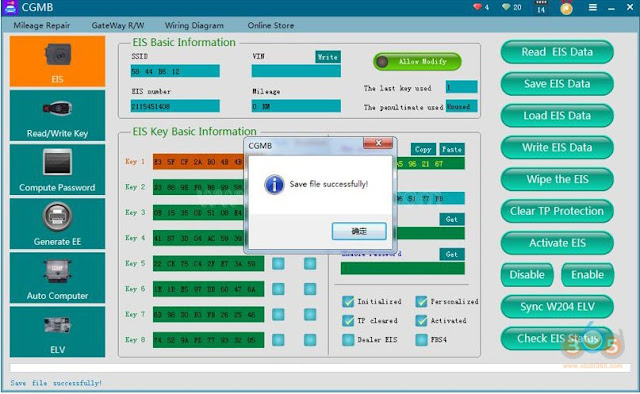

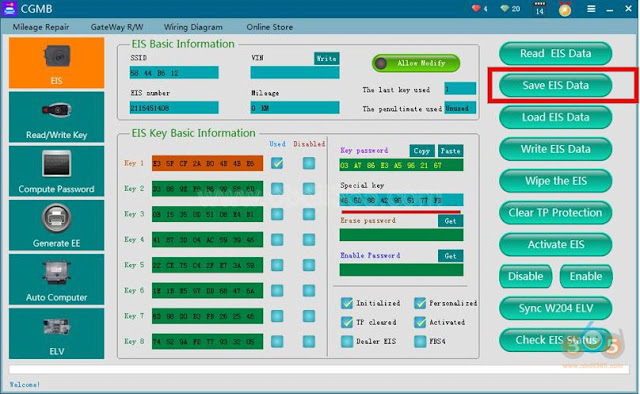

3.Read EIS, enter password and save data
cgdi-mb-repair-w211-rolling-code-10
cgdi-mb-repair-w211-rolling-code-11

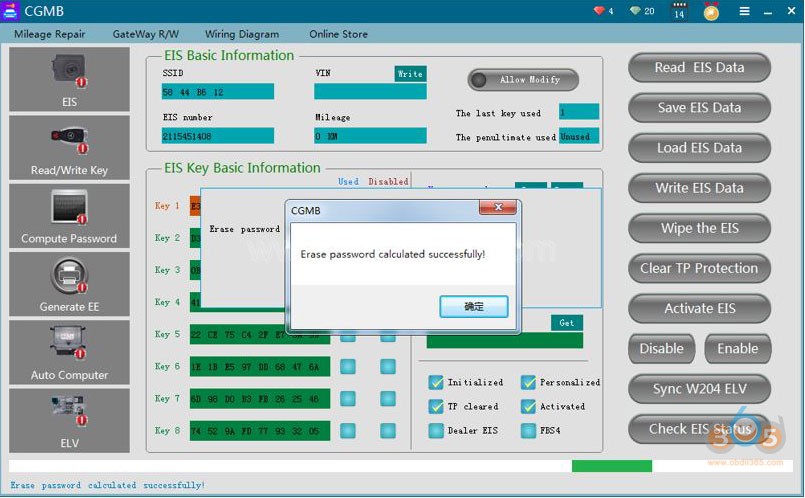

4.Calculate the erase password ad erase the EIS.
cgdi-mb-repair-w211-rolling-code-12
cgdi-mb-repair-w211-rolling-code-13

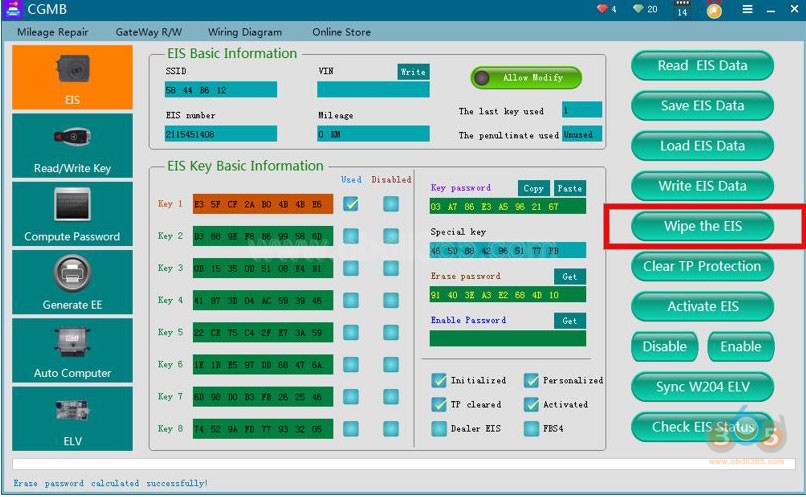

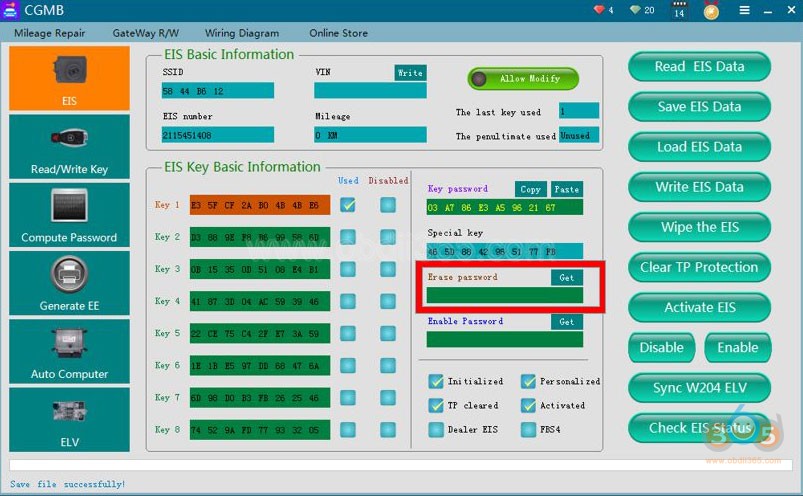

Press Wipe the EIS to erase EIS
cgdi-mb-repair-w211-rolling-code-14

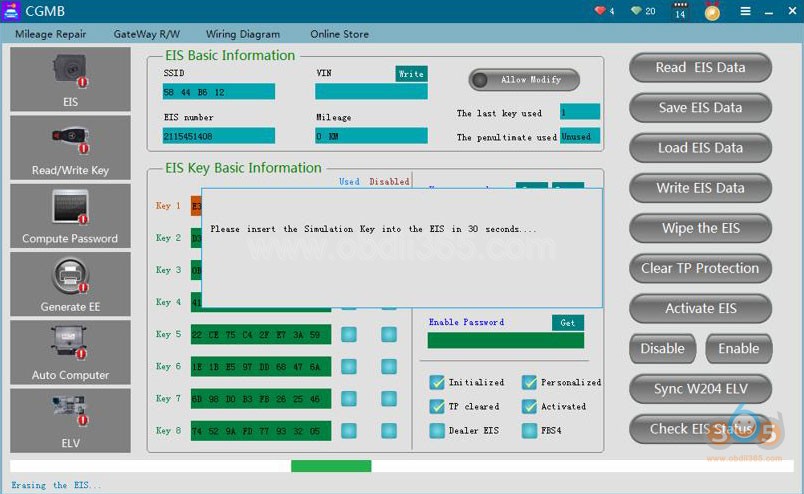

Insert the CGDI Prog IR adapter into the EIS within 30 seconds.
cgdi-mb-repair-w211-rolling-code-15
Erase EIS success
cgdi-mb-repair-w211-rolling-code-16

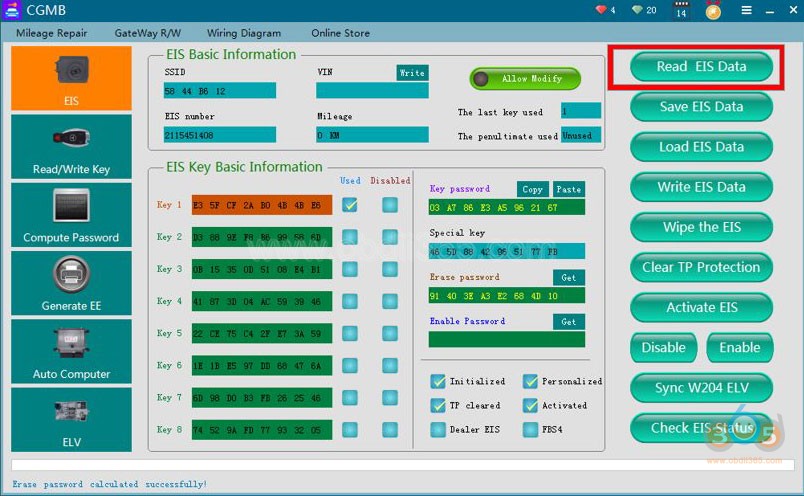

Read EIS and check current status
cgdi-mb-repair-w211-rolling-code-17

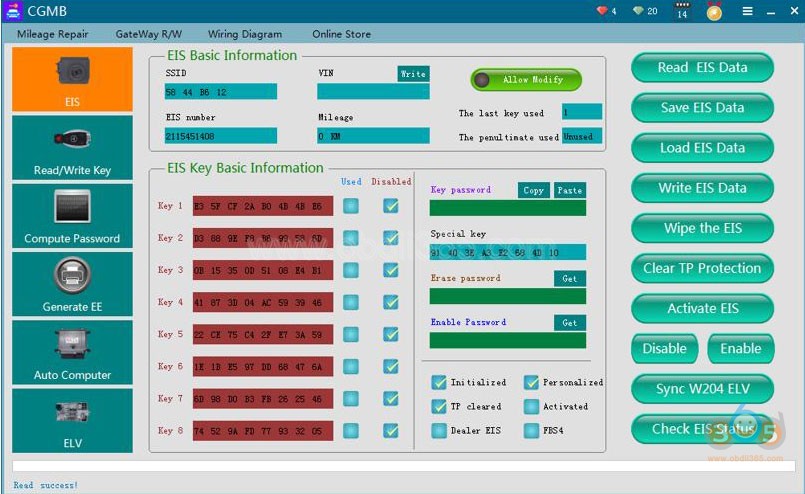

The EIS is erased
cgdi-mb-repair-w211-rolling-code-18

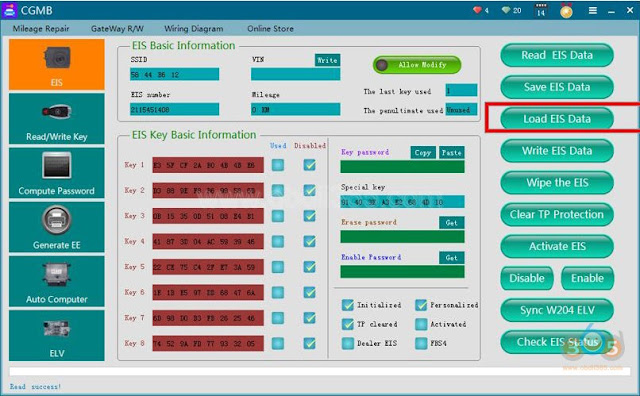

5. Press Load EIS data to load  saved data previously with key password
cgdi-mb-repair-w211-rolling-code-19
cgdi-mb-repair-w211-rolling-code-20

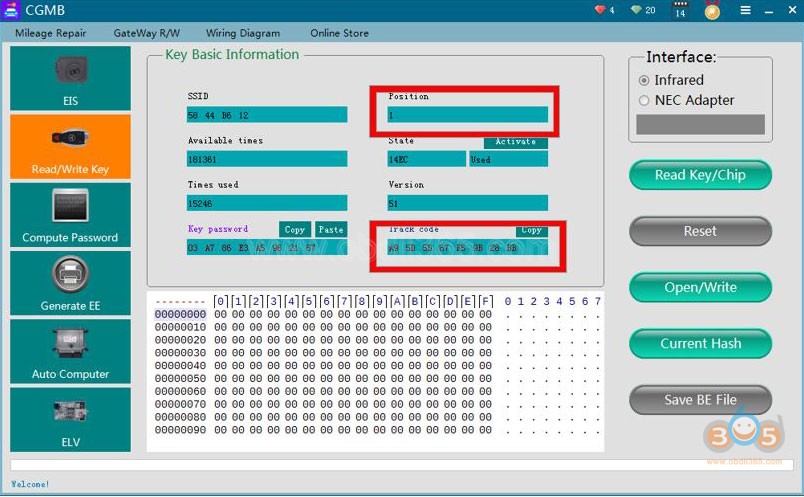

View the key position (key position is 1) and copy the track code
cgdi-mb-repair-w211-rolling-code-21

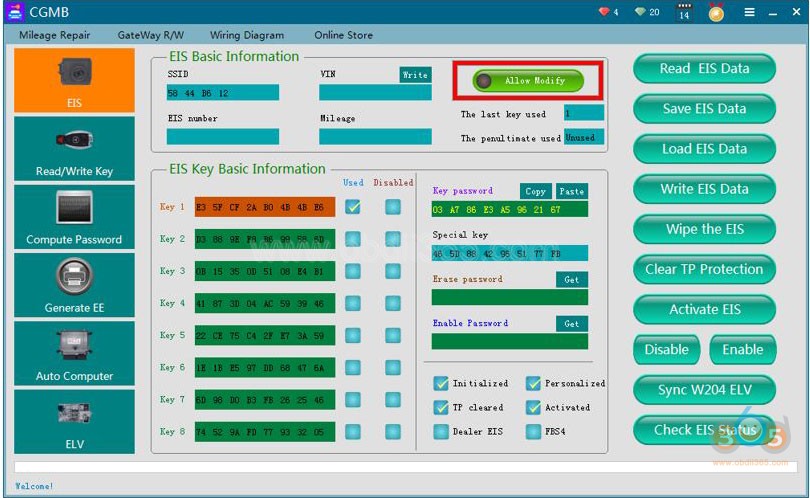

Click on Allow data modification
cgdi-mb-repair-w211-rolling-code-22

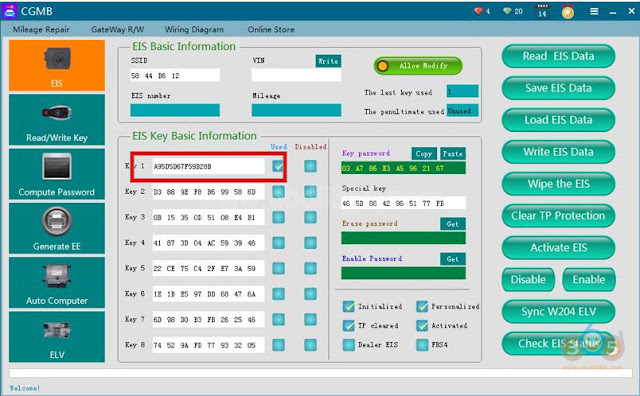

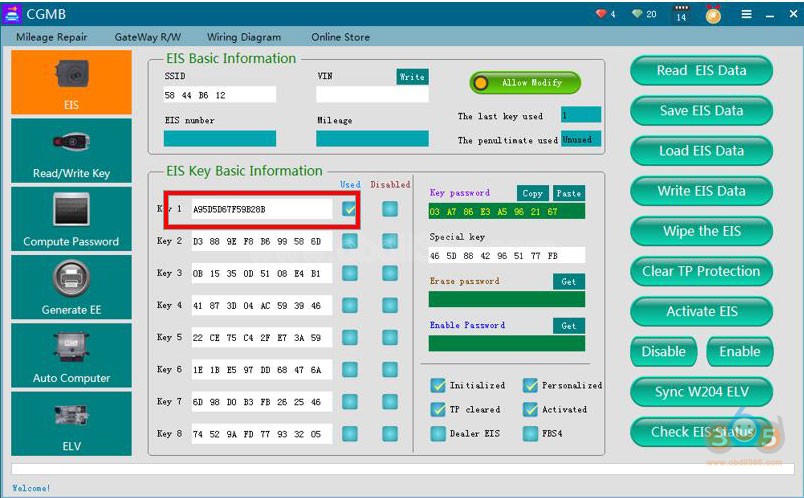

7.Modify the track code of the key position to the track code of the key
cgdi-mb-repair-w211-rolling-code-23

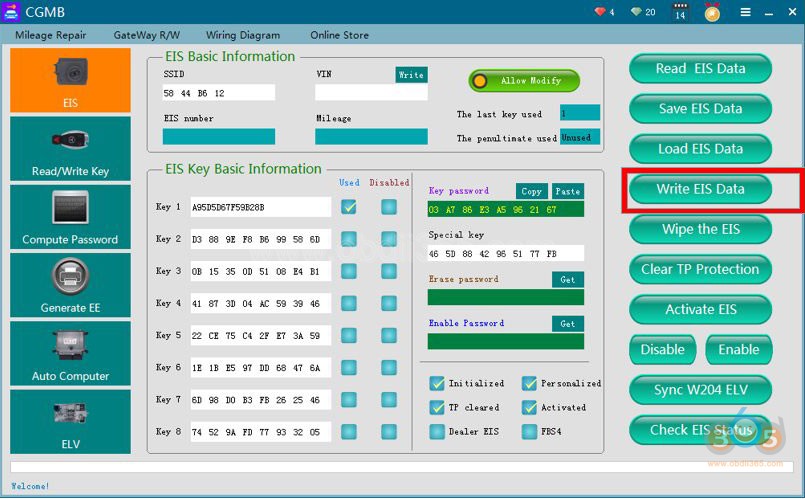

8.Write the EIS data
cgdi-mb-repair-w211-rolling-code-24

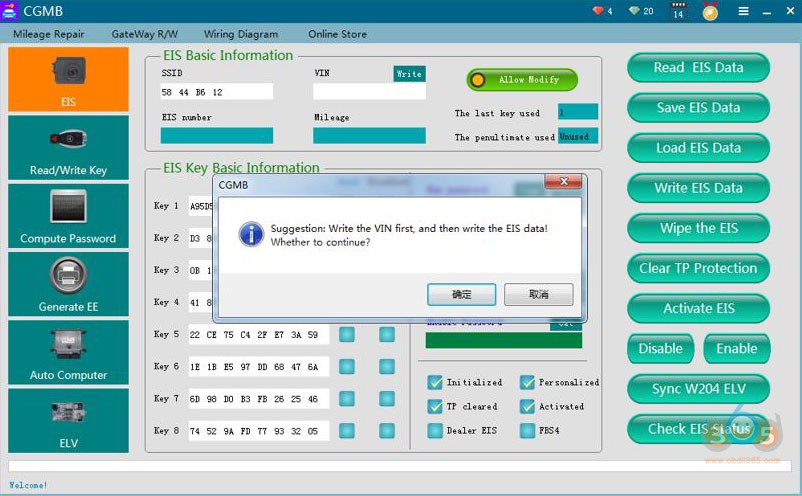

Recommend to write the VIN first, then write the EIS data
cgdi-mb-repair-w211-rolling-code-25

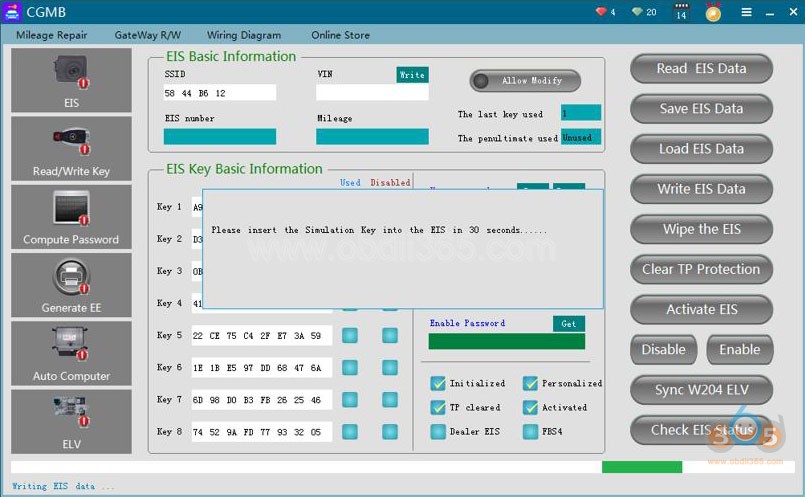

Insert the IR adapter into the EIS within 30 seconds
cgdi-mb-repair-w211-rolling-code-26

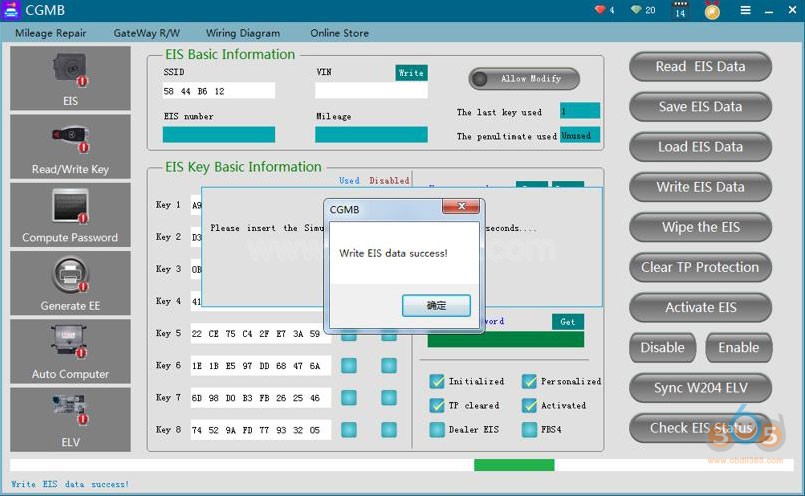

Write EIS data successfully
cgdi-mb-repair-w211-rolling-code-27
Read EIS data to check current key status
cgdi-mb-repair-w211-rolling-code-28
Insert the original car key into EIS to learn key, the EIS can be activated
cgdi-mb-repair-w211-rolling-code-29
Insert the key, wait 1-5 seconds, the ELV responds,  the EIS is activated and the key learnt successfully

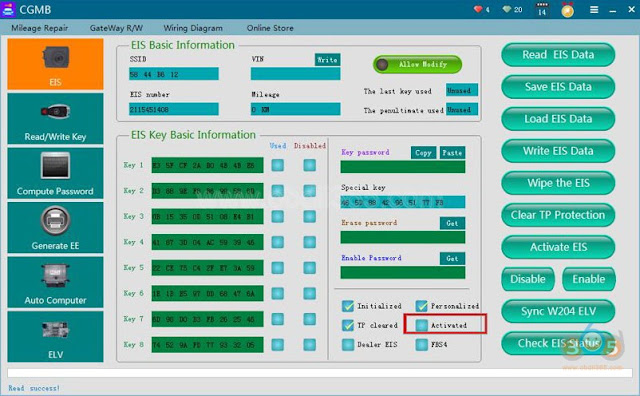

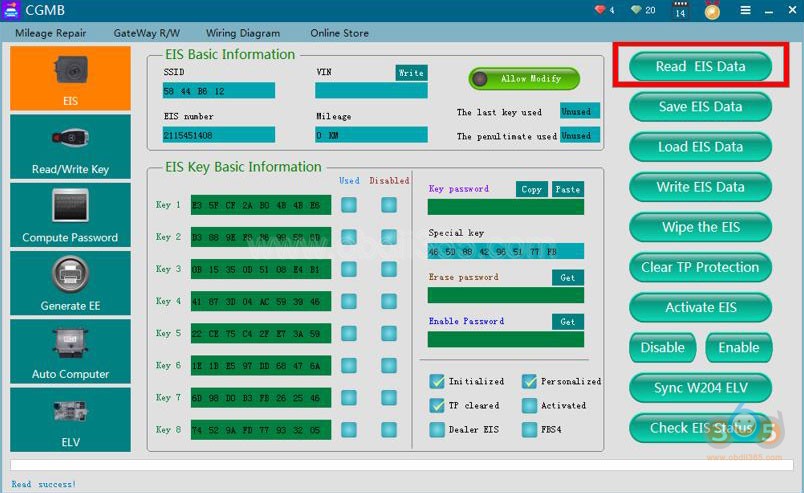

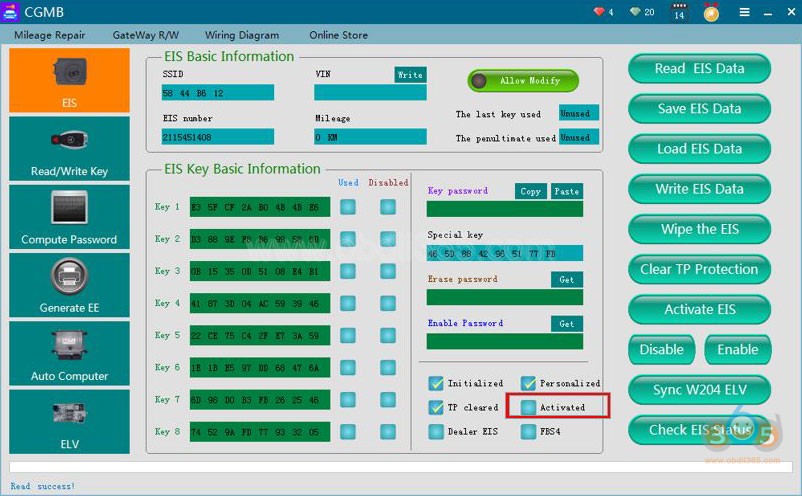

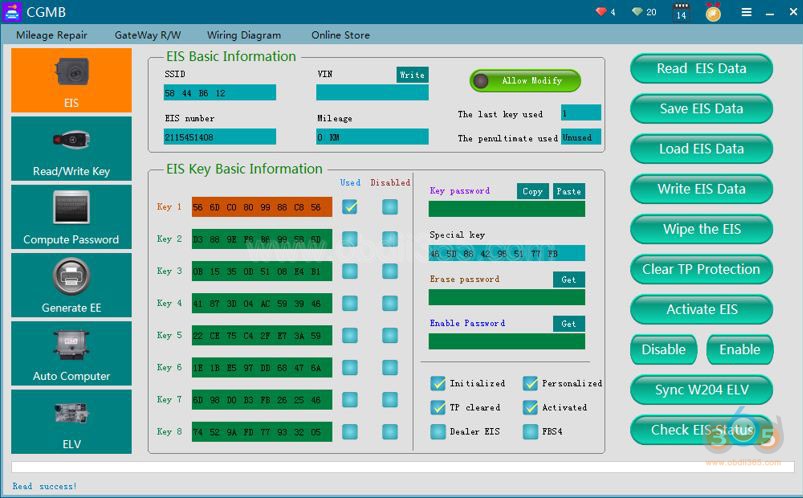

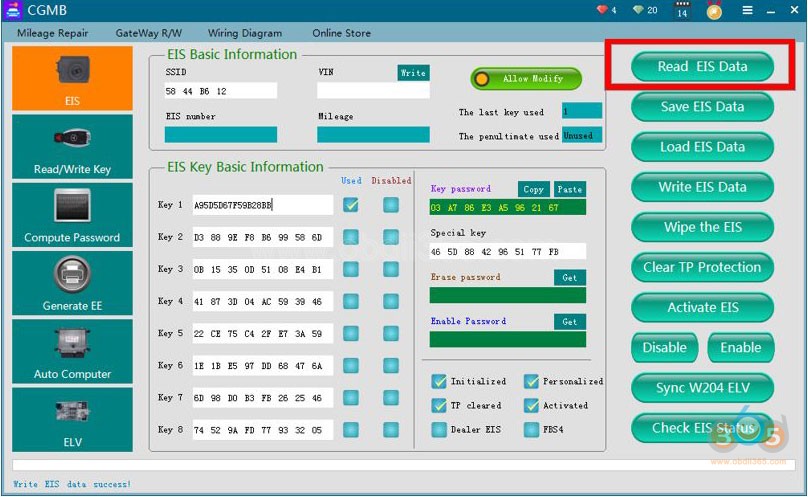

Read EIS data again
cgdi-mb-repair-w211-rolling-code-30
W211 EIS original rolling code is repaired by CGDI MB successfully.
cgdi-mb-repair-w211-rolling-code-31
Done.
