How to Maker VW Passat B7 Immo 4 Magotan Dealer Key with Lonsdor K518ISE

New test report from Mr. Tibor Takács:

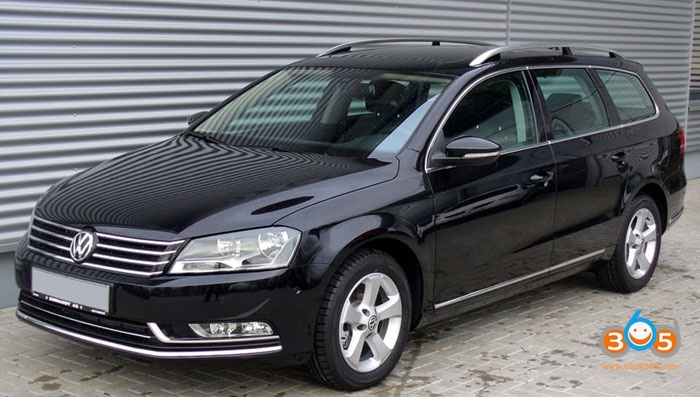

VW Passat B7 Immo4 Magotan
Make dealer key lonsdor k518ise+carprog OK
Learn key OK
Remote Learning with VCDS
lonsdor-k518-vw-passat-b7-Magotan-1

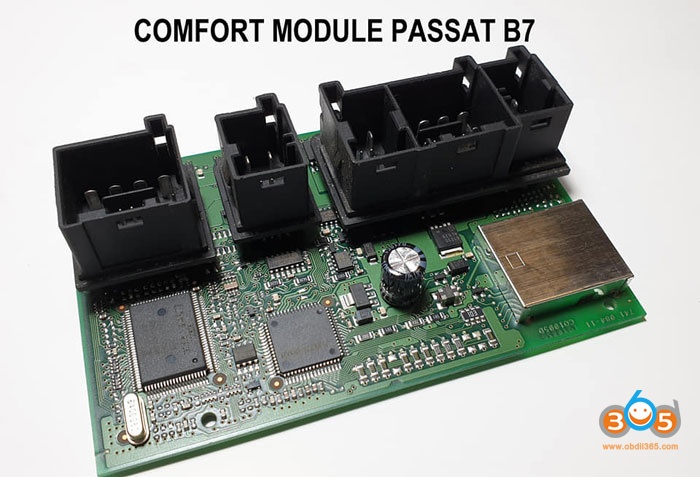

EEPROM: Comfort Module EEPROM 95320
lonsdor-k518-vw-passat-b7-Magotan-2
Check detail procedure and photo operation

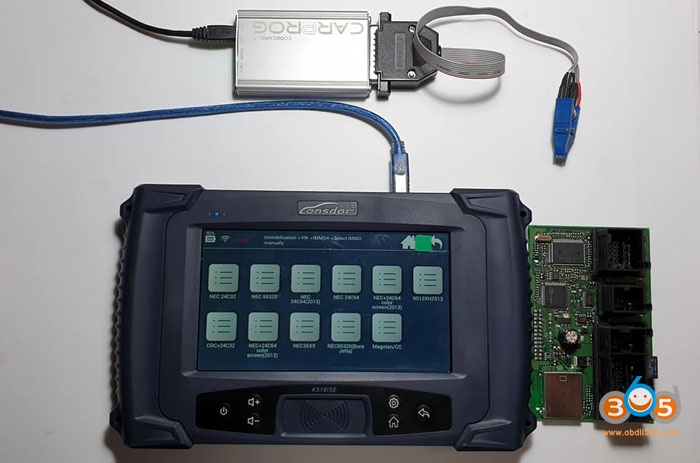

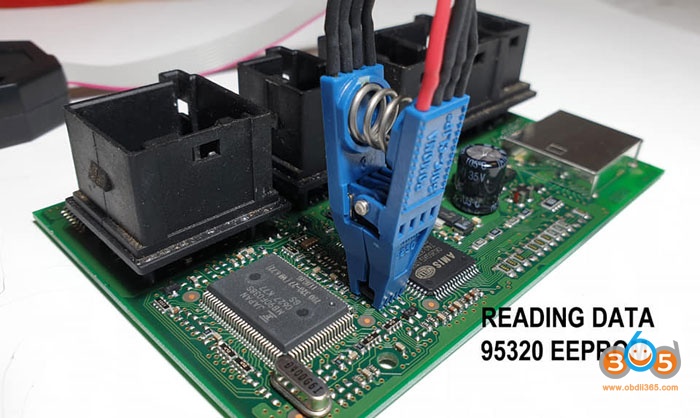

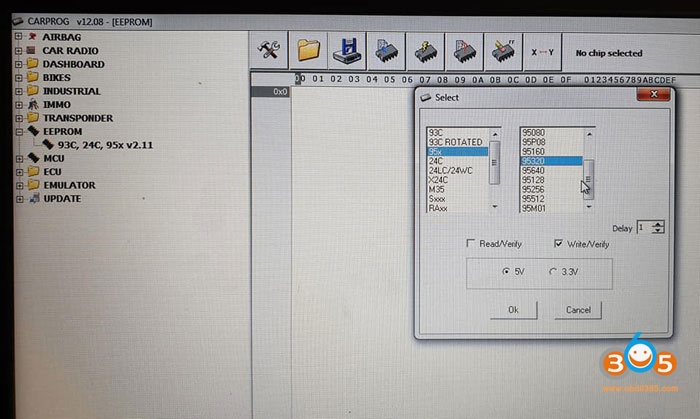

Read eeprom 95320 data with carprog or other programmer
lonsdor-k518-vw-passat-b7-Magotan-3
lonsdor-k518-vw-passat-b7-Magotan-4
lonsdor-k518-vw-passat-b7-Magotan-5
Save eeprom data

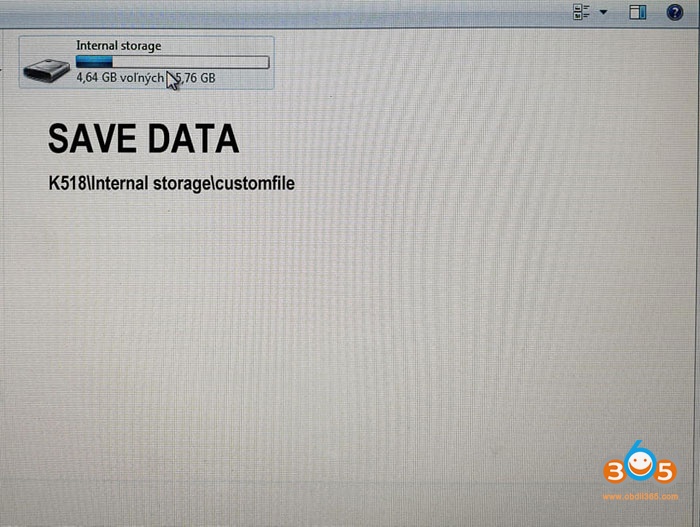

Copy and paste eeprom file to k518 customfile
lonsdor-k518-vw-passat-b7-Magotan-6
Then make dealer key with Lonsdor k518

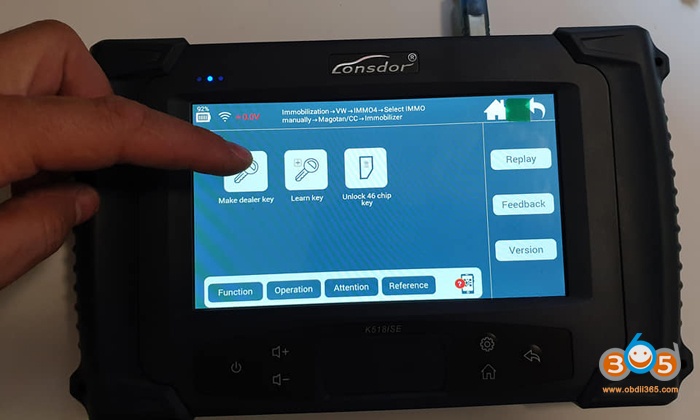

Go to Immobilizer-VW-IMMO4-Select IMMO manually-Magotan/CC-Immobilizer-Make Dealer Key
lonsdor-k518-vw-passat-b7-Magotan-7

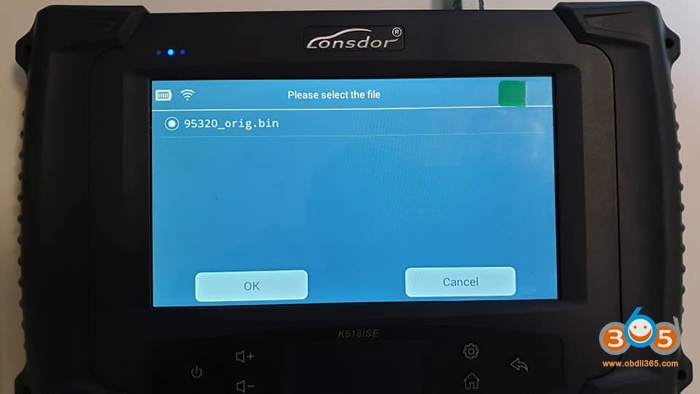

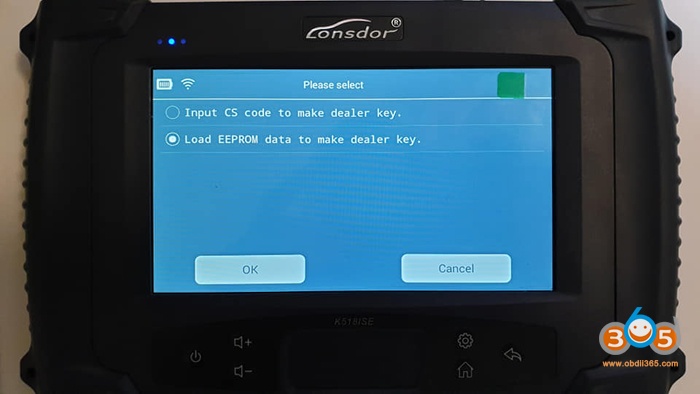

Load eeprom data to make dealer key
lonsdor-k518-vw-passat-b7-Magotan-8
lonsdor-k518-vw-passat-b7-Magotan-9

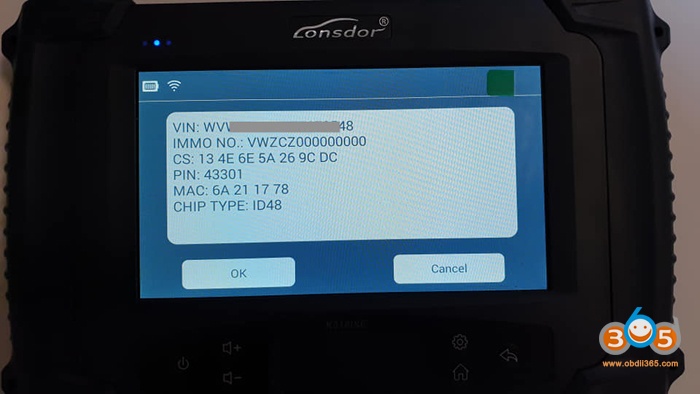

Lonsdor will read vehicle information, VIN, CS, PIN and chip type
lonsdor-k518-vw-passat-b7-Magotan-10

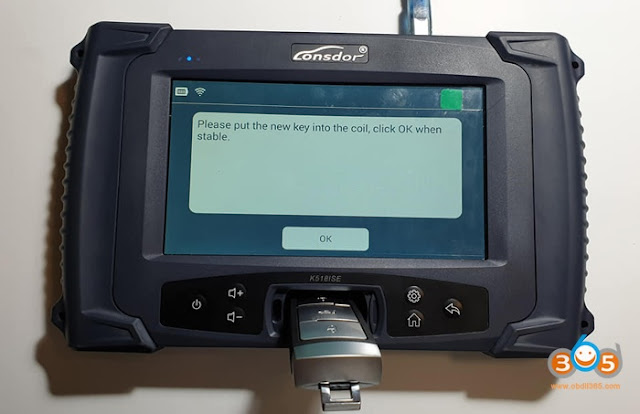

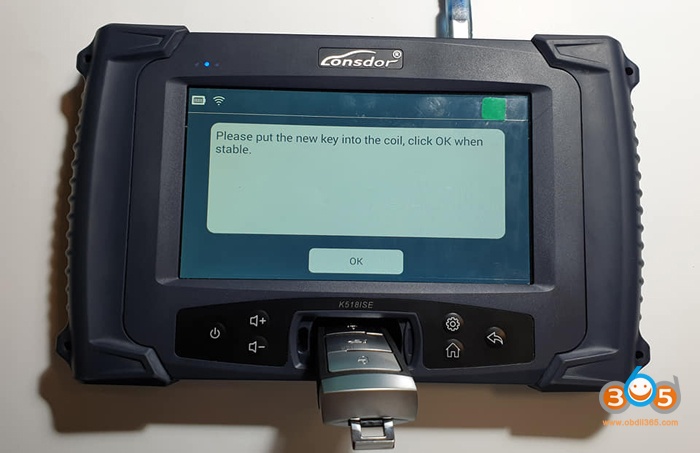

Put the new key into coil
lonsdor-k518-vw-passat-b7-Magotan-11

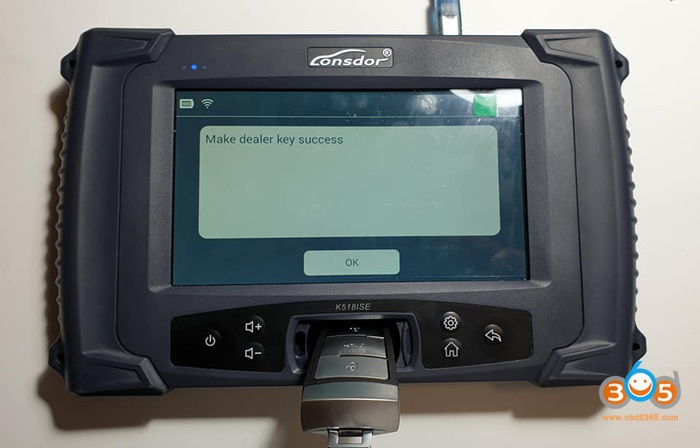

Make dealer key success
lonsdor-k518-vw-passat-b7-Magotan-12

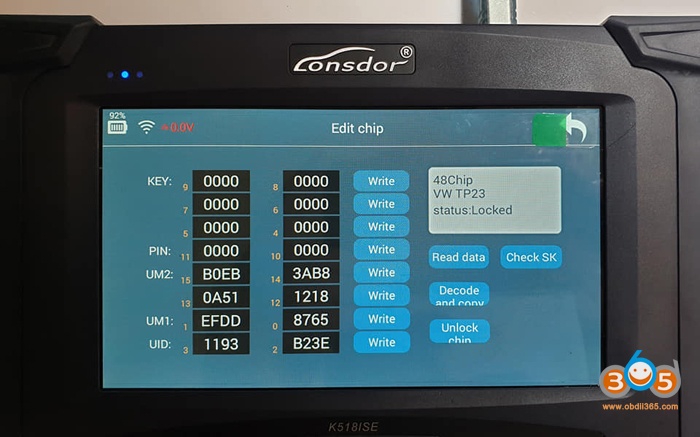

Check ke status
lonsdor-k518-vw-passat-b7-Magotan-13
Then program remote with vcds. Or you can try remote programming with K518ISE (he didn’t test it)
lonsdor-k518-vw-passat-b7-Magotan-14
Done.
