Lonsdor K518 Read Renault Clio 4 Pin and Program All Keys Lost Success

Renault Clio 4 all keys lost key card programming is verified can be done by Lonsdor K518ISE/K518Skey programming under subscribed menu.
Read pin code – ok
Immobilizer programming- ok
Remote programming-ok
Note:

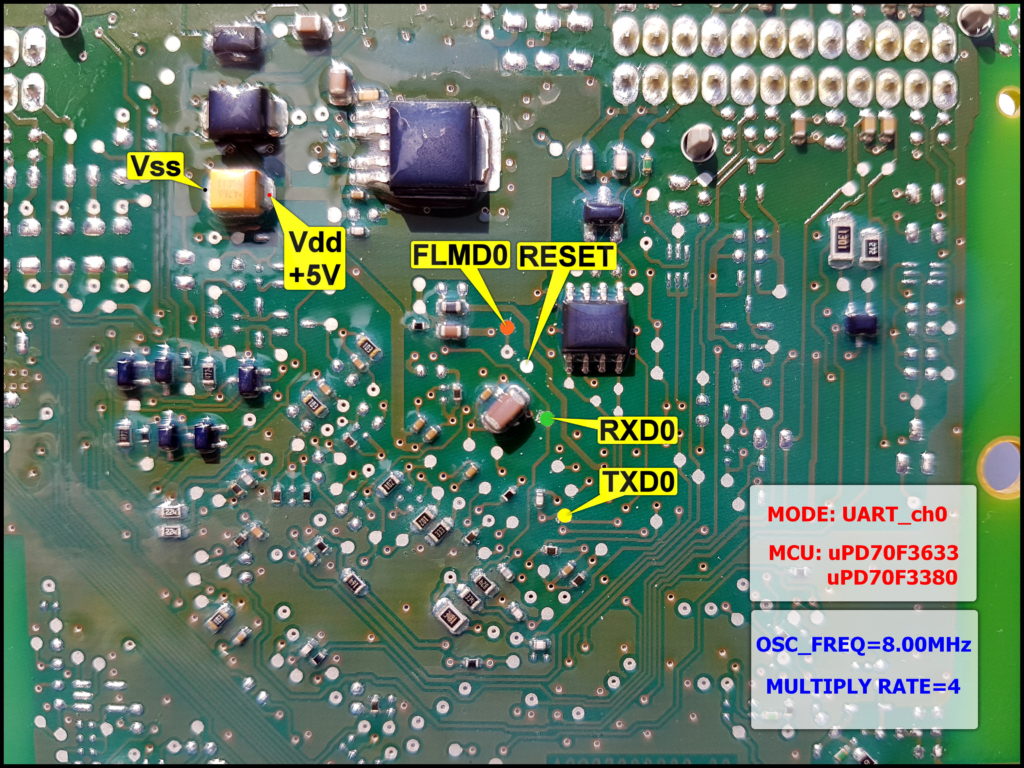

Require to dismantle the smart key module HFM to read D-FLASH D70F3633 data by programmer (VVDI ProgOrange5 etc) then copy bin file to K518 “customfile” folder.
renault-xfm-98

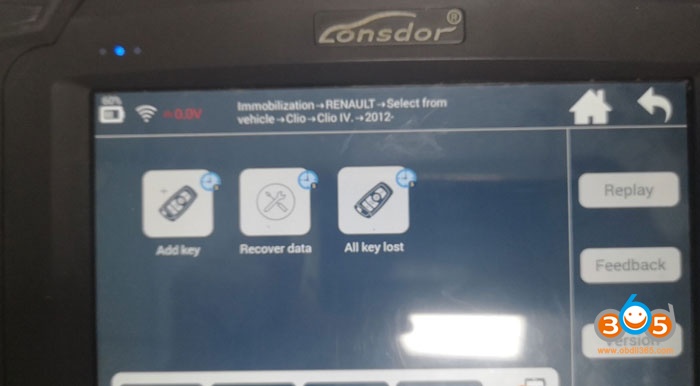

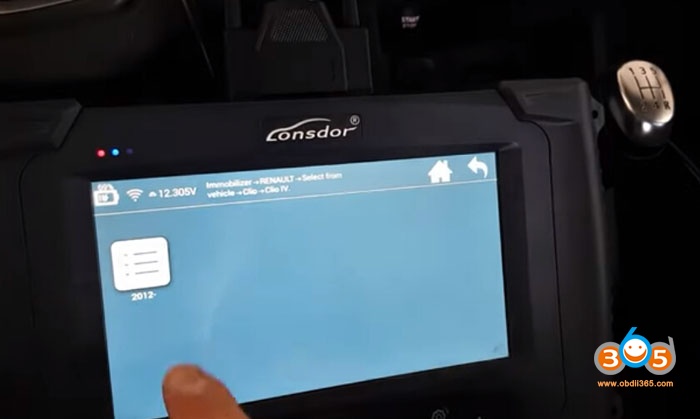

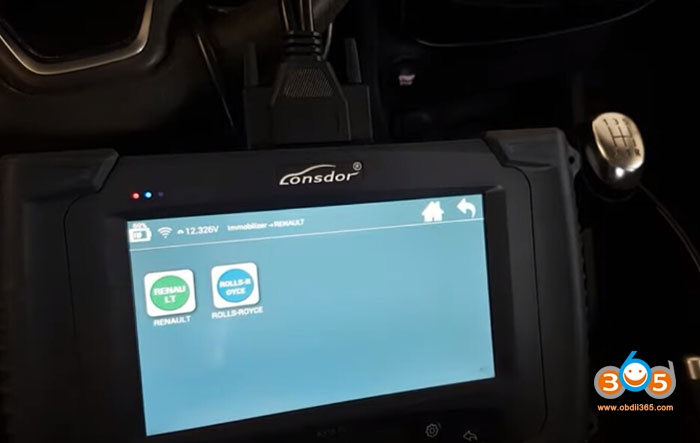

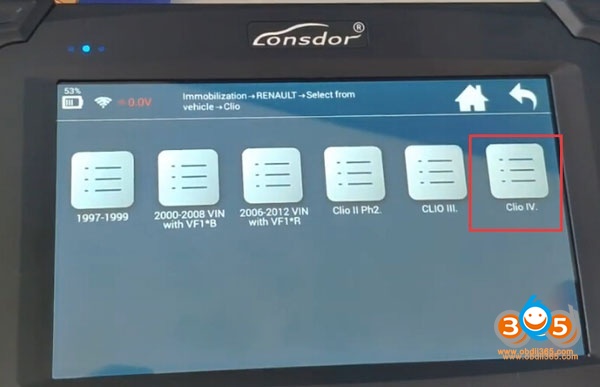

In K518, select Renault->Select from vehicle->Clio->Clio IV->2012 up->All key lost
lonsdor-k518-renault-clio-iv-akl-1



lonsdor-k518-renault-clio-iv-akl-2



lonsdor-k518-renault-clio-iv-akl-3



lonsdor-k518-renault-clio-iv-akl-4

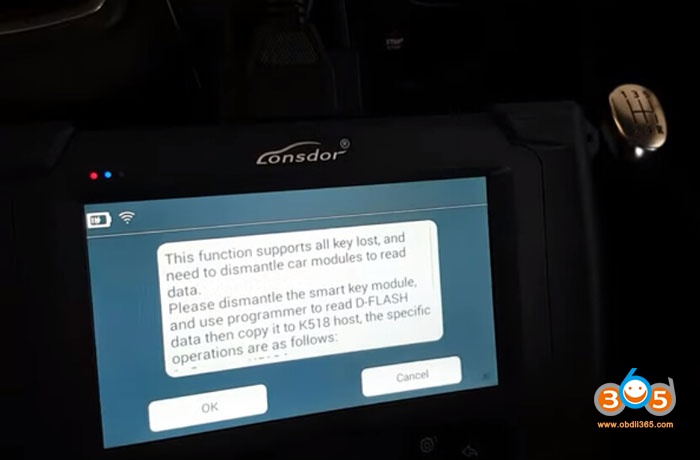

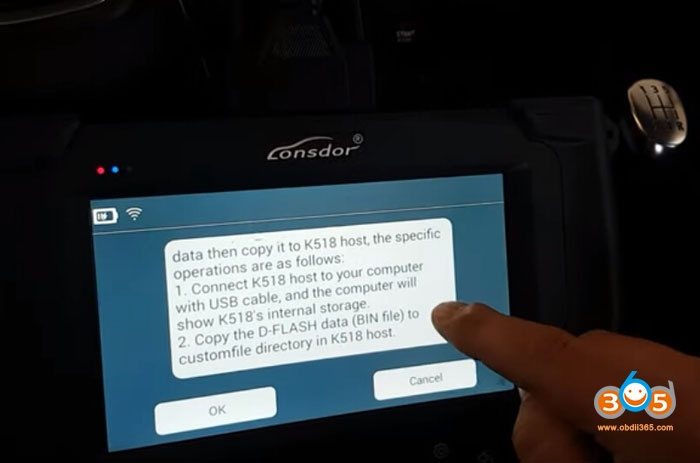

Follow Lonsdor prompts to read HFM data and paste bin file to K518 customfile folder.
lonsdor-k518-renault-clio-iv-akl-5



lonsdor-k518-renault-clio-iv-akl-6

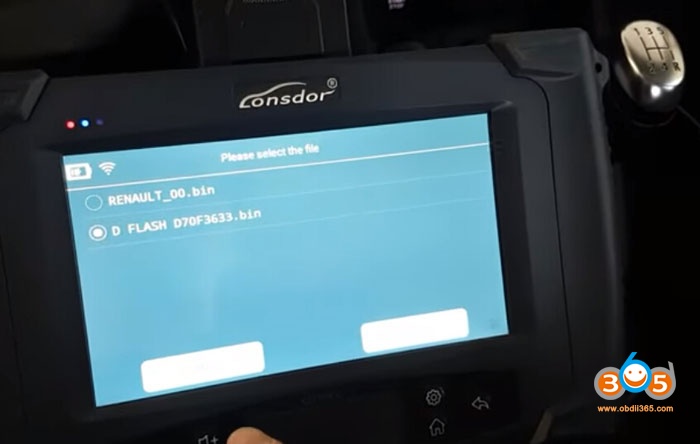

Select D-Flash D70F3633 bin file
lonsdor-k518-renault-clio-iv-akl-7
Reading file data
lonsdor-k518-renault-clio-iv-akl-8

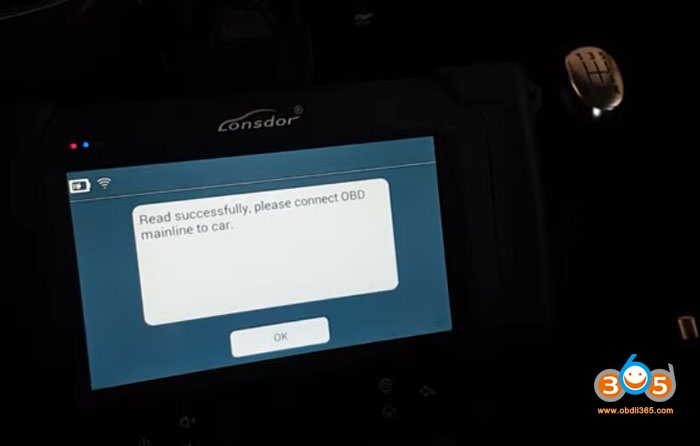

Read data successfully
lonsdor-k518-renault-clio-iv-akl-9

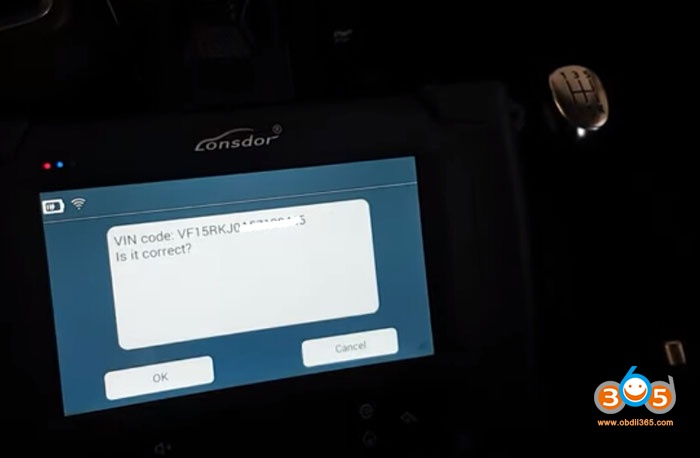

Read VIN and confirm
lonsdor-k518-renault-clio-iv-akl-10

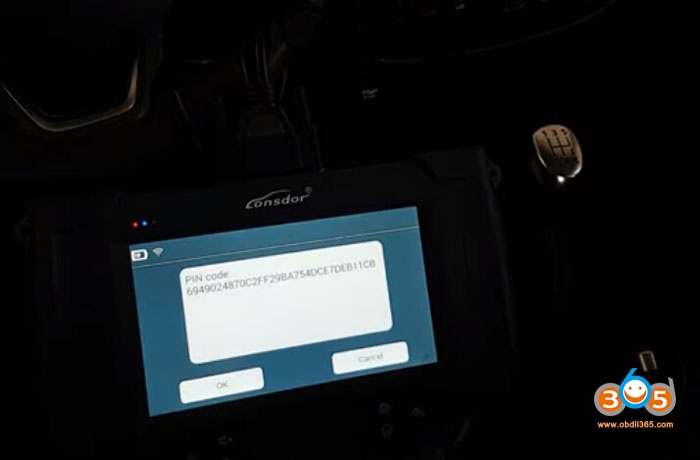

Lonsdor K518 Read Pin Code success
lonsdor-k518-renault-clio-iv-akl-11



lonsdor-k518-renault-clio-iv-akl-12
Insert key card into slot and turn on ignition
lonsdor-k518-renault-clio-iv-akl-13

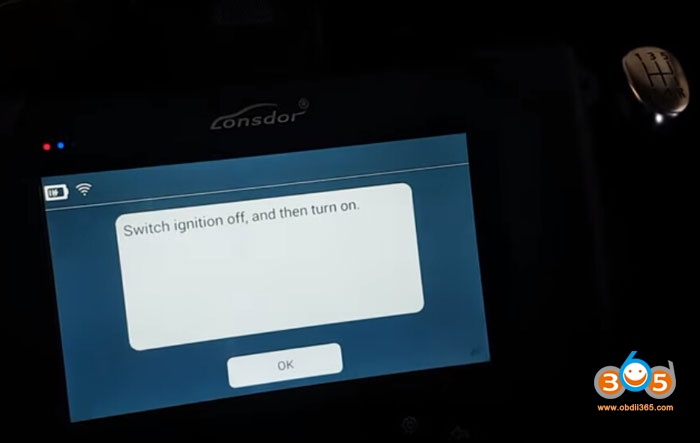

Switch ignition off and then turn on again
lonsdor-k518-renault-clio-iv-akl-14
Program completed.  Continue to program next key card or quit
lonsdor-k518-renault-clio-iv-akl-15
Test the new key, start engine
lonsdor-k518-renault-clio-iv-akl-16

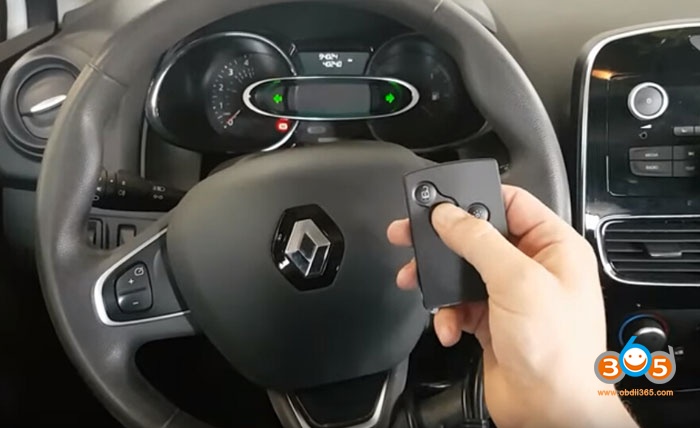

Test the remote control.
Done.
