How to Read MG350 Pin Code with OBDSTAR X300 DP PLUS

How-to: Extract MG350 95160 pin code by OBDSTAR  X300 DP Plus key programmer.

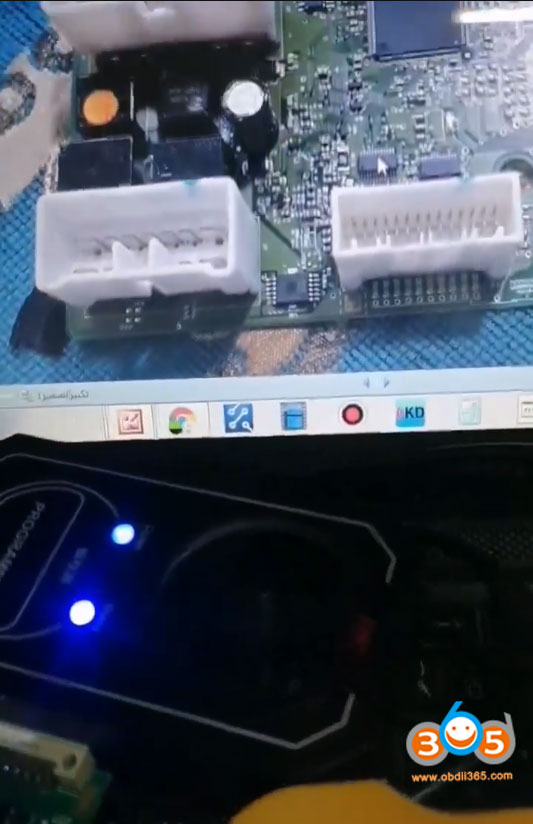

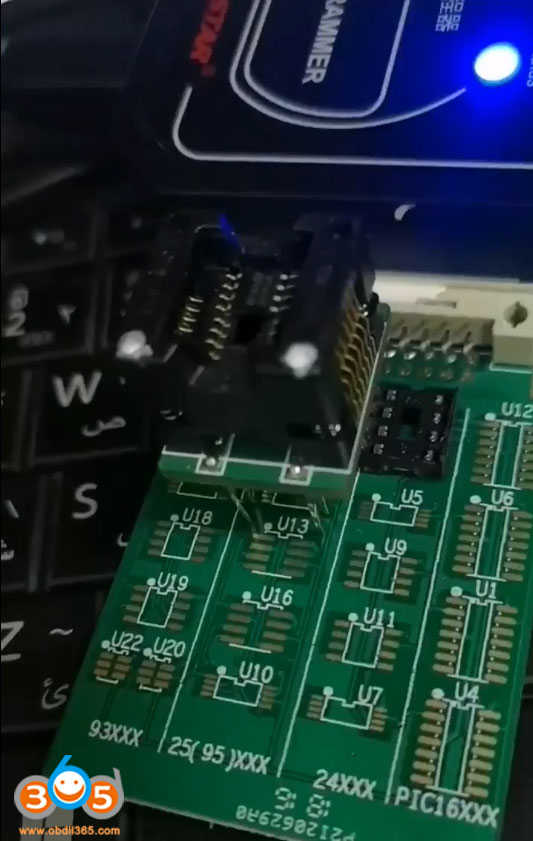

Remove eeprom IC 95160 and solder it to P001 eeprom 3-in-1 adapter

mg350-obdstar-x300-dp-plus-1

mg350-obdstar-x300-dp-plus-2

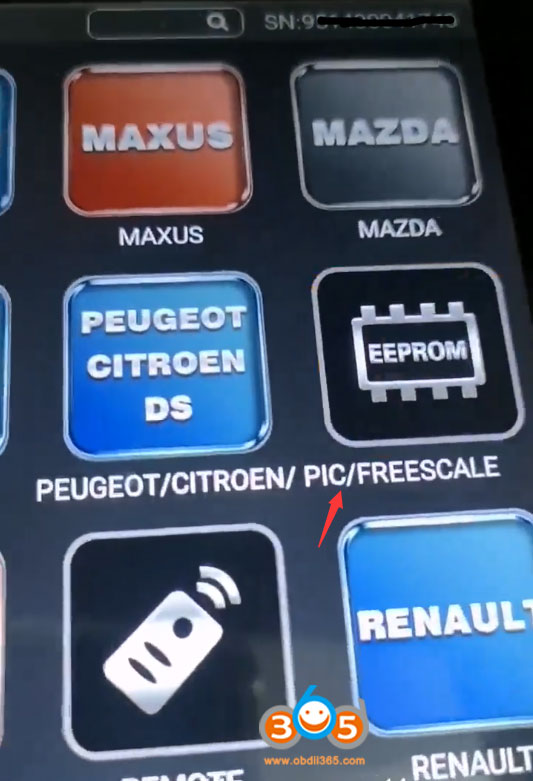

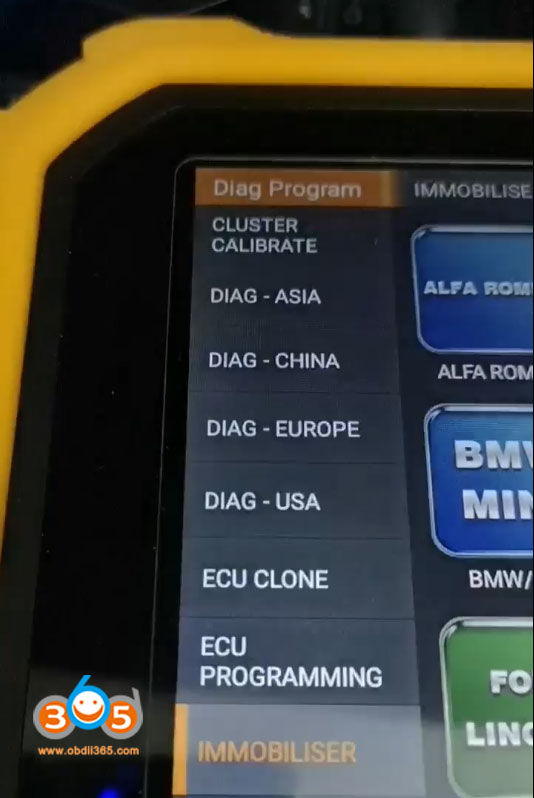

In X300 DP Plus, select Immobilizer->PIC/Freescale-> PIC/Freescale Adapter V34.04->EEPROM->Read Pin Code->MG->MG5->BCM 95160->

mg350-obdstar-x300-dp-plus-3

mg350-obdstar-x300-dp-plus-4

mg350-obdstar-x300-dp-plus-5

mg350-obdstar-x300-dp-plus-6

mg350-obdstar-x300-dp-plus-7

mg350-obdstar-x300-dp-plus-8

mg350-obdstar-x300-dp-plus-9

Make sure OBDSTAR P001 programmer is connected with X300 DP Plus

Reading data in process

Read data success. Save data.

mg350-obdstar-x300-dp-plus-10

Read 4-digit pin code success

mg350-obdstar-x300-dp-plus-11

Done.

You can read MG350 pin code with OBDSTAR X100 Pro and EEPROM/PIC adapter as well.
