Read Pin Code and Program Lacetti 2014 Smart Key with OBDSTAR X300 DP PLUS

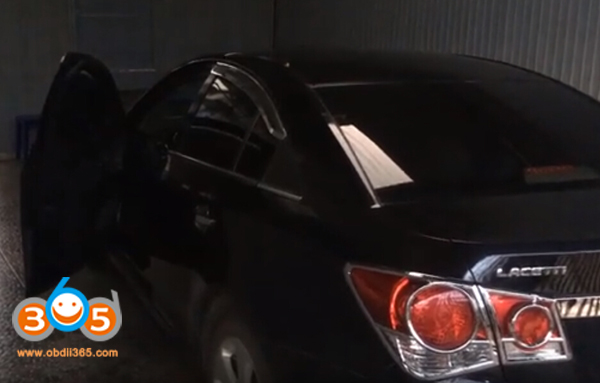

As titled,  here’s the guide to read pin code and program smart key on a Chevrolet Lacetti 2014 (Daewoo Lacetti 2014) by OBDSTAR X300 DP PLUS via OBD.

obdstar-x300-dp-Lacetti-2014-pin-1

Step 1: Read Pin Code

Connect X300 DP with vehicle via OBD

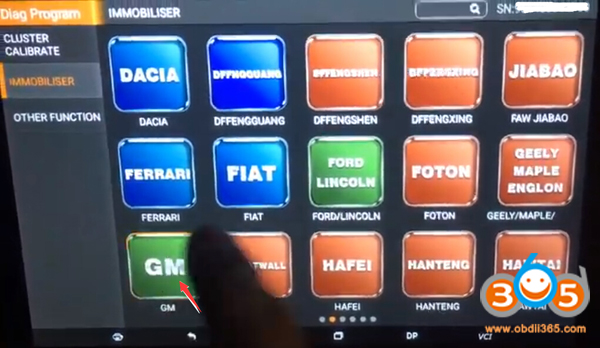

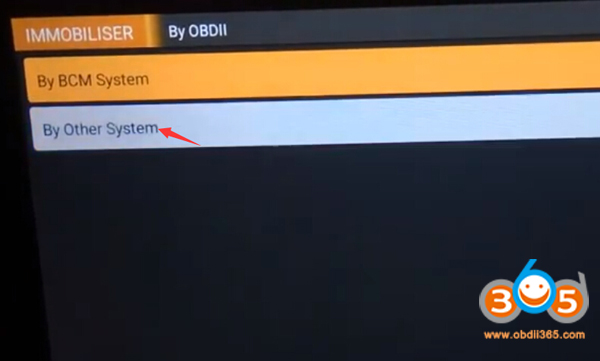

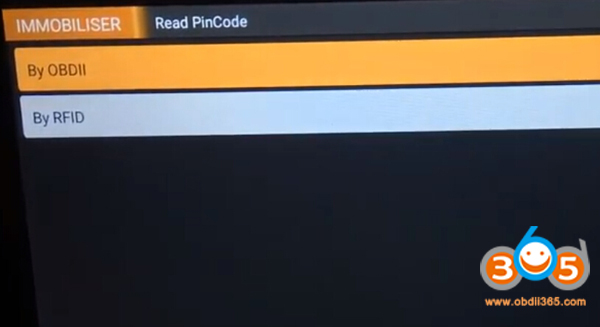

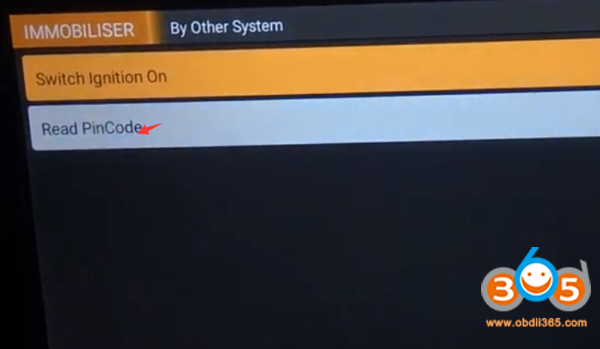

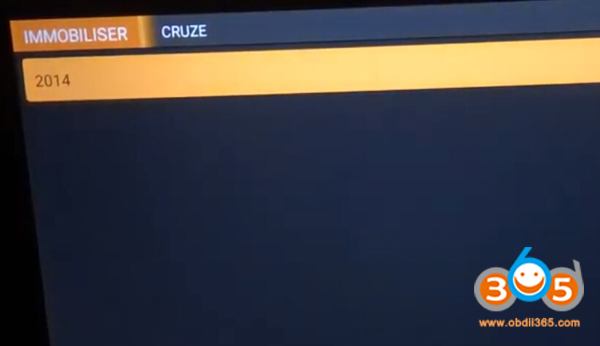

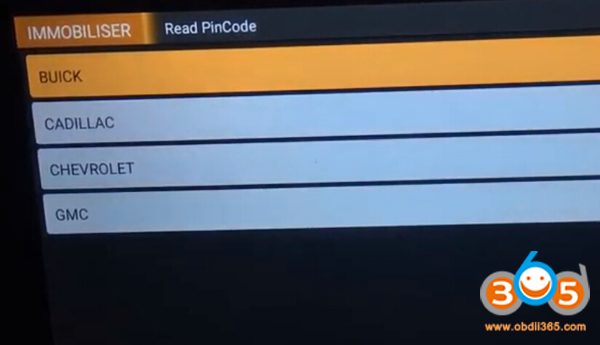

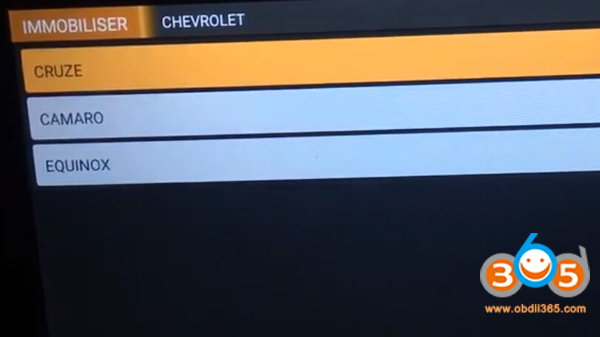

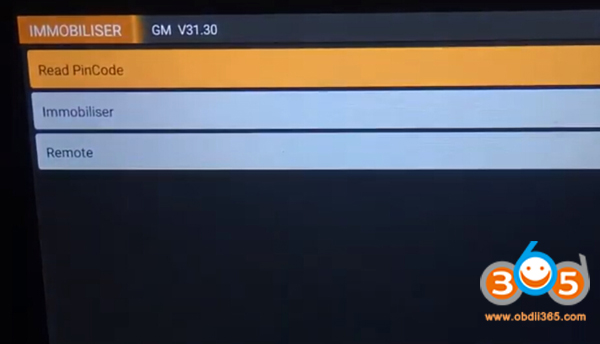

Select Diag Program->Immobilizer->GM->GM V31.30->Read Pin Code->By OBDII->By Other System->Read PinCode->Chevrolet->Cruze->2014

obdstar-x300-dp-Lacetti-2014-pin-2

obdstar-x300-dp-Lacetti-2014-pin-3

obdstar-x300-dp-Lacetti-2014-pin-4

obdstar-x300-dp-Lacetti-2014-pin-5

obdstar-x300-dp-Lacetti-2014-pin-6

obdstar-x300-dp-Lacetti-2014-pin-7

obdstar-x300-dp-Lacetti-2014-pin-8

obdstar-x300-dp-Lacetti-2014-pin-9

Turn on ignition switch

Communicating

obdstar-x300-dp-Lacetti-2014-pin-10

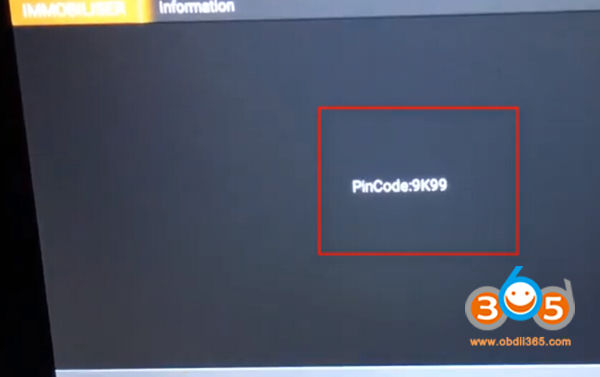

Read 4-digit Pin Code success





Step 2: Program smart key

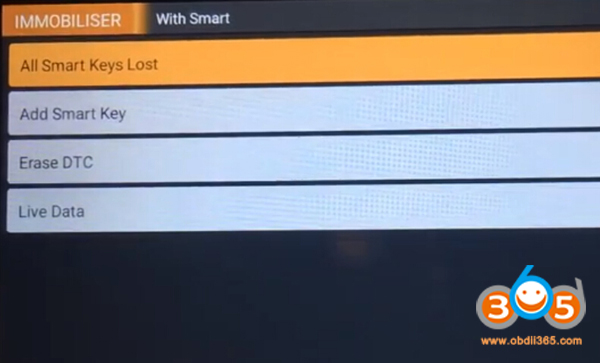

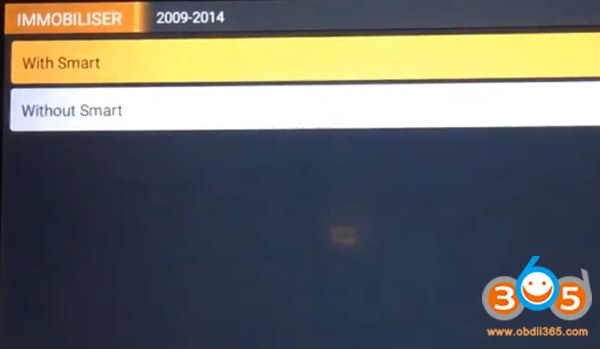

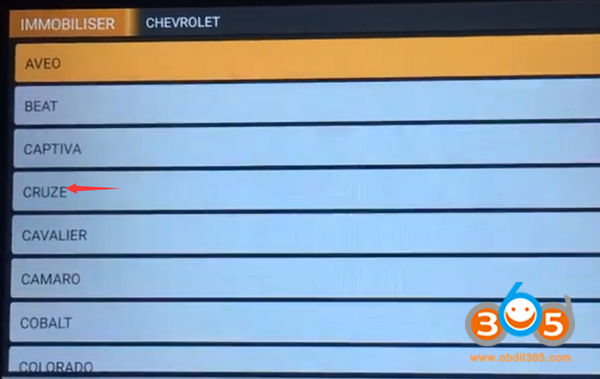

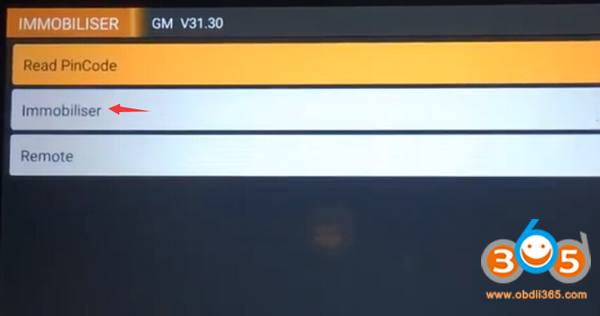

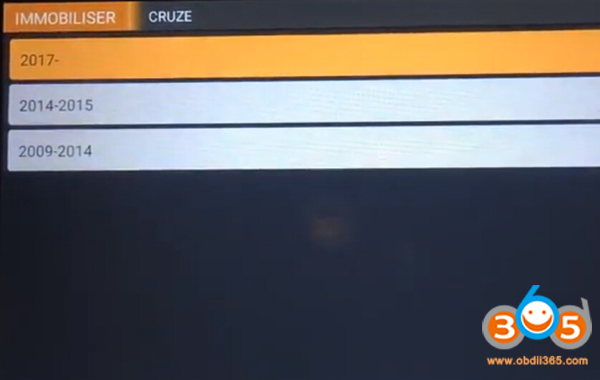

In X300 DP PLUS GM menu, select Immobilizer->Select from vehicle-> Chevrolet->Cruze->2009-2014->With Smart->All smart keys lost

obdstar-x300-dp-Lacetti-2014-key-1

obdstar-x300-dp-Lacetti-2014-key-2

obdstar-x300-dp-Lacetti-2014-key-3

obdstar-x300-dp-Lacetti-2014-key-4

obdstar-x300-dp-Lacetti-2014-key-5

Press Start button

obdstar-x300-dp-Lacetti-2014-key-6

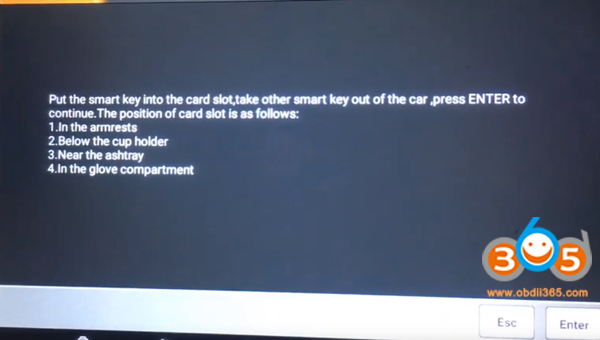

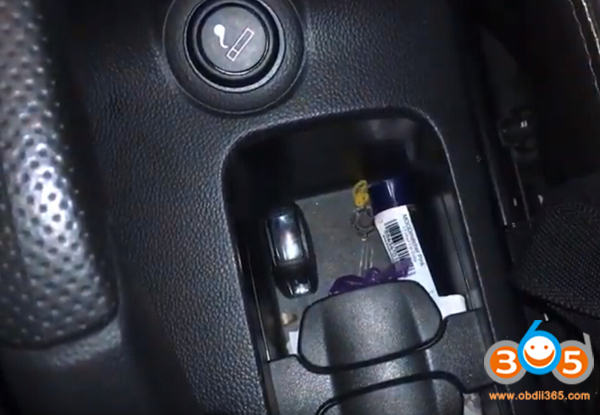

Put the smart key into the card slot (here below the cup holder). Take other smart keys out of car.

obdstar-x300-dp-Lacetti-2014-key-7

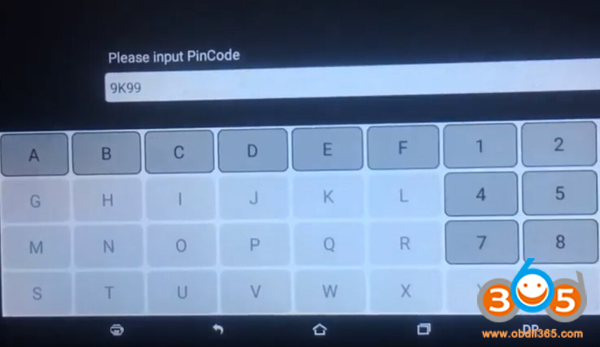

OBDSTAR X300 DP PLUS require to enter 4-digit pin code to access

obdstar-x300-dp-Lacetti-2014-key-8

Enter Pin read in Step 1 and confirm

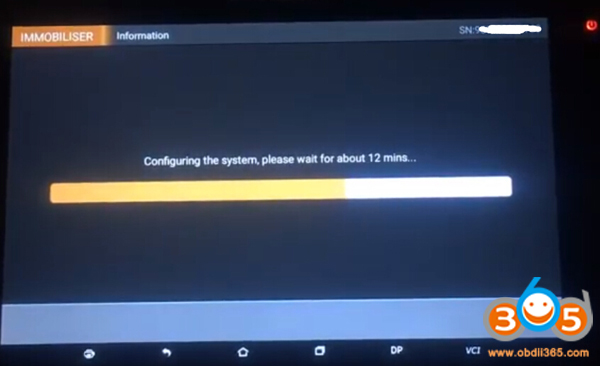

Configuring system, wait for 12 minutes

obdstar-x300-dp-Lacetti-2014-key-9

Press the Start button once

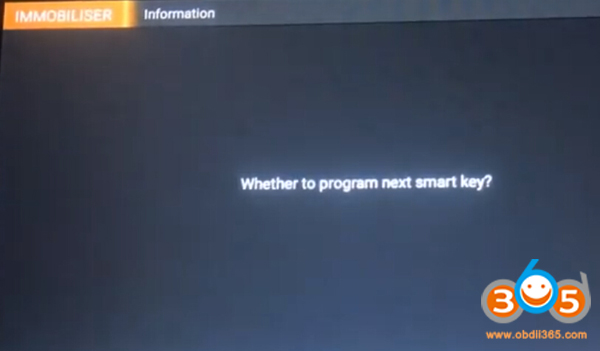

Press ENTER to program next smart key

obdstar-x300-dp-Lacetti-2014-key-10

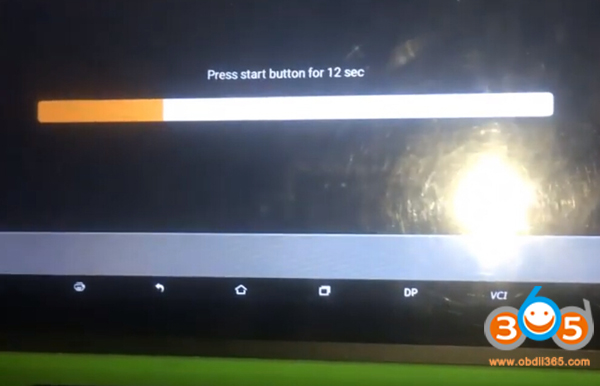

Press Start button for 12s

obdstar-x300-dp-Lacetti-2014-key-11

Release Start button and wait for 5s, press ENTER to continue

obdstar-x300-dp-Lacetti-2014-key-12

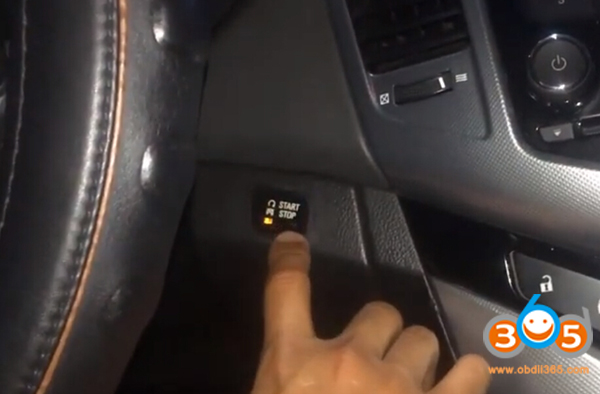

Press Start button to turn on ignition

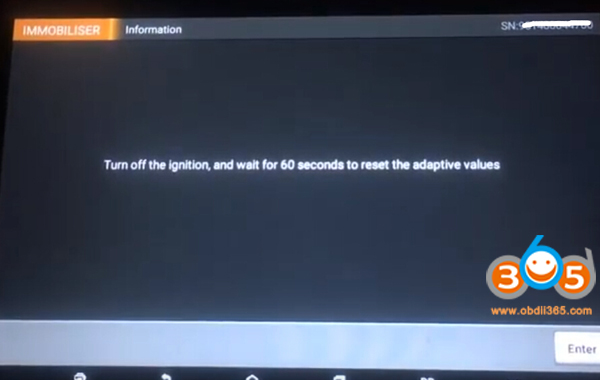

Turn ignition off. Wait for 60s to reset the adaptive values

obdstar-x300-dp-Lacetti-2014-key-13

Press Start button to turn off ignition.

Configuring the system, wait for 30s

obdstar-x300-dp-Lacetti-2014-key-14

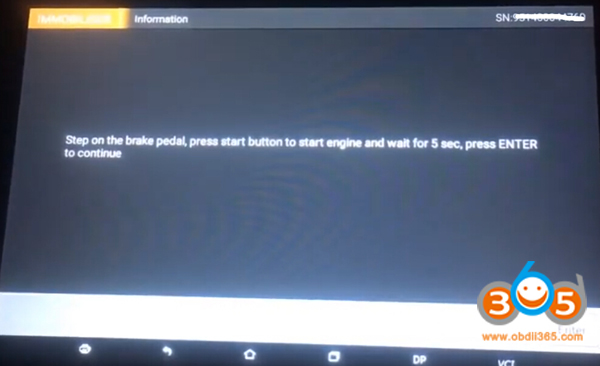

Press the brake pedal, press Start button to start engine and wait for 5s, press ENTER to continue

Stop engine

Press Start button to turn off ignition

obdstar-x300-dp-Lacetti-2014-key-15

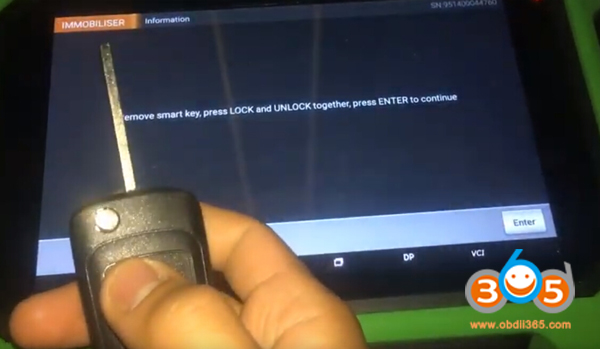

Remove smart key, press LOCK and UNLOCK button

obdstar-x300-dp-Lacetti-2014-key-16

Program completed.

Remote control will automatically programmed

obdstar-x300-dp-Lacetti-2014-key-17

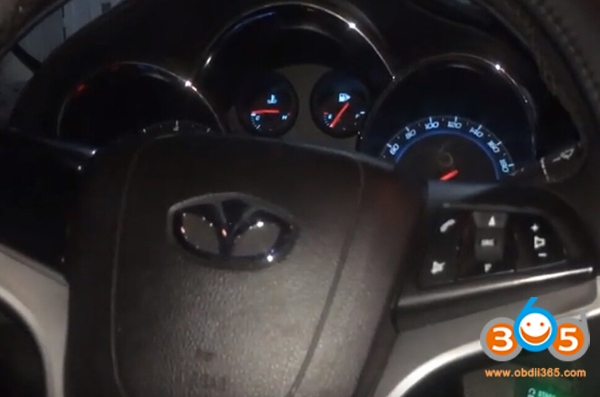

Test remote control and start vehicle.

Done.
