OBDSTAR X300 DP Plus Program Toyota Hilux 2019 8A Chip Key

Tutorial: add a ID 8A chip spare key to a Toyota Hilux year 2019 using OBDSTAR key programmer.



Requirements:

OBDSTAR X300 DP Plus

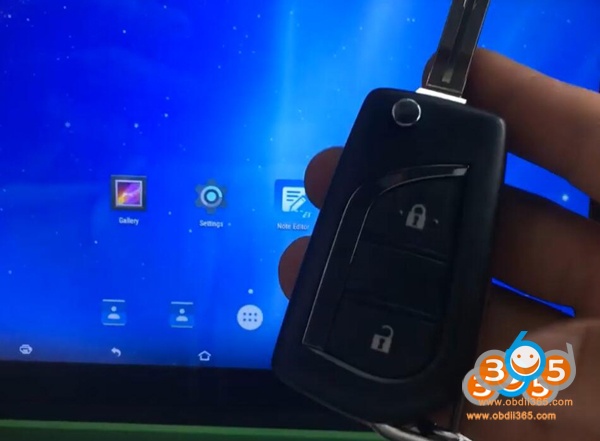

A master key

obdstar-8a-chip-key-1

A new key (blade) with 8a chip

obdstar-8a-chip-key-0

Connect X300DP plus with vehicle

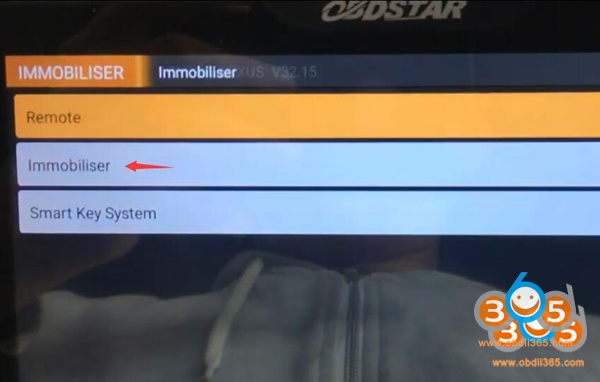

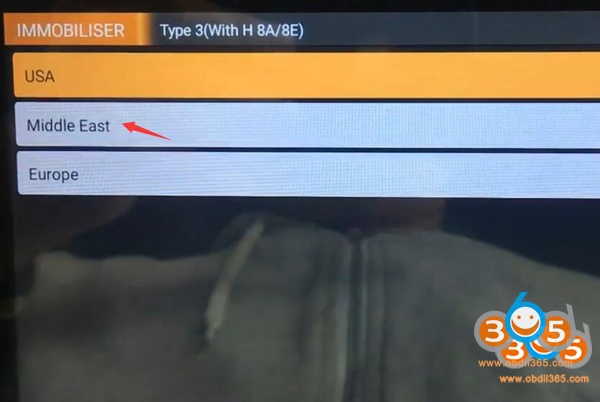

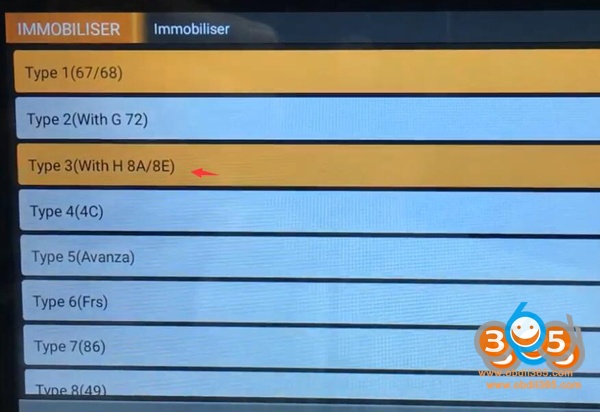

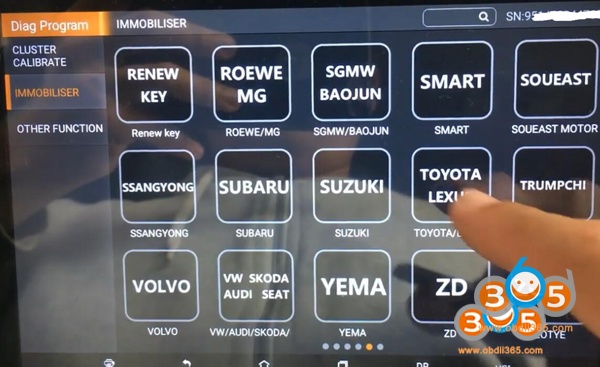

Select Diag Program->Immobilizer->Toyota/Lexus->V32.15->Type 3 (With H 8A/8E)->Middle East

obdstar-8a-chip-key-2

obdstar-8a-chip-key-3

obdstar-8a-chip-key-4

obdstar-8a-chip-key-5
Turn on ignition switch with master key

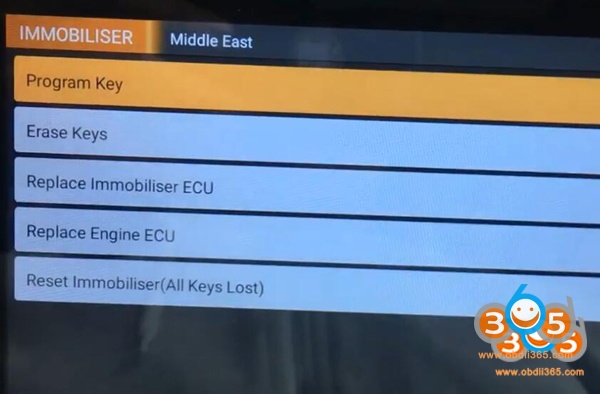

Select Program Keys

obdstar-8a-chip-key-6

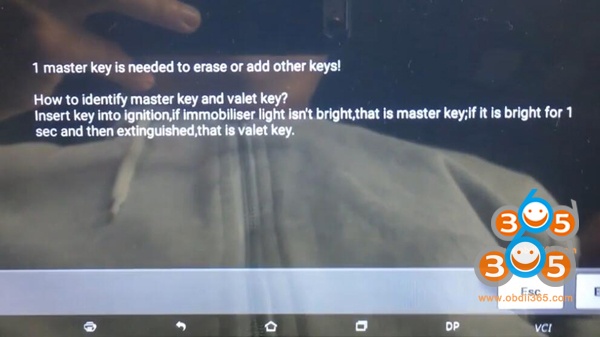

1 master key is required to erase or add other keys.

obdstar-8a-chip-key-7
Insert programmed master key, switch ignition on, press ENTER to continue

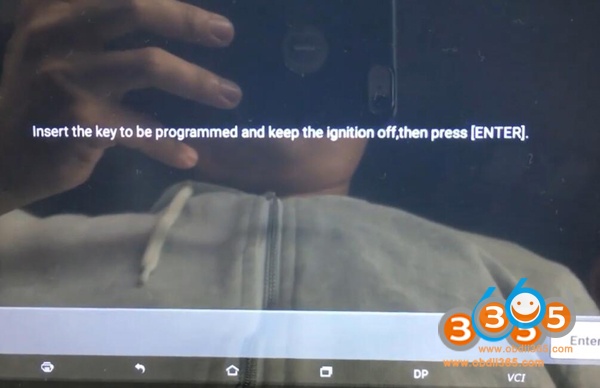

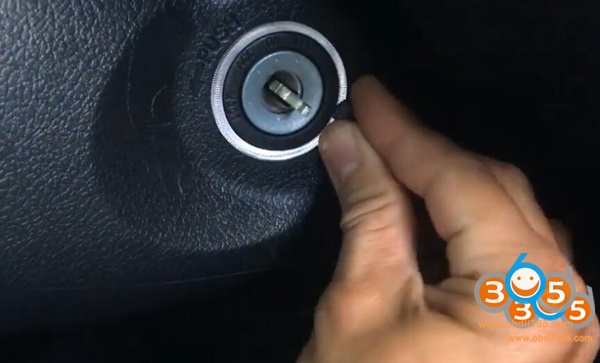

Insert the key (with 8a chip) to be programmed and keep ignition off

obdstar-8a-chip-key-8

obdstar-8a-chip-key-9

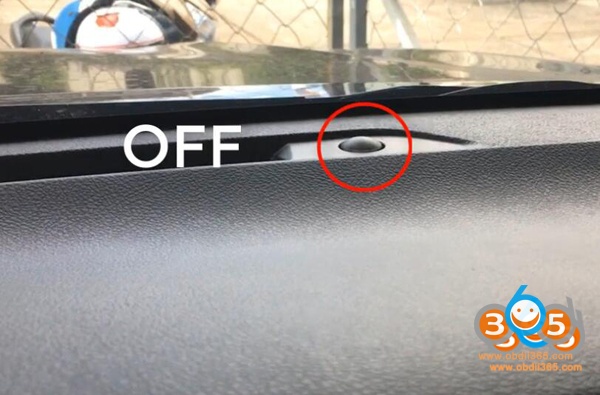

Wait for about 60 seconds until the immobilizer lights turn off

obdstar-8a-chip-key-10

obdstar-8a-chip-key-11

Program new chip key succeed

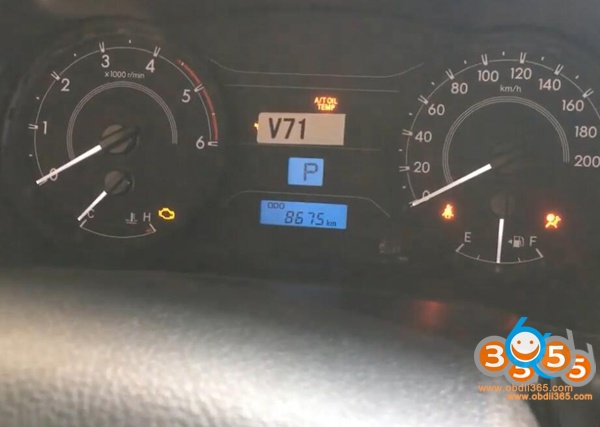

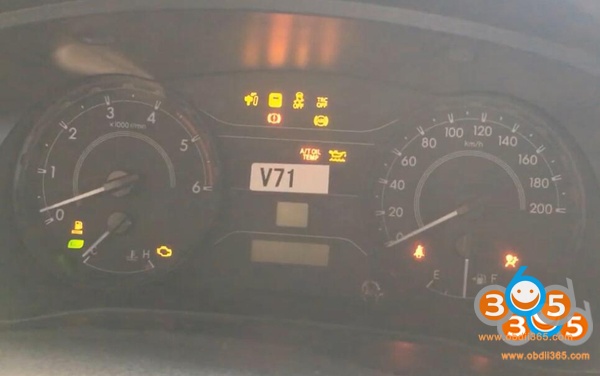

Test the new key

obdstar-8a-chip-key-12

obdstar-8a-chip-key-13

Done.
