Toyota Hilux G Chip Immo Reset via Obdstar X300 Pro3

Here is a tutorial on how to use OBDSTAR X300 Pro3 key master to reset a G chip key for 2010 Toyota Hilux Vigo when all key lost.



Model: Toyota Hilux Vigo 2010

Key type: G chip (72)

Auto key programmer: obdstar key master

Purpose: Reset immobilizer when all key lost

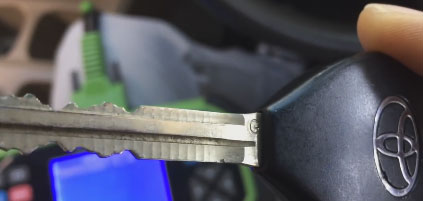

This is the Toyota G chip key, G stamped on the key

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(1)

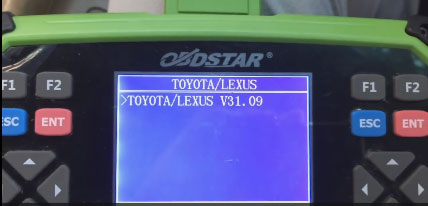

Using Toyota/Lexus software v31.09

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(2)

Now all key lost

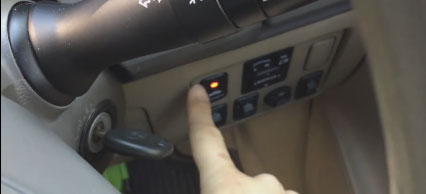

When insert the key, the security light is not off

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(3)

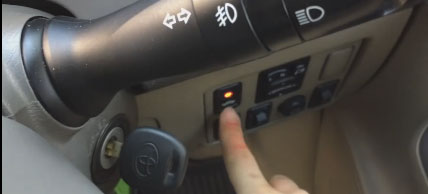

Turn on with the new key

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(4)

Go to the key master with Toyota/Lexus v31.09

Loading…

Initializing…

Authorizing…

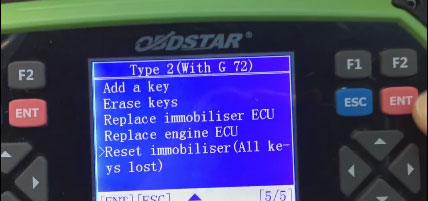

Select Immobiliser-> Type 2 (with G 72)-> Reset immobilizer (all key lost)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(5)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(6)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(7)

Switch ignition off, then enter

Switch ignition on, then enter

Switch ignition off and remove the key

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(8)

Configuring the system…

Switch ignition on, then enter

Configuring the system…

The security light now turns on for steady prompt

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(9)

Switch ignition off and remove the key

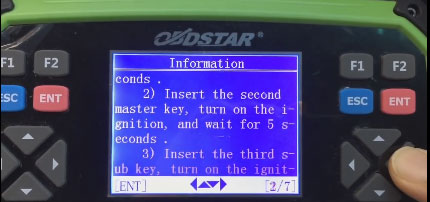

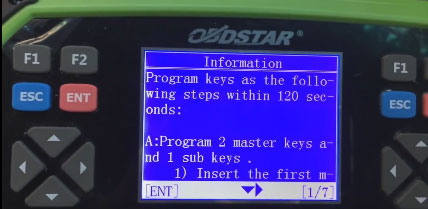

Prompt in x300 pro3 key master:

For make 1 key only, turn on with the new key for 5 seconds, then turn on/off for 5 times until the security light goes off

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(10)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(11)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(12)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(13)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(14)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(15)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(16)

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(17)

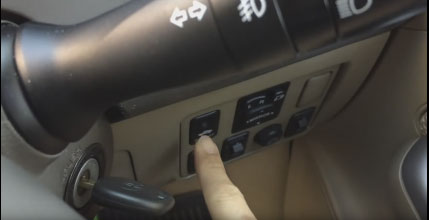

Turn on with the key

Now the car can start

obdstar-key-master-reset-immo-g-chip-for-Toyota-Vigo-(18)

Successfully reset Toyota G chip with obdstar x300 pro3 key programmer.

OBDSTAR X300 Pro3 Reset G Chip Immo on Toyota Hilux Vigo
