OBDSTAR X300 DP Plus Recover Toyota IMMO ECU Data Guide

The goal of the tutorial is to clarify the possibility/potential of the OBDSTAR X300 DP Plus so that makes it in addition to being a key programmer through the software, but he can do the job.
Purpose:
Recover Toyota 2016 24C16 ECU Immo data
What you need:
OBDSTAR X300 DP Plus tablet (with P001 and EEPROM adapter)
External storage device (a USB Card)
Instruction:

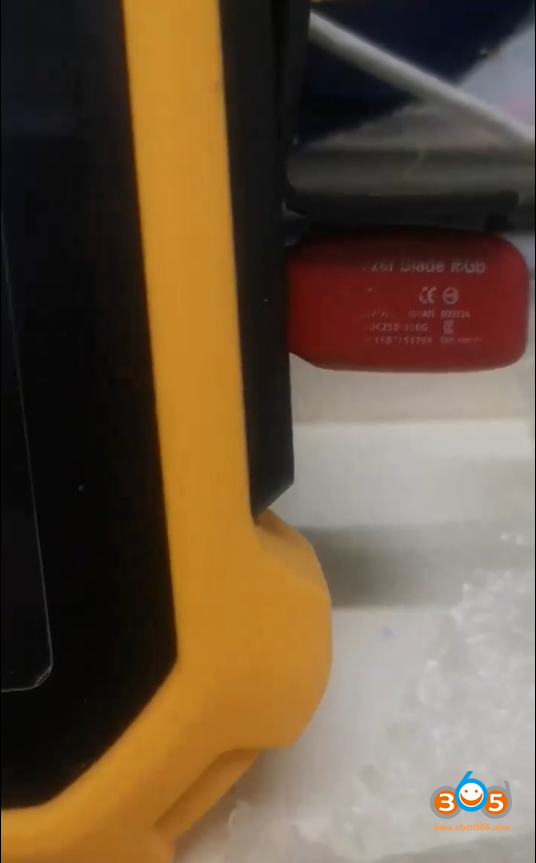

Connect P001 with EEPROM adapter, insert USB disk to X300DP plus, then connect P001 with X300DP
obdstar-x300-dp-plus-recover-immo-data-1



obdstar-x300-dp-plus-recover-immo-data-2
Go to X300 DP Plus Home menu->ES File Explorer->SD Card
obdstar-x300-dp-plus-recover-immo-data-3



obdstar-x300-dp-plus-recover-immo-data-4

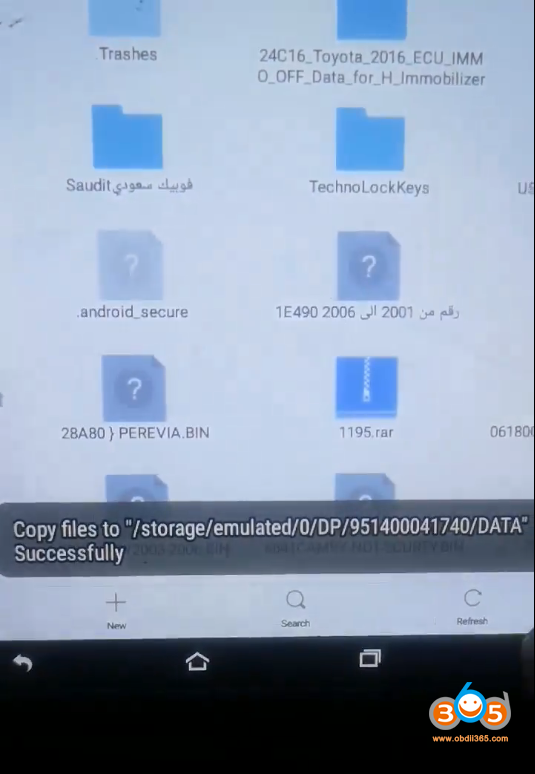

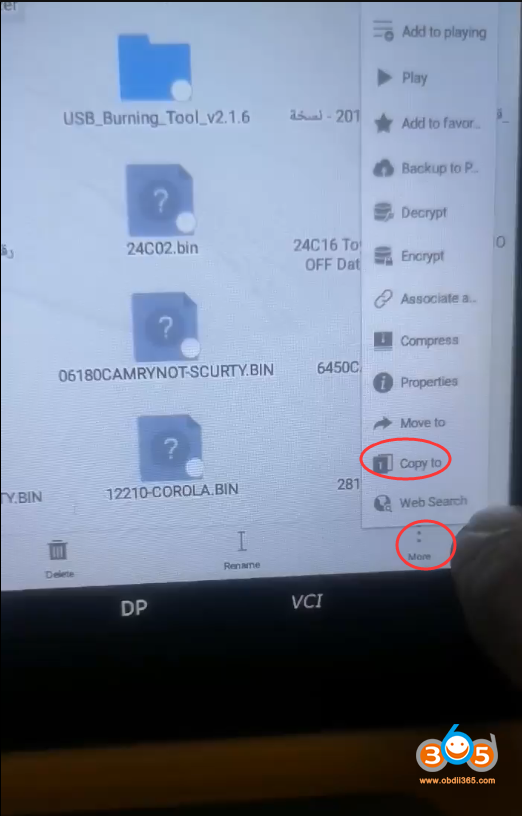

Long press the data (here 24C16_Toyota_2016_ECU_IMMO_OFF_Data_for_H_Immobilier) you need to recover and copy it to “/Storage.emulated/0/DP/951400041740/DATA
obdstar-x300-dp-plus-recover-immo-data-5



obdstar-x300-dp-plus-recover-immo-data-6



obdstar-x300-dp-plus-recover-immo-data-7



obdstar-x300-dp-plus-recover-immo-data-8



obdstar-x300-dp-plus-recover-immo-data-9



obdstar-x300-dp-plus-recover-immo-data-10
Select EEPROM function in X300DP Plus
obdstar-x300-dp-plus-recover-immo-data-11
Select PIC/FreeScale adapter V34.06->EEPROM->EEPROM RW (Read/Write)->24CXX Series->24C16
obdstar-x300-dp-plus-recover-immo-data-12



obdstar-x300-dp-plus-recover-immo-data-13



obdstar-x300-dp-plus-recover-immo-data-14



obdstar-x300-dp-plus-recover-immo-data-15
Make sure P001 adapter has connected with X300DP Plus
obdstar-x300-dp-plus-recover-immo-data-16

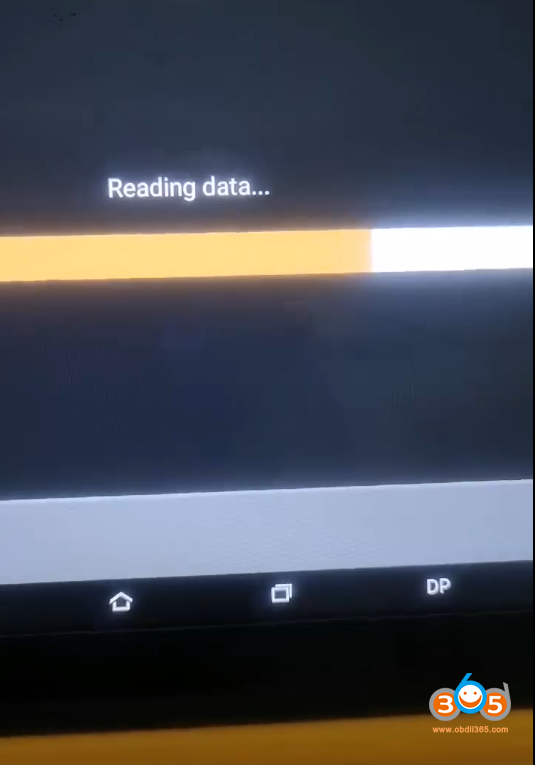

Reading EEPROM data in process
obdstar-x300-dp-plus-recover-immo-data-17
Save data as bin file
obdstar-x300-dp-plus-recover-immo-data-18
Press Help button to perform data recovery
obdstar-x300-dp-plus-recover-immo-data-19

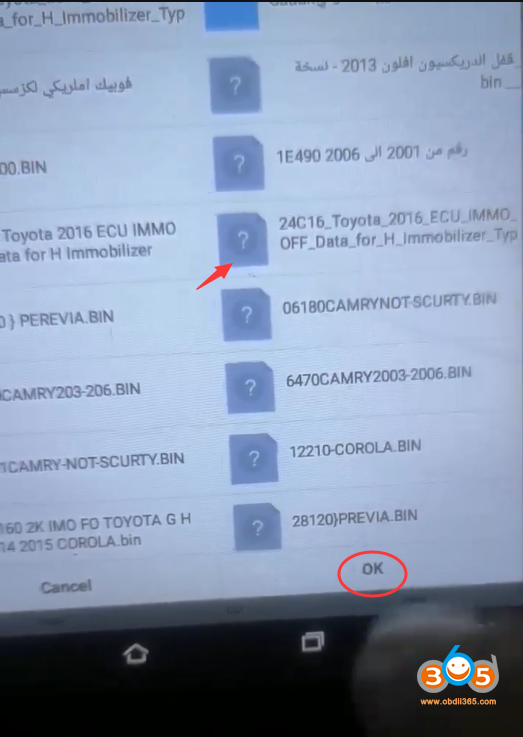

Select the file desired to restore from /Storage.emulated/0/DP/951400041740/DATA” folder
obdstar-x300-dp-plus-recover-immo-data-20

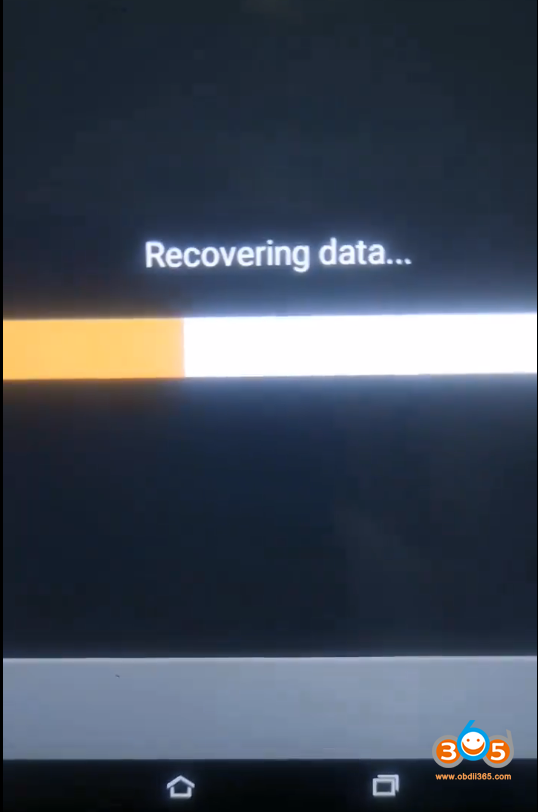

Recovering data in process
obdstar-x300-dp-plus-recover-immo-data-21

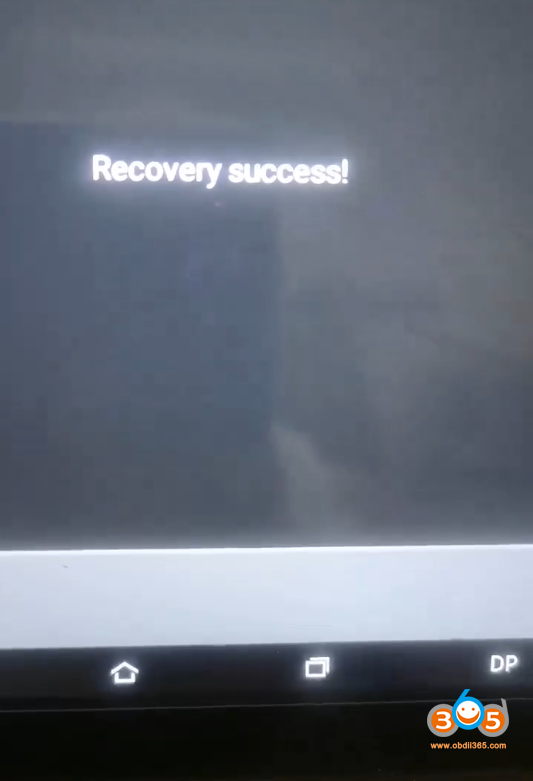

IMMO data recovery success.
Now you can rewrite recovered data to immobilizer to repair ECU.
Hope it helps.
