OBDSTAR H108 Read Citroen C4 Picasso Pin Code Success

 Vehicle Model: Citroen Grand C4 Picasso year 2008

Purpose: read pin code in order to add a new key

Tool used: OBDSTAR H108 PSA pin code reader and key programmer



Instruction:

Obdstar Citroen C4 Pin Code 1

Such a little device came in a bag. Very well done. The device itself, a removable cable, such as an instruction are included)) Everything is clear without instructions. Updates are available. But I already had the latest version.

You can always see the basic data about the device in the ABOUT section, they are needed, for example, to register a device on the manufacturer’s website, update there, or something else …
Obdstar Citroen C4 Pin Code 2
Selftest – just check promptly the normal operation of the screen and buttons. I tried, but not the point. We go to the VEHICLES section – vehicles …
Obdstar Citroen C4 Pin Code 3
We select IMMOBILISER – an immobilizer, an anti-theft in our opinion. In Picasso itself, by the way, is called an anti-theft.
Obdstar Citroen C4 Pin Code 4
Select Peugeot/Citroen/DS V32.06
Obdstar Citroen C4 Pin Code 5
Next, authorization takes place – this is already communication with the machine. I recommend turning on the ignition before.
Obdstar Citroen C4 Pin Code 6
Obdstar Citroen C4 Pin Code 7
Obdstar Citroen C4 Pin Code 8
Select Citroen->Read PinCode-> Add keys read
Obdstar Citroen C4 Pin Code 9

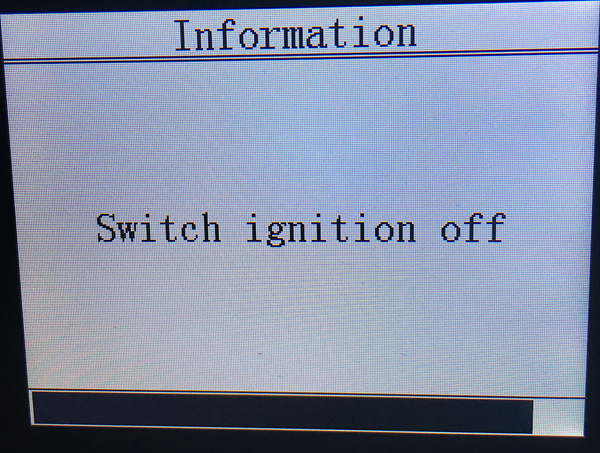

Further on the screen appears inscriptions – then turn off the ignition, then turn on …
Obdstar Citroen C4 Pin Code 10
Obdstar Citroen C4 Pin Code 11

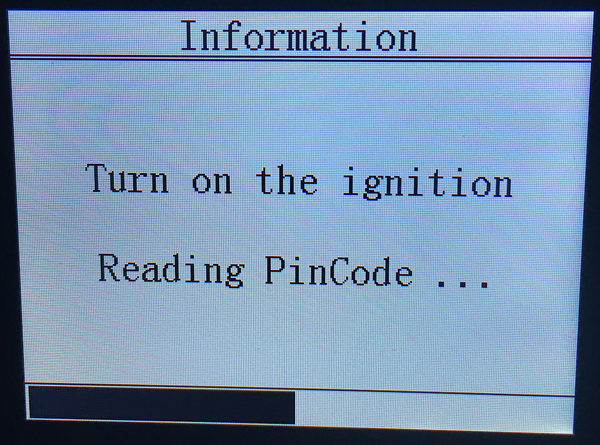

Turn on the ignition
Reading pin code in process
Obdstar Citroen C4 Pin Code 12
OBDSTAR H108 read 4-digit Citroen C4 pin code success.
Read and register the keys yourself in the car, or go with a pin to other people who still need a pin to register.
