2010 Chrysler Town & Country Add Keys using Autel IM608

Autel MaxiIM IM608 did successfully pull the pin on a 2006 Dodge and I’m gonna show another 2010 Chrysler Town and Country.

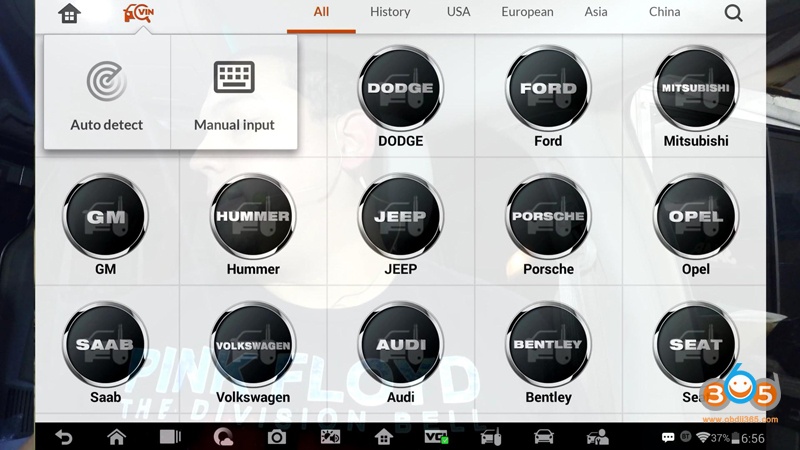

Auto detect.

Autel Im608 Add 2010 Chrysler Town Country Keys 02



Auto scan VIN.

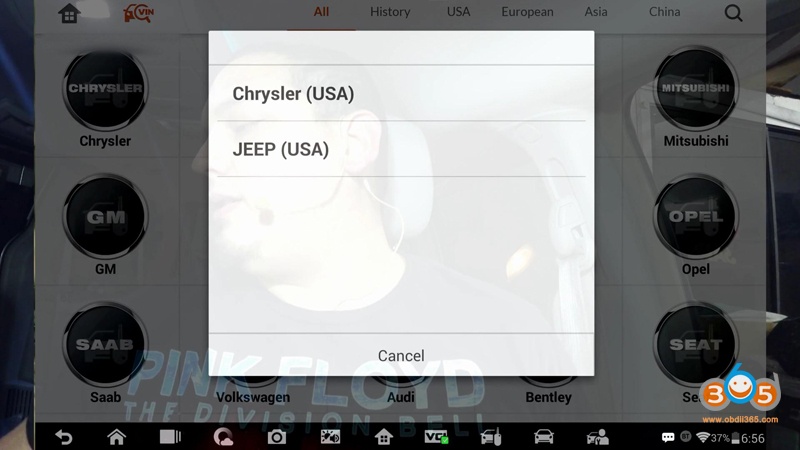

Chrysler (USA).

Autel Im608 Add 2010 Chrysler Town Country Keys 03



Diagnostic program loading.

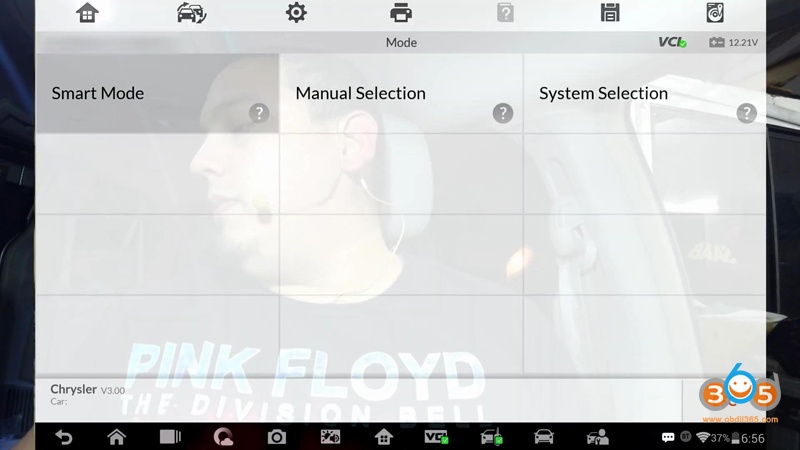

Smart Mode.

Autel Im608 Add 2010 Chrysler Town Country Keys 04

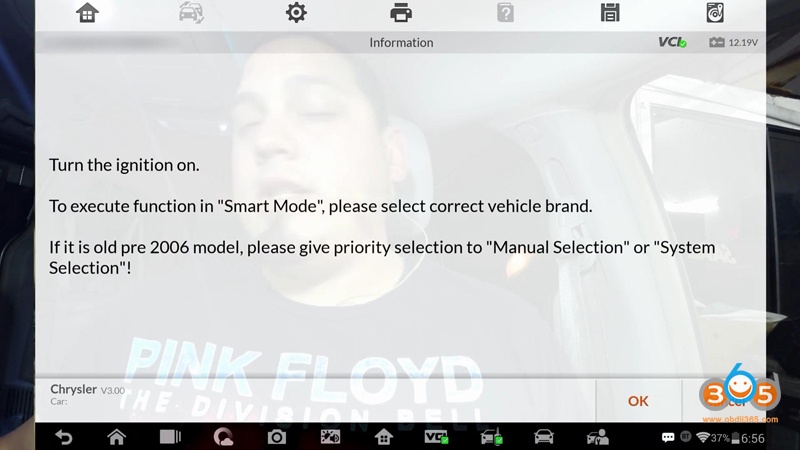

Read the message.

Autel Im608 Add 2010 Chrysler Town Country Keys 05



Establishing vehicle communication.

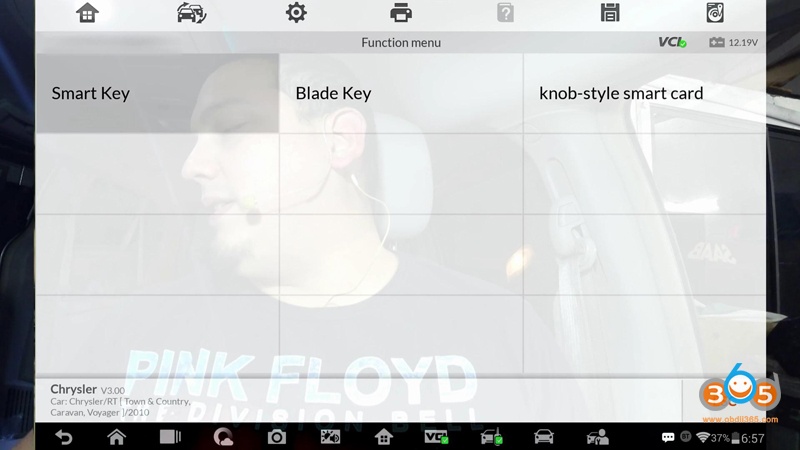

Select “Smart Key”.

Autel Im608 Add 2010 Chrysler Town Country Keys 06

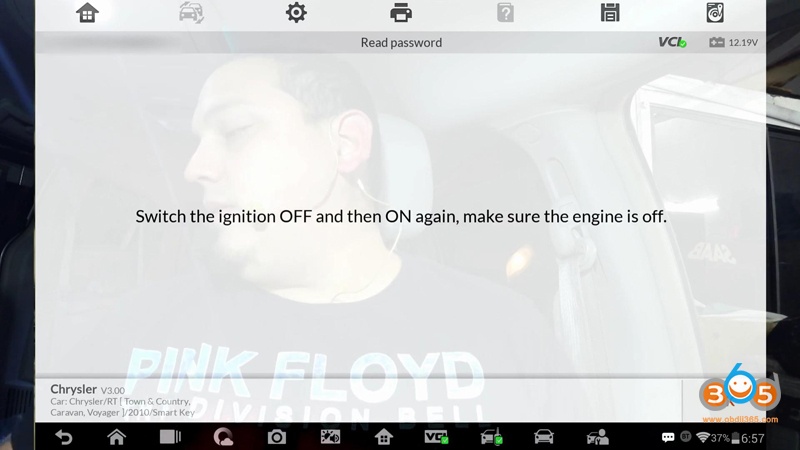

Switch the ignition OFF and then ON again, make sure the engine is off.

Autel Im608 Add 2010 Chrysler Town Country Keys 07



Establishing vehicle communication.

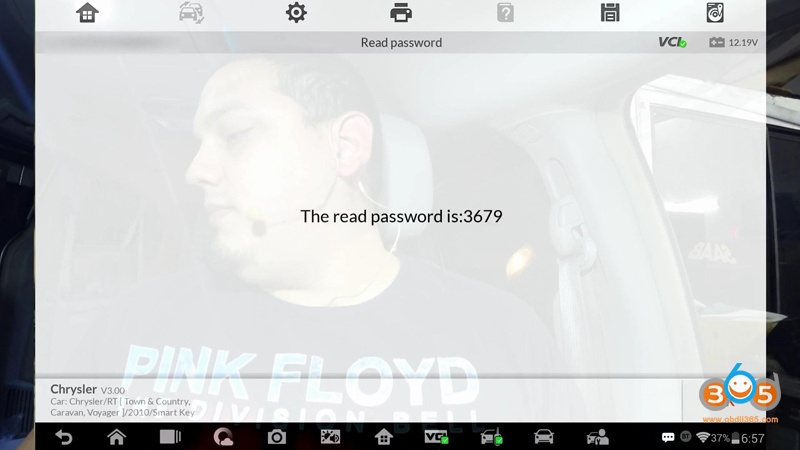

The password is 3679.

Autel Im608 Add 2010 Chrysler Town Country Keys 08

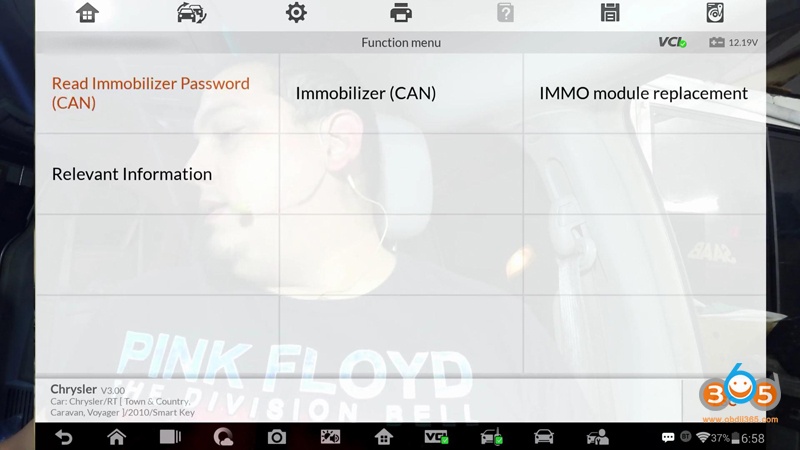

Select “Read Immobilizer Password (CAN)”.

Autel Im608 Add 2010 Chrysler Town Country Keys 09

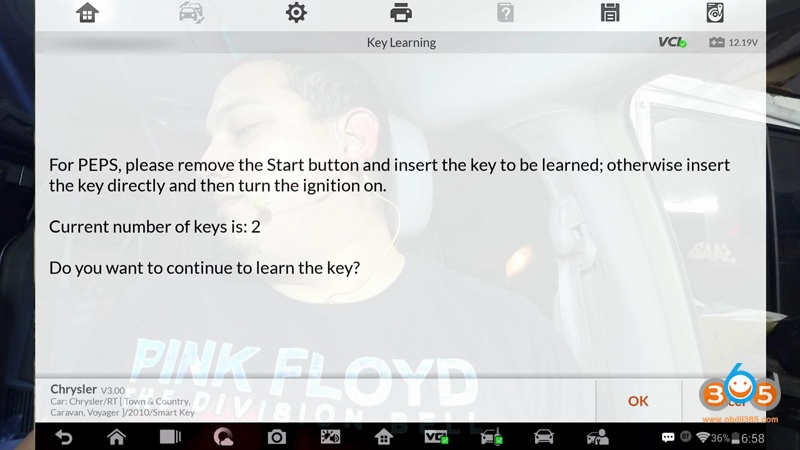

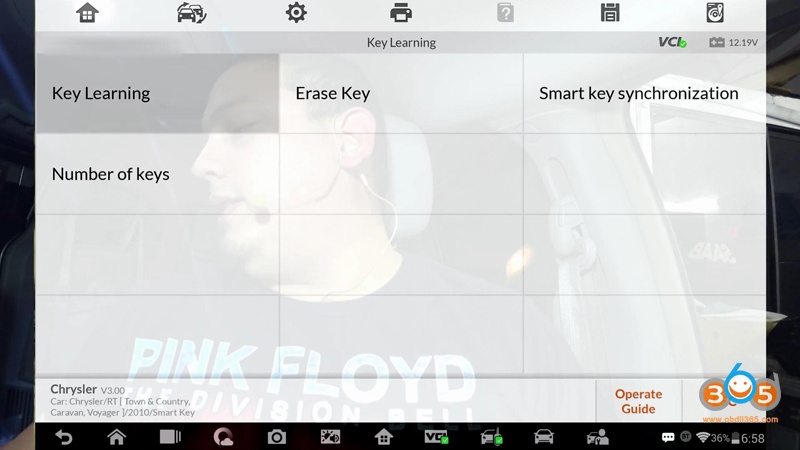

Go to “Key Learning” again.

Tap “OK”

Establishing vehicle communication.

Autel Im608 Add 2010 Chrysler Town Country Keys 10

Autel Im608 Add 2010 Chrysler Town Country Keys 11

Learning failed.

I guess I should have the new key there.

Autel Im608 Add 2010 Chrysler Town Country Keys 12

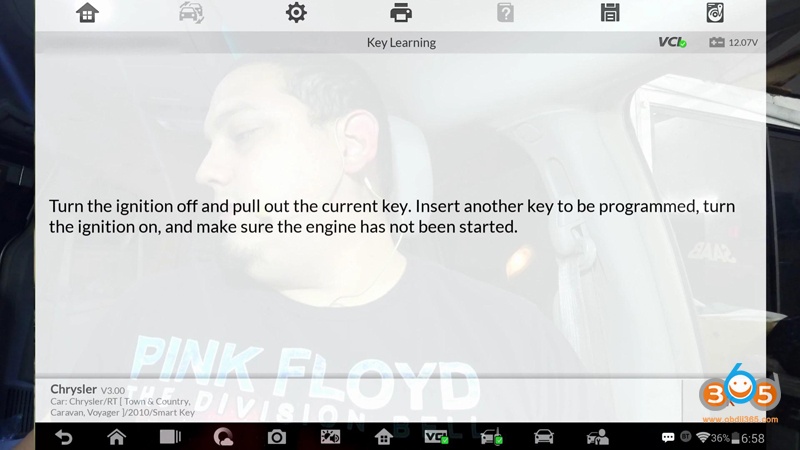

Turn the ignition off and pull out the current key. Insert another key to be programmed, turn the ignition on, and make sure the engine has not been started.

Autel Im608 Add 2010 Chrysler Town Country Keys 13



Establishing vehicle communication.

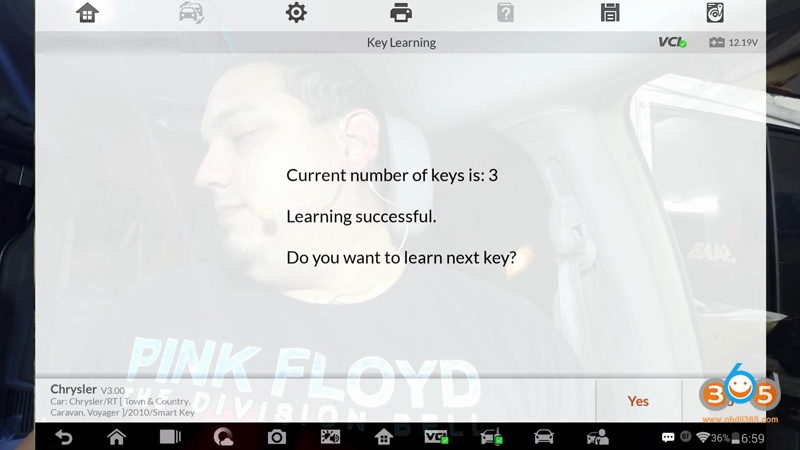

Current number of keys is: 3

Learning successful.

Autel Im608 Add 2010 Chrysler Town Country Keys 14



I don’t want to learn the next key, let’s see if it works.

Autel Im608 Add 2010 Chrysler Town Country Keys 15

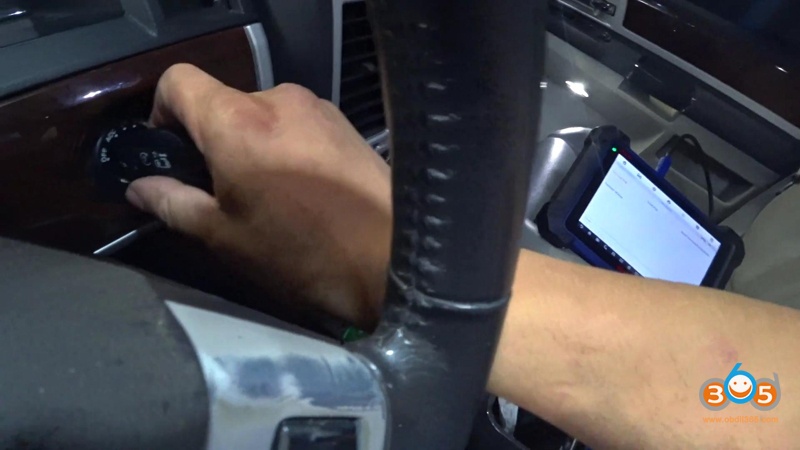

This is the new key, and I press the “Unlock button” it can start the car, nice.

Autel Im608 Add 2010 Chrysler Town Country Keys 16

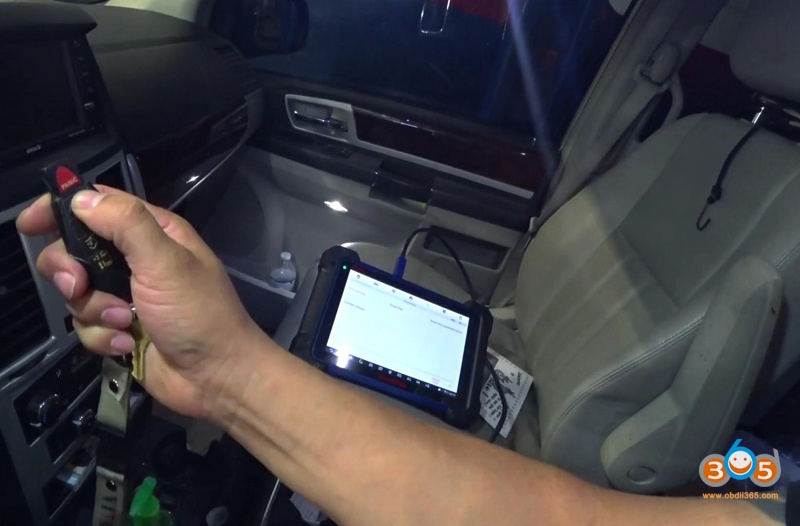

This is the old key.

Autel Im608 Add 2010 Chrysler Town Country Keys 17



So. Success. As you can see, you did not need to connect the programmer, you can directly connect Autel IM608 to the Chrysler via OBD.
