Program Ford Ranger 2015 All Keys Lost with OBDSTAR X300 DP Plus?

How to add a new key and program all keys lost for Ford Ranger 2015 using OBDSTAR X300 DP Plus (Key Master DP plus) via OBD.



Add A Spare Key Procedure:

Connect x300 dp plus with vehicle

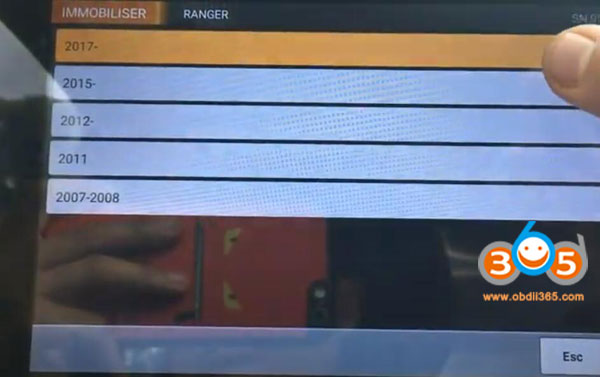

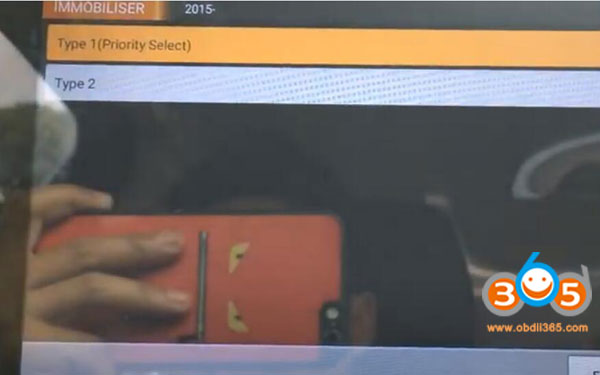

Select Immobilizer->Ford/Lincoln->Ford->Immobilizer->Ranger->2015 up->Type 1(Priority Select)->Program keys

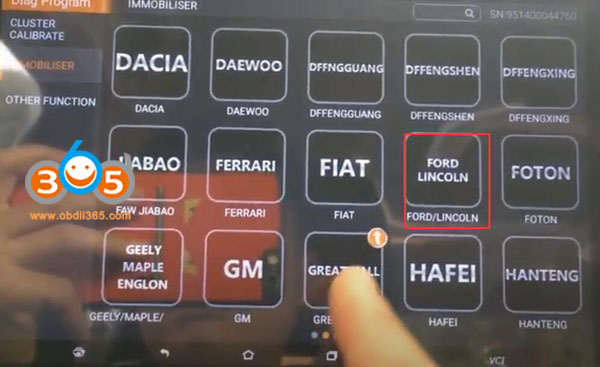

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 1

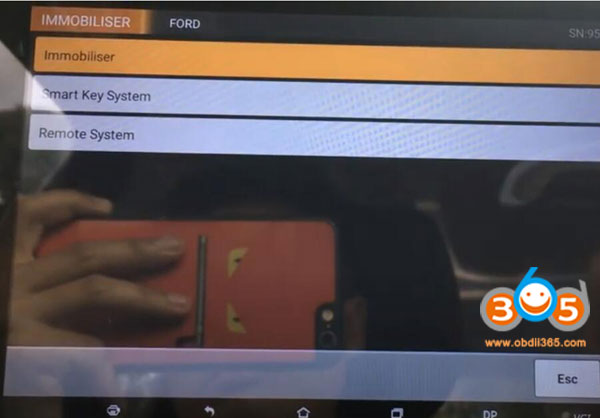

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 3

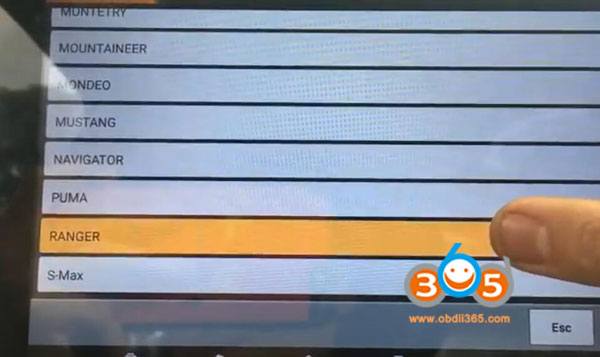

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 4

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 5

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 6

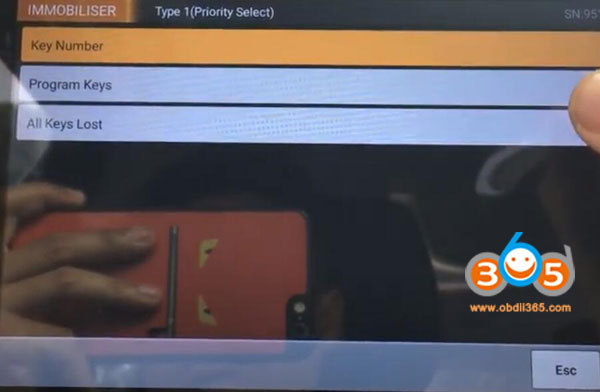

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 7

Communicating
Press Emergency flasher switch
Open and close the driver door once

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 8

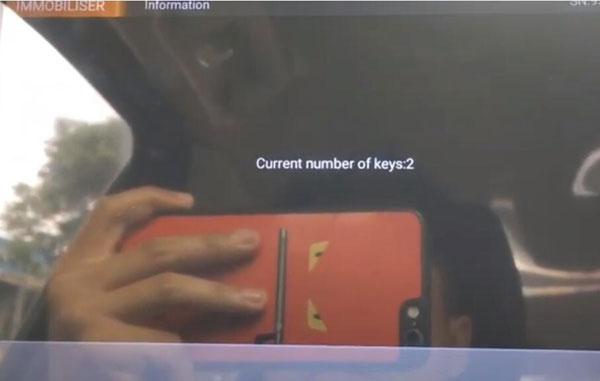

Detect current number of keys: 2
Connecting the server

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 9

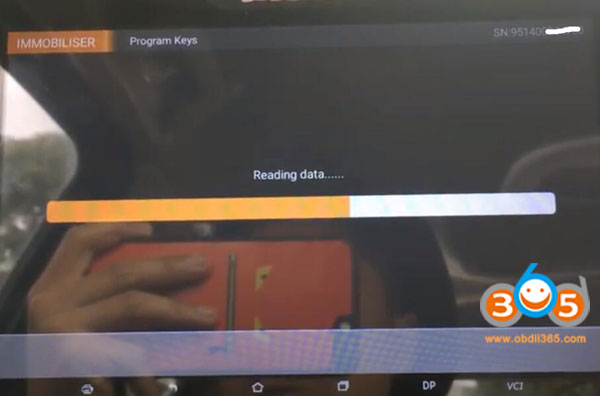

Reading data

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 10

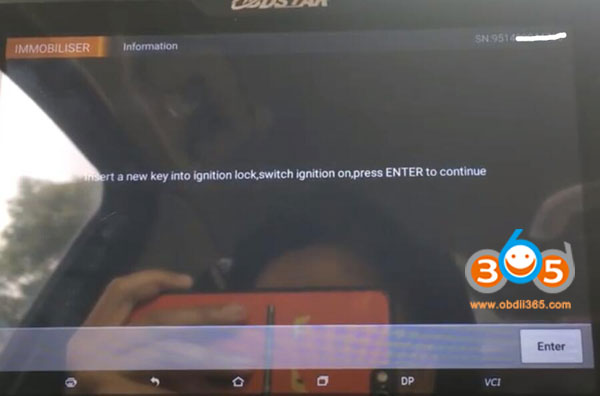

Insert a new key into ignition lock, switch ignition on, Press ENTER to continue

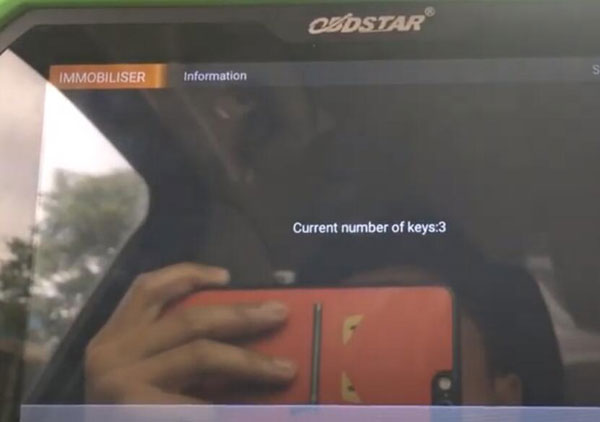

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 11

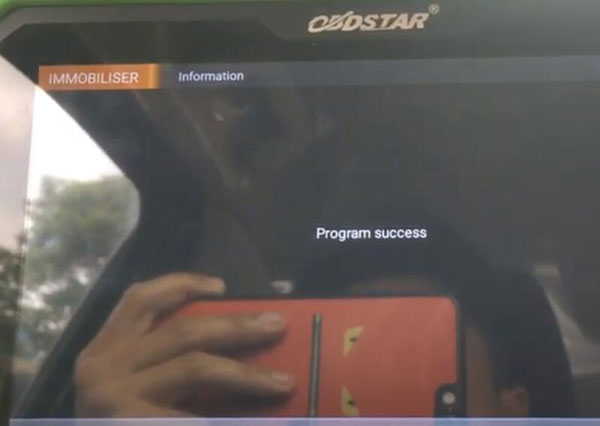

Program 1st key success

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 12

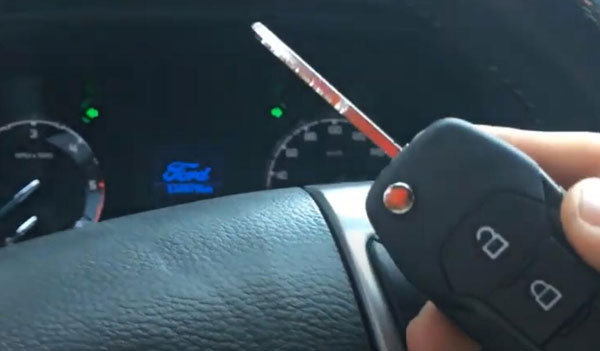

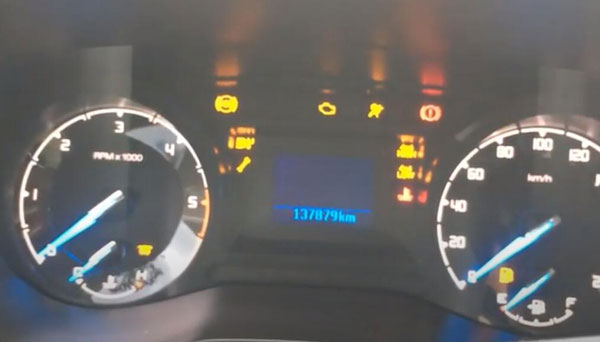

Test remote control and start vehicle

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 13

Obdstar X300 Dp Plus Ford Ranger 2015 Add Key 14



X300 DP plus All Key Lost Procedure:

Select Immobilizer->Ford/Lincoln->Ford->Immobilizer->Ranger->2015 up->Type 1(Priority Select)->All Keys Lost

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 7
Communicating
Press Emergency flasher switch

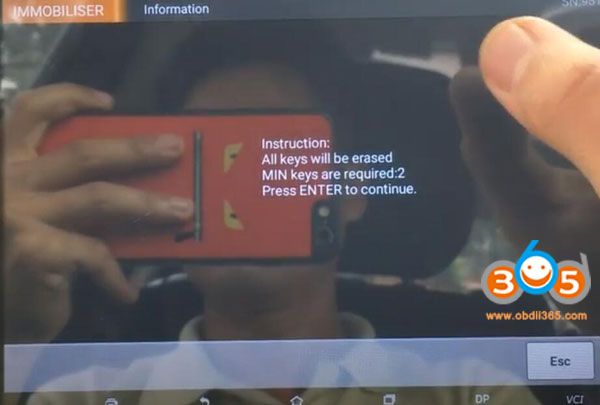

All keys will be erased. Require at least 2 keys to be programmed

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 8

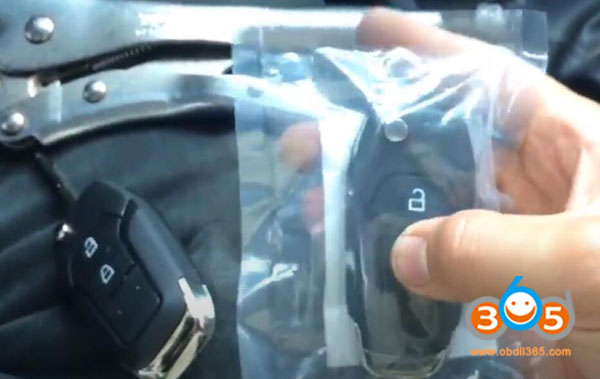

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 10
Detect current number of keys: 3
Connecting the server
Reading data

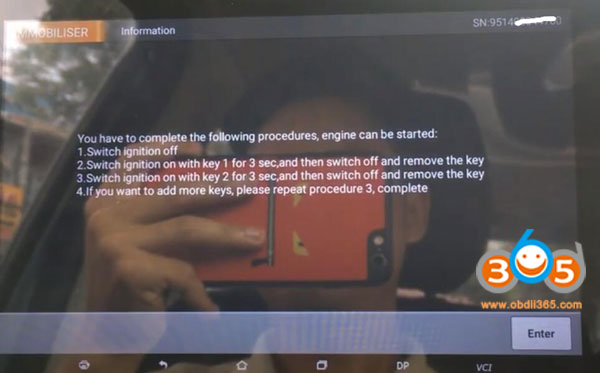

Complete the following procedure to start engine
-Switch ignition off
-Switch ignition on with key 1 for 3 sec, and then switch off and remove key
-Switch ignition on with key 2 for 3 sec, and then switch off and remove key
-If you want to add more keys, repeat procedure 3, complete

Obdstar X300 Dp Plus Ford Ranger 2015 Akl 9

Program key until completed.

Test remote and start vehicle with new keys.

Done.
