Autel XP400 chip programmer can easily do the chip read and write, key read and write on PC. Here’s the demo example on reading CAS3+ EEPROM with XP400 and write key with Xhorse VVDI2 key programmer.
Step 1: Read CAS3+ EEPROM with XP400

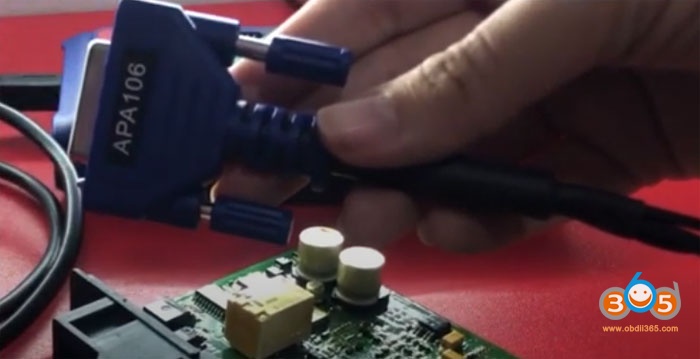

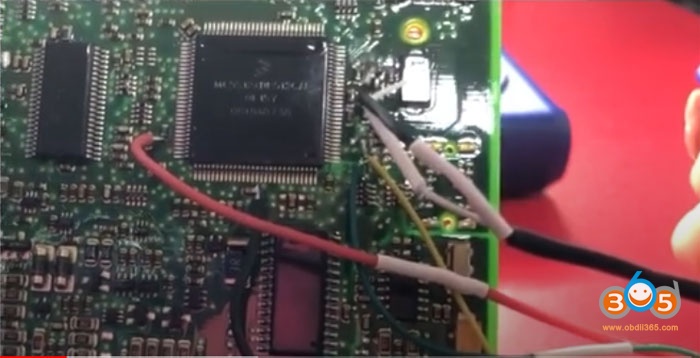

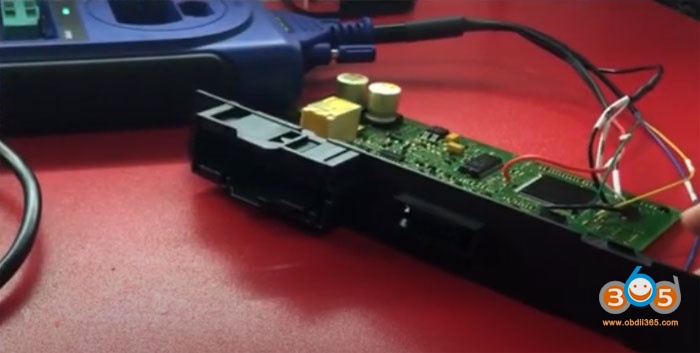

Remove CAS3+ module, connect CAS3+ with XP400 programmer via APA106 adapter following the wiring diagram

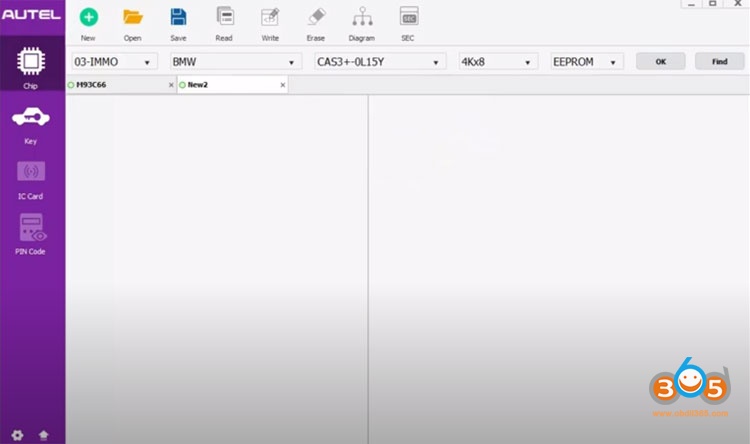

In XP400 software, select Chip function->03-IMMO->BMW-> CAS3+ 0L15Y EEPROM, press OK

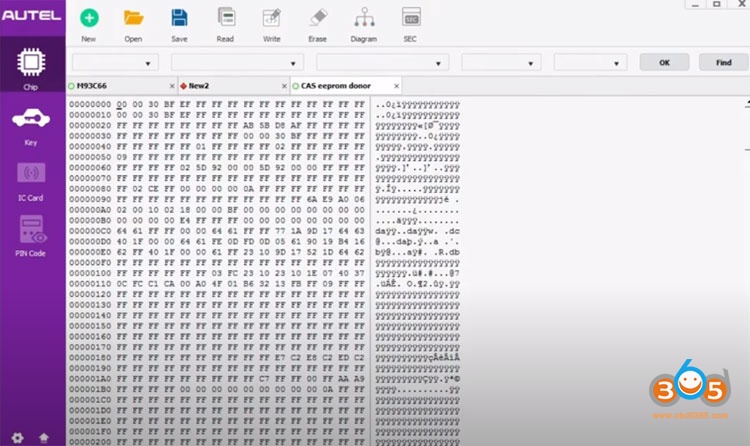

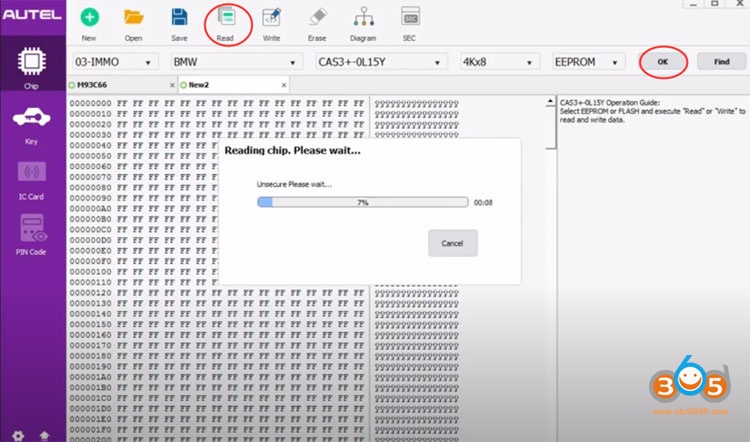

Read EERPOM and save dump
Step 2: Make dealer key with VVDI2

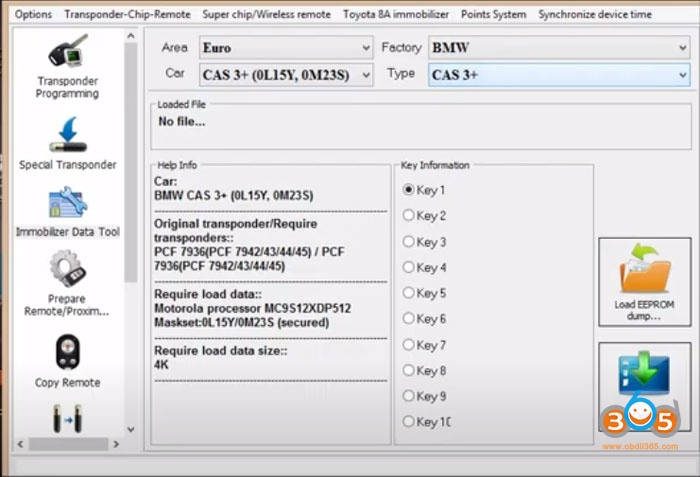

In Xhorse VVDI2 Transponder Programming function, select Euro->BMW->CAS3+ (0L15Y, 0M23S)
Load EEPROM dump read by XP400

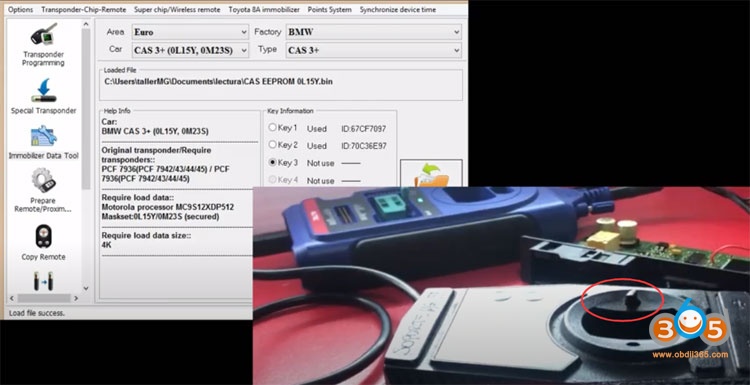

Insert a vvdi super chip XT27 to vvdi2’s coil
Select an unused key position and press Make Dealer Key

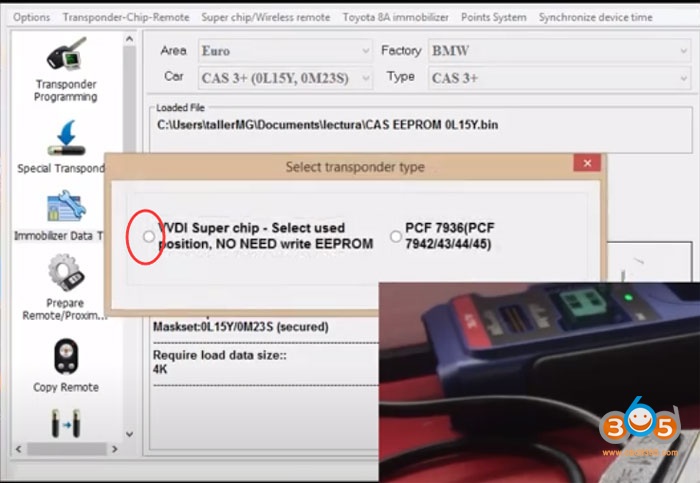

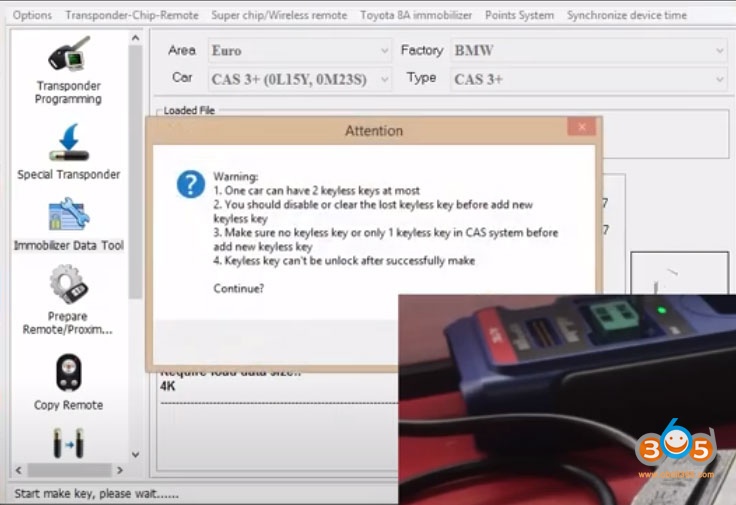

Select transponder type VVDI super chip and press OK to continue

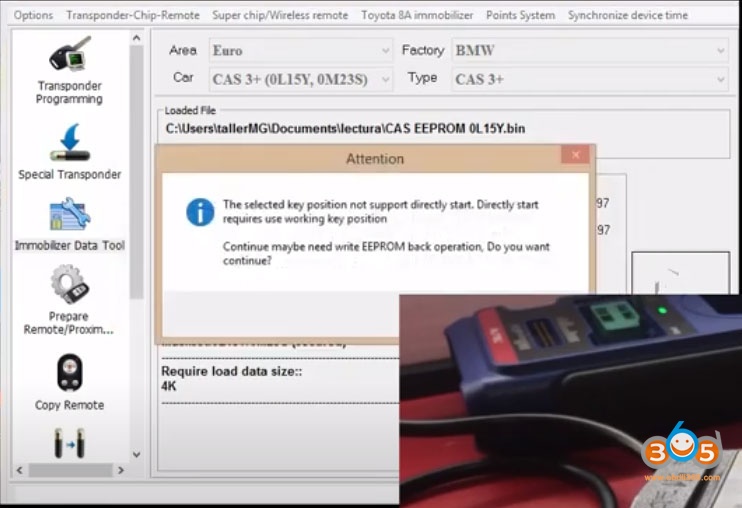

The selected key position not support directly start. To continue need write EEPROM back. Press Yes to continue.

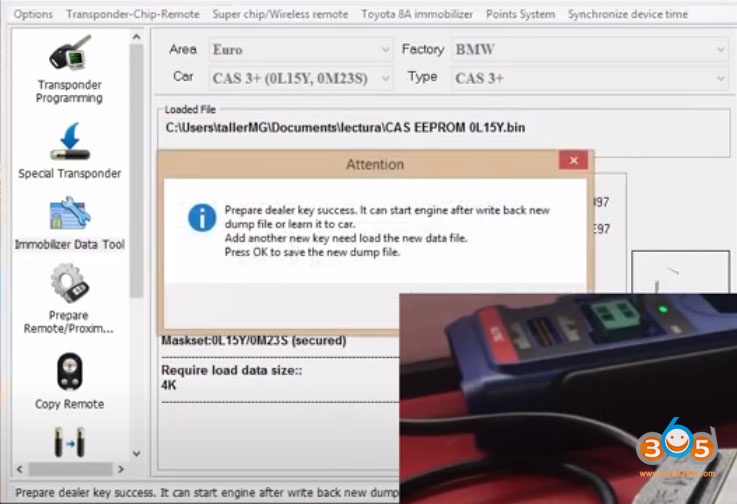

Prepare dealer key success. It can start engine after write back new dump file or learn it to car.

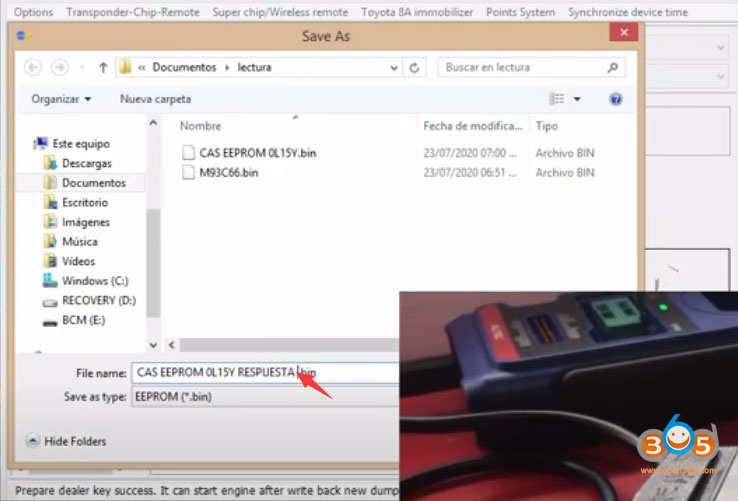

Save new key dump data.
Step 3: Write Data back with XP400

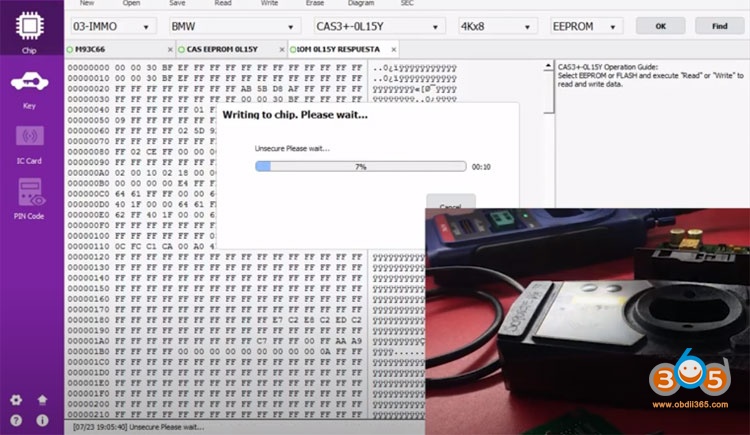

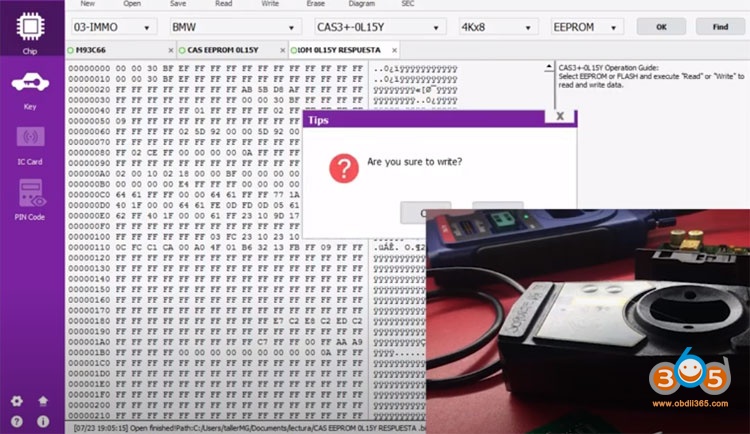

Run Autel XP400 software, open new key dump data and press Write

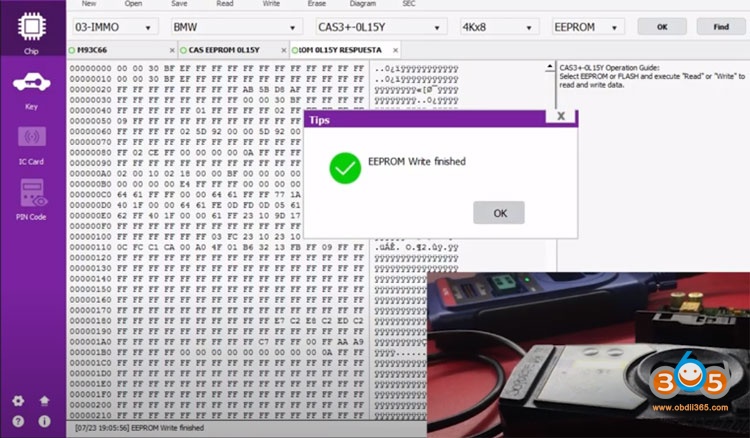

Write EEPROM back completed.
Now the key can start engine.
Install CAS3+ module back to vehicle.
Test new key.
