How to use Xtool KC501 Read Write Chip, Generate Key etc

The Xtool KC501 Key and Chip Programmer user manual for you all :

About KC501  (Features and parameters)
Read/Write the Chip (i.e Atmel AT24C01A, AT24C01A, Freescale’s MCU)
Generate Key
Others (read key frequency, identify key type)



Part 1. About KC501pad

KC501 key programmer:

– Support registers, microcontrollers, key programming and other types of chips read/write, anticipate and other functions;

-Support key automatic identification, partial key reading, key generation, key reading information, key check, key unlock and other functions;

-Can be put in use with tablets for immobilization.



Brand-new Design

Compact, anti-fall and durable design

More Functions

Support registers, microcontrollers, key programming..etc..



More Chips

Support 124 kind of EEPROM, 7 MCU、11 ECU

(data as of Oct-11,2019)



Compatibility

Put in use with X100 PAD3, X100Pad2 and AutoProPad

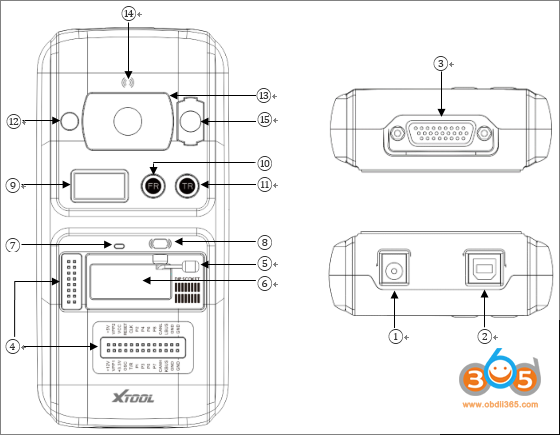

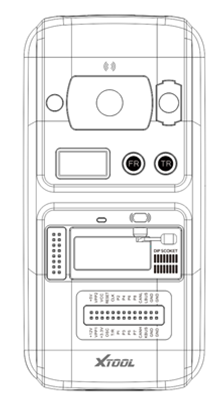

Xtool Kc501 User Manual 01 Xtool Kc501 User Manual 02

  1. DC power port: 12V DC power supply.
  2. USB Port: Data transfer and 5V DC power supply.
  3. 26PIN: DB Connect with cables of Mercedes infrared, ECU, MCU and MC9S12.
  4. PIN Port: MCU board, MCU spare cable or DIY signal cable interface.
  5. Remote lever: lock the movable lever.
  6. Chip socket: Place and lock chip.
  7. Light indicator: Indicates the current status.
  8. IC card sensor: used to read/write IC card data.

Operating Temperature     -10℃〜60℃

Storage Temperature  -20℃〜60℃

Ports     DB26, USB-B

Input Voltage       DC12V 0.5A, DC 5V 1A

Dimension    177mm* 85mm* 32mm

Battery None

Communication   USB (with Tablet or PC)

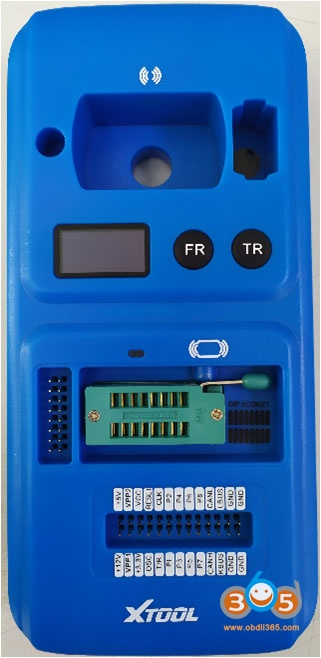

Xtool Kc501 User Manual 03



Part 2: Xtool KC501 Read Write MCU EEPROM Chip

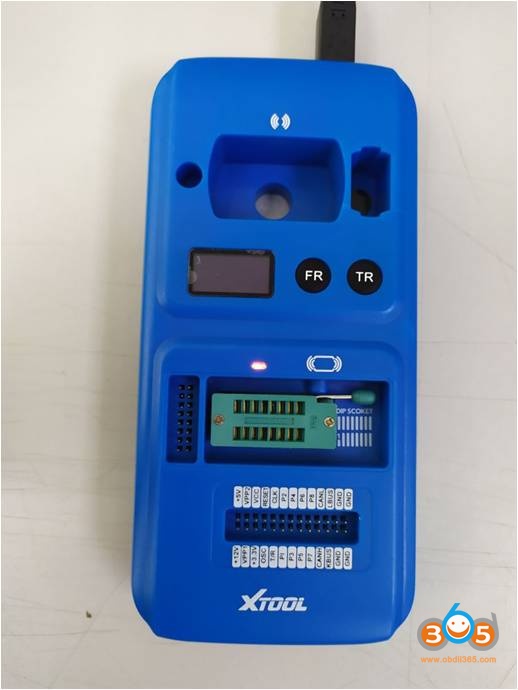

First, Connect USB with PC

Xtool Kc501 User Manual 04

Check the light

Red Light on: standby mode

Green Light on: Data Transmission

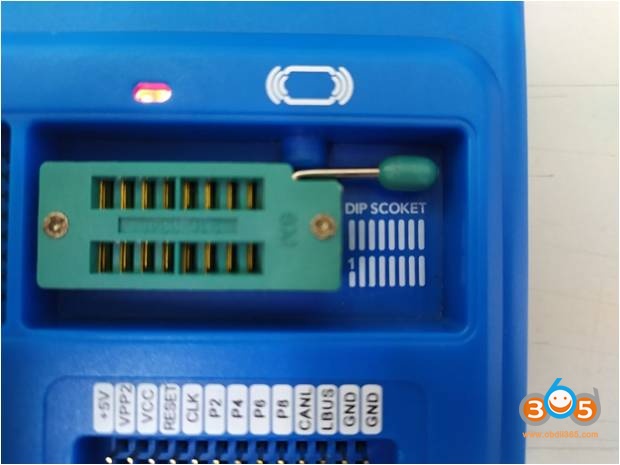

Xtool Kc501 User Manual 05



  1. Read/Write Atmel AT24C01A Chip

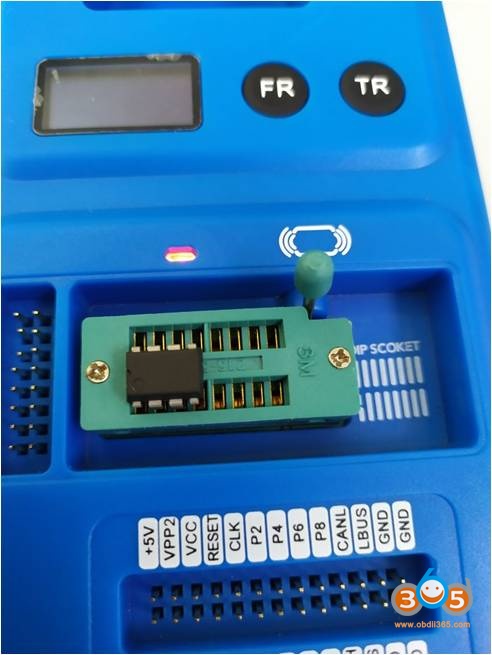

Then, Open the chip lock socket lever and put into the chip according align with the pin.

Xtool Kc501 User Manual 06 Xtool Kc501 User Manual 07

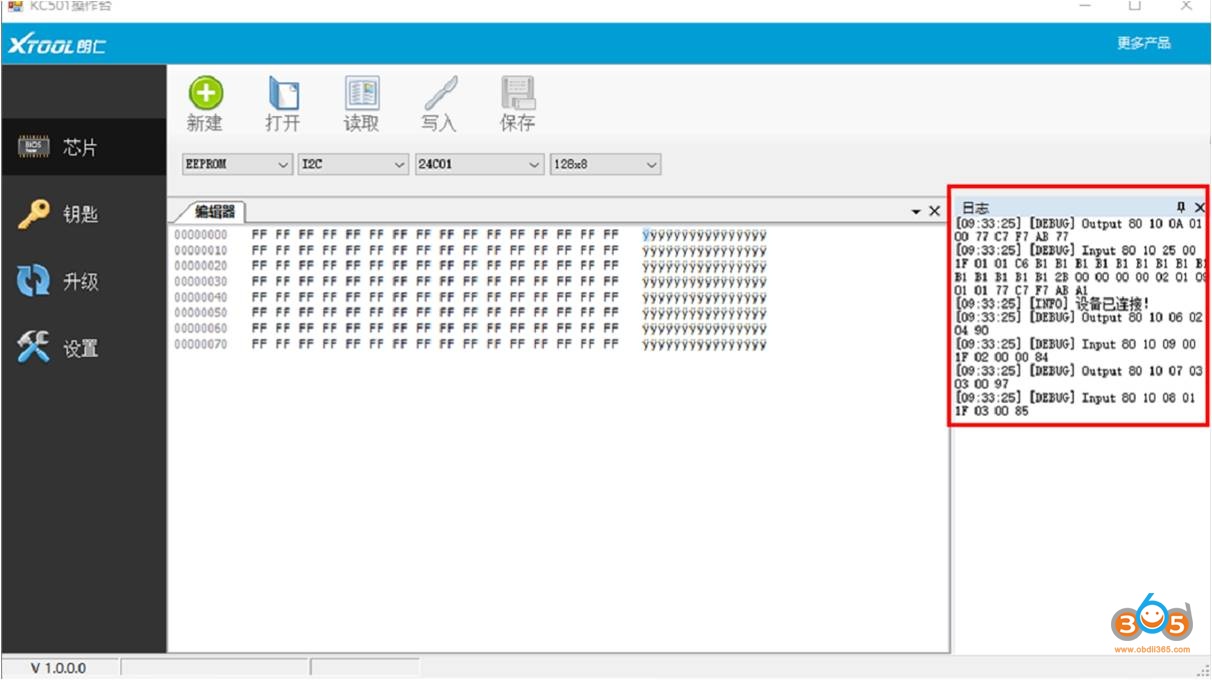

Open software in PC, “Successfully Connected” will be shown:

Xtool Kc501 User Manual 08

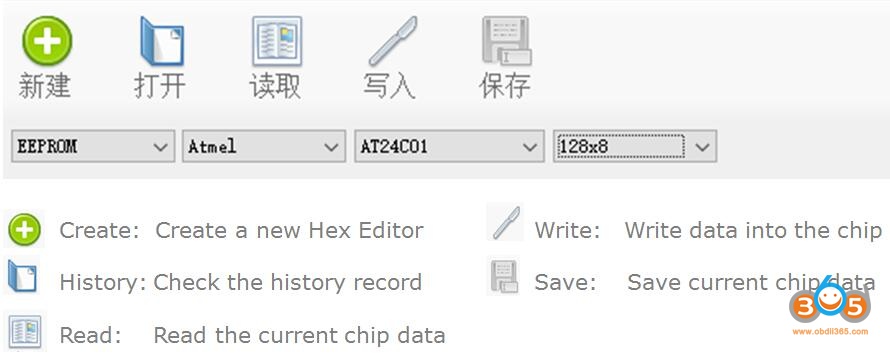

  1. Read/Write EEPROM – Atmel – AT24C01A Chip

Xtool Kc501 User Manual 09 Xtool Kc501 User Manual 10

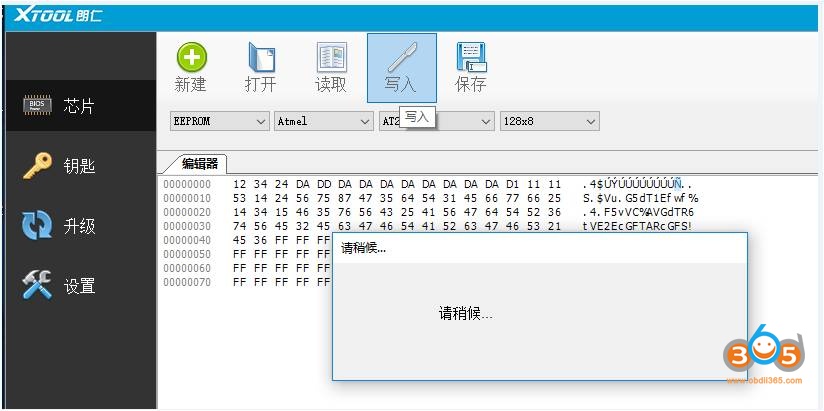

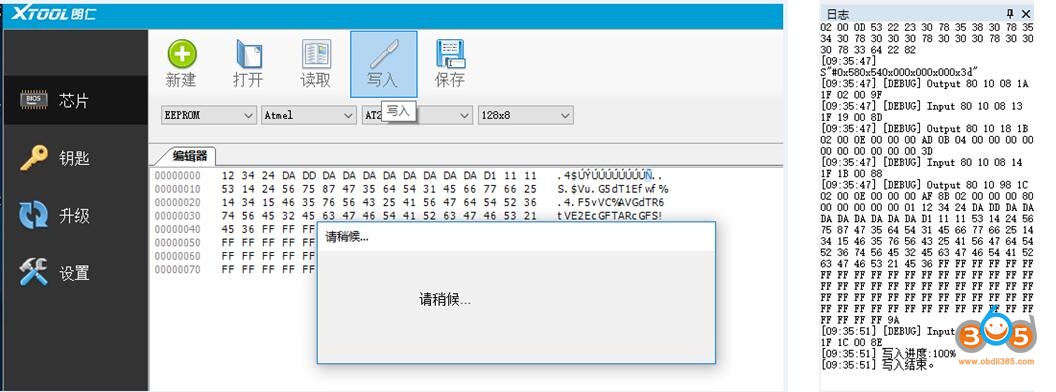

Write data into the chip

Xtool Kc501 User Manual 11 Xtool Kc501 User Manual 12

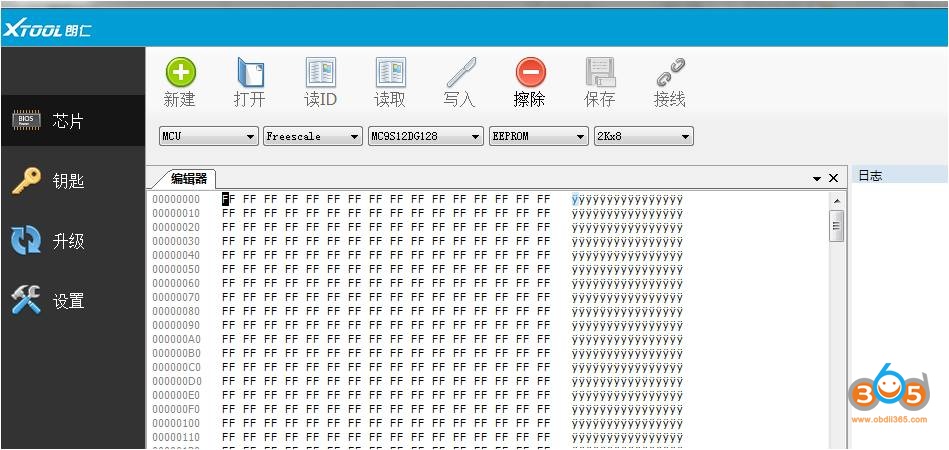

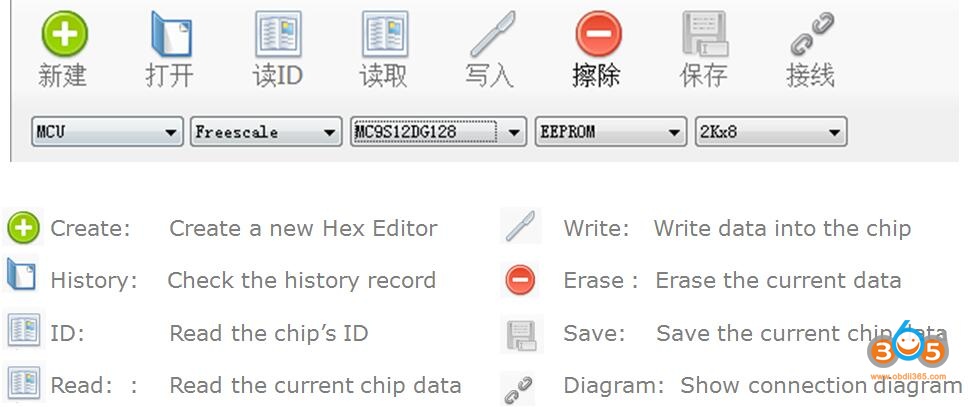

  1. Can Read/Write/Erase 7 kind of Freescale’s MCU

Xtool Kc501 User Manual 13 Xtool Kc501 User Manual 14

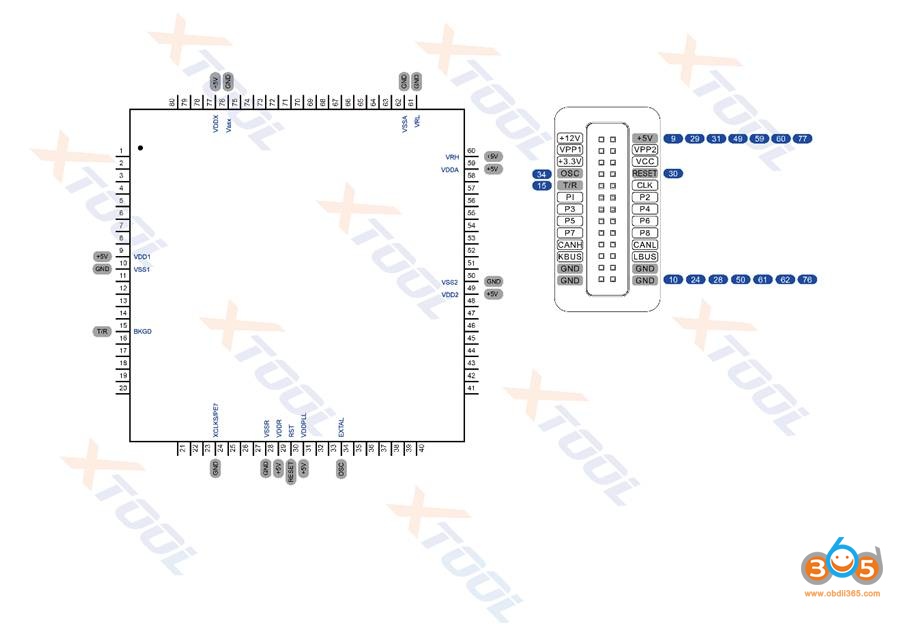

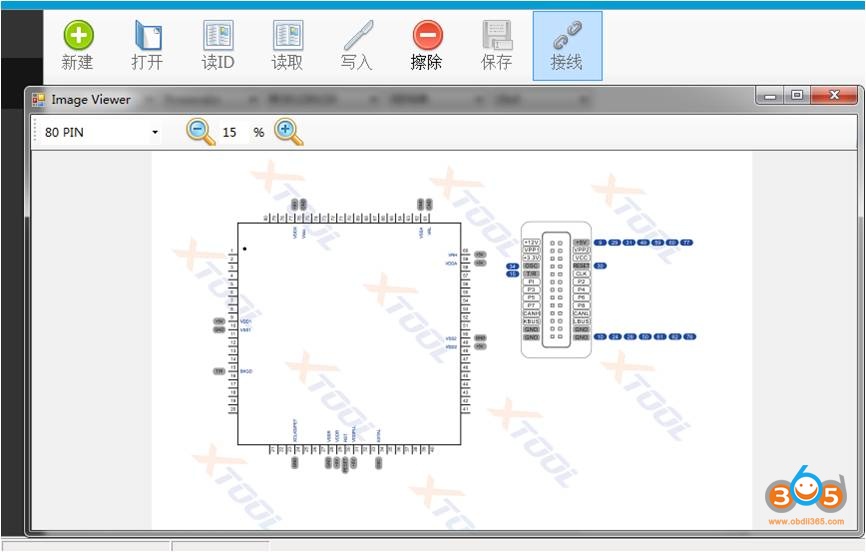

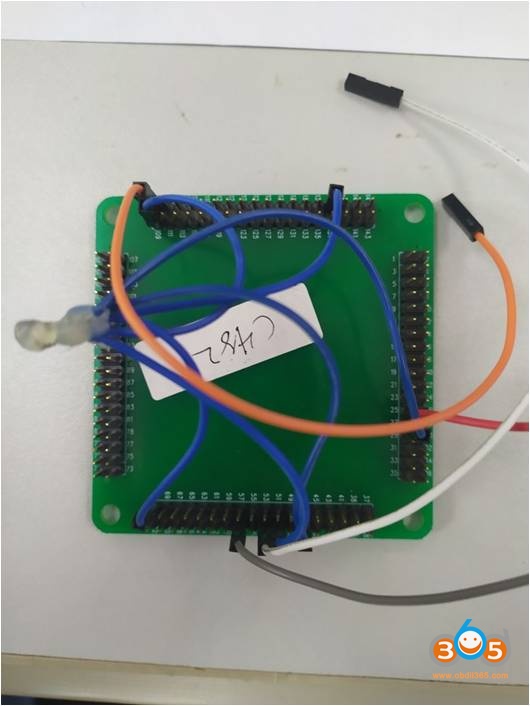

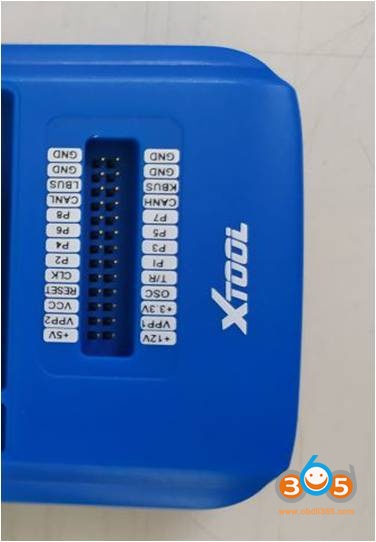

Connect chip In terms with below diagram, have it connect with KC501.

Xtool Kc501 User Manual 15

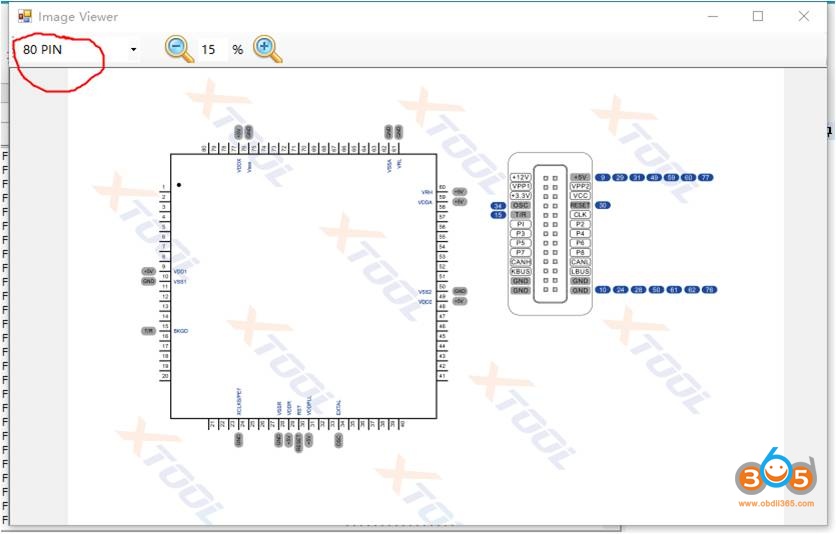

Same type of chip may have different pin number, e.g. 80PIN, 112PIN,144PIN…

Xtool Kc501 User Manual 16 Xtool Kc501 User Manual 17 Xtool Kc501 User Manual 18 Xtool Kc501 User Manual 19

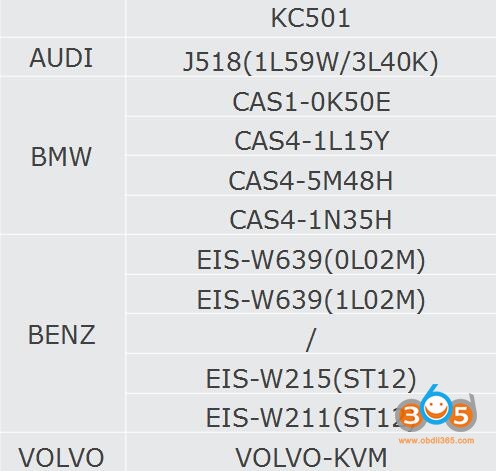

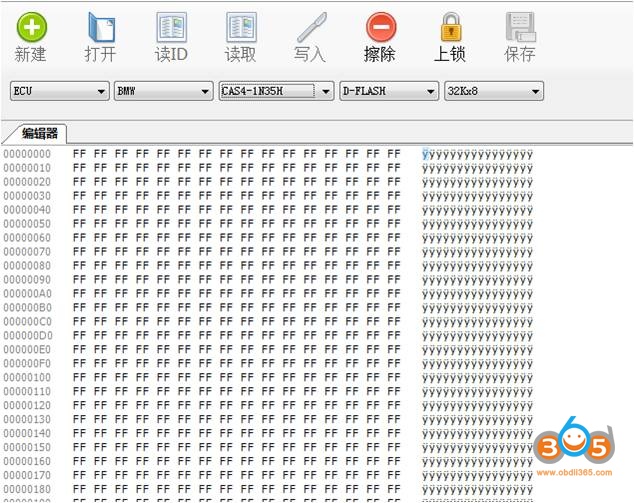

  1. Xtool KC501 supported ECU:

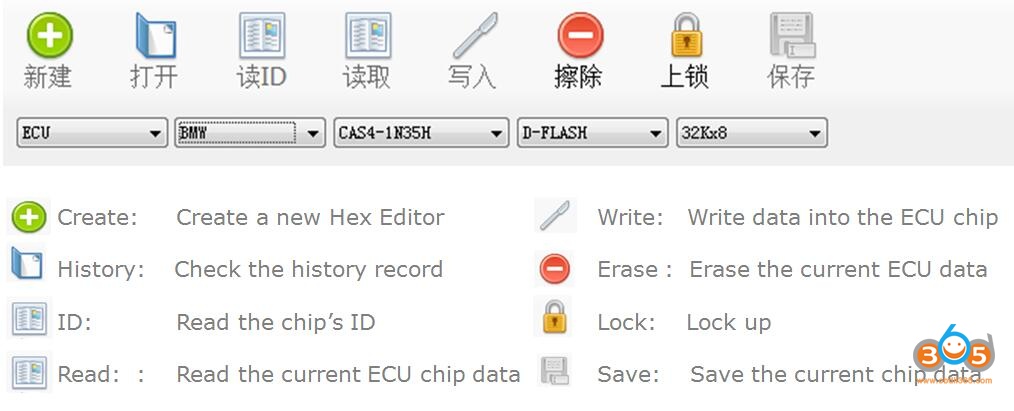

Xtool Kc501 User Manual 20 Xtool Kc501 User Manual 21 Xtool Kc501 User Manual 22

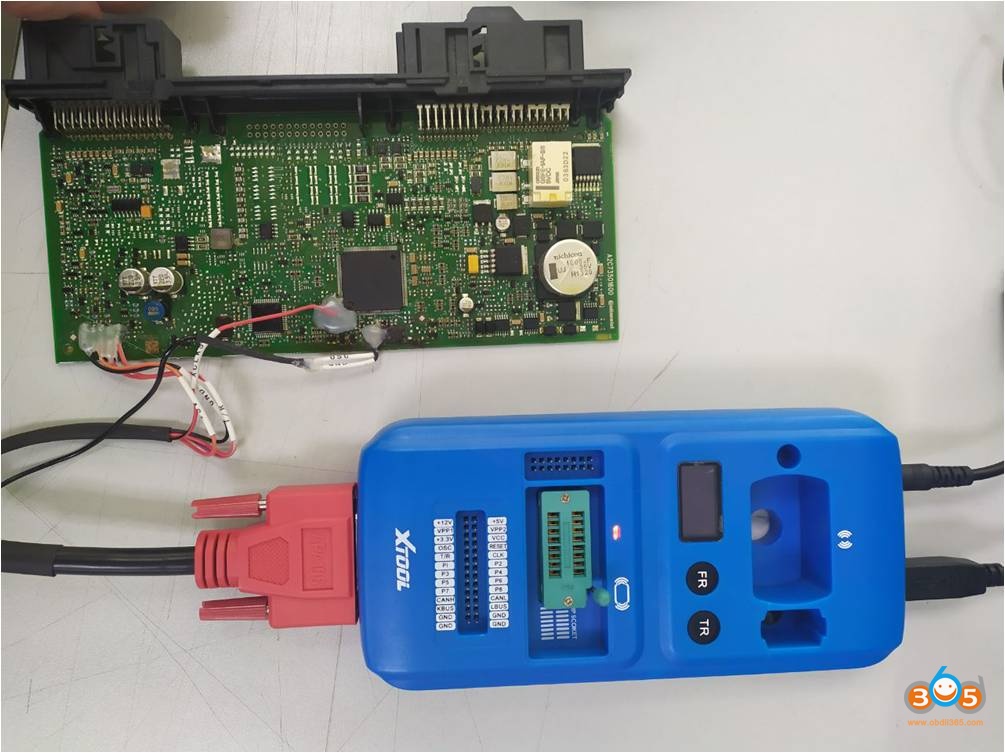

Warning: Please turn off the power when connecting the ECU, turn on 12V power after its

connected. Read/Write MCU could be a reference when doing Read/Write the chip here.

Xtool Kc501 User Manual 23



Part 3: Xtool KC501 Generate Key Procedure

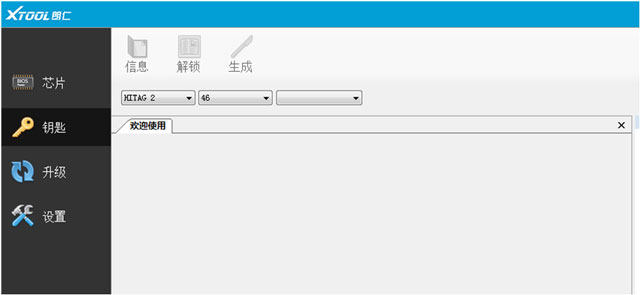

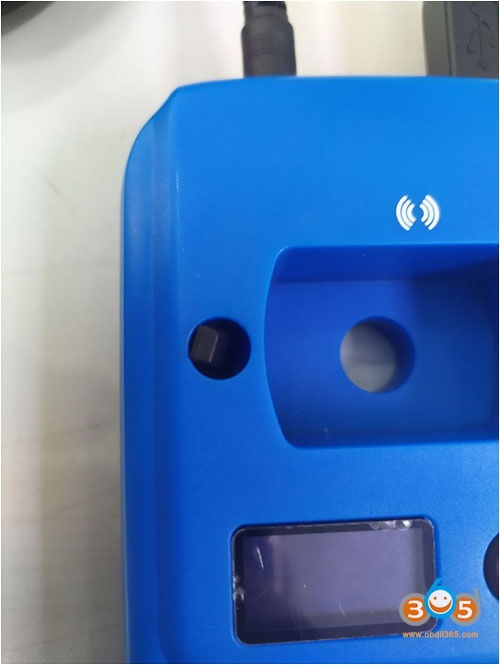

Put the key or key chip into the slot accordingly, connect to PC via USB, and open the software on PC

Xtool Kc501 User Manual 24

Xtool Kc501 User Manual 25

Xtool Kc501 User Manual 26

Info: Read the key information

Unlock: Unlock the key

Generate: Generate the key according to the chosen car brand

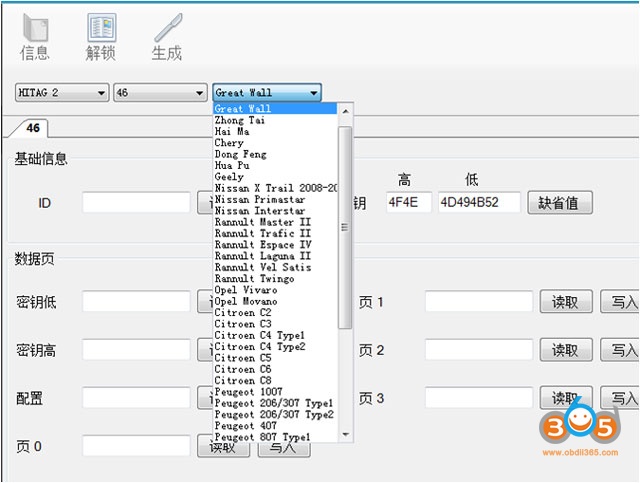

Select the car brand and tap the “generate” button, key will be generated.

Xtool Kc501 User Manual 27

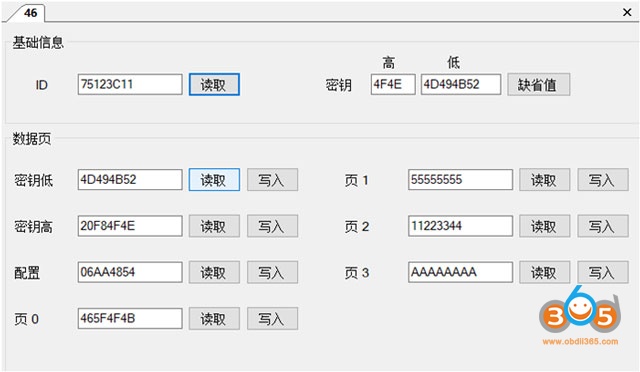

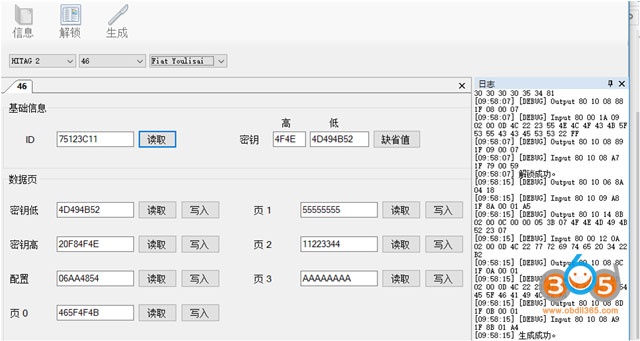

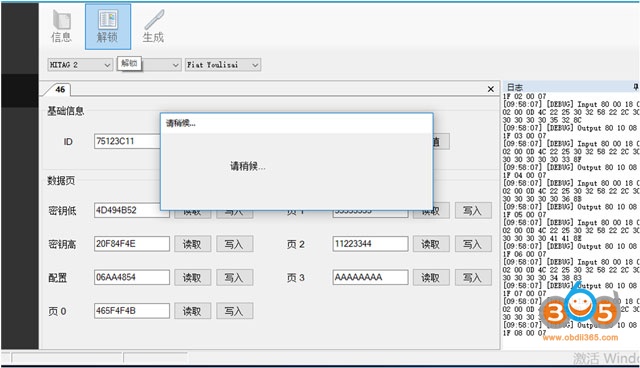

Can read the data of the current key chip.

Xtool Kc501 User Manual 28 Xtool Kc501 User Manual 29 Xtool Kc501 User Manual 31



Part 4: others

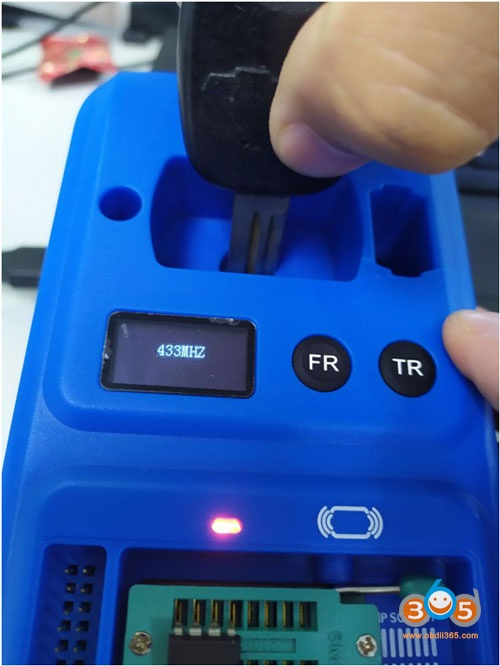

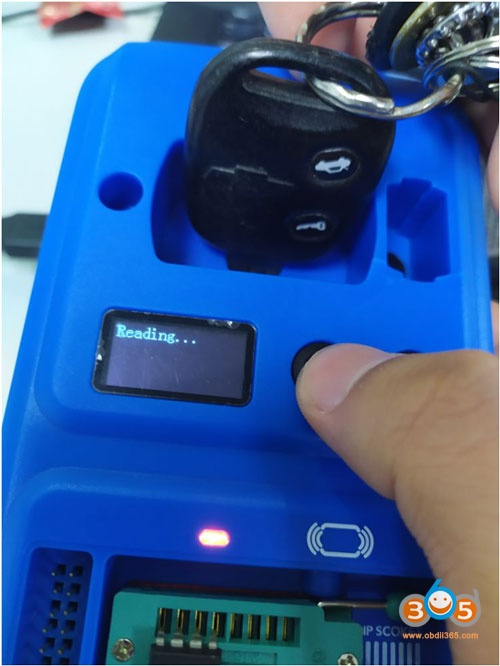

  1. Read key frequency with Xtool KC501

Put the key into the slot, press ”FR” button, then press the transmission button on the key, frequency could be reached and read.

Xtool Kc501 User Manual 31 Xtool Kc501 User Manual 32



  1. Identify key type with Xtool KC501

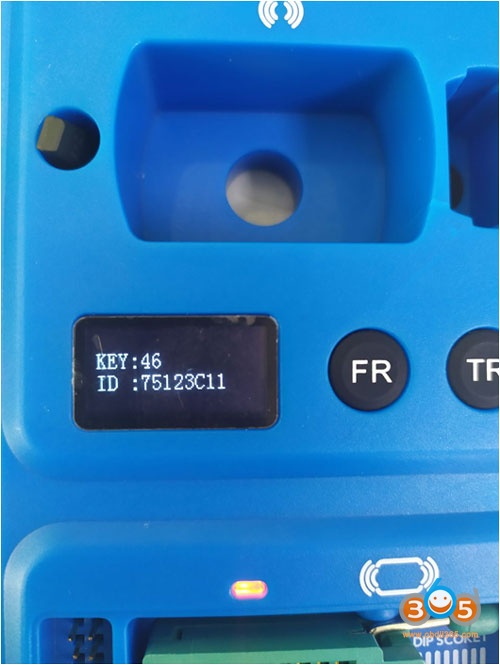

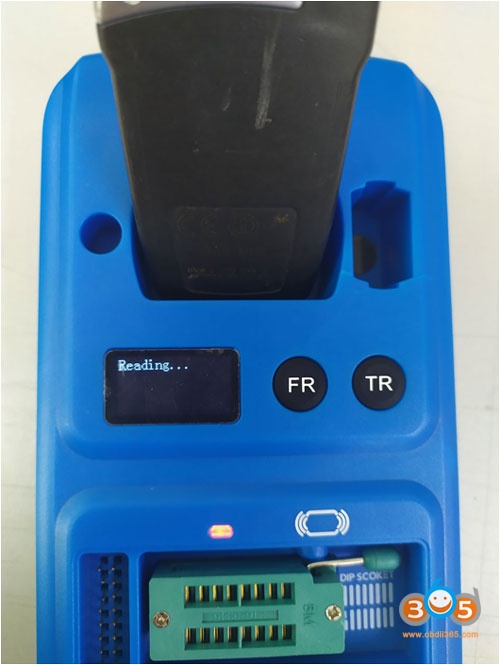

Put the key or key chip into the slot accordingly, press ”TR” button, then the type and ID info could be read.

Xtool Kc501 User Manual 33Xtool Kc501 User Manual 34



Enjoy!
