Used Autel MaxiIM IM508 and XP400 Pro to program key for Skoda Octavia 2013 with All Keys Lost. No dashboard out, no vag helper, no service mode, no precoded key, only obd.

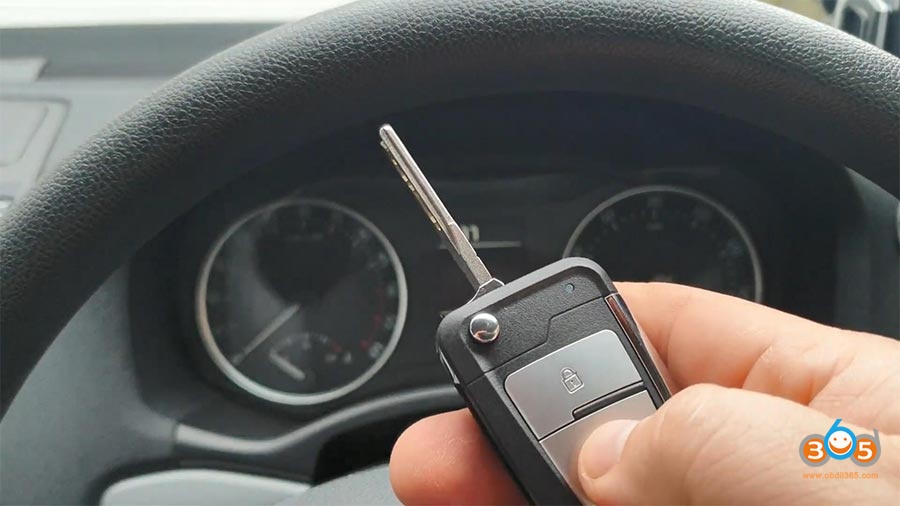

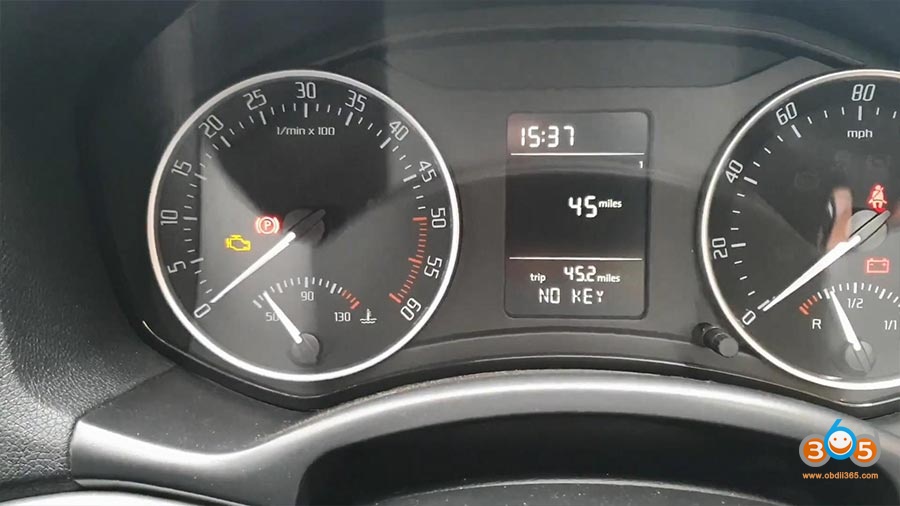

Look at the new blank key (after inserting it into the ignition and turning it on, you can see “NO Key” on the dashboard).

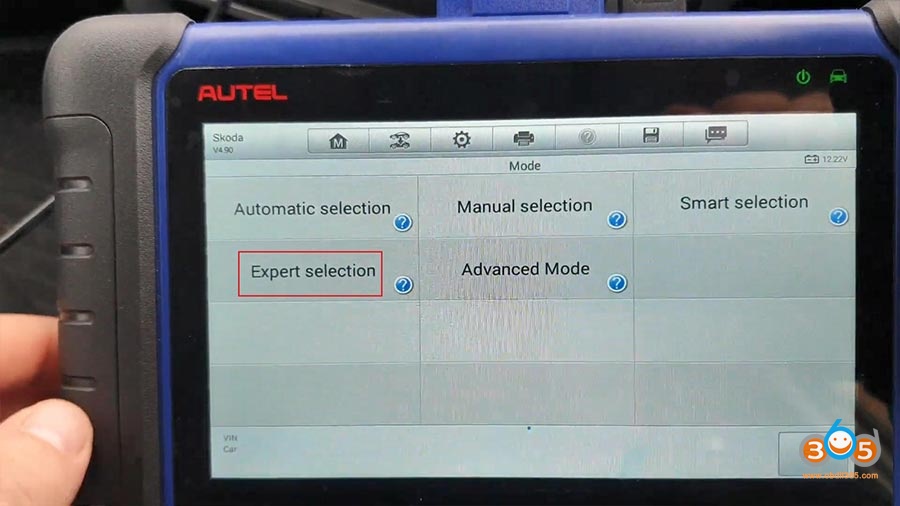

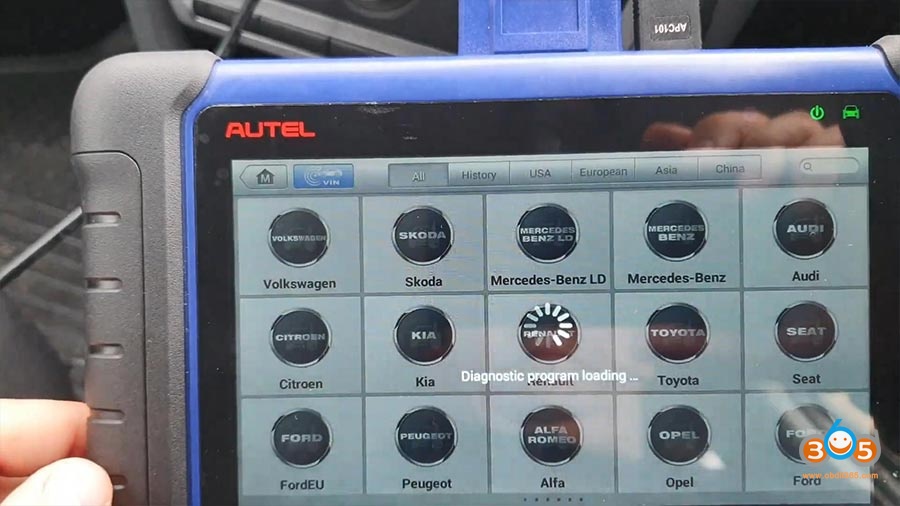

After connecting Autel IM508 to Skoda Octavia 2013 via OBD, Select IMMO- Skoda-Expert selection
System data initializing
Checking network connection.

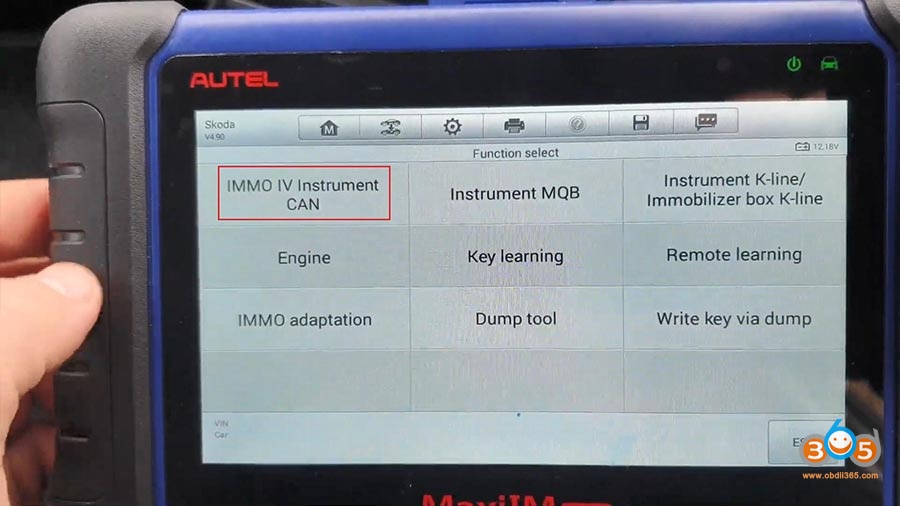

Select “IMMO IV Instrument CAN”.

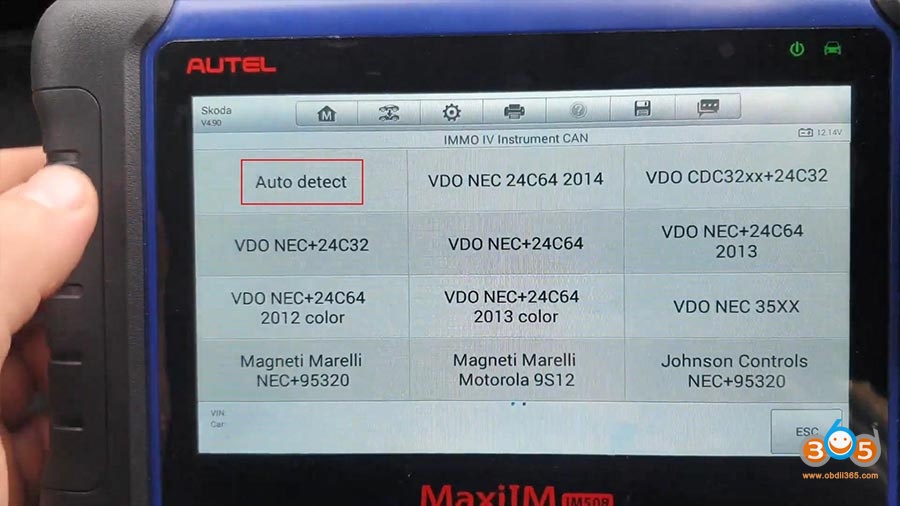

Select “Auto detect”.
Establishing vehicle communication…

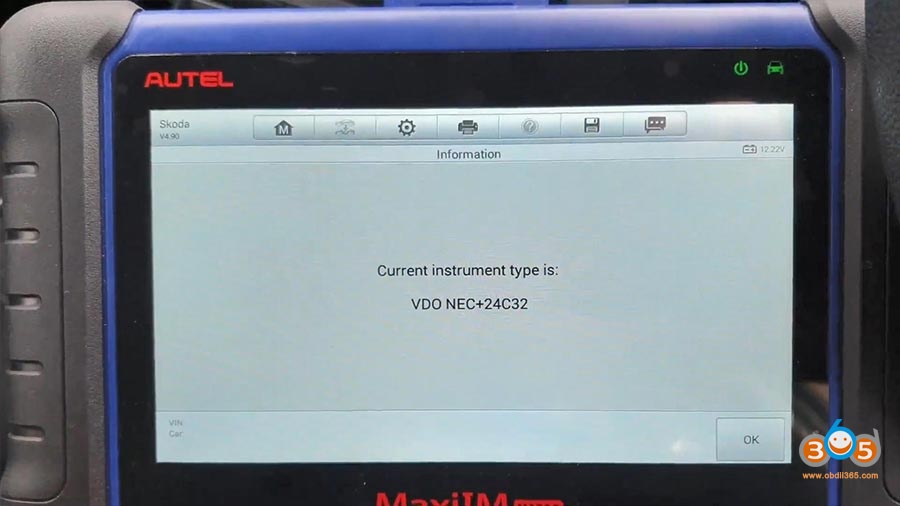

Current instrument type is: VDO NEC+24C32

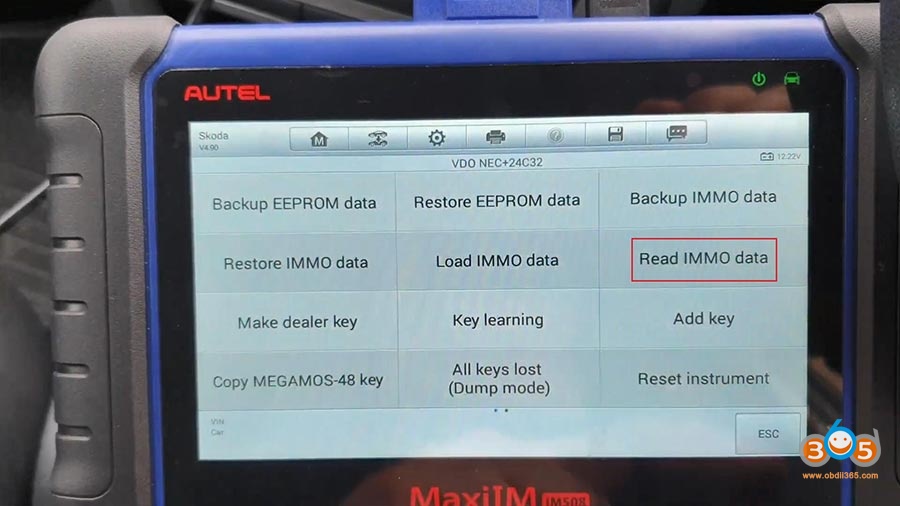

Tap “Read IMMO data”.
Establishing vehicle communication…
Communicating with the vehicle, please wait…
Reading IMMO data, please wait…

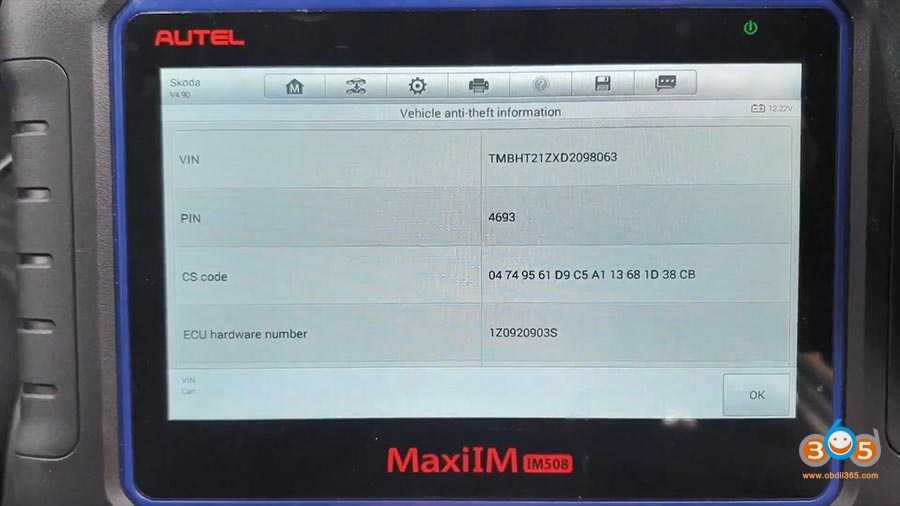

Read out the immo data.

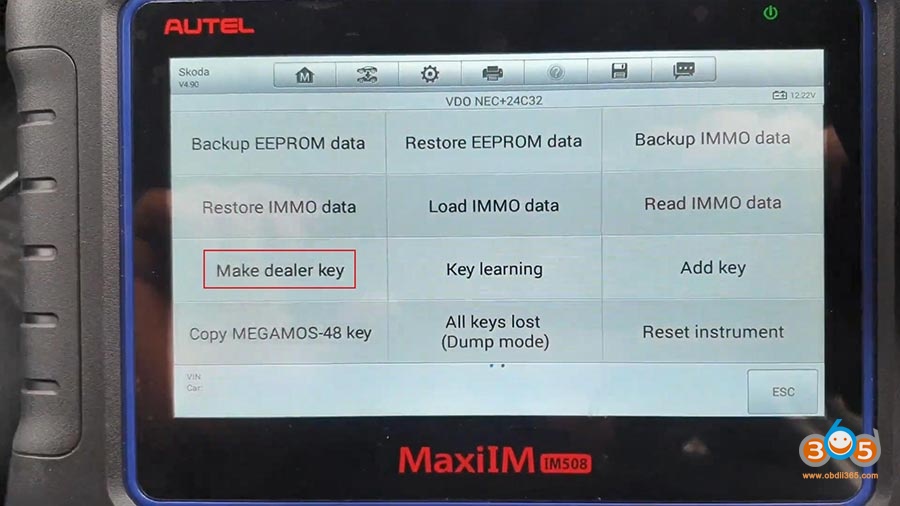

Select “Make dealer key”.

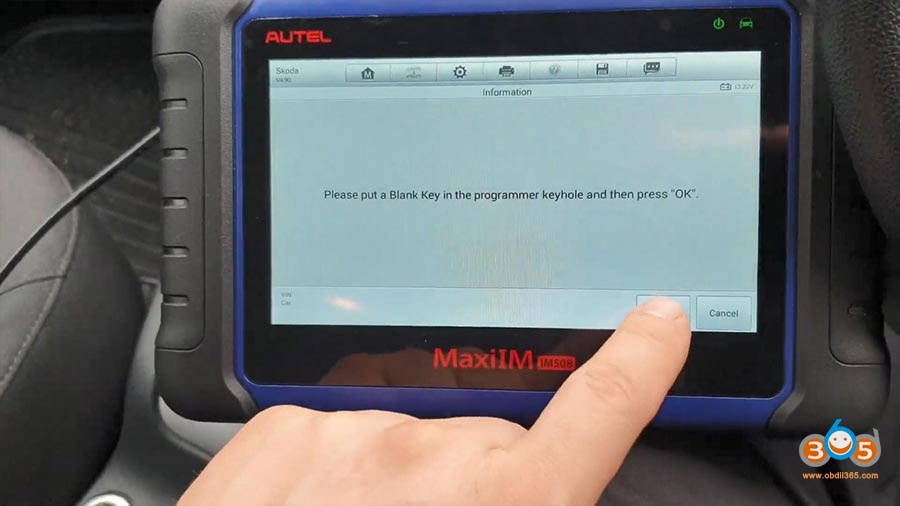

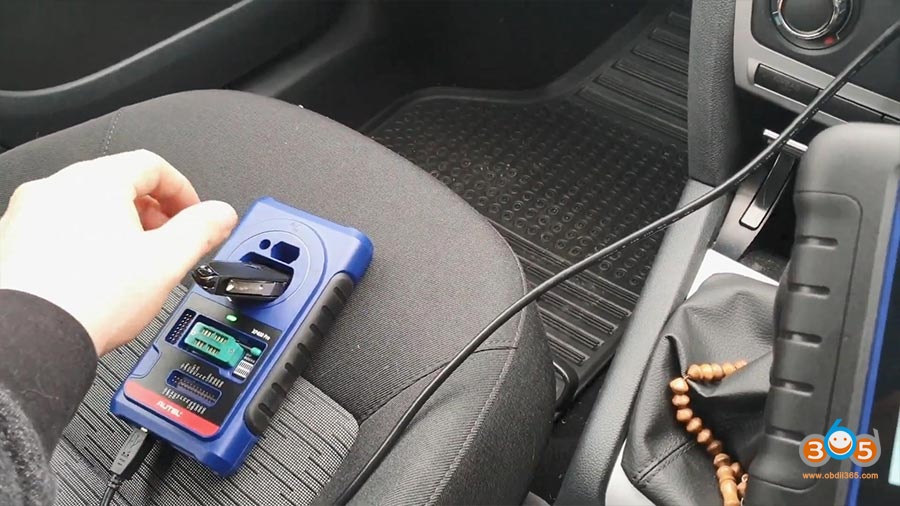

Please put a blank key in the XP400 Pro programmer keyhole and then press “OK”.
Connecting the programmer…
Establishing communication with the key…

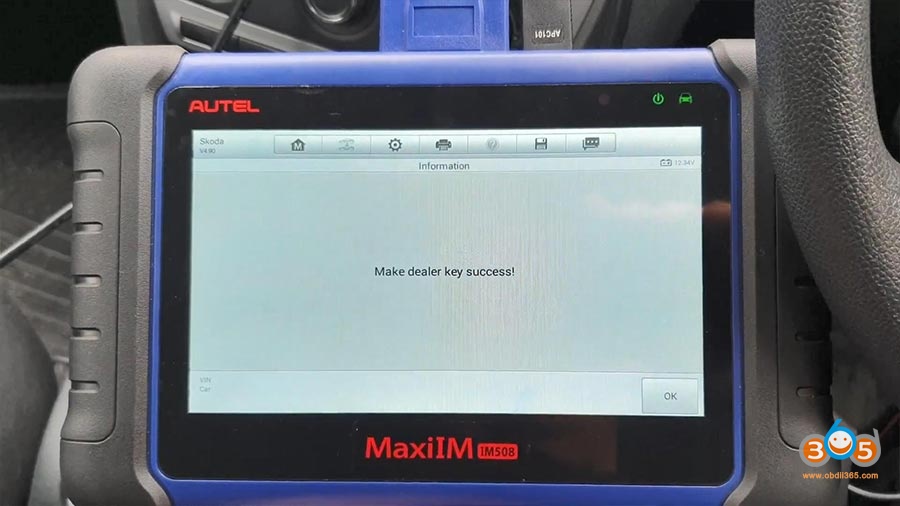

Make dealer key success!
Select “Key Learning” to operate.

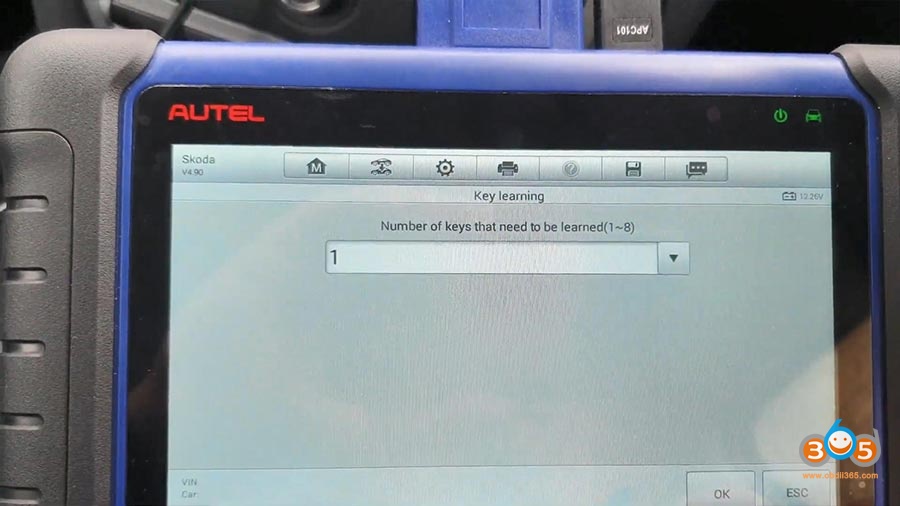

Number of keys that need to be learned (1-8)
The next steps are to follow the Autel MaxiIM IM508 on-screen instruction to do until the car can start the car.

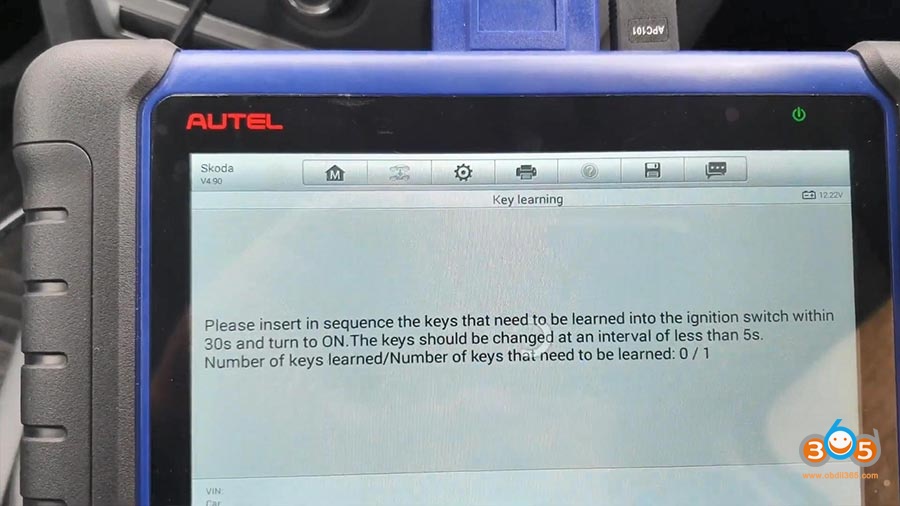

Insert in sequence the keys that need to be learned into the ignition switch within 30s and turn to ON. The keys should be changed at an interval of less than 5s.

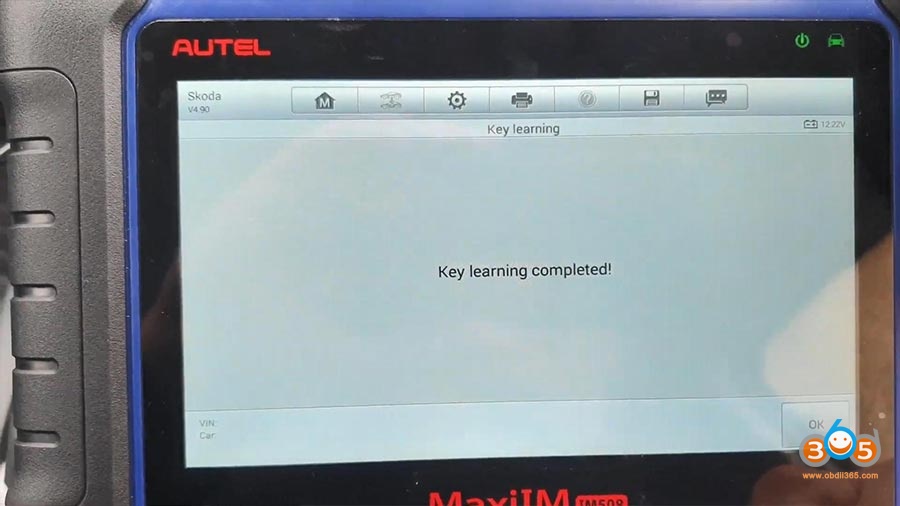

Key learning completed.

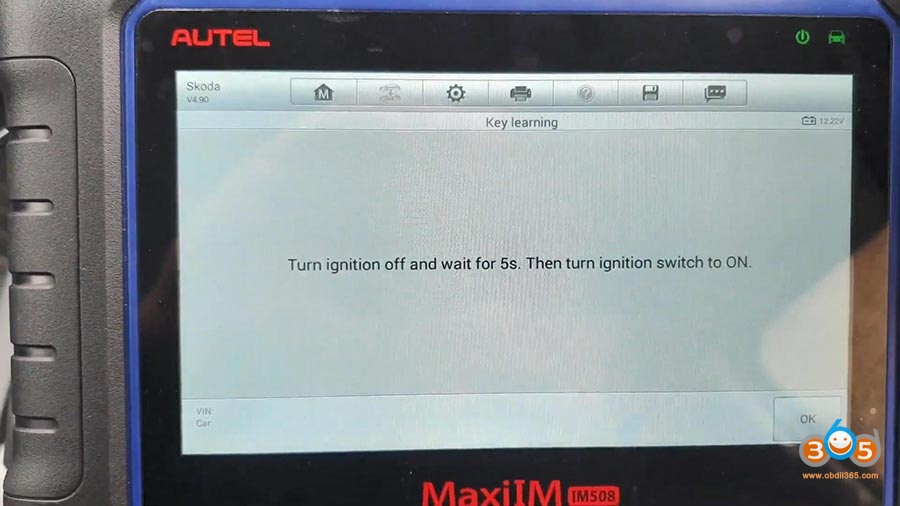

Turn ignition off for 5s. Then turn ignition ON.

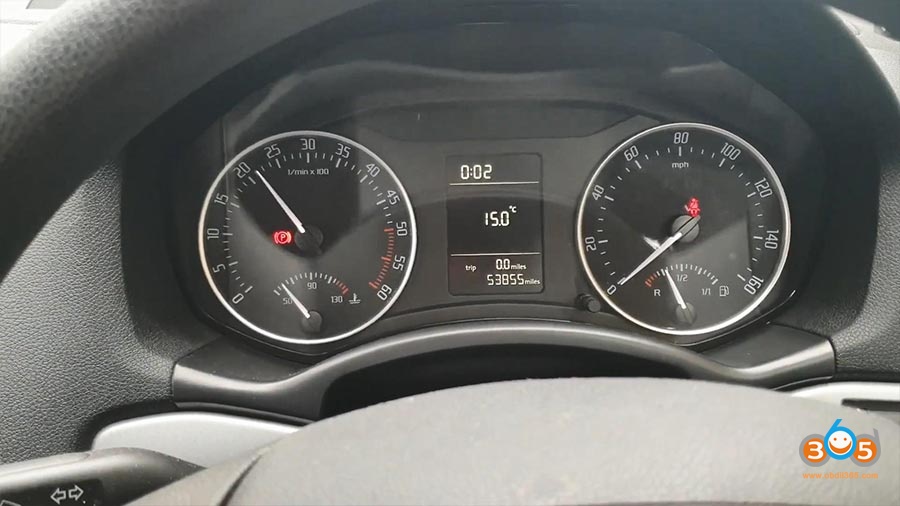

Test the new key.
Job is done!
