Problem: I have a problem with Yanhua Mini ACDP when reading BMW CAS3/3+ by ICP and all pin detection passes, Why the data cannot be read?

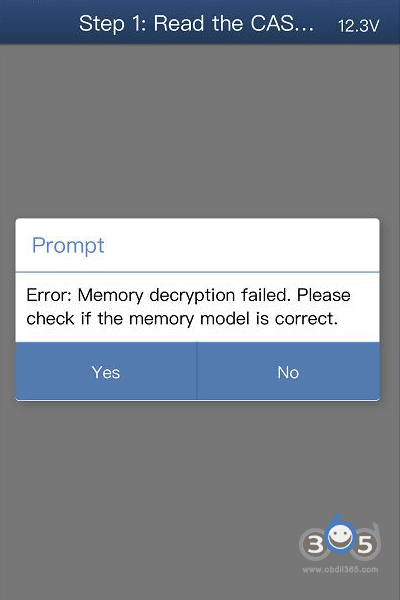

Error: Memory decryption failed.

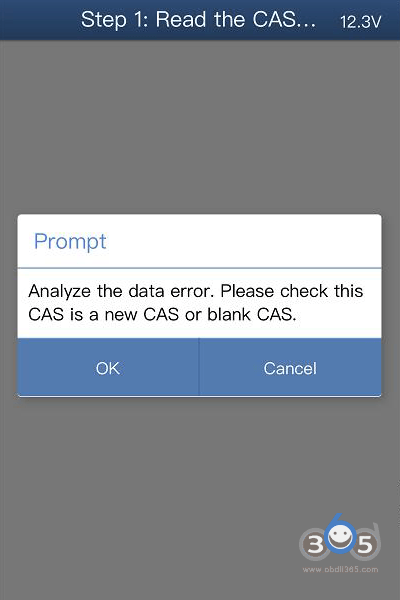

Error: Analyze the data error.
Solution:
If the above problem occurs, the decryption progress bar will reach 100%. But in normal cases, the chip decryption progress bar will not reach 100%. At the moment, it is necessary to check whether the C-GND probe on the interface board is removed or cuted. Reinstall the interface board to read the data once.
The C-GND pin interface board locations are shown as below:
Demo guide:
Yanhua Mini ACDP Read ISN and Program Mini Cooper 2013 CAS3+ All Keys Lost
