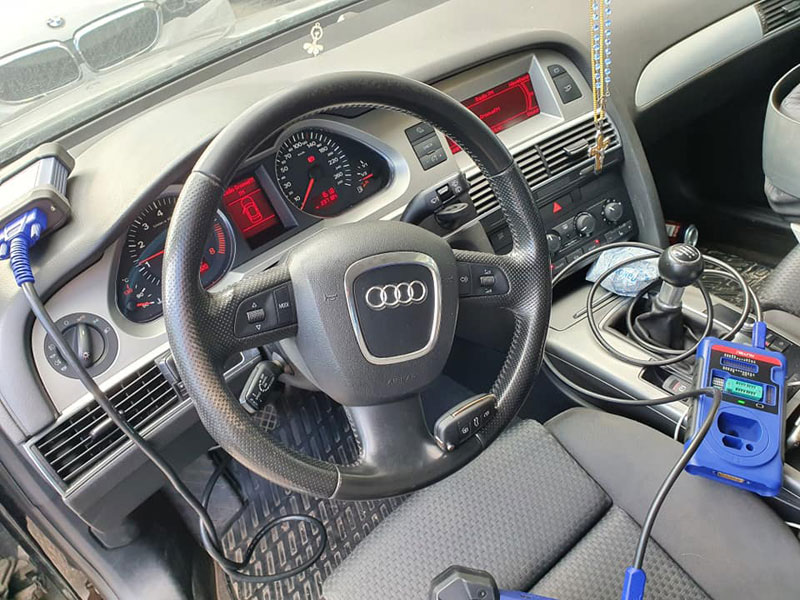

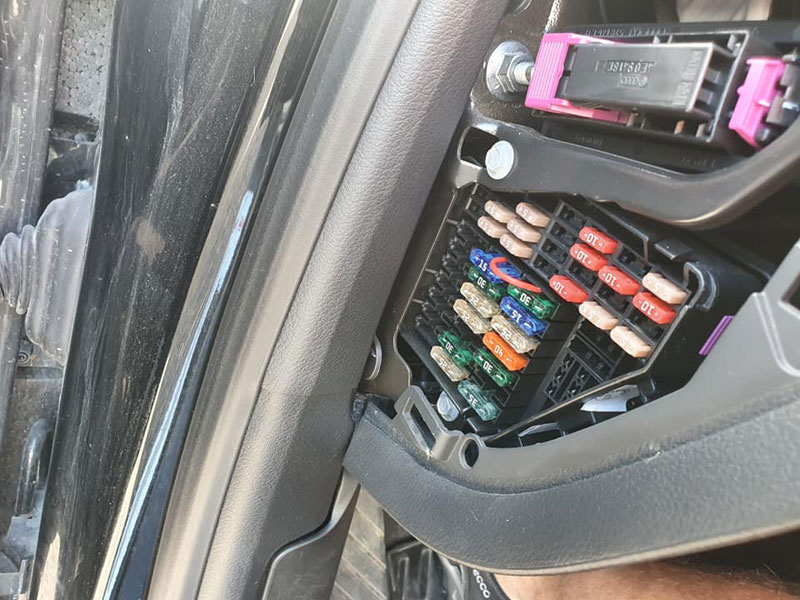

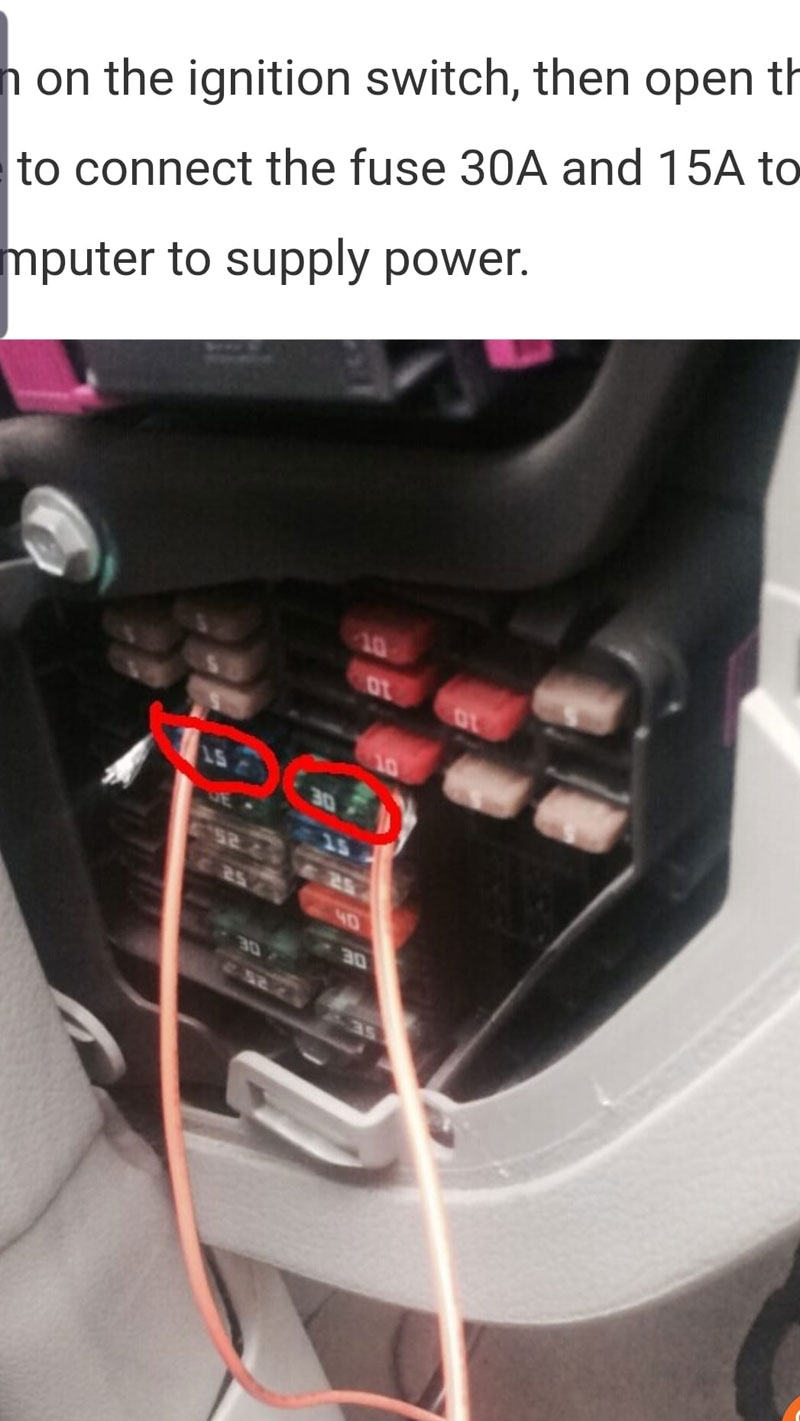

This is an Audi A6 C6 4F year 2005. The customer has lost all keys. I have to connect fuse box wire 15 and 30 fuse and get electric power on. Took about 10 minute work, very easy job, made Dealer key and program the key (aftermarket key) with Autel MaxiIM IM608.
IM608 has no instruction for this car and situation. Have to use google to power up (bridge 15 & 30).
Internet was connected, all time when use device, don’t know how much is depends or not, but key programmed success and customer have a great day to get the car running again.

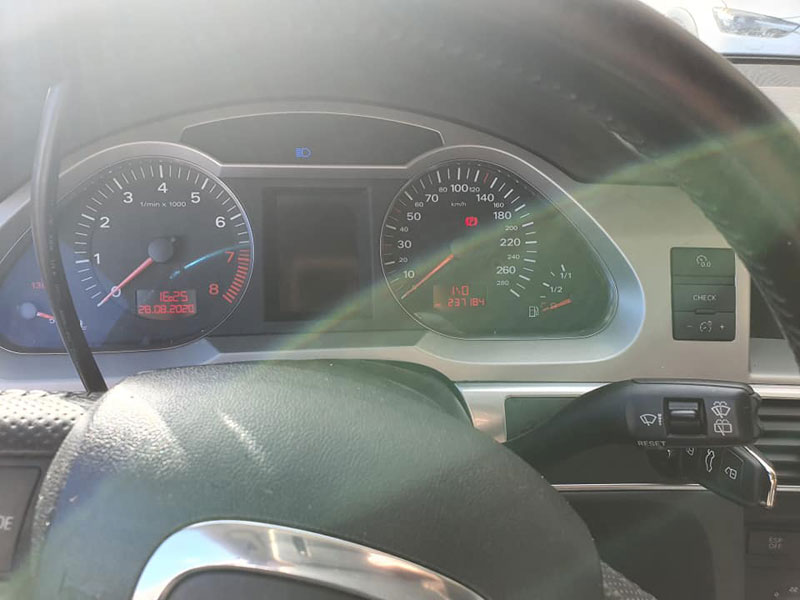

On instrument cluster is nothing immo data it not need to come on, it just give extra power to elv and ecu then you can read the data and make it run.
Maybe someone need instruction to get same work do to.

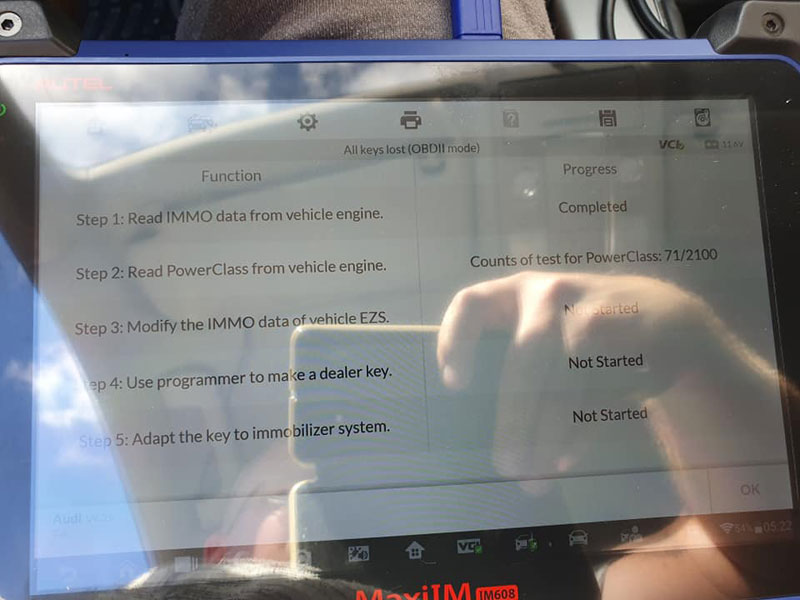

Audi A6 C6 4F All keys lost OBDII procedure with Autel IM608:

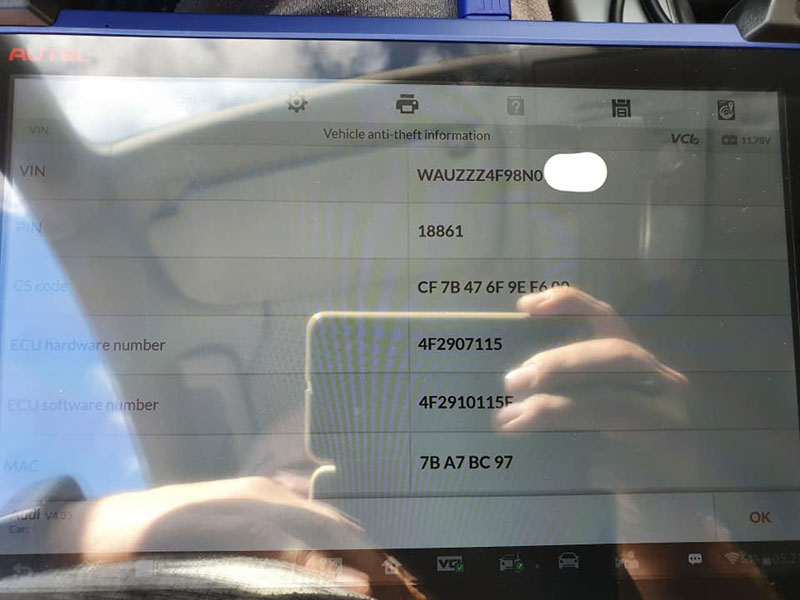

Step 1: Read IMMO Data

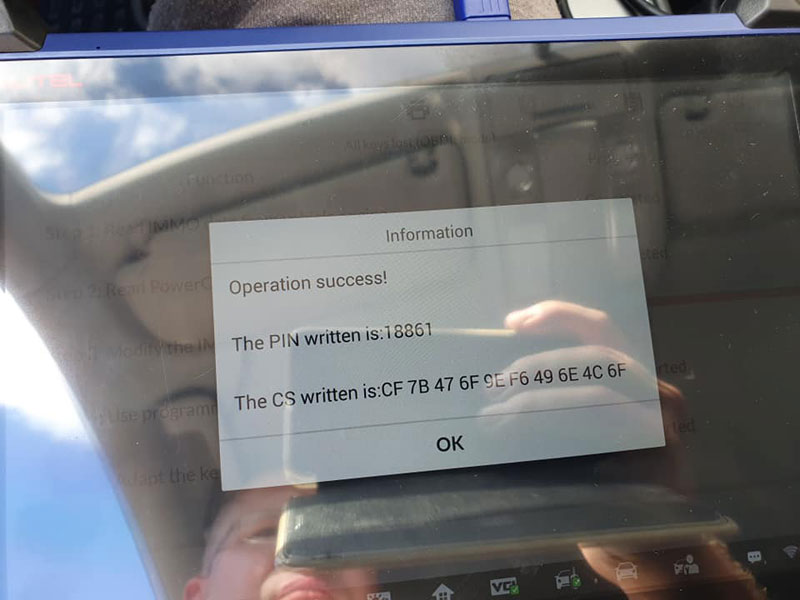

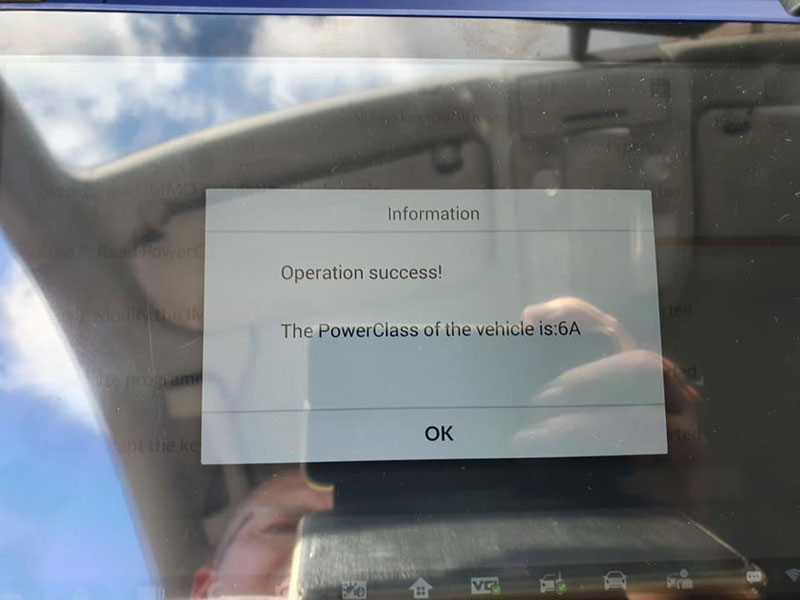

Step 2: Read PowerClass (Read CS & PIN)
Step 3: Modify the IMMO Data

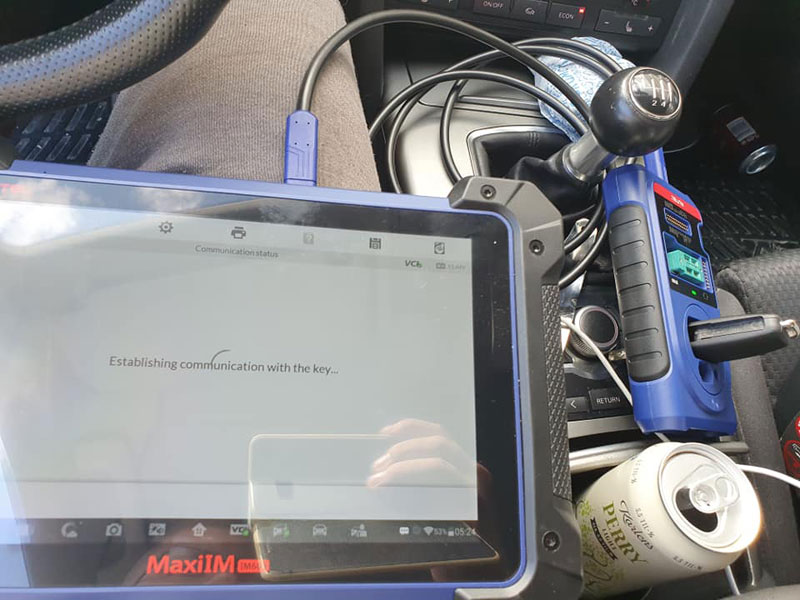

Step 4: Make a dealer key

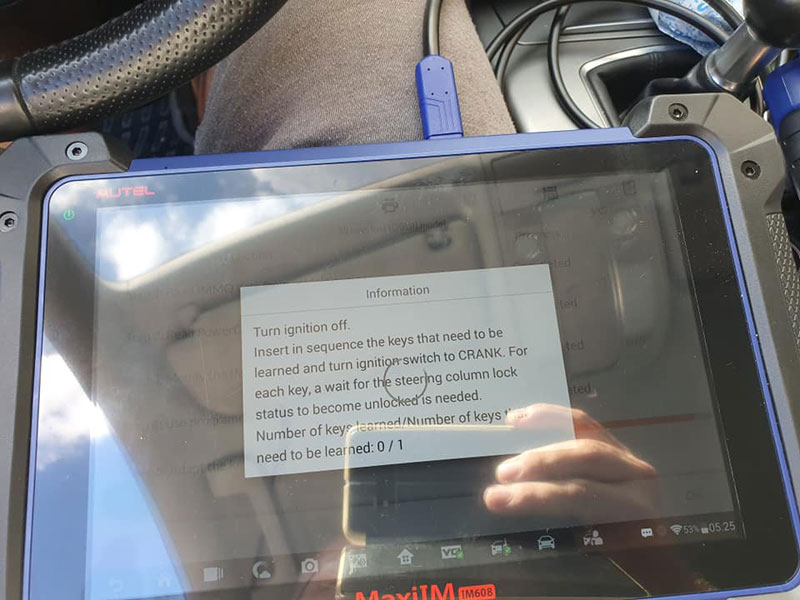

Step 5: Adapt the key to the immobilizer system

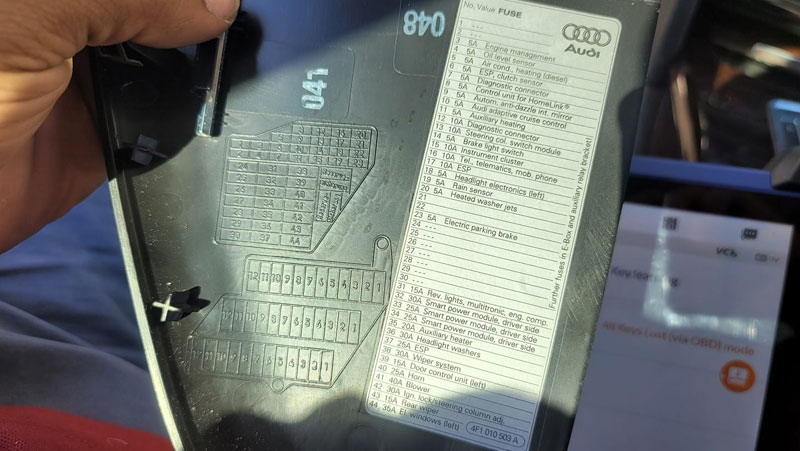

Those fuses you jumped here in 2007 Audi A6 would be:
15 amp fuse 31 Rev. lights, multitronic, eng. comp.
30 amp fuse 38 wiper system
