AK90+ Cable Information

There are two different (mirrored) MCU adapter cables being distributed with AK90+ models.
Some have a black wire as pin 1 and some have the brown wire as pin 1. The images shown
below have the brown wire as pin 1. The blue wire is not connected.

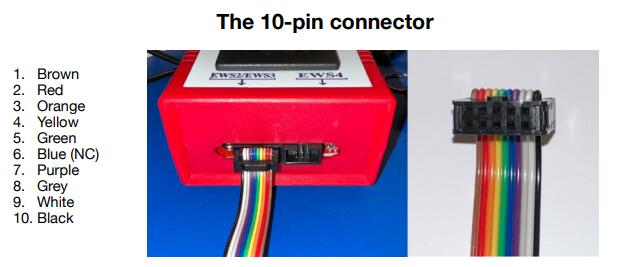

Ak90 Cable Information 1

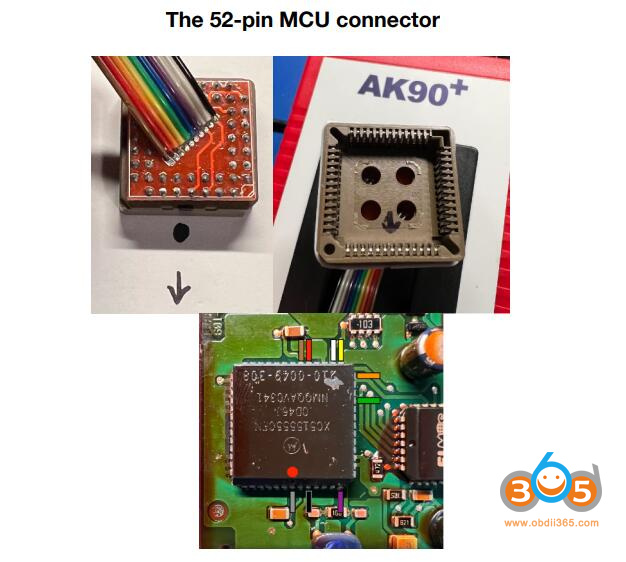

Ak90 Cable Information 2
